Advantages of the Machining Center: Definition and Composition
A machining center is a CNC machine tool that changes tools by itself and cuts a part in one setup. This page explains what sits inside the machine, which parts fit it, and where its limits show up. Written for engineers and buyers who need to judge a process, not a brochure.
What matters before you read further
What counts as a machining center
A machining center is a CNC machine tool with a tool magazine and automatic tool change. That single feature is the dividing line. A three-axis CNC mill without a changer still needs an operator to swap tools by hand, so a second operation stops the cut. Add the changer and the spindle keeps working, which is where the advantages of the machining center actually start.
The machine performs multiple processes on a part that is clamped once. Face milling, drilling, tapping, boring, and contour milling run back to back. Between operations the part never leaves the vise or fixture, so the datum does not move. For a bracket with 40 holes at true position, that is the difference between a functional part and a pile of scrap.

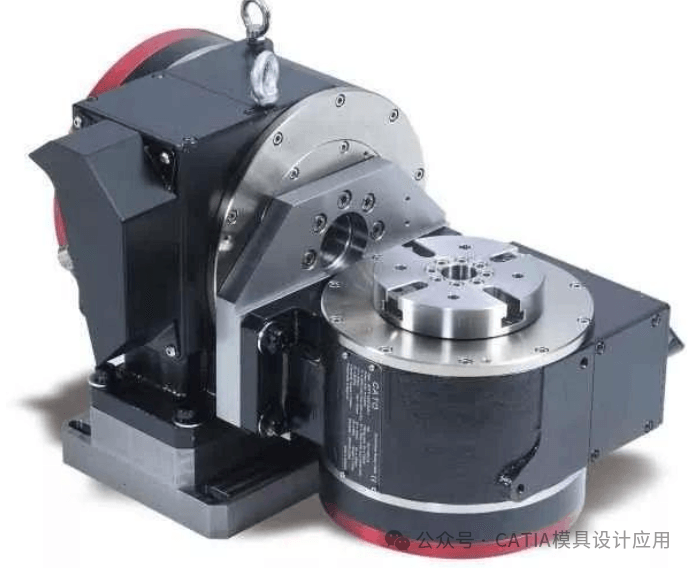

Most shops describe the machine by its axes. A three-axis center moves X, Y, and Z. A four-axis machine adds a rotary table, usually Ø400 mm, that indexes between faces. A five-axis machine tilts and rotates at the same time, so the tool can reach an undercut or a compound angle without a custom fixture. Each step up adds cost and setup complexity.
The term covers vertical and horizontal spindle layouts, pallet changers, and mill-turn centers. What they share is the control logic: one program, one setup, many tools. If you are comparing quotes, ask how many setups the part needs. That number drives cost far more than the hourly rate.
The parts inside the machine
Mechanically, the structure carries five subsystems: the bed and column, the spindle, the linear axes with ball screws, the tool magazine, and the worktable or rotary table. The bed is usually cast iron or a welded steel frame filled with polymer concrete. Mass and damping matter more than stiffness alone, because chatter starts as vibration in the structure.
The spindle is the part that decides your surface finish. A typical machining spindle runs 8,000 to 15,000 rpm for general work, with higher speeds for aluminium and lower speeds for titanium. Spindle taper, coolant-through capability, and runout all show up in the cut. If a shop cannot tell you the spindle runout, they cannot promise Ra 0.8–1.6 μm.
Ball screws convert motor rotation into linear motion. Preloaded double-nut ball screws remove backlash, which is what allows bidirectional contouring without a lost-motion error at each reversal. Linear guideways carry the load. On older or worn machines, backlash shows up as oval holes and mismatched step positions.
The CNC system ties it together. It reads the program, closes the position loop from encoders or glass scales, and compensates for tool length, tool radius, and thermal growth. The tool magazine and changer sit under the same control, so tool life data and offset changes are logged in one place.
Where the advantages come from
The first advantage is fewer setups. Every time a part is unclamped and moved to a second machine, the datum shifts by whatever the fixture repeatability allows. On a turned part that can be 0.02 mm. On a machining center the same face stays clamped, so the error budget does not grow with each operation.
The second advantage is cycle time. Automatic tool change takes a few seconds. Manual change takes a minute or more, plus the air cut and re-approach. On a part with 12 tools, the difference across a 500-piece run is measured in hours, not minutes. That does not reduce the hourly rate, but it reduces the hours you pay for.
The third advantage is consistency. A program with fixed speeds and feeds, plus in-process tool wear compensation, holds size across a run. This is why a machining center suits 10,000+ part runs and one-off prototypes with the same program. The setup changes, the toolpath does not.

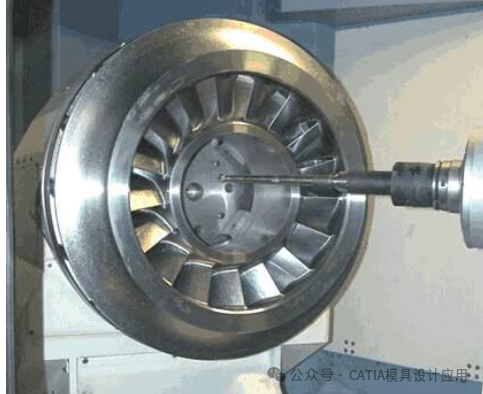

The fourth advantage is geometry freedom. Five simultaneous axes let a ball nose cutter follow a curved surface with the tool normal to the surface. That improves finish and tool life at the same time. For impellers, turbine blades, and medical bone plates, this is the only practical way to cut the form in one setup.
- 1Fewer datumsOne clamp equals one datum for all features.
- 2Shorter cycleTool change drops from minutes to seconds.
- 3Repeatable sizeProgram plus wear compensation holds ±0.005 mm.
- 4Complex formSimultaneous five-axis cuts curved surfaces in one pass.
When the process is the wrong choice
A machining center cannot cut a square internal corner. The cutter has a radius, so the corner inherits it. If the drawing calls for a sharp 90° internal corner, the part needs EDM or a broach. Designers who do not know this add cost at the drawing stage, and no amount of machine capability fixes it.
Deep small holes are another limit. A Ø1 mm hole at 20:1 depth needs a long, thin drill that deflects. High-speed drilling with peck cycles helps, but the hole will drift. On a 4,000 mm maximum processing size machine, the reach is there; the rigidity is not. Sometimes a wire EDM or a laser is the better route.
Thin walls move. A 0.5 mm aluminium wall will deflect under cutting force and then spring back, so the finished wall is not where the program put it. You can rough, stress-relieve, and finish in a second setup, but that adds cost and time. If the wall is thinner than 0.8 mm, expect several passes and a careful fixture.
Hardened tool steel above 55 HRC cuts poorly on a standard machining center. The spindle and tooling can do it at low speed, but tool life falls fast and the finish suffers. For those parts, grinding or EDM after heat treatment is the normal sequence.
What to check before you place an order
Ask for the tolerance the shop will hold on your specific feature, not the best number on their website. A ±0.005 mm claim applies to a 50 mm aluminium bracket with a stable fixture. It does not apply to a 3,000 mm weldment that moves after machining. The claim and the part have to match.
Ask how many setups the quote assumes. A part quoted at three setups will cost more than the same part at one. If the shop can move features onto a four-axis or five-axis machine, the second and third setups disappear and the price drops. This is a real lever, not a sales line.
Ask about inspection. A machining center holds size only if someone measures it. Raw material check, in-process monitoring, and final inspection before shipment are the baseline. For a first article, ask for the report. For a production run, ask how tool wear is tracked and when offsets are updated.
Ask about material and finish together. A 6061-T6 part with hardcoat anodizing changes dimension by a few micrometres per surface. If the drawing calls for a press fit after coating, that allowance has to be in the model. The same applies to electroless nickel and powder coating.
Which machine class fits the part
Pick the row that matches your geometry and run size.
| Part situation | Best fit | Why | Watch out for |
|---|---|---|---|
| Prismatic part, 3 faces, 20 holes | 3-axis center | One setup covers all faces in the program | Second op grows the error budget |
| Shaft with flats and cross holes | 4-axis center | Rotary table indexes without re-clamping | Rotary table capacity Ø400 mm |
| Impeller or curved blade surface | 5-axis simultaneous | Tool stays normal to the surface | Programming and setup cost higher |
| Turned body with milled flats | Mill-turn center | Turning and milling in one program | Not for very long shafts |
| Sharp internal 90° corner | EDM, not milling | Cutter radius cannot reach the corner | Adds a separate process step |
| Wall thinner than 0.8 mm | Milling with care | Light passes and a support fixture | Deflection changes final size |
| Hardened steel above 55 HRC | Grinding after heat treat | Milling tool life collapses at that hardness | Sequence adds days, not hours |
The short verdict
If your part is prismatic with several faces and a run between one and 10,000+, a machining center is the right route. If it has sharp internal corners, sub-millimetre walls, or hardness above 55 HRC, plan for EDM or grinding as well, and quote both processes together.
Questions engineers ask next
How is a machining center different from a CNC mill?
The tool magazine and automatic tool change are the difference. A CNC mill can cut the same shapes, but an operator swaps tools by hand, so the spindle stops between operations.
In practice this means a machining center runs a multi-tool program without interruption. The part stays clamped, so the datum does not move and cycle time drops.
Do I need five axes or is three enough?
Three axes cover most prismatic parts where every feature is reachable from a face you can clamp. Four axes add indexed rotation, which suits shafts and parts with features on four sides.
Five simultaneous axes pay off when the surface is curved and the tool has to stay normal to it, such as impellers or bone plates. If a three-axis setup with two clamps works, it is usually cheaper.
What tolerance can a machining center actually hold?
On a stable aluminium or steel part with a rigid fixture, ±0.005 mm is achievable on critical features. That figure depends on the part, not just the machine.
Long parts, thin walls, and hard materials widen the tolerance. Ask for a per-feature number on your drawing rather than a general claim.
Which surface finishes are realistic?
As-machined faces land around Ra 1.6–3.2 μm. A finish pass with a sharp cutter and the right feed per tooth reaches Ra 0.8–1.6 μm.
Ra 0.2–0.8 μm needs a fine finishing strategy or a secondary process such as polishing or grinding. Bead blasting and anodizing change the appearance but not the underlying roughness much.
Can a machining center cut hardened steel?
It can cut up to roughly 55 HRC with the right carbide or ceramic tooling, but tool life drops quickly and the surface finish suffers.
For most hardened parts, the practical sequence is machine soft, heat treat, then grind or EDM the critical surfaces. Quote the whole sequence, not just the milling step.
What run size makes sense?
The same program covers one prototype and a 10,000+ part run. Setup cost is amortised across the batch, so the per-part price falls as quantity rises.
There is no minimum order quantity for the process itself. The break-even point against casting or molding depends on geometry and material, not on the machine.
