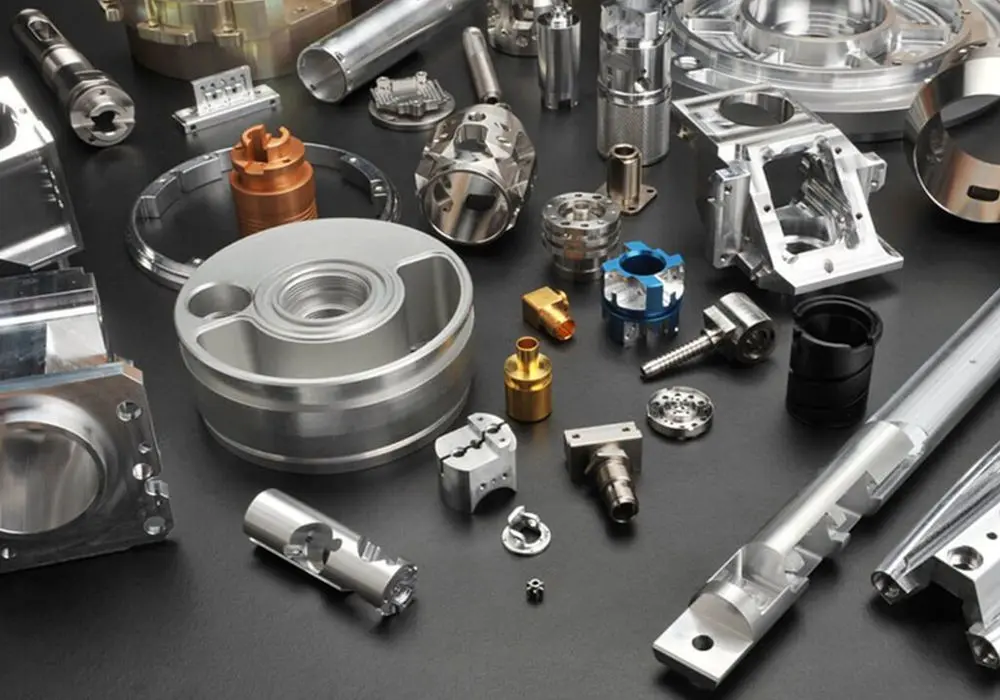

Every custom ABC auto part is a set of decisions frozen into metal. The drawing fixes the shape. The process plan fixes how that shape is reached: which face is held first, which faces are cut in the same setup, and where the tool is allowed to enter and leave. Those choices set the tolerance you can actually hold, not the tolerance printed on the title block.

A 3-axis machine cuts from one direction. Every new face means a new fixture, a new clamp, and a new stack of positional error. A 5-axis center rotates the part or the spindle so five sides are reached without re-clamping. That is the whole point. It is not speed. It is the number of times the part is touched.

Each re-clamp adds roughly 10–30 μm of positional uncertainty on a well-built fixture, and more on a soft one. If a bracket carries three bores that must stay coaxial within 0.02 mm, cutting them in one setup removes that stack entirely. If the same bracket is a flat plate with one milled pocket, a 3-axis machine does the job faster and cheaper.

So the first question is never which machine is better. It is how many critical features share a common axis, and whether the part can be reached without moving it. That answer drives everything downstream: fixture cost, cycle time, inspection method and the size of the scrap pile when something drifts.

A datum is the surface the rest of the part is measured from. On automotive work, bad datum choice shows up as a part that passes incoming inspection and fails at assembly. The classic mistake is dimensioning from a cast surface that varies batch to batch. Casting draft and parting-line flash can move that surface 0.3–0.8 mm, so every feature tied to it inherits the shift.

We prefer to machine a datum first, then reference everything to it. On a housing, that usually means facing one pad flat, drilling two tooling holes in the same setup, and using those holes for every later operation. The holes become the part's identity for the rest of the route. Inspection fixtures use the same holes, so the numbers mean the same thing on the shop floor and in the CMM room.

Thin-wall parts are the second problem. A 2 mm aluminum wall will deflect under a 60 N clamping force before the cutter ever touches it. The fix is not a lighter pass. It is support: a soft jaw machined to the part contour, vacuum fixturing for flat covers, or sacrificial tabs that hold the profile until the last operation.

Beryllium copper and 17-4PH (SUS630) add their own habits. Both work-harden, so a rubbing pass instead of a cutting pass raises the next pass's cutting force. Keep the radial engagement high and the chip load steady, and leave 0.3–0.5 mm of stock for a clean finishing pass.

Our 16 simultaneous 5-axis machining centers cover five travel envelopes, from 500 × 310 × 200 mm up to 4,000 × 400 × 150 mm. The 4,000 mm class is for long extruded profiles and rails. The 750 × 1,150 × 550 mm and 600 × 600 × 600 mm machines take most housings and covers. Compact 500 × 500 × 450 mm cells handle small brackets in volume. A Ø400 mm rotary table covers round work that needs milling on the face and drilling on the flange.

The 12 four-axis mills and 27 three-axis machines are not leftovers. A shaft with a flat and two cross-holes is four-axis work. A flat plate with pockets and a perimeter profile is three-axis work. Routing those to a 5-axis center wastes spindle hours and pushes your unit cost up for no gain in tolerance.

For turned parts with milled features, 16 mill-turn centers cut both in one cycle. A transmission gear blank with a keyway and a cross-drilled oil passage is a typical case. Doing it on a lathe and then a mill means two chucks, two datums and a concentricity callout that is hard to hold. One machine removes the argument.

Part geometry decides the route. If you are unsure which envelope your part falls into, send the STEP file and we will say which class of machine it fits and why.

Material choice drives more than strength. 6061-T6 machines cleanly and anodizes well, which is why it dominates brackets and covers. 7075 gives higher strength but is less forgiving on deep pockets and tends to show tool marks. 304 stainless galls on slow passes; 316L behaves better on medical and marine hardware but costs more per kilo.

Hardness matters at the fixture too. A 440C or tool steel part needs carbide and lower surface speed, and it will punish any setup that is not rigid. Inconel and TC4 (Ti-6Al-4V) sit at the other end: low thermal conductivity, so heat stays in the cutting zone. Flood coolant and a shorter tool overhang keep the edge alive.

Finish is where hidden cost lives. As-machined at Ra 1.6–3.2 μm is enough for most internal brackets. Ra 0.8–1.6 μm shows on visible covers. Ra 0.2–0.8 μm usually means a seal face, a bearing seat or a sliding surface. Each step down in roughness adds a finishing pass and often a separate operation.

Anodizing, electroless nickel, zinc plating, powder coating and black oxide all add masking and handling. Laser marking has a practical floor of 1.5 mm character height; below that the mark fills in and stops being readable after plating. If a part needs three finishes in three areas, expect masking time to be a real line item.

±0.005 mm is achievable on our equipment, but it is not free and it is not needed everywhere. A tolerance that tight only makes sense on a bore that seats a bearing, a spigot that centers a shaft, or a face that sets end float. Put it on a clearance hole and you have bought inspection time for nothing.

The practical split we see on automotive work: bearing bores and sealing faces at ±0.005 to ±0.010 mm, mating faces and dowel holes at ±0.02 mm, general profiles at ±0.05 mm, and non-critical edges at ±0.1 mm or looser. A drawing that applies one tight block tolerance to everything tells the shop you have not ranked the features.

Heat is the other half of the budget. Aluminum expands about 23 μm per meter per degree Celsius. A 300 mm part that measures in tolerance at 20 °C will read low if it is gauged at 30 °C after a heavy cut. For tight work we let the part settle before final inspection, and we measure at a controlled temperature.

Surface roughness and tolerance interact. A tight bore finished with a worn tool will not hold size for long, because the tool wears as it cuts. That is why the finishing pass is a separate, light cut with a fresh edge, not the last 0.05 mm of a roughing pass.
