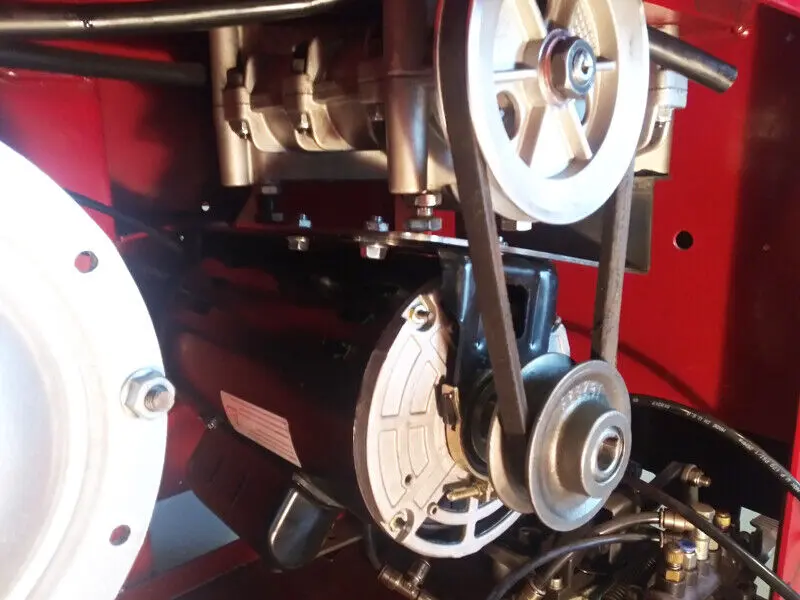

A tire changer is a low-speed, high-force machine. The turntable clamps a wheel, the bead breaker pushes a shovel against the sidewall, and the mount head guides the bead over the rim. Nothing spins fast. What kills parts is repeated shock, side load, and grit from the shop floor working into sliding surfaces.

That duty cycle explains the failure pattern. Air cylinders leak at the rod seal before the bore is worn out. Bead breaker shovels go out of flat where they touch the tire, not where they bolt to the arm. Clamp jaws lose their grip after the insert teeth round over. Shafts bend from a jammed wheel, not from normal torque.

So the useful question is not "what shape is this part?" It is "which feature sets the fit, and which feature takes the beating?" Those are often two different faces on the same part, and they need different tolerances and different surface finishes.

• 1
  Seal surfacesBore and rod finish matter more than overall diameter.
• 2
  Wear facesShovel tips and jaw inserts need hardness, not tight tolerance.
• 3
  Locating featuresBolt circles and pilot diameters set alignment. Get these right first.

Air cylinders and their end caps come up constantly. The bore needs a straight, consistent diameter so the piston seal seats evenly. When we machine a replacement cylinder body, the critical call is the bore-to-rod-seal alignment, not the outside profile. A body that looks right but runs 0.05 mm out of concentric will leak again in weeks.

Bead breaker shovels and their pivot pins are the second common group. The shovel is a wear part: it slides under the bead thousands of times against rubber and rim edges. Machining a batch from 4140 or 4340 and hardening the working face holds shape longer than mild steel. The pivot pin bore, though, has to stay round so the shovel does not cock sideways.

Mount head and demount tool fingers wear at the tip radius. Air valves, fittings, and manifold blocks fail at sealing faces and thread roots. Turntable clamp jaws and their threaded adjusters strip or round over. Each of these is a small part, and each one has one or two features that decide whether the repair lasts.

• 1
  Cylinder bodies and end capsBore straightness and rod seal concentricity.
• 2
  Bead breaker shovelsFace flatness plus a hardened wear surface.
• 3
  Pivot pins and bushingsRoundness and a running clearance that tolerates grit.
• 4
  Valve and manifold blocksSealing face flatness; thread depth and pitch.

A cylinder bore that runs a lip seal usually wants Ra 0.2–0.8 μm and a diameter held within ±0.005 mm. A pivot pin bore running in a bronze bushing is happy at Ra 0.8–1.6 μm with a slightly looser fit, because a tight fit in a dirty environment seizes. Matching finish to function is what separates a repair that lasts from one that comes back.

Material choice follows the same logic. Aluminium 6061-T6 is fine for brackets, covers, and non-wearing structural plates. For shovels, pins, and jaws, 4140 or 4340 with a hardened surface resists the gouging that soft steel cannot. Stainless 304 or 316 suits air line fittings and anything exposed to moisture or tire lube. POM and PEEK work well for guide blocks and low-load spacers that should not mar the rim.

Surface treatment is not decoration here. Black oxide on steel pins holds a light oil film. Electroless nickel on a valve block fights corrosion at the sealing faces. Hardcoat anodizing on aluminium jaws adds a wear layer without changing dimensions much. If a part is cosmetic, bead blasting is enough. If it slides against tire bead, it needs more than that.

• 1
  Seal bores±0.005 mm, Ra 0.2–0.8 μm, no axial scratches.
• 2
  Bushing fitsRa 0.8–1.6 μm, running clearance to shed grit.
• 3
  Wear platesHardened 4140/4340 or hardcoat anodized aluminium.
• 4
  Air fittings304/316 stainless or electroless nickel on steel.

Many tire machine parts are not simple prisms. A bead breaker arm has an angled face, a pivot bore, and a mounting pattern that do not sit on one plane. On a 3-axis machine you set up the part two or three times and accept the stack-up. On a simultaneous 5-axis center the angled faces and the bore come off one setup, so the relationship between them stays fixed.

That matters most for parts with a bore and a face that must be perpendicular, or two bores that must be coaxial. Refixturing adds error you cannot inspect away. One setup removes it. We run 16 simultaneous 5-axis centers, and for replacement parts of this size the setup count is usually the difference between a part that fits on the first try and one that needs a shim.

Turning covers the cylindrical side: cylinder bodies, pins, bushings, threaded adjusters. Mill-turn centers handle parts that need both, like a cylinder end cap with a turned spigot and a drilled port face, without a second fixture. For a one-off repair the setup time dominates the cost; for a run of 200 jaws the cycle time dominates.

• 1
  One setupBest for angled faces plus bores that must stay true to each other.
• 2
  Mill-turnEnd caps, spigots, and port faces in a single cycle.
• 3
  Batch runsJaws, pins, shovels: cycle time and fixture cost decide the price.

Ask which feature is the datum. If the answer is vague, the tolerance callout is probably vague too. A good quote names the bore or the mounting face that everything else is measured from, and says what the critical dimension is. Without that, two shops can both claim ±0.005 mm and still deliver parts that do not interchange.

Ask about the wear surface. If a shovel or a jaw comes back with the same hardness all the way through, it will round over like the one it replaced. Hardening, coating, or material selection should be stated, not implied. For 4140 and 4340 we normally specify the heat treat before machining the finish cuts, so the final dimensions are cut after the part has moved.

Ask how the part will be inspected. On a repair part, the useful check is the fit feature: bore diameter, pin roundness, bolt circle position. A dimensional report on the outside profile proves little. We inspect 100% before shipment and can supply reports on request, but the report should be aimed at the features that decide whether the part works.

Ask what happens if it does not fit. A shop that machined from a worn sample needs a way to correct the fit. Sending a worn original as the reference is normal, but say so, because the wear is baked into the dimensions you will get back unless the shop compensates for it.

• 1
  Datum namedThe quote should state the feature everything is measured from.
• 2
  Wear surface specifiedHardness, coating, or material chosen for the sliding face.
• 3
  Inspection aimed at fitBore, roundness, and bolt circle, not just outside profile.
• 4
  Worn sample disclosedTell the shop so wear can be compensated, not copied.
