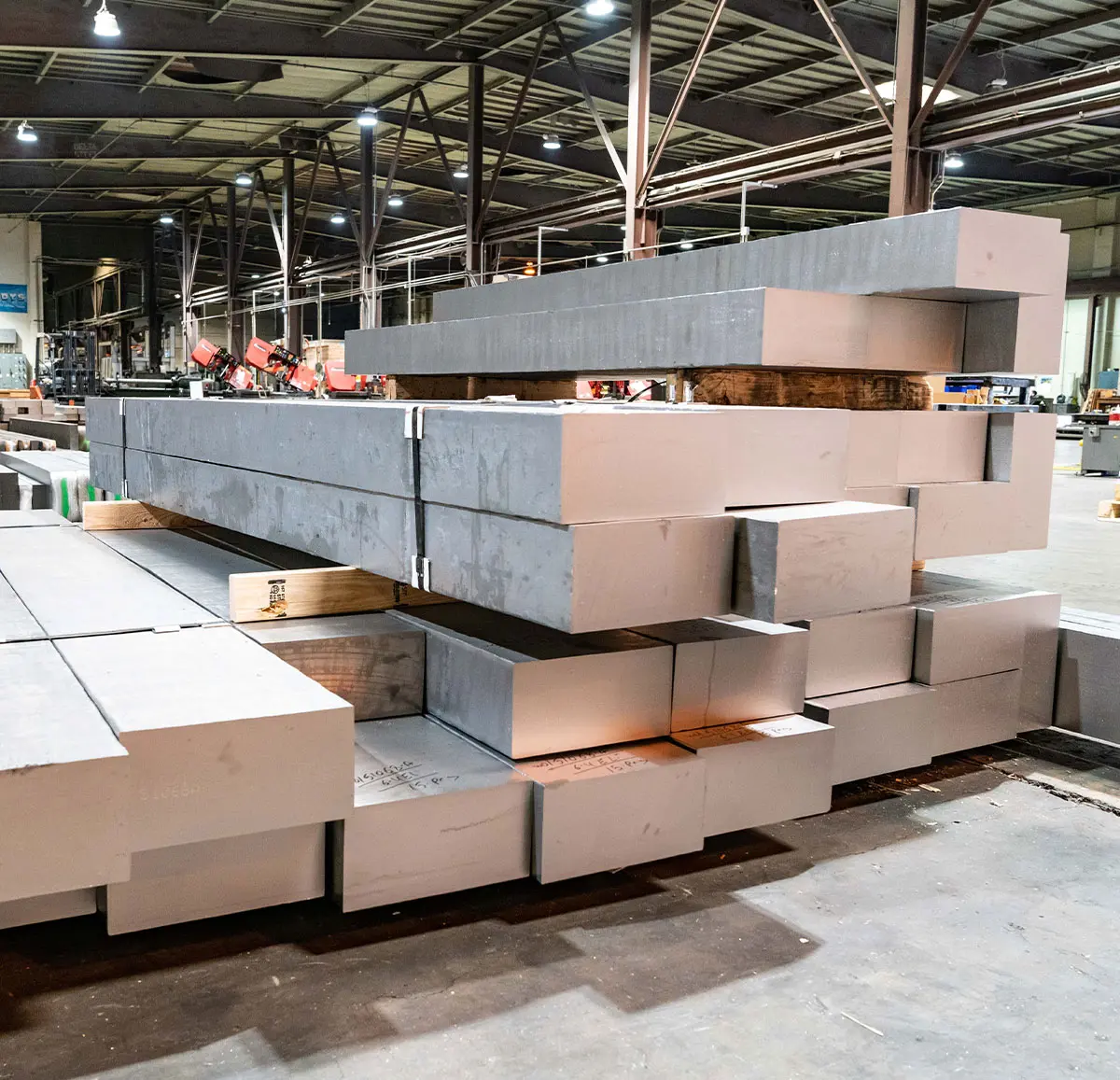

A machined part starts as a bar, plate or block. That stock choice sets the grain direction, the amount of material the tool has to remove, and how the part sits in the vise. Change the stock and you change the setup. Change the setup and you change the tolerance you can hold.

This is why cnc solutions greatlight work as a single chain rather than two purchase orders. Metal arrives cut to length. The first operation removes the saw face and establishes a datum. Every later dimension hangs off that datum, so a stock cut that is 2 mm short or 3° out of square can cost a whole extra setup.

Material grade is not the whole story. Temper, flatness and residual stress matter just as much on thin plates. A 6061-T6 plate that was stretched during rolling will move after the first face cut, and a 0.5 mm bow becomes a 0.05 mm flatness error across a 200 mm face.

So the practical rule is simple. Fix the stock envelope and the grain direction before you fix the toolpath. Everything downstream gets easier.

• 1
  Stock sets the datumSaw face and squareness decide how many setups follow.
• 2
  Temper sets the movementStretched plate relieves stress after the first cut.
• 3
  Envelope sets the toolReach and stiffness limit what you can hold.

The alloy decides machinability, and machinability decides cycle time. Free-cutting grades such as 6061 aluminium, 303 stainless and C36000 brass form short chips and run at high surface speeds. They are the default for brackets, housings and fittings where the loads are moderate and the geometry is fiddly.

Tougher grades cost more time, not just more money per kilogram. Inconel and Ti-6Al-4V conduct heat poorly, so the cutting edge stays hot and the tool wears fast. Speeds drop by roughly half to two thirds against 6061, and you plan for more tool changes and more spindle time on the same profile.

Corrosion and service conditions often override machinability. A 316L valve body in a food line, a 17-4PH shaft in a marine actuator and a 7075 rib in an aerospace bracket each push the choice in a different direction. Pick the grade that survives the environment first, then accept the machining cost it brings.

One trap is asking for a grade the bar mill does not stock in your size. If the only available stock is a larger diameter, you cut away more metal and lose the cost advantage. Tell us the finished envelope early and the stock size can be chosen to match.

• 1
  Free-cutting first6061, 303 and C36000 keep cycle times low.
• 2
  Heat-resistant gradesTi-6Al-4V and Inconel need lower speeds and more tool changes.
• 3
  Service conditions winEnvironment picks the grade, machining cost follows.

A part with open faces and one dominant direction of access machines fast. A part with features on five sides needs either more setups or a 5-axis machine that can reach them in one. The machine choice is not about prestige. It is about how many times the part has to be re-clamped.

Every re-clamp adds a small position error. On a three-axis part held in a vise, flipping the job introduces roughly 0.02–0.05 mm of variation between the two sides. A 5-axis setup with a Ø400 mm rotary table keeps the part in one coordinate frame, so bore-to-bore relationships stay inside ±0.005 mm without a second fixture.

Deep pockets and thin walls pull in the other direction. A 0.8 mm wall on a 40 mm tall pocket will deflect under cutting force, and no amount of machine accuracy fixes that. The answer is usually a lighter radial cut, a smaller step-down, or a support rib that you remove later.

Threads, tight radii and sharp internal corners all carry a tool-size penalty. A 2 mm internal radius needs a 4 mm cutter, and a 4 mm cutter cannot reach 60 mm deep without chatter. Open that corner to 5 mm and the job often gets shorter and cheaper.

• 1
  Count the setupsOne 5-axis setup beats three vise flips.
• 2
  Watch the wallsBelow 1 mm, deflection beats machine accuracy.
• 3
  Open tight cornersA larger radius lets a stiffer cutter in.

Tolerance is won in the sequence, not in the last finishing pass. Roughing removes most of the volume and releases stress. If you go straight to a finished dimension, the part moves after the clamps come off and the measurement is already wrong.

The usual order is rough, stress relief if needed, semi-finish, then finish. On aluminium this may mean leaving 0.3–0.5 mm of stock per face for the finishing pass. On 17-4PH or 4140 the allowance is often 0.2–0.3 mm because the material is stiffer and moves less.

Datums should be machined, not inherited. A sawn face is fine for the first setup, but by the second operation the part should reference a face you cut yourself. That is how you keep a 0.01 mm relationship between two bores across two setups.

Inspection closes the loop. A raw material check confirms grade and condition, in-process checks catch drift, and a final inspection measures the drawing before the part ships. Reports are available on request if your quality file needs them.

• 1
  Rough then finishLeave 0.2–0.5 mm depending on alloy stiffness.
• 2
  Machine your datumsA sawn face is only good for setup one.
• 3
  Measure in processCatch drift before the finish pass, not after.
