CNC Machining of Square Parts

• 1
  Why CNC machining of square parts is harder than round work
• 2
  How squareness is actually created in the machine
• 3
  Workholding choices that decide the result
• 4
  When a square geometry fights the process
• 5
  Material behavior and surface finish on square parts
• 6
  Square part features and the process that fits

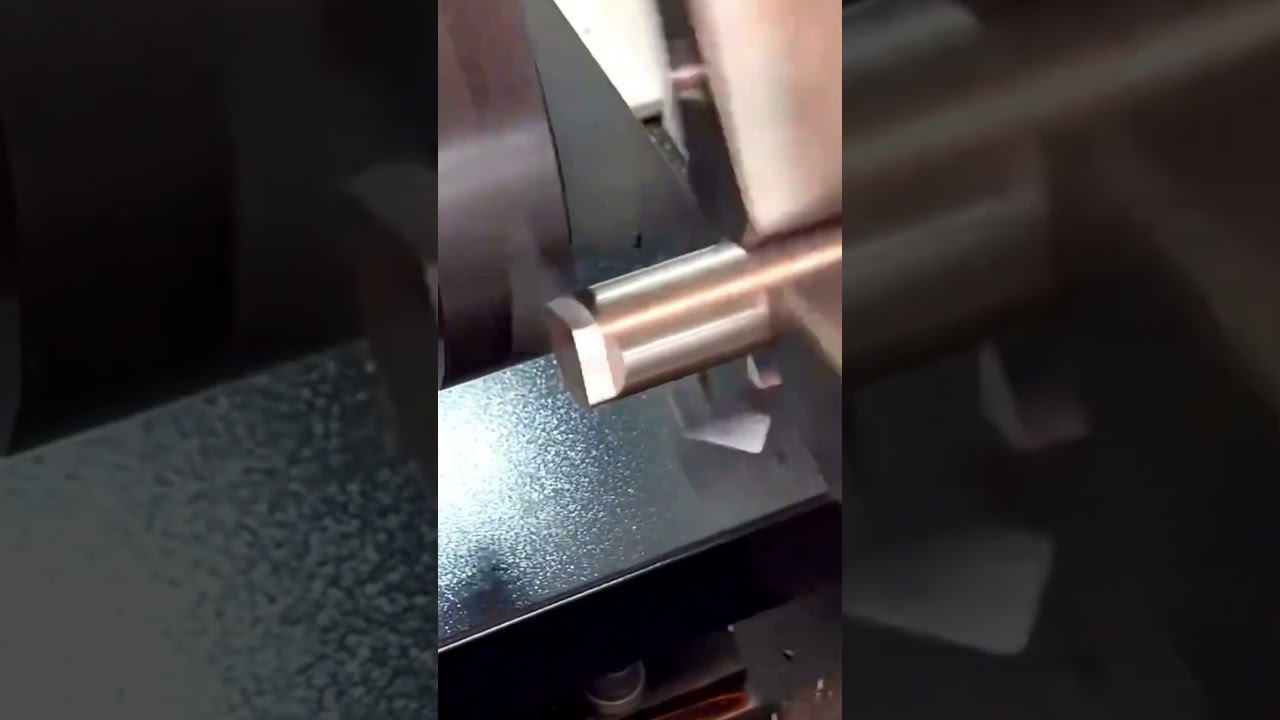

A round part has one reference: the axis. A square part has six faces that all reference each other. Every cut on face three can shift the material relative to face one. That is the whole difficulty. Squareness is not a dimension you check at the end; it is a stack of decisions made from the first setup onward. Get the first face wrong and no amount of finishing rescues the block.

The second problem is access. A round part can often be turned in one continuous pass. A block needs the spindle to reach six sides, and each repositioning introduces a new chance for error. Fixture repeatability, chip clearance, and the order of operations all show up in the final squareness number. This is why a square bracket with a ±0.005 mm corner requirement costs more than a round bushing with the same tolerance.

Third, square parts concentrate stress at the corners. Sharp internal corners act as stress risers, and thin walls on a block deflect under cutting force. A 1.5 mm wall on a 100 mm plate will chatter long before a solid boss will. Designers who add fillets and avoid deep narrow pockets get better parts at lower cost.

Squareness starts with a reference face. The first operation establishes one flat surface and, usually, one edge. Everything after that is measured from those two planes. On a block that arrives as sawn bar stock, the first cut removes the saw skin and creates a true reference. Without it, every later dimension inherits the saw's error, which can easily be 0.5 mm over 300 mm.

The second step is squaring the block to the reference. A machinist may face one side, flip the part against a solid jaw, and face the opposite side so both are parallel. Then the part is stood on edge and the remaining faces are cut. Each flip depends on how cleanly the part seats in the vise. A burr left on a reference face is enough to tilt the block and throw a corner out of square.

The machine itself contributes error. A spindle that is not trammed, a vise that is not indicated, or a table with wear will all show up as squareness deviation. A 0.02 mm/m spindle tilt is invisible in a single cut but becomes 0.006 mm over a 300 mm face. For tight work, the vise is indicated before every setup, not once a month.

Thermal drift matters on long cycles. Aluminium grows about 23 μm per meter per °C. A block that warms 5 °C during a two-hour cycle moves roughly 0.1 mm over a meter. Roughing, then letting the part cool, then finishing is standard practice for tight squareness on large parts.

A vise is the default for square parts because it self-aligns on two faces. A standard 150 mm machine vise holds a 100 mm cube with enough rigidity for light finishing. The problem is lift. When the movable jaw pushes, the part can rise off the parallels. Machinists tap the part down before final tightening, and use a torque wrench on the vise handle for repeatability.

For larger blocks, a fixture plate with toe clamps beats a vise. The part sits directly on the plate, so there is no parallel stack to compress. Clamps are placed over solid material, never over a pocket that is about to be cut. A 400 mm block on a plate with four toe clamps is far more stable than the same block hanging out of a vise.

Thin plates are the worst case. A 6 mm plate 200 mm square will bow when clamped and spring back after unclamping. The fix is to clamp lightly, support underneath with a full contact bed, and take light finishing passes. Vacuum chucks work well here because the clamping force is spread over the whole face instead of two jaws.

For five-sided work, a dovetail or a machined soft jaw that grips a sacrificial boss lets the part be flipped without losing position. The boss is cut off in the final operation. It adds a step but holds squareness across all six faces, which is often the only way to hit a tight corner.

Deep narrow pockets in a square block are the classic problem. A tool that is long enough to reach the bottom is also thin enough to deflect. A 6 mm end mill with a 40 mm reach will bend under load, and the wall it leaves will taper. If the pocket depth is more than about four times the tool diameter, expect to rough with a shorter tool and finish with a longer one, or redesign the pocket.

Sharp internal corners cannot be cut by a round tool. A 90° corner requires a tool with zero radius, which does not exist in a mill. The corner will always carry the tool radius, usually 0.4 mm to 3 mm depending on the cutter. If the print calls for a true sharp corner, the design needs an EDM step or a radius callout.

Very thin walls on a square part move twice. They deflect while being cut and they relax after the clamps come off. A 1 mm wall on a 50 mm tall block is a finishing problem, not a roughing problem. Leave more stock, take light passes, and expect to measure after the part has cooled.

Squareness and flatness interact on large plates. A plate that is flat but not square is easy to fix by re-cutting an edge. A plate that is square but bowed is harder. Bowing usually comes from residual stress in the raw stock or from removing more material from one face than the other. Balance the stock removal on both sides.

Aluminium 6061-T6 is the usual choice for square parts. It cuts fast, holds a good finish, and is stable after stress relief. It also machines at 3,000 to 8,000 rpm with carbide, which keeps cycle times short. The catch is that thin sections of 6061 can still distort if the stock was not stress relieved.

Stainless 304 and 17-4PH are common for square parts that need corrosion resistance. Both work-harden, so a light finishing pass with a dull tool will rub instead of cut. Keep the feed per tooth up, use plenty of coolant, and avoid dwelling in the cut. 303 is easier to machine but is not suitable for welded assemblies.

Titanium and Inconel square parts are slow. Heat stays in the cut instead of leaving with the chip, so tool life drops and the part grows. Rough, cool, then finish is not optional here. For a square titanium bracket, expect more setups and longer cycle times than the same part in aluminium.

Surface finish on a square face is limited by the tool path. A facing pass with a 50 mm face mill leaves a visible step pattern, usually Ra 1.6–3.2 μm. A finer finish needs a smaller step-over or a finishing tool, and Ra 0.8–1.6 μm is a reasonable target on a flat square face. Ra 0.2–0.8 μm is possible but slow and should be reserved for sealing faces.
