5 Axis Precision Machining for Automotive Engine Parts

On a three-axis mill the tool always approaches from +Z. Every angled face, every cross-drilled oil gallery, every canted bolt boss has to be reached either by refixturing the part or by using a long tool that reaches around a corner. Each refixture adds a datum stack: the vise moves a few microns, chips sit under a locator, the operator taps the part down and the number changes. On an engine block with six machined faces, that stack can add up quickly.

Simultaneous 5 axis machining removes most of that stacking. The trunnion tilts the part and the spindle rotates, so the tool stays normal to the surface through a continuous path. A cylinder head can be finished in two setups instead of five. Positional 5 axis, sometimes called 3+2, indexes to an angle and then cuts in three axes; it is faster to program and often enough for flat angled faces.

The practical difference shows up in hole position. A cross-drilled gallery that intersects a main bore at 37° is a compound-angle feature. On 3 axis it needs a fixture that holds the block at that angle. On 5 axis the table simply tilts. That is where 5 axis precision machining earns its cost on engine hardware.

• 1
  SimultaneousAll five axes move together; tool stays normal to a curved or angled surface.
• 2
  3+2 positionalTable indexes to an angle, then cuts in three axes. Simpler, faster to program.
• 3
  Setup countA V8 head typically drops from five setups to two.

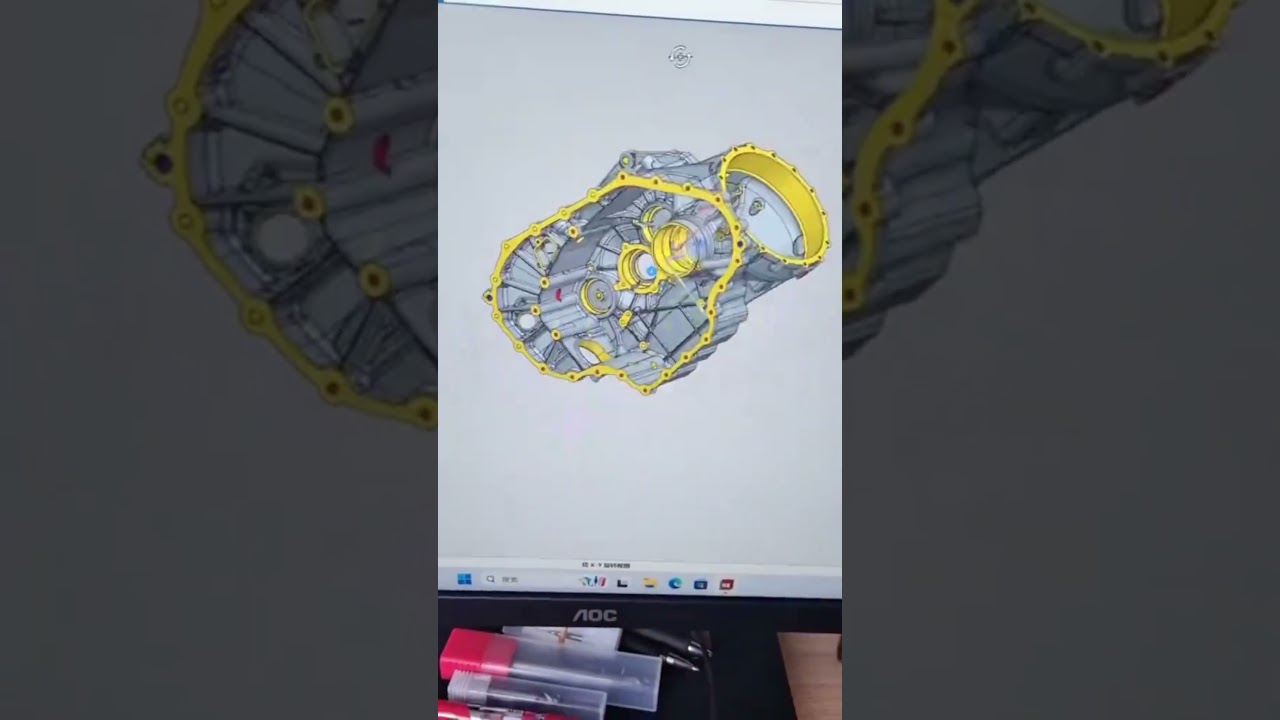

Not every part belongs on a five-axis center. A flat timing cover with a bolt pattern and a few through holes is cheaper on a three-axis mill with a soft jaw. Sending it to a five-axis machine ties up a spindle that could be cutting a head.

The parts that pay off share a pattern: compound angles, deep bores that must stay concentric to a datum, or many faces that need to stay in one tolerance loop. Intake and exhaust ports on a head are the classic case. The port floor is a ruled surface at a shallow angle, and the valve guide bore must stay concentric to the seat within a few microns. Cut both in one setup and the concentricity comes from the machine, not from a fixture.

Turbine housings, EGR coolers, oil pump bodies and transmission valve bodies follow the same logic. So do small-batch billet engine components where no casting exists yet and the part is cut from a solid block of 6061 or 7075.

There is a limit on the other side. If a feature can be reached from two orthogonal directions with a stub tool, and the tolerance is looser than ±0.02 mm, 3 axis with a good fixture will hit it. Adding axes adds programming time and inspection time. It does not add accuracy by itself.

• 1
  Good fitCompound-angle ports, canted injector bosses, valve guide and seat concentricity.
• 2
  Poor fitFlat plates, simple covers, open pockets reachable from +Z.
• 3
  Break-evenUsually around three or more distinct part orientations.

Most automotive engine parts we run are aluminum: 6061-T6 for prototype blocks and covers, 7075 for high-load brackets and rocker components, ADC12 when the part starts as a die casting and only the critical faces are machined. Aluminum cuts fast and holds a good finish, but it moves after roughing. A cylinder head roughed in one pass and finished in the next will drift. We leave 0.3–0.5 mm on critical faces and let the part rest before the finish pass.

Cast iron and steel blocks are heavier on the spindle. 4140 and 4340 need carbide and lower surface speed; A36 is only for fixtures and brackets. Stainless 17-4PH shows up in exhaust-side hardware and holds dimension well after heat treat, but it work-hardens if the tool rubs.

Titanium TC4 and Inconel appear in turbo and exhaust components. Both generate heat at the cutting edge, so we run them slower with high-pressure coolant and accept longer cycle times. Magnesium AZ91D is used for some housings; it cuts easily but the chips need handling discipline.

Plastic parts like POM and PA are usually intake-side prototypes. They machine cleanly but deflect under clamping pressure, so light passes matter more than spindle speed.

• 1
  Aluminum6061-T6, 7075, ADC12. Rough, rest, then finish to control drift.
• 2
  Steel4140, 4340, 17-4PH. Carbide tooling, lower surface speed.
• 3
  Titanium and InconelTC4, Inconel. High-pressure coolant, longer cycle time.

A five-axis machine does not inspect its own work. On engine parts the critical check is usually concentricity between two features cut in the same setup, or a bore-to-bore center distance. We measure those on a CMM with the part still on the same datums used in the program.

Every part gets raw material verification, in-process checks at rough and finish, and a final inspection before shipment. Reports are available on request. Where a drawing calls for a specific gauge, we use that gauge and record the reading.

Heat treat and coating change dimensions. Anodizing builds roughly half the coating thickness per surface, so a bore masked for anodizing and a bore left bare will not match after processing. We plan the pre-plate or pre-coat dimension with the finisher rather than guessing.

For low-volume runs the inspection plan is usually simple: first article, then a defined sample rate. For higher-volume engine components the plan follows the control plan agreed at quote. Nothing on this page overrides a customer drawing; if the two disagree, the drawing wins.

• 1
  CMM checksConcentricity, center distance, true position on critical bores.
• 2
  In-processChecks after roughing and after finishing, before the part leaves the machine.
• 3
  Coating allowanceAnodizing and plating shrink or grow dimensions; plan before, not after.
