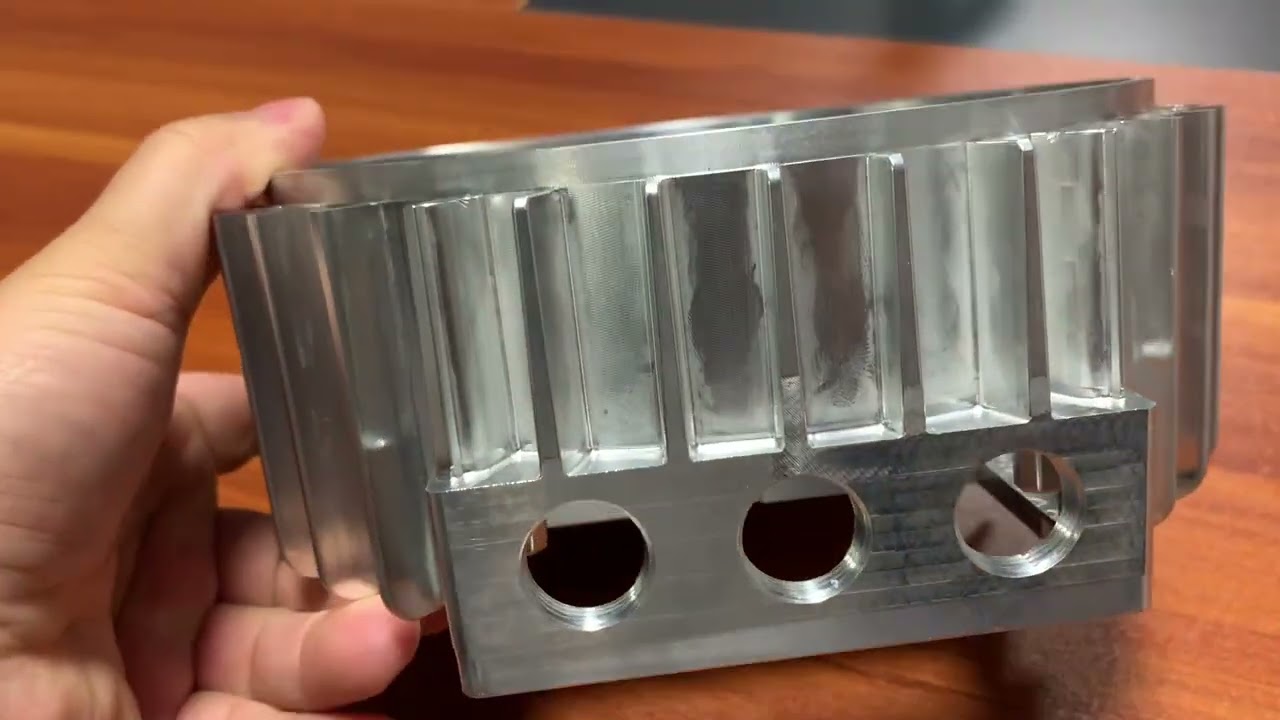

Perfect 5-axis CNC machining technology for a precision engine casing

• 1
  What simultaneous five-axis motion changes on a precision engine casing
• 2
  Workholding decisions that decide casing accuracy
• 3
  Why temperature and tool deflection set the real tolerance floor
• 4
  CAM setup for casing features that meet each other
• 5
  Material behavior inside a precision engine casing
• 6
  Choosing a route for a precision engine casing

A three-axis mill moves the part in X, Y and Z while the tool spins on one fixed axis. A five-axis center adds two rotary axes, so the tool can approach a face from an angle instead of straight down. On a precision engine casing that matters because most of the critical features sit on different planes: bearing bores, mounting flanges, sealing faces, and bolt patterns that must agree with each other.

The practical gain is not speed. It is access. With a tilted tool you can reach an interior wall behind a rib, cut a bore and its chamfer in one pass, and keep the tool shank clear of the workpiece. Short, stiff tools cut quieter and deflect less. That is where the tighter tolerance comes from, not from the extra axes by themselves.

The second gain is setup count. Every time a casing moves to a new fixture, you add a datum shift. Five axes let you finish five or six faces from one clamping position. Fewer setups usually means tighter true position between features, because the errors do not stack.

• 1
  Access beats axis countTwelve features on four planes is the typical trigger for five-axis work.
• 2
  One setup, one datumFewer re-clamps means less stacked positional error.

An engine casing is usually a thin-wall shell. Clamp it too hard and the wall springs inward; release the clamps and the bore goes oval. We use low-pressure hydraulic or mechanical clamping, and where the wall is under 3 mm we add a soft-jaw nest or a castable support so the load spreads over a wider area.

Datum strategy matters more than the machine. A common approach is to establish a primary datum on the main split face, a secondary on two dowel holes, and a tertiary on a machined pad. Everything else is measured from that frame. If the CAD model and the fixture disagree about which face is primary, the first article will show it immediately.

For a precision engine casing we normally cut the main bore last, after the outer walls have been roughed and stress-relieved by a semi-finish pass. Roughing removes material and lets internal stress pull the part. Leaving 0.5–0.8 mm on the bore for the final pass keeps the geometry predictable.

Aluminum expands about 23 μm per meter per degree Celsius. A 400 mm casing that warms 5 °C during a long finishing cycle grows roughly 46 μm across its length. That is several times the ±0.005 mm tolerance we quote on small features. So we let the part stabilize, keep coolant temperature controlled, and measure critical bores after the part has cooled, not while it is warm.

Tool deflection is the other limit. A long slim end mill pushed hard will bend and leave a taper in the bore. The usual fix is a shorter tool, a larger shank, or a lighter radial step-over with higher spindle speed. On deep bores we sometimes switch to a boring head for the final cut, because a single-point tool follows the spindle axis instead of the tool's bending curve.

Surface finish follows the same logic. A stable setup with a sharp tool reaches Ra 0.8–1.6 μm on casing faces without extra work. If the print calls for Ra 0.2–0.8 μm on a sealing face, we plan a separate finishing pass at low feed rather than trying to get there in one cut.

• 1
  Warm parts measure wrongCheck critical bores after the casing returns to room temperature.
• 2
  Short tools hold sizeReduce overhang before you reduce feed.

Five-axis programming starts with the machine model, not the part. If the post-processor does not know the exact rotary pivot distance and trunnion offset, the tool will cut in the right direction but land in the wrong place. We verify the kinematic model with a test block before touching a real casing.

For bores and sealing faces we prefer positional five-axis work where possible: index the rotary axes, lock them, then cut with a normal three-axis path. This is easier to verify and repeatable. True simultaneous motion is reserved for contoured surfaces, blended fillets, and impeller-style geometry that cannot be reached any other way.

In-process probing closes the loop. After roughing, a touch probe can measure the actual position of a dowel hole or a pad, and the finishing toolpath shifts to match. On a precision engine casing this absorbs casting variation without adding a manual re-setup.

Aluminum 6061-T6 and 7075 machine cleanly and hold tolerance well, which is why most prototype and low-volume casings start there. ADC12 die-cast material behaves differently: it can contain porosity, so a bore that looks fine on the outside may open up when the tool breaks into a void. We inspect castings before machining when the print allows it.

Stainless 17-4PH and 316L are common for casings that see heat or corrosion. They work-harden, so a light rubbing pass dulls the tool fast. The fix is a positive feed that stays under the hardened layer, plus plenty of coolant. Titanium TC4 (Ti-6Al-4V) is harder again: low thermal conductivity, high springback, and a real risk of chatter on thin walls.

For high-temperature sections, Inconel and similar nickel alloys push tool life down and cycle time up. We usually plan more roughing passes at lower depth and accept a longer lead time rather than risk a scrapped casing on the final cut.
