CNC Machining of Shaped Workpieces: How Curved Geometry Gets Cut

• 1
  How CNC machining of shaped workpieces generates a curve
• 2
  Why fixturing decides what shape is possible
• 3
  Tool access and the five-axis advantage
• 4
  Design choices that make shaped parts cheaper
• 5
  Checking a shaped surface without guesswork
• 6
  When CNC machining of shaped workpieces is the right call

A shaped workpiece is any part whose functional surfaces do not sit parallel or perpendicular to a single machine axis. A curved rib, a drafted wall, a boss tilted 17°, a pocket with a swept floor. The machine never cuts the curve. It cuts a tool path, and the curve is the average of thousands of straight micro-moves plus the radius of the cutter.

That is why chord error matters more than the CAD model on shaped parts. A ball nose cutter of Ø6 mm stepping over 0.2 mm leaves scallops of a few micrometres. Step over 0.8 mm and the same cutter leaves visible ridges that show up after anodizing. The tolerance you can hold on a curved face is set by stepover and tool runout, not by the drawing alone.

For a typical aluminum housing we hold ±0.005 mm on flat datums and Ra 0.8–1.6 μm on the contoured faces. Those two numbers belong to different features. Mixing them up is the most common quoting error we see: a customer sends one blanket tolerance for a part that has three kinds of surface on it.

Harder materials shift the balance. In 17-4PH stainless or TC4 titanium, a small cutter on a long reach will deflect before it cuts, so the practical limit on a sculpted wall moves from 0.2 mm stepover to something coarser. The wall is still shaped. It is just no longer mirror-smooth without a finishing pass.

• 1
  Curves come from tool pathsThe CAD surface is a target, not the cut.
• 2
  Stepover sets surface finish0.2 mm on a Ø6 mm ball nose gives a fine finish.
• 3
  Flat and curved features need separate tolerances±0.005 mm on datums, Ra values on contours.

A shaped part is hard to hold because the first operation has no flat to sit on. If you clamp on a curved surface, the part moves when the tool loads it, and the finished wall is tapered or chattered. The usual answer is a soft jaw or a machined pocket that matches the blank, cut in the same setup that produces the first datum.

The second operation is easier once you have a datum, but only if the datum is generous. A 3 mm wide pad is not enough to locate a part that is 300 mm long. We often ask for a small sacrificial tab or a boss that gets removed in the last operation, because it gives the vise something honest to bite.

Thin-walled shaped parts are their own problem. A 1.5 mm wall on a curved cover will ring during roughing no matter how gently you cut. Adding a temporary rib, or leaving stock and finishing after stress relief, usually beats chasing the wall with lighter and lighter passes.

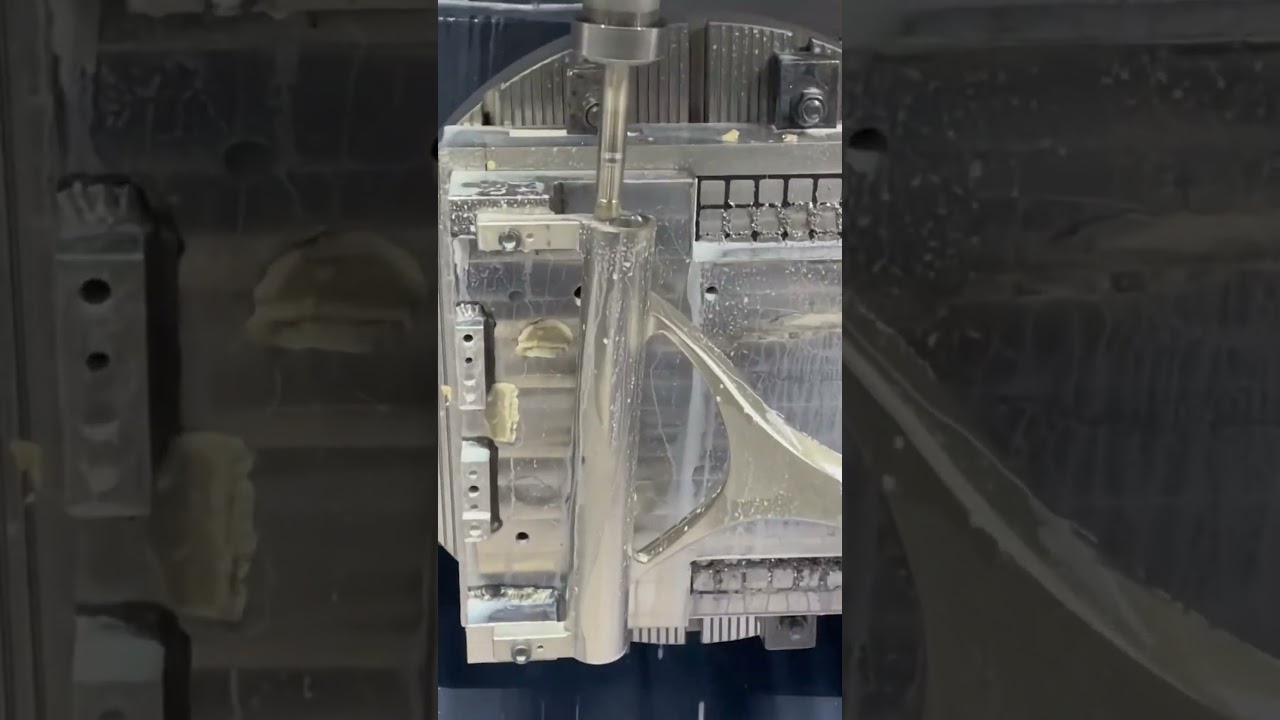

On the five-axis side, a Ø400 mm rotary table lets us tilt the part and cut five faces without re-clamping. That removes most of the re-fixturing error on shaped workpieces. It does not remove the need for a first datum. Even on a five-axis machine, the part has to be located and supported.

• 1
  First op needs a machined pocketSoft jaws cut to the blank profile.
• 2
  Avoid narrow locating padsA 3 mm pad cannot locate a 300 mm part.
• 3
  Temporary ribs help thin wallsRemove them in the last operation.

Tool access is the quiet constraint on shaped parts. A shaped undercut, a deep pocket with a curved floor, or a boss that leans over its own base cannot be reached by a three-axis machine at any angle. The tool shank hits the part before the flute reaches the feature.

Five-axis machining solves this by rotating the part or the spindle so the cutter approaches along its own axis. A Ø6 mm tool with 40 mm of reach can then cut a wall that would need 120 mm of reach on a three-axis setup, and a short tool is a stiff tool. That is the real gain: not the extra motion, but the shorter tool.

There is a limit. Tool length-to-diameter ratio above about 8:1 starts to cost surface finish and accuracy, even with a tilting head. If a shaped feature sits at the bottom of a cavity 150 mm deep, no amount of rotary motion makes a small cutter rigid. The part may need to be split into two pieces and joined, or the feature redesigned so it can be reached from outside.

We run 16 simultaneous five-axis machining centers, 16 mill-turn centers and 27 three-axis machines. The choice of machine for a shaped part is usually decided by access, not by size. A small part with a nasty undercut goes on a five-axis machine. A large part with open geometry goes on a three-axis machine and costs less.

• 1
  Short tools cut betterTilting the part shortens the reach needed.
• 2
  8:1 is the practical L:D limitBeyond that, finish and accuracy drop.
• 3
  Deep cavities may need splittingTwo pieces joined can beat one unreachable pocket.

Radius every internal corner. A shaped pocket with a sharp internal corner forces a tiny cutter, and a tiny cutter on a long reach is slow and prone to chatter. Set the corner radius to at least one third of the pocket depth and you let us use a tool that removes metal properly.

Keep the number of setups low. Every re-clamp adds a locating error and a queue step. If two shaped faces can be cut from the same side, say so in the notes. A part that needs five setups often costs three times a part that needs two, even when the geometry is nearly the same.

Avoid tolerancing a curved surface tighter than it needs to be. A profile of 0.05 mm on a cosmetic contour is normal. A profile of 0.01 mm on the same contour will be inspected, argued over and sometimes rejected, and it rarely changes how the part works.

Where a shaped face is also a sealing face, tell us. A sealing surface needs a continuous tool path and a defined finish, and it may need to be cut in the same setup as its mating face. That single note can change the whole process plan.

• 1
  Corner radius ≥ 1/3 of depthLarger cutters, fewer problems.
• 2
  Fewer setups, lower costSame-side features should be cut together.
• 3
  Do not over-tolerance cosmetic surfaces0.05 mm profile is usually enough.

A shaped surface cannot be checked with calipers. It is checked against a datum system: the part is located, and a CMM or a scanning arm compares the actual surface to the nominal model. We inspect 100% of parts before shipment, with raw material check, in-process monitoring and a final inspection step, and reports are available on request.

The datum callout on the drawing is what makes the report meaningful. If the drawing gives no datums on a shaped part, the inspector has to invent them, and two inspectors may invent different ones. Put the datums on the flat faces and the bolt holes, not on the curve.

For first articles on shaped parts we often scan the full surface and produce a color deviation map. It shows where the part is thin, where it is heavy, and whether a tool was deflecting. That map is more useful during process tuning than a single pass or fail number.

If a customer needs to check the part on their own fixture, we can supply the inspection report with the same datum labels used on the drawing, so the numbers line up when the part arrives.

• 1
  Curved faces are checked against datumsNot with calipers.
• 2
  Put datums on flats and holesNever on the contoured surface.
• 3
  Color maps show deflectionUseful for tuning, not just accept or reject.
