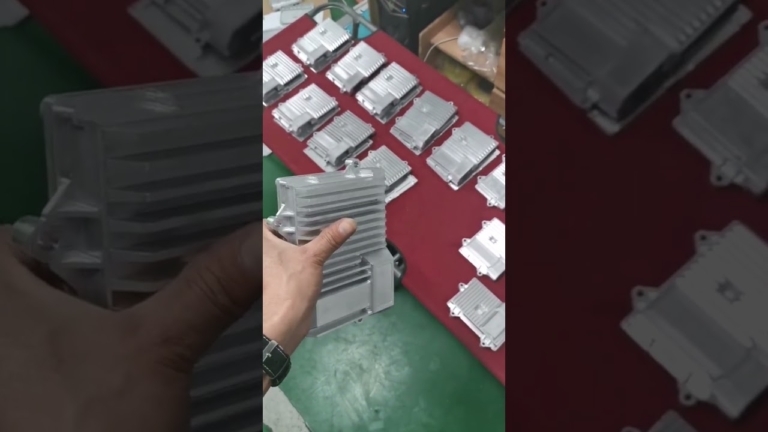

A radiator shell is the frame that holds the core, routes coolant to the tanks, and bolts the whole assembly to the vehicle. It sees three loads at once: internal coolant pressure, chassis vibration, and thermal cycling from cold start to full heat soak. That mix is why the shell is rarely a simple box. Ribs, gussets and a stepped flange all show up on the drawing.

Coolant carries heat away from the engine, so the shell has to survive roughly 1.2–2.0 bar in a pressurized system and skin temperatures that swing 80 °C or more in a single drive cycle. Aluminum expands about 23 × 10⁻⁶ per °C. Over a 300 mm span that is roughly 0.35 mm of growth from 20 °C to 100 °C. Bolt holes and locating features have to absorb that movement without cracking the weld or the casting.

CNC machining enters the picture wherever the shell needs flat sealing faces, true port bores or tight hole patterns. Casting and welding get you the gross shape. Milling and turning set the geometry that gaskets, hoses and fasteners actually locate against. If the machined face is not flat, the gasket leaks. Everything else in this article follows from that one fact.

So the question is not whether to machine the shell. It is how much of it to machine, and where to put the datums so the machined features and the as-cast surfaces stay in the right relationship.

• 1
  PressureSealing faces must stay flat under 1.2–2.0 bar and heat soak.
• 2
  VibrationMounting feet and brackets carry chassis loads.
• 3
  Thermal growthAluminum moves about 0.35 mm per 300 mm over an 80 °C swing.

Thin walls are the main reason radiator shells fail inspection. A 1.5 mm wall in 6061 will deflect under a standard face mill pass unless you plan the cut. We usually take roughing passes with 0.5–1.0 mm radial engagement and leave 0.3 mm for a finishing pass at lower feed. Climb milling on the outside face keeps the cutting force pushing the wall toward the fixture, not away from it.

Five-axis machining helps here because you can tilt the tool and reach the inner faces of a deep shell without long overhangs. A 16 mm end mill sticking 120 mm out of a holder will chatter at almost any speed. The same cutter held at 40 mm in a tilted orientation cuts cleanly. That is the difference between a wall that measures 1.50 mm and one that measures 1.35 mm in the middle and 1.60 mm at the flange.

For shells up to 4,000 mm long we work on the large travel machines, but most automotive radiator shells fall between 400 mm and 900 mm. A 750 × 1,150 × 550 mm travel handles the common sizes with room for a fixture. Small shells for motorcycles, generators or auxiliary coolers fit the 500 × 500 × 450 mm class and run cheaper per part.

Wall thickness tolerance matters more than the nominal number. If the drawing says 2.0 mm ±0.3 mm, a machinist can plan around it. If it says 2.0 mm with no tolerance, the part will be argued about at inspection. Give the sheet-metal-derived walls a real range and keep the tight tolerance for the machined sealing band.

• 1
  Radial engagementKeep roughing at 0.5–1.0 mm to limit wall deflection.
• 2
  Finishing stockLeave 0.3 mm and cut with a sharp, coated tool.
• 3
  Tool overhangTilt the part before you extend the cutter past 4× diameter.

Hose ports are where leaks start. A port bore needs a true diameter and a face square to the bore axis. We hold bore diameter within ±0.05 mm and squareness within 0.05 mm over the face width on a 5-axis setup that machines the bore and face in one operation. Two setups mean two chances for the face to tilt relative to the bore, and a tilted face will not seal against an O-ring or a formed hose end.

Mounting feet carry the vibration load, so hole position matters more than hole size. A 10 mm hole in a slotted foot can move 1 mm and still assemble. A 10 mm hole in a fixed foot with a 12 mm bolt pattern will not. If the shell mounts to a chassis rail that grows with heat, use a slotted or oversized hole on one side and keep the other side fixed. That single design choice removes most field cracking.

The core opening is usually a large rectangular cutout. Corner radii should be at least one-third of the wall thickness, and preferably 3 mm or more on a 2 mm wall. Sharp internal corners concentrate stress and are hard to mill without a small cutter that deflects. A 3 mm radius costs nothing and cuts the stress concentration.

Flange flatness is the number that decides whether the assembly passes leak test. A typical callout is 0.1 mm over a 300 mm flange. That is achievable on a rigid fixture with a finishing pass, but not on a part clamped only at two points. Support the flange from below with adjustable jacks before the final cut.

• 1
  Bore and faceMachine them in the same setup to keep squareness under 0.05 mm.
• 2
  Slotted feetOne slotted foot absorbs thermal growth and stops cracking.
• 3
  Corner radii3 mm minimum on a 2 mm wall to spread stress.

Most radiator shells are aluminum. 6061-T6 is the default: it machines cleanly, welds well, and takes anodizing. 5052 and 5083 are more corrosion resistant in road-salt environments but gummier to cut, so feeds drop and you may need a polished flute. 3003 is common in brazed cores and does not machine well as a structural shell. If the shell is cast then machined, ADC12 is the usual die-casting alloy.

Stainless 304 and 316 show up on heavy-duty and marine cooling. They hold up to coolant chemistry but work-harden fast. Keep the cutter engaged, avoid dwelling, and use a feed that makes a real chip. A rubbing pass on 304 hardens the surface and the next pass will not cut it.

For EV battery cooling plates and shells, 3003 and 6061 dominate because they braze or weld to the cold plate. Titanium TC4 (Ti-6Al-4V) appears in motorsport and aerospace cooling where weight and temperature beat cost. It cuts at roughly one-quarter the speed of aluminum and needs a rigid setup.

Finishing is not cosmetic on a radiator shell. Anodizing adds corrosion resistance and a hard surface on the mounting faces. Electroless nickel gives a uniform coating on complex internal passages where anodizing throws unevenly. Powder coating covers the outside but you must mask the sealing faces and the port bores, or the coating thickness will ruin the fit.

• 1
  6061-T6Default for machined and welded aluminum shells.
• 2
  5052 / 5083Better salt resistance, slower to cut.
• 3
  304 / 316Work-hardening; never let the tool rub.
• 4
  MaskingCover sealing faces before coating.

A shell that measures correct on the bench can still leak in the vehicle if the datums were wrong. We start with a raw material check on the incoming billet or casting, then monitor in-process at the first article and at set intervals through the run. Final inspection covers the sealing faces, port bores, hole positions and wall thickness at the thinnest section.

Flatness on a flange is checked with a height gauge on a surface plate or with a coordinate measuring machine when the callout is tight. We hold ±0.005 mm on critical dimensions and Ra 0.8–1.6 μm on sealing faces as a standard finish. A finer Ra 0.2–0.8 μm is available where a gasket needs it, but it adds a finishing pass and cost.

Every part ships with 100% inspection before shipment, and reports are available on request. For automotive programs the paperwork matters as much as the part. IATF 16949:2016 covers the automotive quality system, ISO 9001:2015 the general system, and ISO 27001:2022 the handling of your drawings and data. NDAs are available when a program is confidential.

One caution on inspection data. A shell measured free-standing will read a different flatness than one bolted to a fixture or a chassis rail. If the drawing calls the part free-state, inspect it free-state. If it calls it assembled, build a fixture that mimics the bolt pattern. Mixing the two is a common source of arguments between supplier and customer.

• 1
  In-processFirst article plus interval checks through the run.
• 2
  Sealing facesRa 0.8–1.6 μm standard, 0.2–0.8 μm on request.
• 3
  Free-state vs assembledInspect in the state the drawing names.

CNC machining of radiator shell parts is not always the answer. If the shell has no tight sealing face, no true bores and no critical hole pattern, a stamped and welded shell will be cheaper and just as functional. High-volume simple shells belong in die casting with a light machining pass on the faces only.

Very thin walls below 1.0 mm in a large shell are a poor fit for milling. The part will move during the cut and again after it is unclamped. Brazed aluminum cores go the other way: the tubes and fins are formed and brazed, and only the end tanks and mounting brackets get machined.

Deep internal channels with a high length-to-diameter ratio are better produced by casting or additive methods. A 6 mm cutter cannot reach 60 mm deep without chatter. If your design needs that, redesign the channel or change the process.

The honest rule: machine the features that seal, locate and bolt. Leave the rest to the cheapest process that meets the drawing.

• 1
  No sealing faceStamped and welded shell wins on cost.
• 2
  Walls under 1.0 mmUnstable in milling on a large part.
• 3
  Deep small channelsCast or print them, do not mill them.
