CNC Machining of Brass: How the Alloy Decides the Process

• 1
  Copper and Zinc: What the Ratio Actually Does
• 2
  Free-Cutting vs Wrought Grades: Which Brass to Machine
• 3
  Speeds, Feeds and Why Brass Chatters Less
• 4
  What Tolerance and Finish Brass Can Hold
• 5
  When Brass Is the Wrong Choice
• 6
  Fixturing, Deburring and Finishing Brass Parts
• 7
  Brass Alloy Comparison for CNC Machining

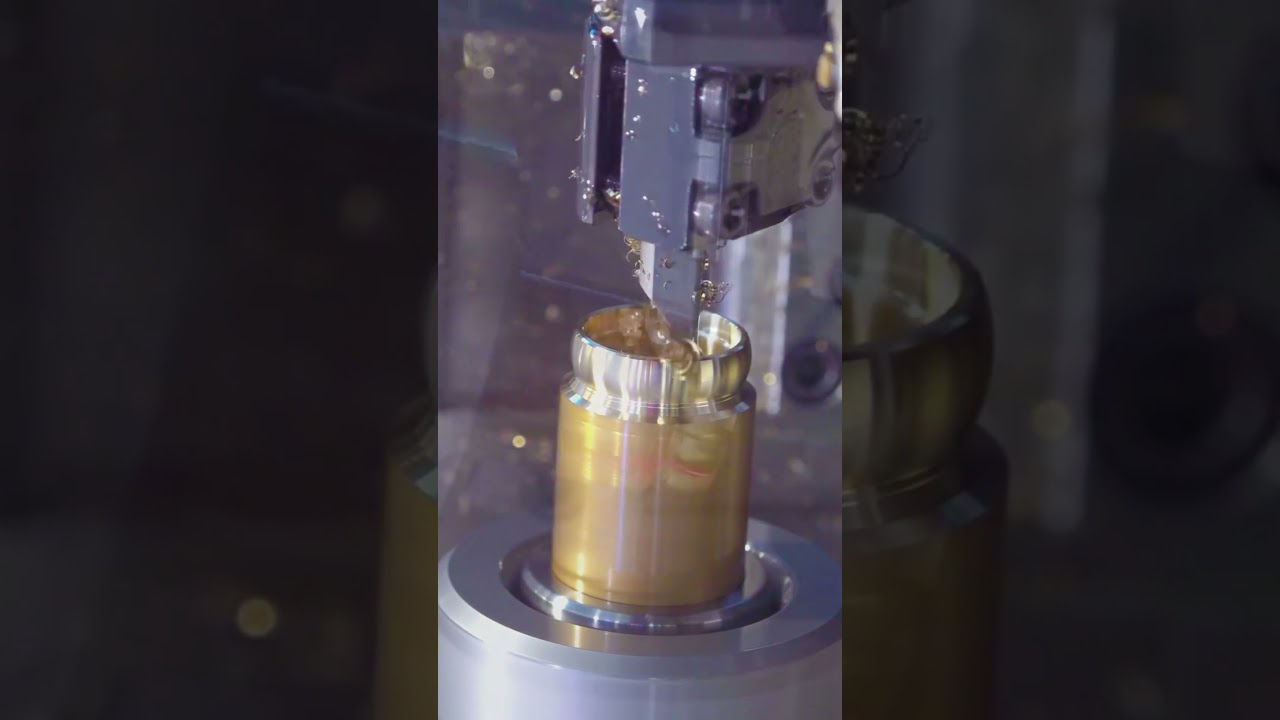

Brass is copper with zinc dissolved into it, usually between 5% and 45% zinc by weight. That single number drives almost everything a machinist cares about. Low-zinc alloys stay single-phase and behave like soft copper. Past roughly 35% zinc, a second phase appears and the material becomes noticeably stronger and more brittle.

The two phases matter at the tool tip. The zinc-rich phase breaks chips before they weld to the flute. That is why free-cutting brass produces short, controllable chips at high feed rates instead of the gummy stringers you get from pure copper. Chips that break cleanly mean fewer recuts, less heat in the part and a surface that needs almost no polishing.

Zinc also lowers the melting range. Most brass alloys start to soften well below the melting point of pure copper, so cutting temperatures stay manageable even at aggressive speeds. The trade-off is that leaded free-cutting grades, the ones with the best chip behavior, are increasingly restricted in potable water and medical work.

So the first engineering question is never which machine. It is which alloy. Choose the grade, and the speeds, feeds and tooling follow from it.

• 1
  Single-phase (below ~35% Zn)Softer, more ductile, better for cold forming and bending.
• 2
  Two-phase (above ~35% Zn)Stronger, more brittle, breaks chips cleanly at the tool.
• 3
  Leaded gradesBest machinability, but restricted in some water and medical use.

C36000 is the reference free-cutting brass. It contains lead, which acts as an internal chip breaker and a built-in lubricant. It machines at the highest surface speeds of any common brass and holds tight tolerances without chatter. If your part is a fitting, a valve body, a connector or a bushing and no regulation forbids lead, C36000 is usually the cheapest path to a good part.

C27400 and C28000 are the workhorse wrought brasses. They have no lead, so they form longer chips and need sharper geometry and better coolant control. In exchange they offer higher ductility, better corrosion resistance in water and far better hot-working behavior. For threaded rods, architectural hardware or anything that will be bent after machining, C27400 and C28000 are the practical choice.

The pure coppers, C101, C103 and C110, sit at the other end of the scale. They conduct heat and electricity very well, which is exactly why they are hard to cut. Heat leaves the cut zone through the tool instead of the chip, so tool life drops and built-up edge becomes a real risk. Use them when conductivity is the function, not when machinability is.

Beryllium copper is a special case. It machines closer to a hard bronze and reaches high strength after precipitation hardening, but the dust is a health hazard. It needs controlled chip handling and proper extraction. We machine it, but only with the process controls in place.

• 1
  C36000Best machinability, leaded, tight tolerances, fittings and connectors.
• 2
  C27400 / C28000Lead-free wrought grades, ductile, good for threads and bending.
• 3
  C101 / C103 / C110High conductivity copper, difficult to cut, use only when conductivity matters.
• 4
  Beryllium copperHigh strength after aging, requires dust controls.

Brass has low ductility compared to steel, so the shear plane sits close to the tool tip and the chip leaves quickly. That short contact time is the reason brass can run at surface speeds two to three times higher than mild steel with the same carbide grade. On C36000, cutting speeds of 200 to 400 m/min are routine on a 3-axis mill with coated carbide.

Feeds per tooth follow the same logic. Because the chip breaks rather than stretches, you can push feed and keep the chip thick. Thin chips on brass are a mistake. They rub instead of cut, and rubbing generates heat, work hardening and a dull surface. A firm feed with a sharp, high-rake tool produces the mirror finish brass is known for.

Chatter is rarely caused by the material. It usually comes from long, slender parts held with too little support, or from a toolholder that is too long for the job. Brass is light and stiff, so when a thin wall does vibrate, the fix is a support, a shorter gauge length or a lower radial engagement. It is almost never solved by slowing the spindle down.

Coolant is optional on free-cutting grades and often unnecessary. Many shops run C36000 dry or with a light air blast, because the chips are short and the heat leaves with them. On the lead-free grades and on pure copper, flood coolant earns its keep by controlling built-up edge.

• 1
  Surface speed200–400 m/min on C36000 with coated carbide; roughly half that on lead-free grades.
• 2
  Feed per toothKeep the chip thick. Thin chips rub and work harden.
• 3
  CoolantOften dry on C36000; use flood on lead-free brass and copper.

Tolerance is a function of the machine and the setup, not the material, as long as the material cuts cleanly. On brass parts we hold ±0.005 mm on critical diameters and bores, verified with calibrated gauges. That is achievable on a mill-turn or a 5-axis center where the part is finished in one setup and datum shift is eliminated.

Surface finish depends on alloy and tool condition. A fresh, sharp carbide insert on C36000 will produce Ra 0.8–1.6 μm as a matter of course, and with a wiper geometry or a light finishing pass we reach Ra 0.2–0.8 μm. Lead-free grades tend to land one step rougher because they smear slightly instead of shearing.

Feature size sets the practical limit. Small drilled holes below Ø1 mm in brass are possible, but chip evacuation becomes the bottleneck rather than the drilling force. Deep holes want peck cycles and high-pressure coolant, even in a free-cutting grade. Thin walls below 0.5 mm need support or a soft-jaw fixture to avoid deflection during the finishing pass.

Threads and knurls behave well in brass. Thread milling gives cleaner flanks than tapping on lead-free grades, and it lets us adjust the fit without changing tools. Knurling works on the wrought grades but can tear the surface on the more brittle high-zinc alloys, so we check the alloy before committing to a knurl.

• 1
  Tolerance±0.005 mm on critical features, finished in one setup.
• 2
  FinishRa 0.8–1.6 μm standard; Ra 0.2–0.8 μm with a finishing pass.
• 3
  Small holesBelow Ø1 mm, chip evacuation is the limit, not drilling force.

Brass is not the answer for every copper-colored part. If the part carries load in a structural frame, aluminium or steel gives a better strength-to-cost ratio. If it must survive salt spray for years, 316 stainless or a coated aluminium part usually beats brass on both life and price. Brass resists fresh water well; it is not immune to dezincification in aggressive chloride environments.

Weight is another boundary. Brass is roughly three times denser than aluminium. A large enclosure or a mounting plate machined from brass is heavy and expensive, because you are paying for copper by the kilogram and then cutting most of it into chips. In those cases the part is often better made in aluminium and plated.

Cost per part is the third factor. Free-cutting brass runs fast, so the machining cost is low, but the raw material is not cheap and prices move with the copper market. When a part is large and the tolerances are loose, the material bill dominates. That is the point where a redesign to aluminium, or a switch to die casting, is worth discussing.

There is also a compliance boundary. Leaded brass is restricted in potable water systems and in some medical device categories. If your part touches drinking water or a patient, plan for a lead-free alloy from the start. Changing alloy late in a project means requalifying the process and the finish.

• 1
  Structural loadAluminium or steel gives more strength per dollar.
• 2
  Large partsBrass density makes big housings heavy and costly.
• 3
  Lead restrictionsPotable water and some medical parts need lead-free grades.

Brass is soft, so it dents. Vises and clamps that are fine on steel will leave marks on a finished brass face. Soft jaws, sacrificial shims and light clamping pressure are standard practice here. When a part has a cosmetic surface, we machine it in the same setup as the datums so the visible face is never re-clamped after finishing.

Deburring matters more on brass than on most metals because the burr is visible. A sharp edge on a bright brass part reads as a defect even when the dimension is correct. We remove burrs by hand for small batches and with tumbling or vibratory finishing for larger runs. Brushing gives a directional grain that hides small scratches.

Plating and coating options are broad. Electroless nickel adds wear resistance and a uniform thickness on complex geometry. Silver and gold plating serve electrical contacts. Clear lacquer keeps the yellow color from tarnishing in handling and storage. Bead blasting produces a matte surface that fingerprints less than a polished one.

For parts that need marking, laser engraving gives a permanent, legible result. Character height below 1.5 mm becomes hard to read reliably, so we keep part numbers and traceability codes at or above that size. On curved or angled faces the marking axis is set in the same program as the machining, which keeps the layout consistent from part to part.

• 1
  Soft jawsPrevent clamp marks on finished brass faces.
• 2
  DeburringHand for small runs, tumbling for larger ones.
• 3
  Laser markingKeep character height at 1.5 mm or above.
