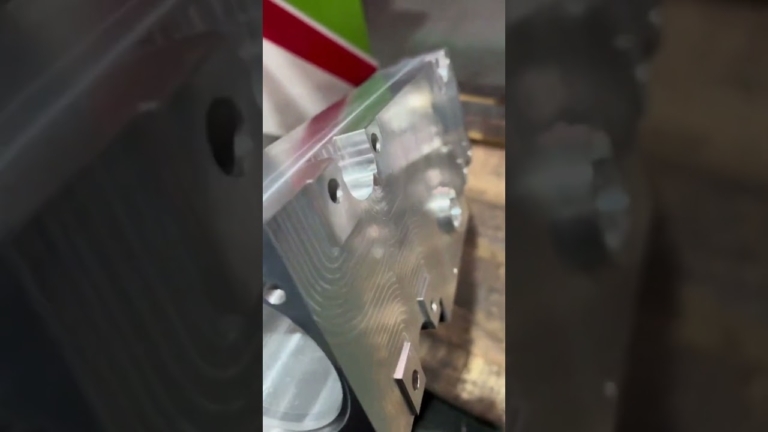

CNC Machining of Multi-Faceted Square Tubes

• 1
  How CNC machining of multi-faceted square tubes differs from milling a solid block
• 2
  Holding the tube: fixtures, rotary indexing and datum choice
• 3
  Toolpaths, wall thickness and the limits of stable cutting
• 4
  Which materials suit faceted tube work, and which fight back
• 5
  When a faceted tube is the wrong choice
• 6
  Setup choice by part feature

A square tube starts as a hollow section. Its four outer walls are already formed, and the wall thickness is set by the mill that rolled or extruded it. When we machine a solid block, every surface comes off the cutter and the blank can be as thick as the finished part needs. With a tube, most of the outside is inherited. The job is not to create the shape but to refine it: face the pads, open the windows, drill the hole pattern, and keep the wall uniform while doing so.

That inheritance is what makes the process interesting. The hollow core gives high stiffness per kilogram, so a faceted tube can replace a heavier machined block in brackets, arms and enclosures. It also gives the fixture something to clamp on without crushing. A 40 × 40 mm tube with a 3 mm wall will deflect under a vise jaw long before the cutter loads it, so support has to come from inside or from a matched cradle.

The number of facets matters more than the tube size. A four-sided tube can be indexed 90° at a time and cut on a 4-axis mill with a simple trunnion. Once you add a 15° or 30° facet for a sensor window or a cable exit, the part needs angular indexing that a 3-axis machine cannot reach in one setup. This is the point where the process shifts from a cheap milling job to a 5-axis one.

• 1
  Wall is inheritedThe section mill sets nominal wall; machining only trims it.
• 2
  Facet count drives the setupFour faces index on 4-axis; odd angles need 5-axis.
• 3
  Hollow core resists crushingClamp force must be spread over a cradle, not a point.

The first decision is which face becomes the datum. On a faceted tube there is no natural origin, so we pick the face that carries the tightest hole pattern and machine everything else from it. That face gets a light skim, 0.2–0.3 mm, to create a clean reference. If the tube arrives with a weld seam along one corner, the seam goes on a non-critical corner and stays out of the datum.

For 4-axis work the tube sits in a rectangular cradle bolted to the rotary table. Two or three M8 clamps across the top face hold it down, and the table indexes 90° between operations. A Ø400 mm rotary table handles most tube sizes up to roughly 250 mm across, which covers the common 40 × 40, 60 × 60 and 80 × 80 mm sections. Indexing accuracy of the table, not the cutter, sets the true position of features on adjacent faces.

Five-axis machining changes the economics. Instead of four separate fixtures, one setup reaches the top, side and angled facets. We use this when a part has more than two facet angles, when the hole pattern spans three or more faces, or when true position between faces has to stay inside ±0.05 mm. The trade-off is cycle time: a 5-axis toolpath moves slower than a 3-axis one because the machine is repositioning while cutting.

• 1
  Datum firstSkim one face 0.2–0.3 mm, then drive all dimensions from it.
• 2
  Cradle, not viseSpread clamp load across the full face to avoid ovalizing the wall.
• 3
  Index accuracy sets positionAdjacent-face features depend on the rotary table, not the tool.

Thin walls chatter. A 2 mm wall in aluminium 6061 will sing at 3,000 rpm if the cutter pushes straight into it. We cut the outer faces with a light radial step-over, 0.3–0.5 mm, and keep the axial depth moderate so the cutting force stays tangential to the wall. For stainless 304 and 316L the same wall needs a lower surface speed and a sharper edge geometry, usually a positive rake insert or a coated carbide end mill at 60–90 m/min.

Hole patterns are the other common feature. A 6 mm hole through a 3 mm wall is easy; a 6 mm hole through a 12 mm wall on two opposite faces needs the drill to break through cleanly without pushing the far wall. We peck drill in steps of 1× diameter and back the exit face with a sacrificial plug or a fitted mandrel when the wall is under 2 mm.

Tolerances on the finished part are set by the machine and the fixture, not by the section. Our 5-axis centers hold ±0.005 mm on critical features, with surface finish from Ra 0.2–0.8 μm on bearing faces and Ra 1.6–3.2 μm as-machined on non-critical surfaces. The inherited tube wall still carries its own mill tolerance, typically ±10% of nominal, so do not dimension a machined face from the inside wall unless the tube is bored first.

• 1
  Light radial cuts0.3–0.5 mm step-over keeps force off a thin wall.
• 2
  Back the exit faceSacrificial plug stops blowout under 2 mm wall.
• 3
  Bore before you trust the IDMill tolerance on the section is ±10%.

Aluminium is the default. 6061-T6 and 6082-T6 machine fast, hold a sharp edge, and take anodizing well. 7075 is stronger but more prone to distortion when a lot of material comes off one face, so it is usually reserved for short, thick-walled sections. The 5000 series, 5052 and 5083, are gummy and tend to smear; they work but need sharp tooling and generous coolant.

Stainless 304 and 316L are common in food and medical equipment. Both work-harden, so the cutter must stay engaged and never rub. 17-4PH (SUS630) machines well in the annealed state and is the usual choice when the tube also needs corrosion resistance plus strength. Titanium TC4 (Ti-6Al-4V) is cut at low surface speed with high coolant pressure; it is feasible on a faceted tube but the cost per part rises sharply because cycle time triples.

Steel sections such as 1018 and 1045 are welded and machined every day. 4140 and 4340 are used when the tube is a structural member, and they are usually pre-hardened before machining so the finished part does not move after heat treat. Plastics like POM and PEEK hold a facet well but need vacuum fixturing or a soft jaw, since a standard clamp will leave a mark.

• 1
  6061-T6 first choiceStable, anodizes cleanly, good finish off the cutter.
• 2
  Stainless rewards sharp toolsKeep the edge engaged or the surface work-hardens.
• 3
  Pre-harden structural steel4140 and 4340 move after heat treat if machined soft.

If the part is a solid bracket with no internal cavity, a tube adds cost and no benefit. Starting from plate gives a stiffer blank, a simpler fixture and one fewer supplier. A faceted tube only pays off when the hollow core is functional: a cable run, a fluid path, a weight target, or a housing that must stay sealed.

Very short parts are another poor fit. A 30 mm long tube section with facets at both ends costs nearly the same to set up as a 300 mm one, because the fixture and the program dominate. Below roughly 3:1 length to width, a machined block is usually cheaper.

Finally, tight internal geometry is a limit. A tube that needs a complex internal rib or a tapered bore cannot be made from a standard section, because the cutter cannot reach inside. In that case the part is better designed as two machined halves that are bolted or bonded, or converted to a casting.

• 1
  No cavity, no benefitSolid brackets belong on plate.
• 2
  Short parts carry setup costUnder 3:1 length to width, use a block.
• 3
  Internal ribs need a redesignSplit the part or switch to casting.
