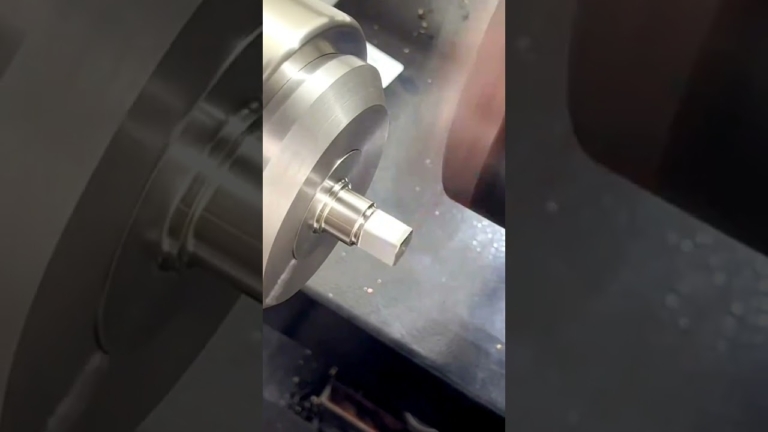

Can anyone explain CNC: why a round cutter leaves a square part?
A spinning end mill is round, yet the block it leaves behind is square. This article explains the geometry that makes that possible, and the one feature a round tool can never cut. It is written for design engineers and buyers who need to judge a part before it goes to a machine.
The tool is round. The motion is not.
The shape of a milled part comes from the path the cutter travels, not from the shape of the cutter itself.
Why a round cutter can cut a straight edge
A CNC mill spins a multi-flute cutter on a vertical or horizontal spindle. The cutting edge is round because the tool rotates. What the part becomes depends on where the machine moves that rotation. Run the cutter along a straight line and the side of the tool sweeps a flat wall. Run it in a circle and the wall becomes a curve. The workpiece geometry follows the toolpath, and the toolpath is just coordinates driven by G-code.
This is the part that surprises people new to machining. The square block is not produced by a square tool. It is produced by a round tool that only ever moves in straight lines relative to the material. The flat face on a 6061 aluminum bracket and the flat face on a 17-4PH stainless flange come from the same idea.
Think about a paint roller on a wall. The roller is cylindrical, but a straight stroke leaves a straight band. Move the roller in an arc and the band curves. A milling cutter behaves the same way, except it removes metal instead of spreading paint. The straight band is the machined surface; the curve is the corner radius.
- 1Straight toolpath, flat wallA round cutter moving linearly leaves a surface parallel to its travel.
- 2Curved toolpath, curved wallThe surface follows the arc the tool center traces.
- 3The part shape is the pathGeometry comes from motion, not from the tool profile.
Where the round shape does show up: corner radii
A cutter cannot cut a sharp internal corner. The rotating tool has a physical diameter, so the smallest internal radius it can leave equals the radius of the tool. A Ø10 mm end mill leaves a 5 mm corner radius at best. A Ø6 mm end mill leaves 3 mm. A Ø3 mm end mill leaves 1.5 mm, and it will chatter and snap if you push it hard in hardened steel.
That is why almost every milled pocket in a real drawing carries a corner radius callout. The radius is not a design preference. It is the physical footprint of the tool that has to reach into the pocket. On a milled housing the internal corners will be round even when the outer profile is a perfect square.
External corners are a different story. A round tool passes the outside of a part and leaves a sharp edge if the programmed path goes far enough past the corner. So a square plate cut from 6061 will often have sharp outer corners and rounded inner pockets. That mix is normal, and it is the clearest answer to the question of why a round tool produces a square part.
- 1Minimum internal radius = tool radiusA Ø6 mm cutter cannot leave a radius smaller than 3 mm.
- 2Outer corners can be sharpThe tool exits past the corner and leaves a crisp edge.
- 3Smaller tool, smaller radius, slower cutReach improves, but rigidity and feed rate drop.
Tool diameter versus the smallest internal corner it can leave
Pick the largest cutter that still fits the feature. Smaller tools reach tighter corners but cut slower and deflect more.
| Cutter diameter | Smallest internal radius | Typical use | Notes |
|---|---|---|---|
| Ø20 mm | 10 mm | Roughing large pockets | High material removal, rigid |
| Ø12 mm | 6 mm | General milling on steel and aluminum | Good balance of speed and reach |
| Ø8 mm | 4 mm | Medium pockets, slots | Common for 4-axis work |
| Ø6 mm | 3 mm | Small pockets, ribs | Watch deflection on deep walls |
| Ø3 mm | 1.5 mm | Fine detail, thin features | Low feed, risk of tool breakage |
| Ø1 mm | 0.5 mm | Micro features only | High spindle speed required |
When a round tool is the wrong choice
Some parts should not be milled at all. If a drawing calls for a true 90° internal corner with zero radius, no end mill can produce it. The corner has to be cut by wire EDM, sinker EDM, or broaching. Milling can get the part close, then the sharp corner is finished by another process. Trying to force a mill to do it only burns tools and time.
Deep narrow slots are another case. A slot 40 mm deep and 3 mm wide needs a long, thin cutter. That tool will deflect, and the wall will taper. The machined result may be outside the ±0.005 mm tolerance the drawing asks for. In that situation we either rough it on the mill and finish it on EDM, or we suggest a design change to widen the slot.
Parts with undercuts and features on five sides also push a 3-axis mill out of its range. A 3-axis machine cannot reach the back face without a second setup, and a second setup adds error. A 5-axis center can tilt the tool and reach the feature in one setup. The choice between the two is a geometry question, not a price question.
- 1Zero-radius internal cornerUse EDM or broaching. Milling cannot hold a true sharp corner.
- 2Deep narrow slotLong small cutters deflect. Expect taper and possible rework.
- 3Features on five sidesA 5-axis setup avoids the stacking error of multiple setups.
How to read a drawing before it reaches the machine
Check the smallest internal radius first. If it is smaller than half the smallest cutter that can reach the pocket, the design will need EDM or a change. Then check the depth-to-width ratio of any pocket or slot. Anything deeper than about four times the cutter diameter gets risky on a standard mill.
Look at the tolerance stack across the part. A single ±0.005 mm callout is achievable on a rigid setup. Five stacked ±0.005 mm features on a thin wall are not the same job. The material matters too. Aluminum 6061 cuts clean and holds tolerance well. Inconel and Ti-6Al-4V move under heat and need slower passes and more inspection.
Send the model and the 2D drawing together. We run a DFM review and flag the corners, deep pockets, and thin walls before a tool touches metal. That review is free and comes back within 12 hours, along with a quotation. Catching a zero-radius corner at that stage costs nothing. Catching it after the first part is scrapped costs a week.
- 1Smallest internal radiusCompare it to the tool that must reach the pocket.
- 2Depth-to-width ratioOver 4:1 raises deflection and taper risk.
- 3Tolerance stackMany tight callouts on thin walls multiply the difficulty.
- 4Material behaviorTitanium and Inconel need slower passes and tighter process control.
Common questions about round tools and square parts
Does a CNC mill always leave round corners?
Only on internal corners. The rotating cutter has a diameter, so the smallest internal radius it can leave equals the tool radius.
External corners can be sharp. The tool travels past the outside edge and the resulting edge is crisp.
What is the smallest internal corner you can machine?
It depends on the tool that can physically reach the feature. A Ø3 mm end mill leaves a 1.5 mm radius, and a Ø1 mm cutter leaves 0.5 mm.
Very small cutters cut slowly and break easily, so the practical limit is usually set by geometry and material, not by the catalog.
Can milling produce a true 90° internal corner?
No. A rotating cutter always leaves a radius at an internal corner.
A sharp internal corner needs wire EDM, sinker EDM, or broaching. Milling can rough the pocket and the EDM pass finishes the corner.
Why does my square part have rounded pockets?
The outer profile is cut by the tool path passing the edges, so it stays square. The pocket walls are cut by the tool sweeping inside, so the corners follow the tool radius.
This is normal for milled parts. If the drawing needs a sharper pocket corner, add a corner relief or plan for EDM.
How do I decide between 3-axis, 4-axis, and 5-axis milling?
Count the faces that carry features. If the part has features on three faces or fewer, a 3-axis setup with one or two operations usually works.
Features on four or five sides, or angled holes and undercuts, favor a 4-axis or 5-axis center because the part stays in one setup and stacked error drops.
What tolerance can you hold on milled features?
We work to ±0.005 mm on qualified features, with surface finish between Ra 0.2 μm and Ra 3.2 μm depending on the operation.
Every part gets 100% inspection before shipment, and inspection reports are available on request.
