Black Anodized Flat Socket Head Screw 1/4: Specifying a Flush-Seated Fastener

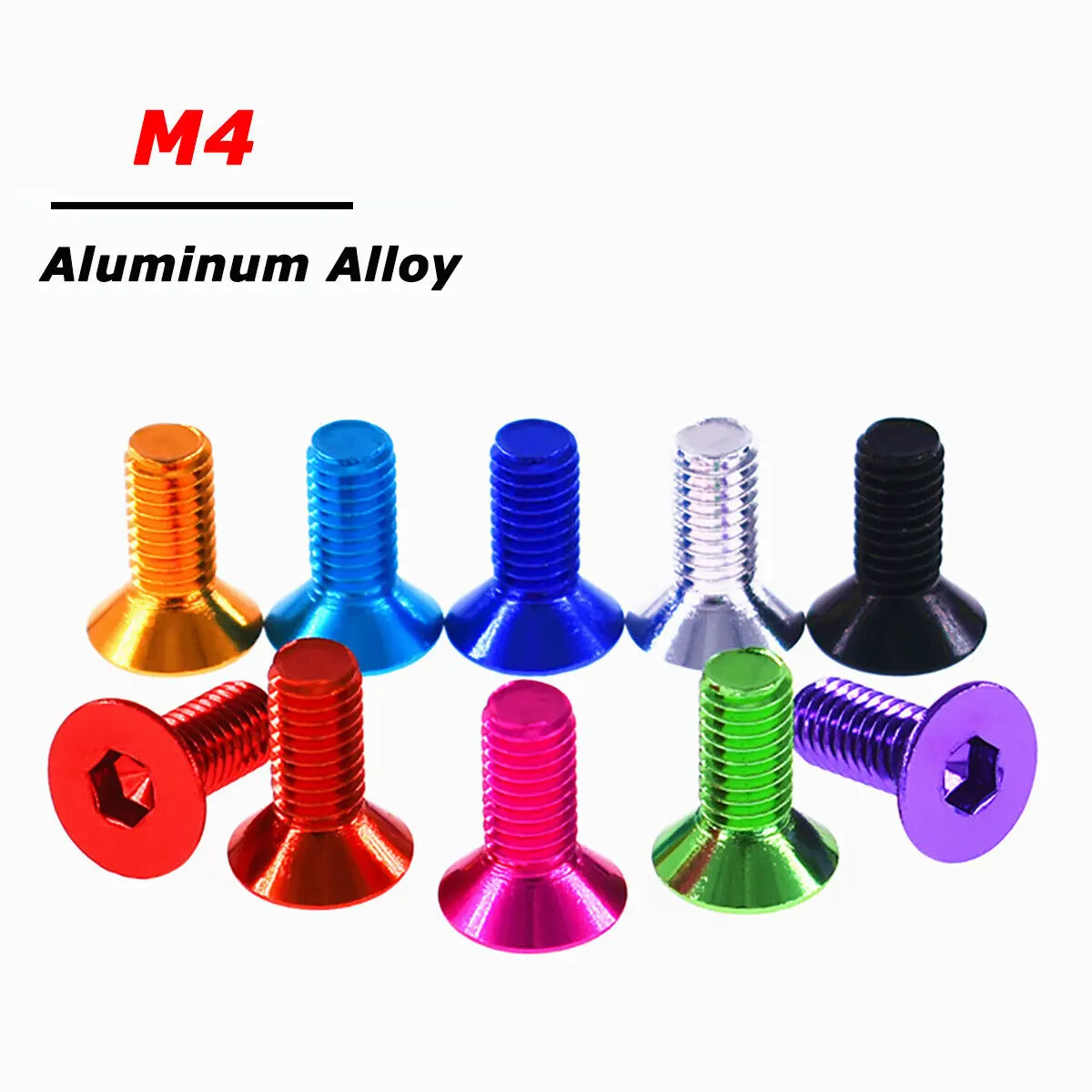

A 1/4-20 flat socket head screw is not a button head with a shallow dome. It has a conical bearing surface that mates with a countersink cut into the mating part. On inch-series fasteners that included angle is 82°; on metric parts it is usually 90°. Mix the two and the head bears on a line instead of a face, which is where loosening starts.

The point of that cone is flush seating. The head sits at or just below the surface of the plate, so nothing protrudes into a moving envelope. For covers, access panels and slide interfaces, that matters more than holding force. A protruding head drags, snags, or blocks a mating surface from closing flat.

Tolerance on the countersink sets the result. Cut the cone too shallow and the head stands proud. Cut it too deep and the bearing face only touches near the outer rim, so the joint feels tight before it is. A countersink held within ±0.05 mm on depth gives repeatable flush results on production parts.

Head diameter and height follow the inch standard for a 1/4 screw: roughly 0.531 in across the head and 0.161 in high before plating. Keep the countersink chamfer no larger than the head diameter, or the edge of the cone will sit in air.

Anodizing only works on aluminum, so a black anodized flat socket screw is normally cut from 6061-T6, 2024, 5052 or 7075. The alloy you pick changes thread strength, how the socket forms, and how the finish colors.

6061-T6 is the default for general work. It machines to a good surface, takes a Type II anodic layer evenly, and holds a clean thread at 1/4-20. For brackets, enclosures and fixtures it is usually the right call.

2024 and 7075 are stronger but behave differently at the anodize tank. 7075 develops a darker, less uniform black and can show a slight color shift between lots. 2024 machines well but has lower corrosion resistance in the raw state. Use them when load matters more than appearance.

5052 forms and finishes well but is softer, so the hex socket is easier to round out during assembly. Avoid it for screws that will be tightened and loosened often.

The thread itself is rolled or cut before anodizing. Rolling gives a stronger grain flow at the root, which helps on small diameters. Either way the anodic layer adds roughly 0.005 to 0.025 mm per surface, so a plated thread must be sized below nominal to still gauge after coating.

Anodizing is an electrochemical conversion of the aluminum surface, not a paint or a plated layer. The oxide grows out of the base metal, so it cannot flake off the way a coating can. Type II sulfuric anodizing gives a dyed black finish around 5 to 25 μm thick.

Corrosion resistance improves and the surface hardness rises. The black dye is cosmetic and functional at once: it cuts glare on visible hardware and hides small handling marks. On internal parts the color is irrelevant, but the oxide layer still protects the thread flanks.

Two limits are worth knowing before you specify it. The oxide layer is electrically insulating, so a standard black anodized screw will not ground a circuit. Conductive anodizing exists for that case. The layer is also brittle in thin sections, so do not bend or stake an anodized screw after coating.

Color matching between lots is the other practical issue. Dye concentration, bath temperature and dwell time all move the shade. If two batches must match visually, say so on the drawing and expect a controlled, not exact, match.

Hardcoat anodizing is a different specification. It gives a thicker, harder layer, usually 25 to 50 μm, in a dark gray to black tone. Use it where the screw sees abrasion; accept that the color is less deep than Type II black.

The hex socket is the hardest feature on this part. On a 1/4 screw the socket is about 3/16 in across flats, and the walls between the hex and the head OD are thin. Push the broach or the milling cutter too hard and the corners tear.

We cut sockets on mill-turn centers and 4-axis mills so the head, shank and thread stay in one setup. That keeps the socket concentric with the thread within ±0.005 mm, which matters when a driver is spinning at speed. An off-center socket makes the driver walk and chews the corners.

Thread class is a drawing decision. A 2A external thread is the standard fit and assembles by hand. A 3A thread is tighter and holds better under vibration, but it needs a cleaner start and more care during assembly.

Deburring comes before anodizing, not after. A burr left at the socket entrance will show as a raised ring once the oxide grows. We break edges lightly and inspect the socket mouth under magnification.

Choose a black anodized flat socket head screw when the head must sit flush, the joint sees light to moderate load, and the part is visible enough that appearance counts. Control panels, instrument covers and slide rails are common cases.

Skip it when the joint needs high clamp load or repeated disassembly. Aluminum threads are softer than steel, and a 1/4-20 aluminum screw will strip before a comparable alloy steel screw yields. For structural joints, use a steel flat head screw and anodize only the mating plate.

Skip it in constant immersion or salt spray without a sealer. Type II anodizing slows corrosion but does not stop it, and the black dye fades under UV over long outdoor exposure.

Also think about contact with other metals. Aluminum against stainless or carbon steel in a wet environment sets up galvanic corrosion at the joint. A isolating washer or a plated steel screw solves it.

For prototypes, one screw is enough to test fit. For runs, we cut from one to 10,000+ pieces with no minimum order quantity, and we inspect before shipment.
