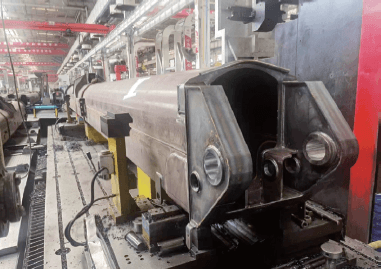

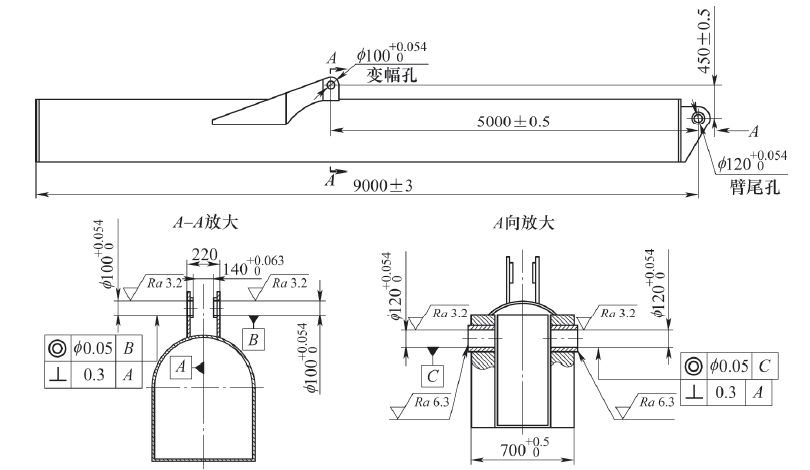

A crane arm frame is a welded box, usually 1,500 mm to 4,000 mm long, with a pin bore on each side plate. The two bores sit on a common axis that has to line up with a mating hinge, a slew bearing or a hydraulic cylinder eye. On a 30 t lift machine, that pin may carry hundreds of kilonewtons in service.

The load path is the reason tolerances are tight. A single bore held to H7 looks fine on a bench gauge, yet the joint still binds when the pin goes in, because the second bore sits 0.15 mm off axis. The pin then works as a press fit on one side and a loose fit on the other.

Heat is the second constraint. Welded frames move after welding. A box section that measures straight on Monday can bow 1-2 mm after a week of stress relief and natural aging. Machining a frame before that movement settles means the bores will not stay coaxial.

Paint and weld spatter add a third problem. Both sides of the plate are usually flame-cut or plasma-cut, so the surfaces that touch the fixture are rough. A 0.3 mm burr under one pad tilts the whole frame and moves the far bore.

• 1
  Bore axisBoth bores share one centerline within 0.02-0.05 mm over the frame length.
• 2
  Bore sizeTypical H7 or H8 with Ra 0.8-1.6 μm, often with a hardened bushing pressed in.
• 3
  Face flatnessThrust faces on both sides sit within 0.05 mm so the pin shoulder seats.
• 4
  MaterialQ355, S355, 4130 or 4140 weldments, sometimes cast steel.

Pick the datum from the way the frame mounts on the machine, not from the way it was welded. On most crane arms we use the two bottom mounting pads plus one side face as the primary, secondary and tertiary datum. Those three features are machined first, in the same setup, and everything else is measured from them.

Clamp on the pads, not on the side plates. Side plate clamping distorts a thin box section, and the distortion releases when the clamps come off. If the wall is under 12 mm thick, we add temporary spreaders or bolt a stiffening plate across the open end.

Mark the datum on the part with a laser or a punch before the frame leaves the first setup. When the frame comes back for the second side, the operator reads the marks instead of guessing which face was cut. This single habit removes most of the scrap we see on reworked frames.

On very long frames, we mount a dial indicator on the spindle and sweep the far pad before cutting. A 0.05 mm pad height difference over 3,000 mm is 0.001° of tilt, and that is already 0.05 mm of bore shift at the far end.

• 1
  PrimaryTwo bottom pads, cleaned of burrs, sitting on matched-height blocks.
• 2
  SecondaryOne machined side face, dialed within 0.02 mm over its length.
• 3
  TertiaryA stop pin or end face, so the frame cannot creep along the table.
• 4
  Re-checkSweep the far pad after clamping; release and re-clamp if it moved more than 0.03 mm.

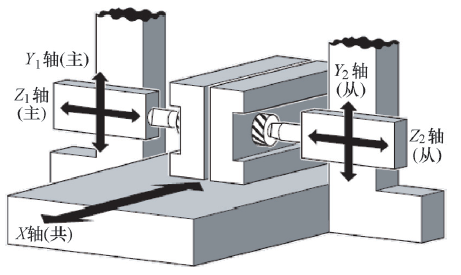

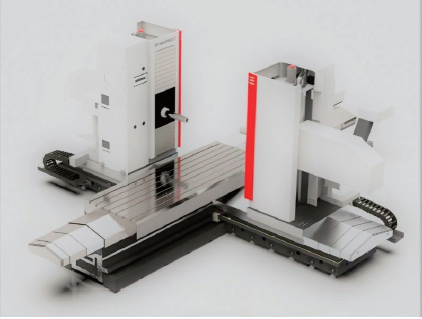

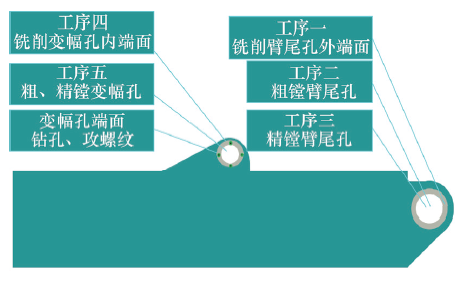

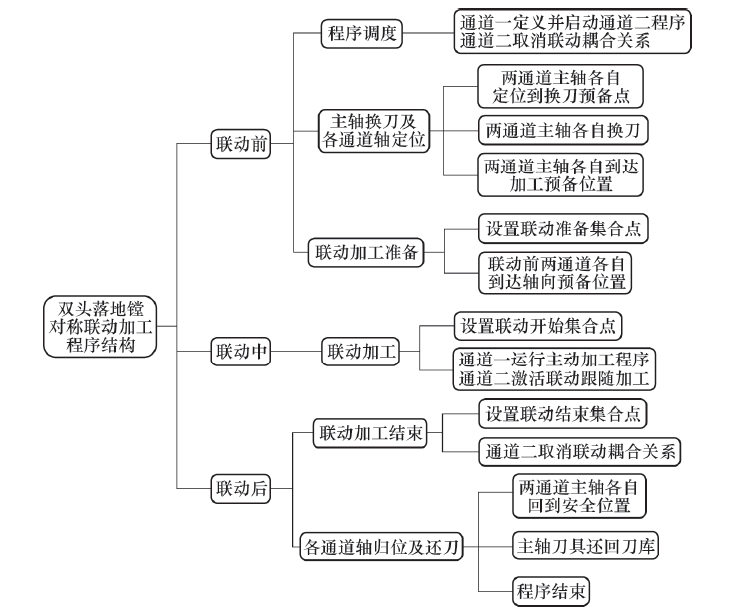

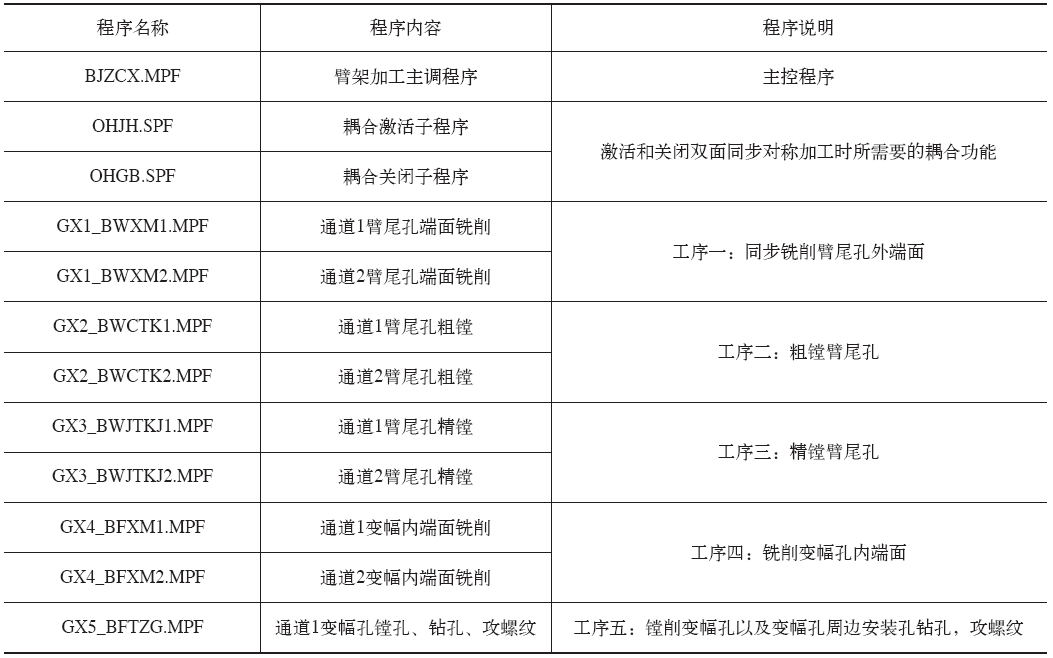

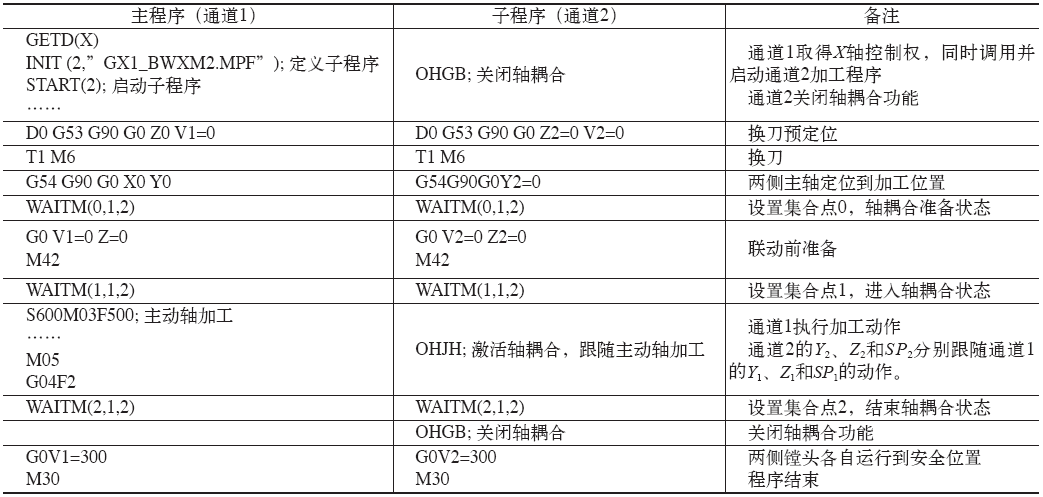

Frames up to 4,000 × 400 × 150 mm fit our large-travel machines. For that size, the practical route is line boring: the frame stays clamped once, the spindle bores the near side, then a long boring bar or a right-angle head reaches the far side. Both bores come off the same spindle position, so the axis error is limited by machine geometry, not by how well the operator re-clamped the part.

Many frames are shorter. A 750 × 1,150 × 550 mm envelope covers most mid-size arms, and the 500 × 500 × 450 mm and 500 × 310 × 200 mm machines handle compact links and brackets. On a 4-axis horizontal with a Ø400 mm rotary table, we index the frame 180° and bore the second side in the same program. Rotary index repeatability on a good table is a few arc seconds, which is well inside our ±0.005 mm positioning target for the bore position.

When the frame is too tall for a single pass, we flip it. That is the weaker option, and it needs a pre-machined reference face on each side. Bolt the frame to a tombstone, indicate the reference face, then bore. The second setup inherits the first setup's error, so budget 0.03-0.08 mm of axis shift on a flip, against 0.01-0.02 mm on line boring.

Tool choice matters as much as the setup. Boring bars need enough stiffness to avoid chatter in a deep box. We keep length-to-diameter below 4:1 where possible and use a tuned boring head or a damper bar past that. A chattering bar leaves a lobed bore, and a lobed bore will not pass a pin gauge even if the diameter measures on size.

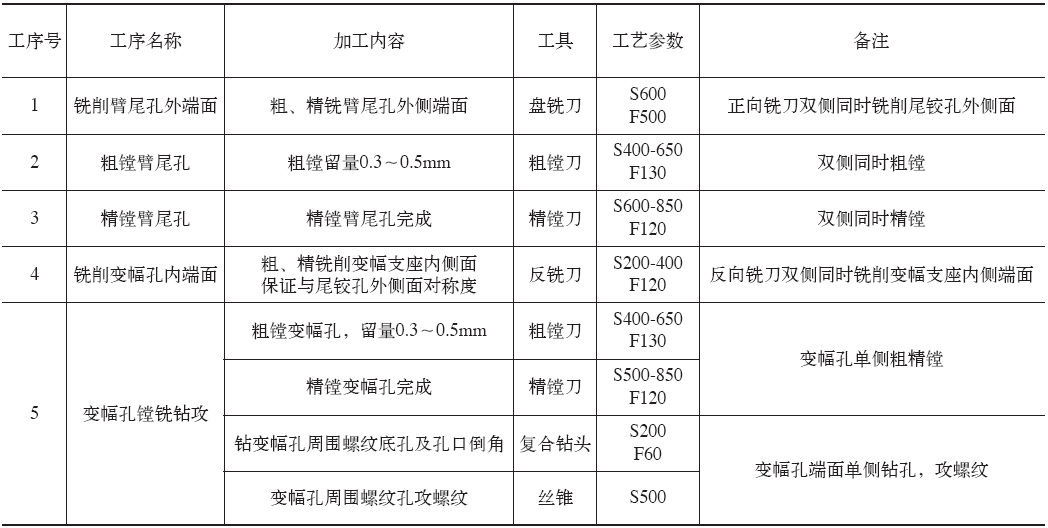

• 1
  RoughLeave 0.5-1.0 mm on diameter and 0.3 mm on faces for the finish pass.
• 2
  Semi-finishBring bores to 0.15 mm on diameter, then let the frame cool before finishing.
• 3
  FinishOne continuous pass per bore, same feed and speed on both sides.
• 4
  CoolantFlood through the bar; thermal growth over a 3,000 mm frame can reach 0.02 mm.

Diameter checks are the easy part. A bore gauge or an inside micrometer confirms size, and a plug gauge confirms roundness and straightness in one motion. What matters more is the relationship between the two sides.

On the machine, we sweep the far bore with a dial indicator on a bar held in the spindle. The indicator reads the far bore wall as the spindle rotates. Total indicated runout across the two bores tells us the axis error directly. For a 2,000 mm frame, we hold that under 0.05 mm.

After the frame comes off, a CMM or a portable arm measures both bores and reports the axis. We record the centerline in the X and Y directions, plus the angular error. That data goes into the inspection report, which ships with the part on request.

For pivot joints, we also check the thrust faces. A pin shoulder that does not seat flat will fret and wear the bore. Face runout against the bore axis is measured on both sides, and we hold it within 0.05 mm.

• 1
  In-processDial indicator sweep of the far bore while the part is still clamped.
• 2
  FinalCMM axis report: centerline offset plus angular error over the frame length.
• 3
  FunctionTrial pin fit or a plug gauge through both bores at once.
• 4
  RecordsDimensional report and material certs on request.
