Analysis of the Structure of Filming Tools and Display Points
A working look at how a turning tool is built and where the cut actually happens. Written for machinists, process engineers and buyers who need to choose, grind and judge a single-point tool with numbers instead of habit. Read it and you can name the faces, edges and angles that decide tool life and surface finish.
What this analysis covers
The tool is small and the geometry inside it decides everything: chip flow, heat, finish and how often you touch off.
Head and body: how a turning tool is divided
A turning tool splits into two functional zones. The head carries the cutting edge and does the work. The body is the shank, and its only job is to sit in the holder without moving. On a solid high-speed steel tool both zones are the same piece of steel. On an indexable tool the body is a steel bar and the head is a coated carbide insert clamped to it with a screw or a lever.
The head is not a single surface. It is built from three faces, two edges and one point. The rake face is where the chip slides away. The two flank faces sit behind the cutting edges and control clearance. The main cutting edge does the removal, the minor cutting edge shapes the finished surface, and the point is the small transition arc where the two meet. That arc is not cosmetic. It is the weakest and the hottest spot, and its radius sets the feed limit you can run.
When the edge dulls, the tool does not cut anymore. It rubs. Friction and cutting heat climb, the point glows, and the finished diameter starts to drift. At that stage you either index the insert or re-grind the head and reset the angles. Knowing which of the three faces is worn tells you what to change next time: more clearance, a stronger edge, or a different grade.
For a production shop the practical question is whether the head is replaceable. Indexable inserts let you swap geometry in seconds and hold a repeatable edge. Brazed and solid tools give a stronger head but demand a grinder and a skilled hand. We see both in the same shop, and the choice usually follows batch size, not preference.
The working angles and the planes that define them

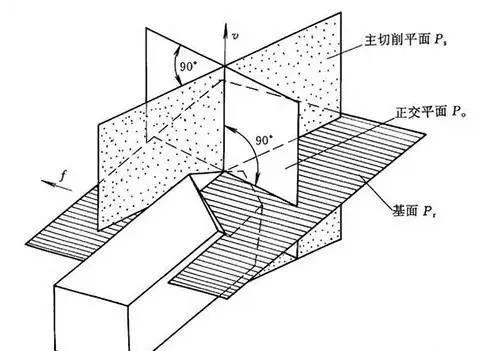

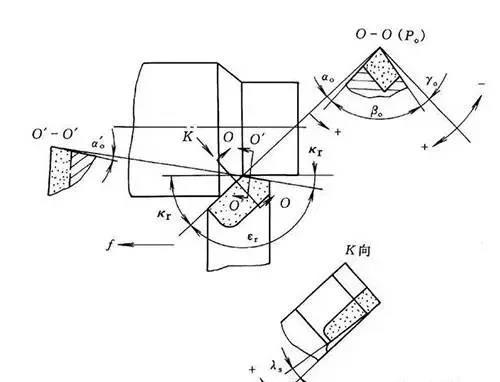

Tool angles only mean something relative to planes you can draw. Three are used on the shop floor: the cutting plane, the base plane and the main section. The cutting plane holds the cutting edge and the cutting direction. The base plane sits parallel to the tool's mounting face, so it stays horizontal on a lathe. The main section is cut perpendicular to the main edge, and it is where the rake and clearance angles are actually measured.
The rake angle controls how hard the tool pushes the material and how fast the chip leaves. Positive rake cuts smoothly in aluminium and low-carbon steel and keeps cutting forces down, but the edge is thin and chips under interrupted cuts. Negative rake puts more material behind the edge and survives castings, forgings and hard alloys, at the cost of higher cutting force and more heat. Zero rake is a compromise used where both finish and edge strength matter.
Clearance angles sit behind the cutting edge and stop the flank from rubbing the freshly cut surface. Too little clearance and the tool drags, with heat and poor finish as the result. Too much and the edge loses support. The main and minor entering angles set the direction of the resultant force; a small entering angle spreads load along more of the edge, which helps with long overhangs. The edge inclination angle decides which way the chip leaves and whether the point takes the shock first.
Grinding is how these angles get onto a brazed or solid head. On indexable inserts the geometry arrives from the factory, and the only angle you control is how the insert sits in the pocket. That is why holders are not interchangeable: a worn pocket tilts the insert and quietly changes the effective rake by a degree or two.
Tool structure and angle reference
Angles shown are typical starting points, not a formula. Adjust for material, rigidity and whether the cut is continuous.
| Element | Function | Practical note |
|---|---|---|
| Rake face | Chip slides away here; controls cut force | Positive for aluminium, negative for hard steel |
| Flank faces | Provide clearance behind the edges | Too little clearance causes rubbing and heat |
| Main cutting edge | Removes most of the material | Takes the bulk of the cutting load |
| Minor cutting edge | Forms the finished surface | Sets the surface finish at a given feed |
| Nose radius | Transition arc between the two edges | Larger radius allows a higher feed rate |
| Rake angle | Decides chip flow and edge strength | Positive cuts easy, negative survives shock |
| Clearance angle | Prevents flank contact with the workpiece | Small and stable is usually best |
| Entering angle | Directs cutting force along the edge | Smaller angle suits slender parts |
Matching tool structure to the turning operation
The structure you need changes with the cut. External longitudinal turning is the easiest case: a rigid tool with a modest rake and a nose radius around 0.4 to 0.8 mm handles most carbon and alloy steel. Here the tool is supported on both sides of the cut, so deflection is low and the geometry can favor chip control over strength.
Facing moves the cutting speed through a wide range as the tool travels to center. Near the center the surface speed drops toward zero, and a tool that was cutting well starts to rub. A sharper positive rake and a slightly larger clearance help here, because the edge has to shear rather than scrape at low speed. On a manual lathe this is where chatter usually shows up first.
Internal turning, or boring, is the opposite of external work. A long bar hangs out of the holder with only one end supported, so it deflects. The fix is structural: a heavier bar, the shortest overhang you can live with, a small entering angle to spread the load, and a nose radius that does not increase the radial force. A tool that performs perfectly on an outside diameter can chatter on the same material inside a bore.
Parting and grooving use a tool with almost no support and a cut that is full width. Rake and clearance have to be balanced carefully, and side clearance matters because the blade sits in a narrow slot. Threading tools add a profile to the edge; the included angle follows the thread form, and the tool often needs extra clearance on the leading flank to follow the helix. In all three cases the structure is dictated by how little metal is left behind the edge.
Wear, display points and when to stop cutting
Display points are the places on the tool you watch to judge condition. The most useful is the flank wear land on the main edge. A narrow, even band is normal. A wide band, or one that grows fast, means the grade or the speed is wrong. Cratering on the rake face means the chip is too hot where it slides. Chipping at the nose means the edge is too thin or the machine is not rigid enough.
Built-up edge is another display point that is easy to misread. Soft steel at low speed can weld a lump of material onto the edge. It protects the tool for a while, then breaks off and takes a piece of the edge with it. If you see a rough, dull-looking finish instead of a mirror one, check for it before you touch the offsets.
The judgment call is economic, not geometric. An insert that still cuts but has doubled its surface roughness is already costing you a second operation. A re-ground tool that holds tolerance but needs constant offset changes is costing you operator time. We set a wear limit per job, measure at fixed intervals, and replace on the limit rather than on feel.
When the tool is the problem, the part usually shows it before the tool does. Diameter drift, tapers, chatter marks and a finish that changes mid-cut are all signs that the cutting edge has changed shape. Reading the part is often faster than reading the tool.
Common questions on turning tool geometry
What determines the nose radius on a turning tool?
The nose radius sets the minimum feed that produces an acceptable finish and the maximum depth of cut at which the edge stays intact. A larger radius lets you feed faster and leaves a smoother surface, but it increases radial force and promotes chatter on slender parts.
For most general turning on steel, 0.4 to 0.8 mm is a workable range. Finishing passes on a rigid setup can use 0.2 to 0.4 mm; roughing interrupted cuts usually want 0.8 mm or more for edge strength.
How do we know the rake angle is wrong?
The symptoms are different at each extreme. Too much positive rake gives a weak edge that chips and a poor finish on hard material. Too little positive rake, or negative rake on soft material, raises cutting force, builds heat and can push the workpiece away from the tool.
Check the chip first. A tight, short chip that leaves cleanly suggests the geometry is close. A long, stringy chip or a glazed, torn surface points at the rake angle or the speed.
Should we use an indexable insert or a brazed tool?
Indexable inserts win on repeatability and changeover time, which matters for production runs where the same geometry is used thousands of times. Brazed and solid tools win when the shape is unusual, the batch is small, or the cutting edge has to be stronger than an insert can be.
Both need a rigid holder. An insert in a worn pocket will not hold its geometry no matter how good the insert is.
Which angle matters most for surface finish?
In practice the minor cutting edge and the nose radius do most of the work on finish, because they contact the surface being generated. Feed per revolution against nose radius sets the theoretical roughness.
If the finish is wrong, check those two first, then look at clearance and machine rigidity before changing the tool grade.
How often should we check the cutting edge?
It depends on the material and the value of the part. Hard alloys and castings wear an edge faster than free-machining steel. For critical dimensions, checking at fixed intervals and logging flank wear is more reliable than waiting for the finish to change.
On a job where one scrapped part costs more than a box of inserts, replace on a set wear limit rather than on the operator's judgment.
Can we run the same tool for external and internal turning?
The geometry can be the same, but the support is not. An internal tool hangs out of the holder with far less rigidity, so the same angles behave differently. Expect to reduce feed and depth of cut, and to shorten the overhang as much as the bore allows.
If a tool that cuts cleanly outside chatters inside, the problem is usually the bar, not the edge.
