Analysis of Causes and Solutions for a Break in Unreliable Tool Chip Control

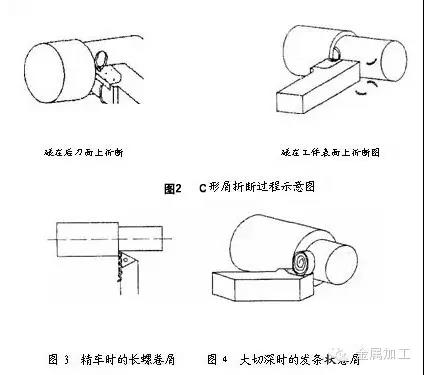

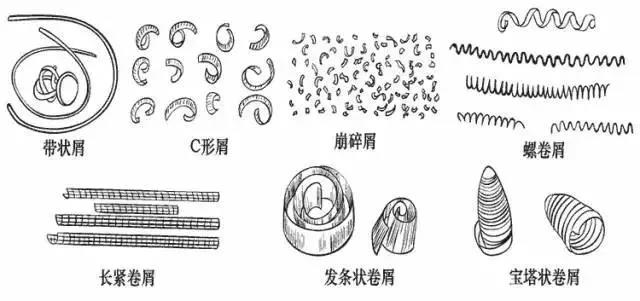

When an operator says the chip is unreliable, they usually mean one of four different things. A long ribbon that will not break at all and wraps the tool holder is the first. The second is a chip that breaks but only intermittently, so the machine runs clean for twenty parts and then birdsnests on the twenty-first. Then there is the chip that breaks too finely and turns into a spray of small fragments. Finally, a chip can break against the insert edge instead of the chip breaker, taking a notch out of the cutting edge.

Each mode points to a different root cause, and each needs a different correction. Ribbons that never break come from feed and depth combinations that are too light for the chip breaker to act. Intermittent breaking is usually a stability problem, not a geometry problem. Fine fragmentation means the insert is breaking the chip before it has absorbed enough energy. Edge notching is the expensive one, because it damages the insert and shows up as a surface finish defect on every part that follows.

Before changing any offset, write down what the chip looked like and at which depth of cut the mode changed. That single record tells you whether you are fighting the insert, the material, or the machine.

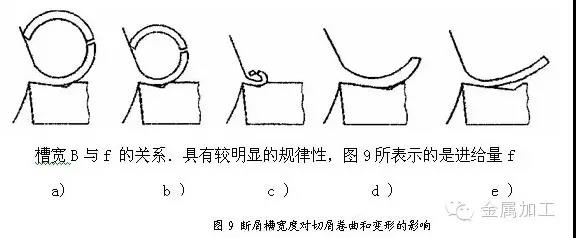

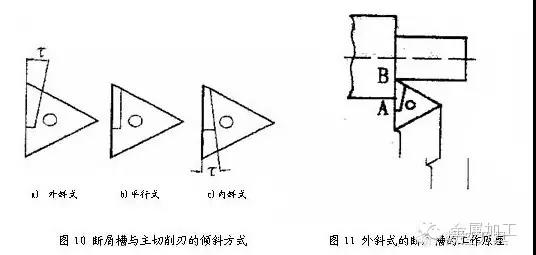

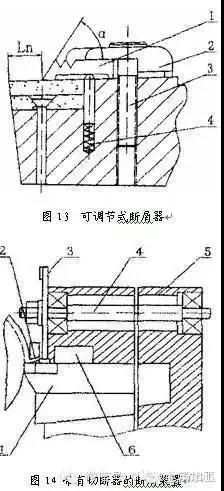

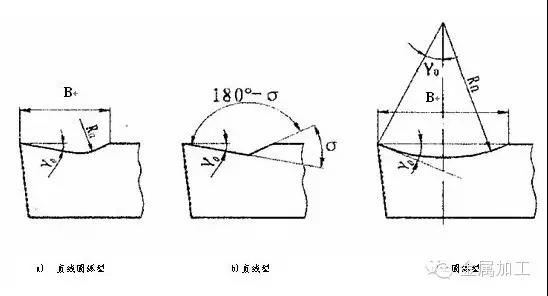

Every chip breaker has a working window defined by feed per revolution and depth of cut. Below the lower feed limit the chip is too thin to curl against the breaker and leaves as a ribbon. Above the upper limit the chip hits the breaker with too much force and snaps into fragments that can pack into the guideways. The window is published by the insert maker, and it is usually a shaded area on a two-axis chart.

Depth of cut sets how much room the chip has to curl. A light finishing pass of 0.3 mm on a breaker designed for 1.0–3.5 mm roughing will not break the chip no matter what feed you dial in. This is the most common cause we see in customer programs: a roughing insert left in the tool turret for a finishing pass, then blamed for poor chip control.

Feed per revolution, not spindle speed, is the variable that controls chip thickness. Doubling spindle speed thins the chip and makes breaking harder, while raising feed thickens it. If you need to keep the surface speed for tool life reasons, increase feed instead of reducing rpm.

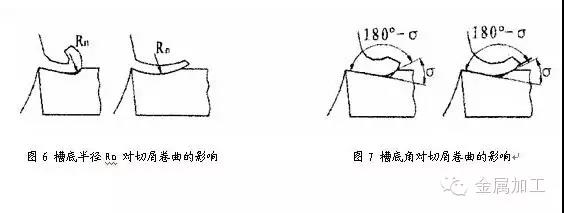

On internal boring the chip has farther to travel and often exits against the wall of the bore. A chip that breaks cleanly on an external pass may still wrap the bar on an internal one, because there is no room for it to fall away. Use a breaker with a tighter curl radius for boring bars and keep the depth above the minimum in the chart.

• 1
  Feed too lowChip stays thin and slides over the breaker without curling.
• 2
  Depth below the windowNo room to curl; the breaker never makes contact properly.
• 3
  Speed raised instead of feedThinner chip, less breaking, more heat into the insert.
• 4
  Boring bar geometryTighter curl radius needed; chip has less room to escape.

Plain carbon steel such as 1045 or 1018 breaks easily across a wide window. Low-carbon grades are gummier and often need a sharper breaker with a positive rake. Alloy steels like 4140 and 4340 at higher hardness tend to produce segmented chips that break on their own, so aggressive breakers can cause premature edge failure rather than help.

Austenitic stainless 304 and 316 work harden quickly and produce a stringy chip that wants to weld to the rake face. A sharp edge with a light hone and a breaker positioned close to the edge works better than a heavy, wide breaker. Keep the feed high enough to get under the work-hardened layer on the next pass.

Aluminium behaves differently again. At high surface speeds the chip is soft and ductile, and it can be polished into a ribbon that wraps the tool. 6061 machines cleanly with a high positive rake and a generous chip room, but 7075 at high speed can be abrasive and needs a sharper edge to avoid built-up edge.

Cast iron and most grey irons break into small, powdery chips without a breaker in play. Here the problem is usually chip evacuation, not chip breaking. Watch for the fragments packing into pockets and against fixture stops, especially in high-volume runs.

Coolant does more than cool the insert. High-pressure through-tool coolant lifts the chip off the rake face and pushes it out of the cut, which reduces the chance of re-cutting. On stainless and titanium, through-coolant at 50–70 bar makes a visible difference in chip evacuation, though it will not fix a breaker that is out of its feed window.

Rigidity matters more than most people expect. A tool holder that deflects under load changes the effective depth of cut and pushes the insert outside its working window. Check overhang first: every additional 10 mm of overhang on a boring bar costs stiffness, and if the bar is singing, the chip is not breaking consistently.

Workholding is part of the same problem. A part held in soft jaws with a small clamping area can move under the cut. The insert then sees a varying depth of cut, and the chip alternates between ribbon and fragment. Torque the chuck jaws or vise to the recommended value and confirm the part is not lifting on the first pass.

Programmed feed override is a hidden variable. Operators often run at 80% or 120% override to protect the tool or hit a cycle time, which moves the process out of the chip breaker window. If you are debugging chip control, lock the override at 100% while you test.
