7 Big 3D Printing Cartridge Mistakes You Must Avoid

The first mistake is drawing a wall that looks fine on screen but is too thin for the process. FDM fuses filament lines imperfectly, so a 0.8 mm wall can carry porosity straight through. SLA resin delaminates under pressure. SLS nylon at the same thickness traps voids inside the sintered skin. Each process has its own minimum, and none of them equals the injection molding number.

Calculate the burst or crush load your cartridge must survive, then pick a wall from that number. For most sealed resin housings, 1.5–2 mm is the practical floor. Metal additive can go under 1 mm, but thin walls warp unless you support them heavily. Subtractive machining from solid bar removes the question: 0.5 mm walls in 6061 or 316L hold pressure because the grain runs continuous through the wall.

Sealing faces deserve their own rule. Any groove, land or O-ring seat needs enough material behind it to resist compression set. A 1 mm land on a printed part deforms and the seal walks out under thermal cycling. Machine that same land at 2 mm wide and the elastomer stays put.

Printers quote resolution, not tolerance. A 50 μm layer height says nothing about where the outside diameter actually lands. Thermal shrink, support removal and post-cure all move dimensions. On a spool bore or a luer taper, a few hundredths decide whether the joint seals or weeps.

Fits that matter need a process that holds them. We machine to ±0.005 mm (±0.0002 in) on mating diameters, which is the range where a spool-bore pair keeps clearance without bypass. If a printed body is non-negotiable, print the shell oversize and machine the critical bores afterward. This hybrid route keeps the internal channels additive and puts the sealing surfaces on a CNC.

Be specific about which features carry tolerance. Mark the seal diameter, the thread pitch diameter and the mounting face. Leave cosmetic surfaces loose. Tightening every dimension on a big 3D printing cartridge drawing raises cost without improving function.

• 1
  Seal diameterHold to ±0.005 mm; leaks start here.
• 2
  Spool boreClearance drives bypass flow, not surface look.
• 3
  Mounting faceFlatness under 0.02 mm keeps the gasket seated.
• 4
  Cosmetic wallsLeave general tolerance; nobody measures them.

Resin and filament prices push teams toward the cheapest grade, and that decision fails in service. A cartridge sees the fluid on one side and the environment on the other. Solvent, UV, heat and steam each attack a different polymer. Standard resin absorbs water and swells; the bore closes and the spool sticks.

Match the material to the fluid first, then to temperature, then to cost. PEEK and POM resist fuels and solvents and keep stiffness at temperature. 316L and 17-4PH stainless handle corrosive media and steam sterilization. Aluminum 6061-T6 suits dry pneumatic and hydraulic bodies where weight matters. If the media is unknown, request chemical compatibility data before you commit a run.

Wall thickness and material interact. A thin wall in a stiff, brittle resin cracks at the first pressure spike. The same wall in 316L simply flexes. When you compare quotes, compare the material grade named on the drawing, not the headline price per part.

Layer lines are leak paths. On an O-ring gland, a rough surface lets the elastomer bridge peaks instead of seating in the groove, and fluid finds the gap. Printed faces commonly sit around Ra 6–12 μm, which is far from what a dynamic seal needs.

Dynamic seals want Ra 0.2–0.8 μm. Static gasket faces work at Ra 0.8–1.6 μm. As-machined faces at Ra 1.6–3.2 μm are fine for non-sealing surfaces. Machining, lapping or fine turning gets you into the sealing range, and the finish is repeatable batch to batch. Printed surfaces vary with orientation, so the same file finishes differently on the top face and the side wall.

Post-process carefully. Bead blasting can round a sealing land and ruin the fit. Polishing a groove by hand changes its depth. Specify the finish by function, and let the shop choose the method that holds the dimension.

One printed prototype is cheap. Ten thousand printed cartridges are not. Machine time, support removal, post-cure and inspection all scale with quantity, and the gap narrows fast. At volume, a machined body from bar stock often lands lower because cycle time drops and no manual cleanup remains.

Add up the real numbers: material, machine hours, labor for support removal, rejects, and the engineering time spent reprinting failed lots. Printed parts fail in batches when a parameter drifts, so scrap arrives in groups. Machining fails one part at a time, and in-process checks catch the drift before a full lot is gone.

We run from one prototype to 10,000+ part runs with no minimum order quantity. That means the same process can cover a fit check and a production release, so the drawing does not change between them.

Support removal inside a cartridge is the quiet cost. Internal channels, cross-holes and seal grooves collect support material that no tool reaches. Leftover resin cures hard and blocks a 1 mm passage. Cleaning becomes a manual job with a scraper, a syringe and a lot of patience.

Machined parts arrive with chips that wash out, not fused material that must be broken away. Internal corners come from the cutter geometry, so there is no trapped lattice. If a printed design needs internal supports, the cleaning step belongs in the cost estimate from day one.

Cosmetic and functional finishing differ too. Anodizing, electroless nickel, bead blasting and laser marking all apply cleanly to machined surfaces. On printed parts, the same finish can flake at layer boundaries or hide porosity until the part sees pressure.

A shop that only prints will tell you printing works. A shop that only machines will tell you to cut metal. Neither answer helps when your cartridge needs a printed internal channel and a machined seal face. Cross-technology judgment is what keeps the project on schedule.

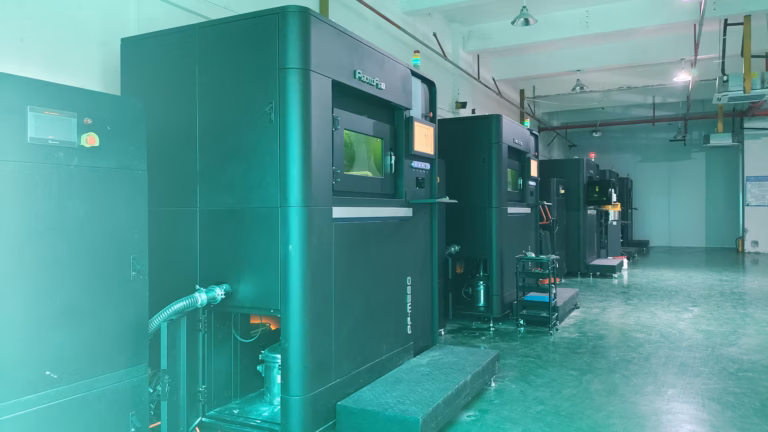

GreatLight runs additive and subtractive under one roof, with 127 high-precision CNC machines including 16 simultaneous 5-axis machining centers, plus 3D printing, vacuum casting, die casting and sheet metal. That range lets us say which features to print and which to cut, instead of forcing the whole part through one process.

Ask a supplier two questions before you send a drawing. What happens to my part if the printed version fails pressure testing? And which features would you machine even on a printed body? The answers separate a process sales pitch from an honest part assessment.
