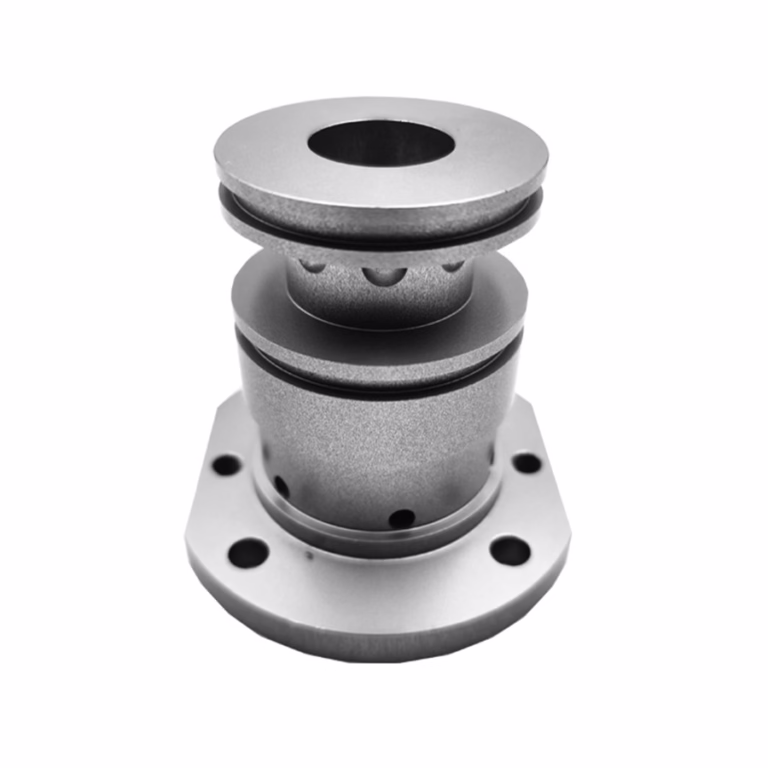

A CNC bit removes material by sweeping a profile along a path. The profile of the cutting edge is copied into the workpiece. A square corner leaves a square corner. A round profile leaves a round groove. This is why the question of which bit do CNC machines use cannot be answered with one part number: the answer is the shape that matches the feature you need.

Geometry on a drawing is a set of constraints. Depth, width, corner radius, draft angle, surface finish. Each constraint narrows the tool list. A pocket 20 mm deep with a 1 mm internal corner radius rules out anything larger than Ø2 mm, and a Ø2 mm tool at that depth has a length-to-diameter ratio of 10:1. It will chatter unless you slow down.

The practical workflow runs from large to small. Rough with the biggest tool the cavity allows, then step down for corners and finish. Each tool change adds run time and a small positioning error, so the goal is the fewest tools that still meet the print.

Material matters as much as shape. Aluminium 6061 cuts freely at high spindle speed. Inconel and Ti-6Al-4V need lower surface speed, more rigid tooling and often a different coating. The same geometry may take three tools in aluminium and five in titanium.

• 1
  Profile copies into the partThe cutting edge shape is transferred along the toolpath.
• 2
  Corner radius is a hard limitTool radius must be equal to or smaller than the feature radius.
• 3
  Rigidity scales with diameterSmall tools deflect more, so feed and depth of cut drop.

A flat end mill has a square corner between the flute and the bottom. It is the workhorse for prismatic parts: flat faces, square shoulders, straight walls and pocket floors. Because the corner is sharp, the tool can produce a true 90° internal corner at the bottom of a pocket, something no ball nose can do.

The weakness is the corner itself. A sharp corner concentrates stress and chips easily, especially in hard steel or when the tool exits a cut. Feed rates are usually set lower than the same diameter bull nose. In aluminium this rarely matters. In 4140 or 17-4PH it matters a lot.

A bull nose cutter, also called a corner radius end mill, replaces the sharp corner with a small radius, typically 0.2 mm to 2 mm. That radius spreads the load, so the tool survives higher feed and deeper cuts. It also leaves a radius at the pocket floor, which is fine on most parts and a problem on parts that need a sharp internal step.

Bull nose tools also finish sloped walls better than a flat end mill. On a 30° wall, a flat cutter leaves visible steps between passes. The same wall cut with a corner radius tool leaves a smoother surface because the contact point moves gradually across the radius.

• 1
  Flat end millSquare corners, flat floors, straight walls. Best for roughing and prismatic features.
• 2
  Bull noseSmall corner radius adds strength. Better feed rates and smoother sloped finishes.
• 3
  Watch the floor radiusA bull nose always leaves a corner radius in the pocket. Check the print first.

A ball nose cutter has a full hemispherical tip. Its contact point with the workpiece is theoretically a single point, which lets it follow freeform surfaces in three dimensions. This is the default tool for mold cavities, organic shapes, turbine blade profiles and any surface defined by a spline rather than a plane.

The trade-off is efficiency. Because only the tip touches, the effective cutting diameter shrinks as the depth of cut grows. A Ø6 mm ball nose taking a 0.5 mm stepover behaves like a much smaller tool. Feed rates are correspondingly lower and stepover usually runs between 5% and 10% of diameter for a fine finish.

Ball nose tools are poor at flat floors. At the center of the tip the surface speed drops to near zero, so the tool rubs instead of cutting. If a part has both curved and flat regions, use the ball nose for the curve and a flat or bull nose for the flats.

Tapered ball nose tools solve reach problems. A long, thin tool with a tapered shank is stiffer than a straight tool of the same tip diameter. They are common in deep ribs, narrow slots and text engraving where a straight tool would deflect or break.

• 1
  Single point contactFollows 3D surfaces, but effective diameter is small.
• 2
  Typical stepover5–10% of tool diameter for a fine finish.
• 3
  Avoid flat floorsCenter speed approaches zero, causing rubbing and poor finish.

Chamfer tools cut a fixed angle, most often 45° or 60°, along an edge. They remove the sharp burr left by milling and create a lead-in for assembly. A chamfer is also easier to inspect than a radius, which is why many aerospace and automotive prints specify a chamfer rather than a fillet at an edge.

A V-bit is a chamfer tool taken to a point. It cuts V-grooves, countersinks and decorative lines. Because the tip is fragile, V-bits work best in softer materials and shallow depths. In hardened steel they chip quickly.

Engraving tools are fine-pointed cutters, sometimes with a single flute, used for text, logos and part numbers. They cut shallow, usually 0.1 mm to 0.5 mm deep, and need high spindle speed. The limiting factor is often the minimum character height the tool can resolve, not the machine.

For text and fine detail, the practical minimum readable character height is around 1.5 mm. Below that, the tool tip is too fragile and the mark becomes hard to read after anodizing or plating. If the print calls for smaller text, laser marking is usually the better route.

• 1
  Chamfer toolFixed angle, commonly 45° or 60°. Deburrs and eases assembly.
• 2
  V-bitV-grooves and countersinks. Fragile tip, shallow cuts only.
• 3
  Engraving minimumAbout 1.5 mm character height for reliable readability.

Every tool has a reach limit. A pocket deeper than about three times the tool diameter needs a long-reach tool, and long-reach tools deflect. The deflection shows up as taper in the wall, a bell-mouthed pocket or chatter marks on the floor. On a 4,000 mm machine bed this problem does not disappear, it just moves to a different feature.

Undercuts are the classic unreachable feature. A T-slot cutter or a lollipop cutter can reach sideways, but these tools are weak and slow. Often the better answer is to redesign the part into two pieces, or to move the feature to a 5-axis setup where the tool can approach from a different angle.

Internal sharp corners are impossible by milling. A cutter with a radius always leaves that radius. If the print calls for a true sharp internal corner, the options are EDM, a relief groove in the corner, or a design change. This is one of the most common DFM comments we send back with a quote.

Aspect ratio also limits what a machine can do. A pocket 100 mm deep and 10 mm wide has a 10:1 aspect ratio. A Ø8 mm tool cannot enter it. A Ø6 mm tool with a long shank can, but only at reduced feed and depth of cut. Run time rises and the finish becomes harder to hold.

• 1
  Long reach means deflectionAbove 3:1 length-to-diameter, reduce feed and depth of cut.
• 2
  Undercuts need special toolsT-slot and lollipop cutters work but are slow and fragile.
• 3
  Sharp internal cornersNot possible by milling. Use EDM, a relief groove or a design change.
