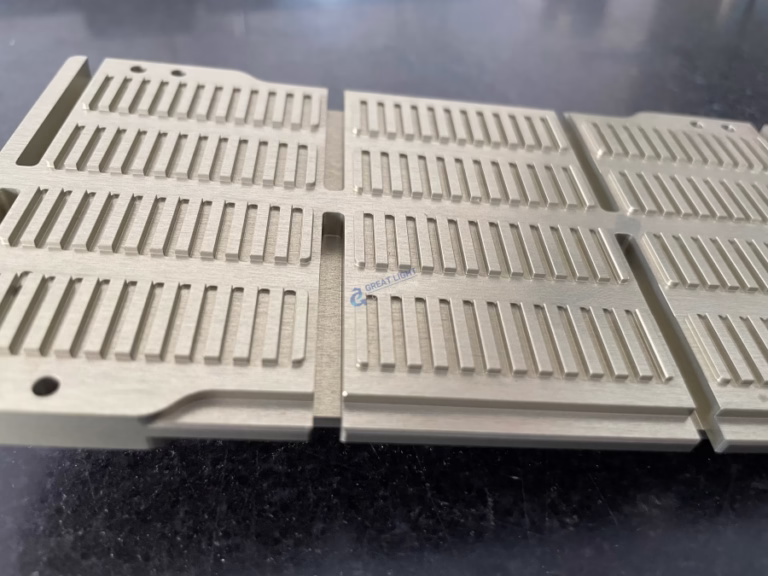

A machining centre in CNC is a milling machine with a tool magazine and an automatic tool changer. The program selects the tool, sets the spindle speed, moves the axes and swaps cutters between operations. Milling, drilling, boring, reaming and tapping all happen in one clamping. The operator loads the part and walks away.

That last point is the real difference. A manual mill needs a person at the handwheels for every cut. A machining centre reads a program and repeats it exactly on part 2 and part 200. Consistency comes from the machine, not from the operator's attention span.

The work is driven by G-code, usually produced from a CAM system. Toolpaths are calculated in software, then post-processed into the dialect your control understands. Fanuc, Siemens, Heidenhain and Mitsubishi are common controls in our shop. Each has its own canned cycles and offsets, so a program is rarely portable without a re-post.

Geometry matters more than the label on the door. If the part is mostly a box with holes, pockets and flat faces, a machining centre fits. If it is a shaft with a dominant axis of rotation, a turning centre or a mill-turn machine usually wins on cycle time.

• 1
  Single setupMore features finished per clamping, so fewer datum shifts.
• 2
  Automatic tool changeTool-to-tool times are seconds, not minutes.
• 3
  Repeatable by designThe same program produces the same part on every run.
• 4
  Program-drivenChange the part by changing the code, not the fixture.

The bed and column carry the mass. Cast iron or polymer concrete absorbs vibration, and vibration shows up as chatter marks and short tool life. A stiff frame lets you push feed rates without turning the surface into a washboard.

Linear guides and ballscrews translate servo rotation into axis motion. Their pitch accuracy and backlash set how close the table actually lands to the commanded position. Thermal growth of the ballscrew is why a cold machine cuts small in the morning and on size by afternoon.

The spindle is where accuracy either survives or dies. A 12,000 rpm to 15,000 rpm spindle with a HSK or BT30 taper suits small tools and aluminium. Bigger tapers like BT40 or HSK-A63 handle steel and heavier radial loads. Spindle runout of a few micrometres multiplies at the tool tip.

The automatic tool changer is a magazine plus a mechanical arm. Twenty to forty pockets is typical. Each additional setup you avoid by keeping tools in the carousel saves fixturing error. The tool presetter measures each cutter offline so the control knows its length and diameter before the first cut.

Coolant and chip evacuation look mundane until they are not. Through-spindle coolant clears deep holes and pockets where flood coolant never reaches. Poor chip removal recuts chips, and recutting is the fastest route to a broken 3 mm end mill.

• 1
  FrameMass and damping decide the achievable surface finish.
• 2
  Drive trainBallscrew pitch and backlash set positioning error.
• 3
  SpindleTaper, speed and runout decide which materials and tools make sense.
• 4
  Tool changerMagazine size caps how many operations run unattended.

A 3-axis machine moves X, Y and Z. The tool always approaches from one direction, so every feature must be reachable from that direction. It is the cheapest option per hour and the right choice for plates, housings and brackets with features on one or two faces.

A 4-axis machine adds a rotary table, usually around X or Y. That lets you machine features on four sides of a part in one setup, or wrap a toolpath around a cylinder. A Ø400 mm rotary table handles most medium prismatic work. If your part has holes every 90 degrees, 4-axis removes three setups.

A 5-axis machine adds two rotary axes. There are two common layouts: a trunnion table that tilts the part, and a head that tilts the spindle. Simultaneous 5-axis means all five axes move at once, which lets a short stub tool reach steep walls and undercuts. That is how you cut an impeller or a deep cavity without a long, flexing cutter.

Positioned 5-axis, sometimes called 3+2, is different. The table indexes to an angle, locks, and then cuts in three axes. It is easier to program and more rigid than simultaneous motion. Many parts only need 3+2. Use simultaneous only where the geometry genuinely demands it.

• 1
  Choose 3-axisFlat plates, covers, manifolds with features on one face.
• 2
  Choose 4-axisShafts, flanges and parts with features on four sides.
• 3
  Choose 3+2Angled faces and holes that need a rigid, locked position.
• 4
  Choose simultaneous 5-axisBlades, impellers, undercuts and deep contoured cavities.

Thin walls are the classic limit. A wall below about 0.5 mm on aluminium starts to deflect under cutting force, and the finish tells on you. You can rough leaving stock, then take light finishing passes, but at some point the part needs a different process.

Deep pockets are another wall. Tool length-to-diameter ratios above roughly 4:1 invite chatter. A 6 mm cutter reaching 40 mm deep will sing unless you reduce radial engagement and step down in smaller increments. Sometimes the honest answer is a smaller tool, more time, or a redesigned pocket.

Hardness caps the list too. Machining centres cut hardened tool steel in the 45 to 55 HRC range with the right carbide and light depths of cut, but the cycle time climbs. Above that, grinding or EDM is usually cheaper per good part.

Part size is a physical constraint, not a preference. Our largest travel is 4,000 × 400 × 150 mm on the long machines, with 750 × 1,150 × 550 mm and 600 × 600 × 600 mm on the medium frames. If the part does not fit with room for the tool and fixture, it does not fit.

Quantity flips the economics. One-off prototypes belong on a machining centre because there is no tooling cost. At 50,000 pieces a year, die casting or forging plus finishing may beat milling every part from solid.

• 1
  Wall below 0.5 mmExpect deflection; add finishing passes or change process.
• 2
  L/D above 4:1Reduce radial engagement or redesign the pocket.
• 3
  Above 55 HRCGrinding or EDM is usually cheaper per good part.
• 4
  Very high volumeCasting plus finish machining beats cutting from solid.

A machine tool's positioning accuracy is not the same as the tolerance you can hold on a part. The part sees spindle runout, tool deflection, thermal growth, fixture compliance and material springback. All of them add up. That is why a machine rated at ±0.002 mm may still leave you at ±0.01 mm on a flexible part.

Thermal stability is the largest single factor on a long run. A spindle warms up over the first hour and the ballscrews grow with it. Shops that hold tight tolerances run a warm-up cycle before production, keep the room temperature steady, and re-check the first part after the machine has settled.

Tool selection is the second factor. A sharp carbide end mill with a polished flute cuts cooler and deflects less than a coated general-purpose tool pushed at the same feed. Cutter runout of 10 μm on a 3 mm tool changes the effective chip load on one flute and shortens tool life.

Inspection closes the loop. Measuring the first part is not enough. In-process checks catch drift, and a final inspection before shipment is what actually protects the customer. We run raw material checks, in-process monitoring and 100% inspection before shipment, with reports on request.

For reference, our process capability on well-fixtured aluminium and steel parts reaches ±0.005 mm (±0.0002 in) where the geometry allows. Surface finish options run from Ra 0.2–0.8 μm on fine finishes to Ra 3.2 μm as machined. Those numbers are achievable, not automatic. The part design and material have to cooperate.

• 1
  Warm-up firstRun the spindle before the first tight-tolerance cut.
• 2
  Sharp, low-runout toolsTool condition is part of the tolerance budget.
• 3
  Control the roomTemperature swings move the part and the machine.
• 4
  Inspect in processCatch drift before the whole lot is wrong.
