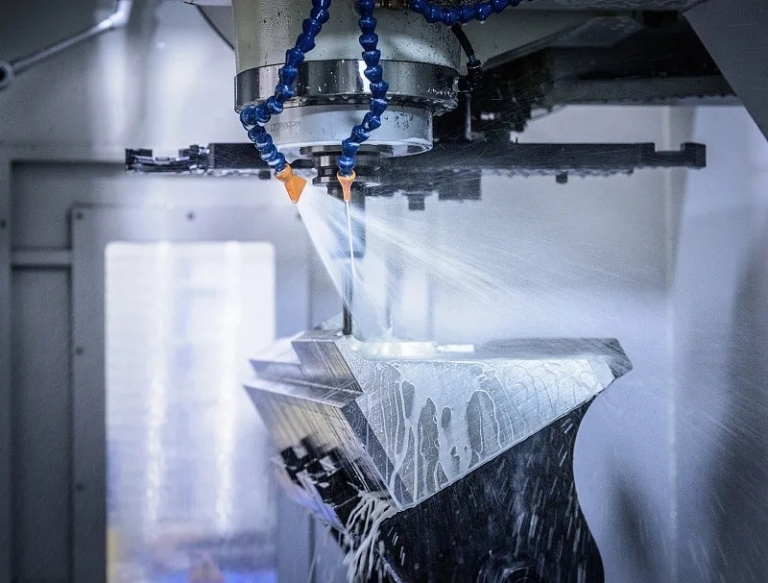

A machining center is a CNC milling machine with two extra systems: an automatic tool changer (ATC) and, usually, a way to index or rotate the work. Everything else follows from those two additions. The spindle stays under program control, the tool magazine feeds it on demand, and the part can be presented to the cutter from more than one direction without a human unclamping it.

That matters because most of the error in a milled part does not come from the cutter. It comes from re-fixturing. Every time you unclamp a part, blow off the chips, and clamp it on a second face, you add a positional shift. A good operator holds that to 0.02–0.05 mm. A tired operator at 2 a.m. does not. A machining center with a rotary table removes those re-clamps from the process.

The third thing it does is run unattended. Once the program is proven, the machine keeps cutting through tool changes, through the night, through the weekend. That is where the cost argument lives for production runs. For one prototype it barely matters; for 500 brackets it is the whole story.

So the short answer to what do the machining centers do: they mill complex geometry in fewer setups, to a tolerance the process can hold, at a cycle time that does not depend on how steady the operator's hand is that day.

Tools sit in a magazine, either a drum (typically 10–24 pockets) or a chain (30–60+). When the program calls a new tool, the spindle stops, orientates to a known angle, and rises to a change position. A mechanical arm grips both the used tool and the next one, pulls both out, swings them through 180°, and pushes them home. The whole exchange takes 1–5 seconds on a typical vertical machine.

Two details drive accuracy here. First, the spindle orientation angle must repeat. If the drive dogs land 0.5° off, a face mill will cut slightly out of square to its nominal orientation. Second, the tool holder taper must seat cleanly every time. A chip on the taper is the single most common cause of an odd surface finish or a sudden size drift.

Tool length offsets are measured once, stored in the control, and applied on every call. Thermal growth of the spindle is the slow drift underneath that. A shop running tight work will warm the spindle for 15–30 minutes and re-probe a master tool before a critical feature.

The practical consequence: you can drill, rough, semi-finish, finish, chamfer and tap a part in one program without stopping the cycle. That is the feature that separates a machining center from a CNC mill with a hand-loaded collet.

A 3-axis machine moves X, Y and Z. The tool always points straight down (or straight along the spindle axis), so undercuts and angled faces need a second or third setup. It is the workhorse for plates, pockets, slots, and any part where the critical features live on two or three orthogonal faces.

A 4-axis machine adds a rotary axis, usually around X or Y. This is the right tool for parts that are cylindrical with milled features on the side: a shaft with a keyway and two flats, a manifold with ports around a bore. The rotary table indexes to an angle, locks, and the machine mills. Positioning accuracy at the table matters more than simultaneous motion here.

A 5-axis machine adds a second rotary axis, so the tool can tilt relative to the part. Two things become possible. One, you can reach five faces of a prismatic part in a single setup. Two, you can keep the tool at an angle to the surface, which lets a short, stiff cutter reach into a deep pocket instead of a long, chattering one.

True simultaneous 5-axis is a different skill from 3+2 positional work. Simultaneous motion keeps all five axes moving through the cut, which is how you machine a twisted impeller blade or a contoured aerospace rib. It also means the post-processor must handle singularity and retract logic correctly. Not every 5-axis job needs it. Many do not.

• 1
  Use 3-axisFlat plates, pockets, holes, parts with features on two or three faces.
• 2
  Use 4-axisShafts, hubs, and cylindrical parts with cross-drilled or milled features.
• 3
  Use 3+2Prismatic parts needing five faces in one setup, with the table locked during cutting.
• 4
  Use simultaneous 5-axisContoured surfaces, blades, and deep pockets where cutter stiffness is the limit.

Positioning accuracy is the machine's ability to arrive at a commanded point. Repeatability is its ability to come back to the same point after moving away. Repeatability is almost always the tighter number, and it is the one that governs a production run. A shop quoting ±0.005 mm is quoting a repeatability figure under controlled temperature, not a guarantee for every feature on every part.

Surface finish follows the cutter and the stepover, not the machine. A 12 mm carbide end mill at 0.5 mm stepover leaves a scalloped floor. Drop to 0.05 mm stepover with a 6 mm ball nose and you get Ra 0.8–1.6 μm with visible tool marks. Ra 0.2–0.8 μm usually means a finishing pass at a small stepover, a sharp cutter, and often a light abrasive step afterward.

Geometry sets the boundary. The cutting tool has a diameter, so an internal corner can never be sharper than the cutter radius. A deep pocket narrower than 4× the tool diameter forces a long tool, and a long tool deflects. This is where a 5-axis machine earns its cost: tilting the tool lets a shorter, stiffer cutter reach the same floor.

Thermal drift is the quiet limit on all of it. Aluminum at 6061 expands about 23 μm per meter per °C. A 300 mm part that warms 5 °C during a long cycle grows roughly 35 μm. That is seven times a ±0.005 mm tolerance. Climate control and in-process probing are not luxuries on tight work. They are the process.

They are the right choice when the part is prismatic or has features on multiple faces, when the tolerance is tighter than ±0.05 mm, or when the geometry has pockets, ribs, and contoured surfaces that a casting or a stamping cannot deliver as-molded. Aerospace brackets, automotive transmission housings, medical instrument bodies, robot end-effector plates, and electronics heat sinks all fit this profile.

They are the wrong choice when the part is a simple round shaft with a single turned diameter. A lathe or a mill-turn center does that faster and cheaper. They are also the wrong choice when the geometry is basically 2D and the tolerance is loose: sheet metal fabrication or die casting will produce 1,000 parts for a fraction of the machining cost.

There is a crossover point worth knowing. Below roughly 100 to 500 parts, depending on complexity, machining from billet usually beats tooling up a die. Above that, the tooling amortizes. The exact number depends on how many faces need machining and how tight the tolerance is.

Material also decides. Aluminum 6061 and 7075 cut fast and hold tolerance well. Stainless 316 work-hardens if the feed is too light, so the program must keep the cutter engaged. Titanium Ti-6Al-4V moves under heat and needs lower surface speed, more coolant, and a stiffer setup. Inconel pushes all of that further. None of these are reasons to avoid machining; they are reasons to match the process to the material.
