Search that phrase and you get a lot of scanned handouts. Most of them describe a machine as a box that cuts metal by computer. That is true but useless when a part goes wrong. A better starting point is this: a CNC machine is a machine tool whose slide positions and spindle speed are driven by a program of numbers rather than by a handwheel. The operator sets the work offset and the tools, then the control executes motion commands block by block.

The word CNC means computer numerical control. The computer here is a motion controller, not a PC. It reads G-code, interpolates the path between two points, and adjusts the servo loop thousands of times per second. A typical block looks like G01 X50.0 Y20.0 F800, which means feed in a straight line to that coordinate at 800 mm/min. Two or three lines of code move a tool. Thousands of lines make a part.

That distinction matters on the shop floor. A handwheel operator turns a screw and watches a dial. A CNC operator proves a program, checks the first part against a drawing, then lets the machine repeat. The repeatability, not the speed, is the real product. On our 3-axis machines we hold ±0.005 mm on a good day, and the same program will produce that result on part 1 and part 500.

So if you are collecting a cnc machine in hindi pdf for a training file, keep the definitions short and put the numbers next to them. Definitions alone do not survive contact with a real print tolerance.

A CAM programmer converts the 3D model into toolpaths. Those toolpaths become G-code. The control reads one block ahead, plans the acceleration, and sends position commands to the servo drives. Each drive compares the commanded position with the encoder feedback and corrects the error. This is a closed loop, and it runs faster than any human reaction.

Cutting happens when the tool edge shears material. The three variables are cutting speed, feed per tooth, and depth of cut. Aluminum 6061 at Ø12 mm carbide end mill often runs 3,000-6,000 rpm with 0.05-0.10 mm feed per tooth. Switch to 316 stainless and the same cutter drops to 800-1,500 rpm. Push too hard and the tool chatters. Back off too far and the tool rubs and work-hardens.

Thermal growth is the quiet problem. A spindle running for two hours grows a few microns. On a ±0.005 mm job we warm up the machine, cut a test piece, and adjust the offset. Ignore warm-up and your first ten parts are right while parts 300-400 drift out of tolerance.

Rigidity sets the ceiling. A 4,000 mm long part on a large travel machine flexes under its own weight. The same part on a 500 mm machine is stiff but will not fit. Match the part to the machine travel before you worry about spindle taper.

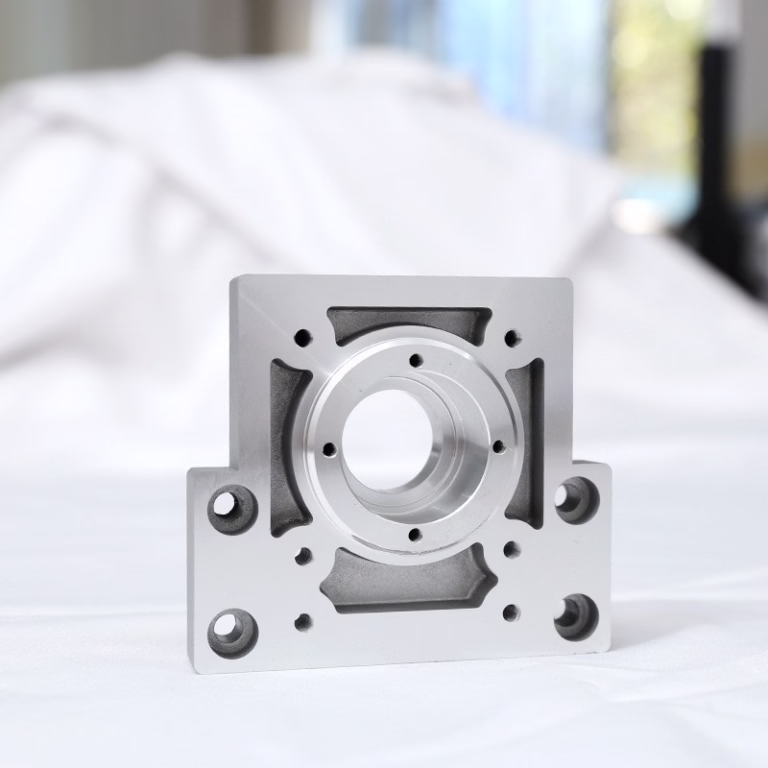

Three-axis milling cuts from one direction. It handles plates, brackets, housings with open faces, and any pocket you can reach from above. It is the cheapest option per hour and the easiest to fixture. If your part has features on five sides, three-axis means multiple setups, and every setup adds error.

Four-axis adds a rotary table, usually Ø400 mm on our machines. The workpiece indexes around one axis. Shafts with cross holes, impellers, and cylindrical parts with milled flats belong here. One setup replaces three, and the angular position stays tied to the same datum.

Five-axis machining tilts the tool or the table in two extra axes. Short, stubby tools reach deep pockets without long overhangs, so chatter drops and surface finish improves. It also cuts complex contours in one setup. Turbine blades, medical implants, and automotive engine components are typical. We run 16 simultaneous 5-axis centers for exactly this reason.

Turning is different. The part spins and the tool stays still. Mill-turn centers combine both, so a part that needs turning plus milling does not move between machines. That saves a setup and protects concentricity. If your part is round with a few milled features, ask for mill-turn instead of two separate operations.

The same machine cuts aluminum, stainless, titanium, and PEEK. What changes is the tool, the speed, and the coolant. Aluminum 6061 and 7075 machine fast and hold tight tolerances. 7075 is stronger but more prone to stress relief movement after roughing, so we leave stock and finish after a pause.

Stainless 303 and 304 machine cleanly with sharp tools and plenty of coolant. 316 and 316L work-harden if the tool rubs, so we keep the feed up and never dwell. 17-4PH in the H900 condition is tough but stable once heat treated. If the drawing calls for heat treatment after machining, expect a small dimensional shift and plan the finish allowance.

Titanium Ti-6Al-4V and Inconel cut slowly. Heat stays in the tool edge, so speeds drop and tool life shortens. These jobs cost more per part because of time, not because of machine rate. Plastics such as POM and PEEK cut easily but move with temperature, so we control coolant and let the part stabilize before final measurement.

The practical rule: pick the material for the function, then let the shop pick the cutting data. Do not specify a material because it sounds machinable.

A general tolerance of ±0.1 mm is easy on most features. Tighten to ±0.02 mm and you need stable fixtures, sharp tools, and temperature control. At ±0.005 mm the feature becomes a process, not just a cut. We inspect with calibrated instruments and hold the part until it reaches room temperature.

Surface finish follows the same curve. As-machined at Ra 1.6-3.2 μm is standard. Ra 0.8-1.6 μm needs a finishing pass with a smaller stepover. Ra 0.2-0.8 μm usually needs a dedicated finishing tool and sometimes a secondary operation such as lapping or polishing.

The cost driver is rarely the machine. It is the setup, the inspection, and the scrap risk. A part with one tight bore and ten loose features costs less than a part with ten tight features, even if the geometry looks similar. Group tolerances where they matter and leave the rest open.

On a drawing, put the datum first, then the critical features, then everything else. A clear drawing saves a round of questions and often a week of schedule.
