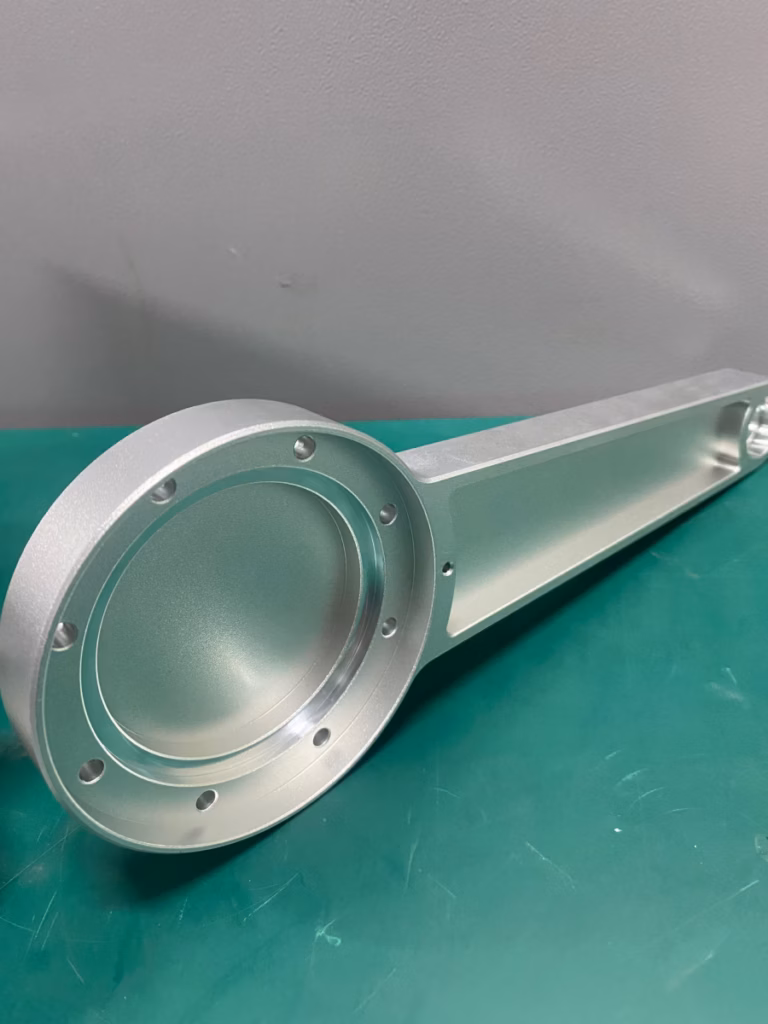

Almost every machined part starts as a solid block, a bar, a plate or a casting. The machine removes material with a rotating cutter or a turning tool until the remaining shape matches the CAD model. That single fact explains most of what shops produce: parts with features that cannot be formed, cast or molded to final size.

The list runs from engine brackets and hydraulic manifolds to bone plates, waveguides and vacuum chamber flanges. A typical job shop quotes 80 to 200 different part numbers a month across 20 or 30 materials. Aluminum, stainless steel and engineering plastics cover most of that mix.

The useful question is not which industries use CNC. It is which features force a part onto a CNC machine in the first place. Those features decide the machine, the fixture, the tooling and the tolerance you can actually hold.

Most machined parts fall into one of seven families. Each family has a default process, a typical tolerance band and a different reason for being machined rather than cast or molded.

Automotive and EV parts dominate volume. Control arms, brake calipers, steering knuckles, motor housings, battery tray brackets and transmission valve bodies all need flatness, bore roundness and thread integrity that casting alone cannot deliver. IATF 16949:2016 process control applies to these runs.

Aerospace and defense work pushes the other direction: low volume, high mix, tight geometry. Radar housings, satellite mounting brackets, actuator bodies and structural ribs are often machined from 7075 or Ti-6Al-4V billet because the load path must be continuous. Wall thickness down to 0.8 mm is common, and chatter control matters more than cycle time.

Medical devices, robotics, electronics hardware, mold and die components, and energy hardware make up the rest. Bone plates, surgical instrument handles, robot joint housings, heat sinks, connector shells, mold inserts and pump manifolds all share one trait: features too fine or too interlocked for any other process.

• 1
  Automotive & EVSafety-critical housings and brackets, IATF 16949:2016 controlled.
• 2
  Aerospace & defenseThin-wall structural parts from 7075 and Ti-6Al-4V billet.
• 3
  Medical devicesImplant-grade stainless and titanium, ISO 13485:2016.
• 4
  Robotics & automationJoint housings, end effectors, gearbox plates.

A part's industry label tells you the paperwork. Its geometry tells you the machine. Three questions settle most routing decisions.

First, how many faces need work? If a part needs features on two or three perpendicular faces, a three-axis mill with refixturing can do it. If it needs features on five or six faces at compound angles, a five-axis center machines them in one setup and removes the stacked tolerance from multiple fixtures.

Second, is the part mostly rotational? Shafts, pins, bushings and threaded fittings go on a lathe. Mill-turn centers handle parts that are rotational but carry cross-holes, flats or slots, because turning and milling happen without a second setup.

Third, how thin are the walls? Below 1 mm in aluminum or 0.6 mm in titanium, cutting forces will deflect the part unless you control tool pressure and support the workpiece. That is where a five-axis center with a Ø400 mm rotary table earns its cost.

The material changes speeds, feeds, tooling and sometimes the process itself. Aluminum 6061 and 7075 cut fast with carbide and hold ±0.005 mm without drama. Stainless 304 and 17-4PH work-harden, so light radial engagement and constant feed matter more than depth of cut.

Titanium Ti-6Al-4V and Inconel sit at the hard end. They conduct heat poorly, so the cutter absorbs it. Tool life drops, cycle time rises, and coolant strategy becomes a process decision rather than an afterthought.

Plastics behave differently again. POM and PEEK machine cleanly but move with temperature. ABS and PC can gum up if the chip load is too light. Carbon fibre eats carbide edges, so diamond-coated tooling is often the cheaper route over a full production run.

Material choice also sets the finish you can reach without extra work. As-machined aluminum lands around Ra 1.6–3.2 μm. Fine finishing can reach Ra 0.2–0.8 μm on the same part with a slower pass and a sharper tool.

Machining is the default route for prototypes because no tooling is needed. One part, one program, one setup. Design changes cost a new program, not a new mold.

Complex geometry is where the process shows its value. Undercuts, deep pockets, sculpted surfaces and intersecting bores are all reachable when the tool can approach from enough directions. Five-axis simultaneous motion lets a short, stiff cutter follow a curved surface instead of a long tool reaching in from far away.

The limits are real. A pocket narrower than the smallest available cutter cannot be machined. A deep hole with a high depth-to-diameter ratio needs a specialty drill and peck cycles. An internal channel with no line-of-sight access cannot be cut at all, which is when casting, 3D printing or a split-and-bond design makes more sense.

Sharp internal corners are another boundary. Every cutter has a radius, so an inside corner carries that radius unless you specify EDM or a broach. Engineers who design for a 1 mm corner radius at the start avoid a redesign later.

Turning spins the workpiece against a stationary single-point tool. It is the fastest way to make a round feature, and it holds diameter and concentricity well. A shaft turned between centers keeps its roundness because the same setup creates every diameter.

Milling spins the tool against a stationary workpiece. It makes flats, slots, pockets and contours that turning cannot. Most prismatic parts never touch a lathe.

Mill-turn centers combine both on one platform. A hydraulic manifold, for example, starts as bar stock, gets turned to diameter, then gets cross-drilled and face-milled without leaving the machine. That removes one setup, one fixture and one chance to lose position.

The trade-off is program complexity and machine cost. For a simple bushing, a lathe is faster and cheaper. For a part with four cross-ports at different angles, mill-turn usually wins on total cost.
