A vat photopolymerization build ends with a part that is only partly reacted. The laser or projector has converted maybe 70 to 90 percent of the acrylate groups in the exposed volume. The rest sit there as unreacted monomer, plus photoinitiator fragments, plus liquid resin clinging to every surface. That wet film is not water. It is a reactive mixture that will keep crosslinking slowly in daylight, and it will irritate skin.

So cleaning is not cosmetic. It removes the unreacted liquid so that the later UV exposure cures the part surface rather than a puddle of stray resin. Curing is not cosmetic either. It drives the residual acrylate conversion higher, which sets hardness, modulus and heat deflection temperature. Skip either step and the part stays soft, dimensionally unstable and slightly toxic to handle.

The two steps fight each other. Aggressive washing pulls monomer out of the surface layer and can leave a chalky, over-dried skin. Aggressive curing builds internal stress and shrinks the part. The engineering job is picking a cleaning and curing window that gets conversion high enough for the application without moving critical dimensions past tolerance.

For a visual aid held in the hand, the window is wide. For a snap-fit housing or a fluidic channel measured at ±0.05 mm, the window is narrow and the solvent choice matters as much as the lamp.

• 1
  Green strengthThe part is soft because conversion is incomplete, not because the resin is bad.
• 2
  Residual monomerUnreacted acrylate is the main reason skin contact is restricted.
• 3
  Two competing stepsWashing removes material; curing locks the shape and shrinks it.

Isopropyl alcohol at 90 percent or higher is still the default for most acrylate resins. It dissolves uncured resin fast, it evaporates clean, and it is cheap. The failure mode is soak time. Two minutes in fresh IPA removes surface resin. Ten minutes in the same bath lets the solvent swell and etch the part, and small features go soft at the edges.

Two-stage washing beats one long bath. Rinse in dirty solvent first to knock off the bulk, then dip in clean solvent for 30 to 60 seconds. This keeps the clean bath usable far longer and limits the exposure of the part to fresh solvent. In a wash station, keep the first tank for gross removal and change the second tank on a schedule, not when it looks cloudy.

Not every resin tolerates alcohol. Water-washable resins are formulated so the uncured paste rinses in tap water, which removes the flammability and the fume problem. The trade-off is that water-washed parts tend to absorb a little moisture and need a longer dry before UV cure, or the surface stays tacky and blushes.

For high-detail dental and investment-casting patterns, some shops use a short dip in a mild solvent such as tripropylene glycol methyl ether, then a rinse. It is slower and costs more per liter, but it is gentler on thin walls. Pick it when wall sections are under 0.8 mm.

• 1
  Keep it short30 to 60 seconds in clean solvent is usually enough.
• 2
  Two tanksDirty tank for bulk resin, clean tank for the final rinse.
• 3
  Dry before cureTrapped solvent boils and blisters under UV.

Post-cure is a dose problem, not a time problem. Dose is irradiance multiplied by time, and it is measured in millijoules per square centimeter. A 405 nm lamp at 10 mW/cm² for 10 minutes delivers 6,000 mJ/cm². The same lamp for 2 minutes delivers 1,200 mJ/cm². Most engineering resins want somewhere between 2,000 and 8,000 mJ/cm² to reach a stable hardness, but the data sheet is the authority for your specific grade.

Wavelength matters because the photoinitiator absorbs at a specific band. Many clear and white resins are tuned for 385 to 405 nm. A lamp that peaks at 365 nm may under-cure them even at high dose, because the initiator barely absorbs there. Match the lamp to the resin, not to the cheapest bulb.

Shrinkage is the cost of curing. Acrylate polymerization pulls molecules closer together, so the part gets slightly smaller and builds internal stress. Thin flat panels warp. Long thin rods bow. Parts with thick and thin sections in the same body distort at the transition. A slow cure at lower irradiance gives the stress time to relax and usually produces less warp than a fast, hot cure.

Heat is the other limit. A high-power lamp in a closed chamber can push the surface above the resin's heat deflection temperature. The part then sags under its own weight while it is still soft. Keep chamber temperature in check, and rotate the part so no single face takes the full dose.

• 1
  Think in dosemJ/cm², not minutes. Irradiance varies between lamps.
• 2
  Match wavelength385 to 405 nm suits most current engineering resins.
• 3
  Slow beats hotLower irradiance over longer time reduces warp.

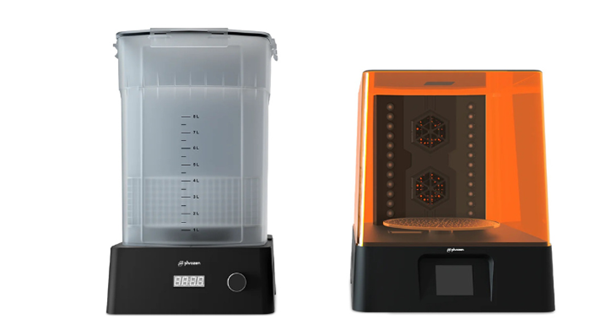

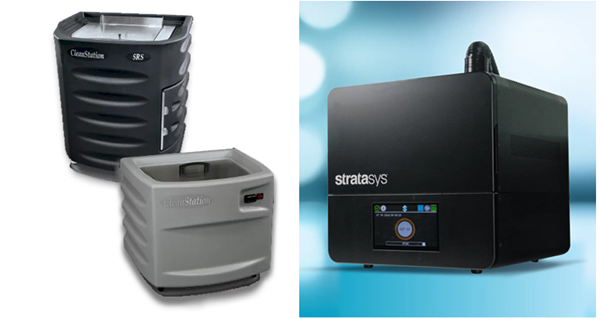

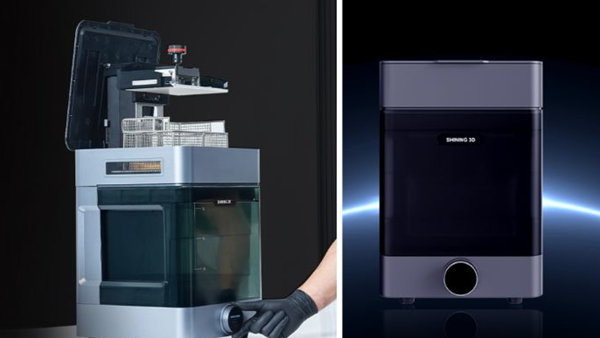

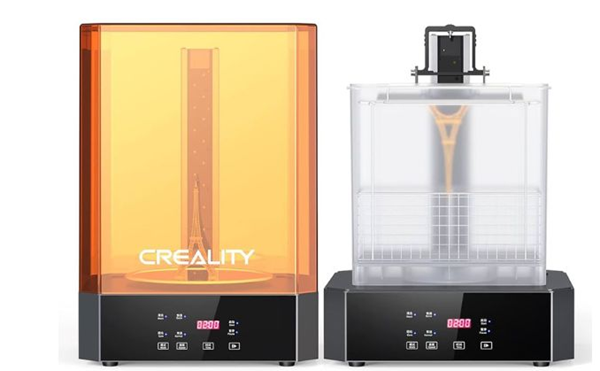

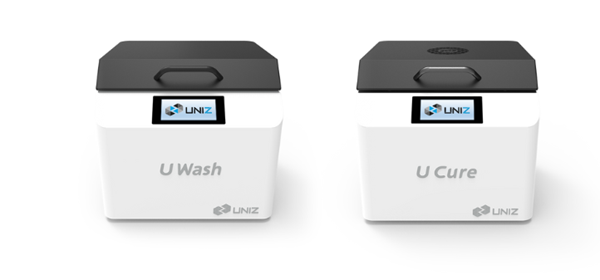

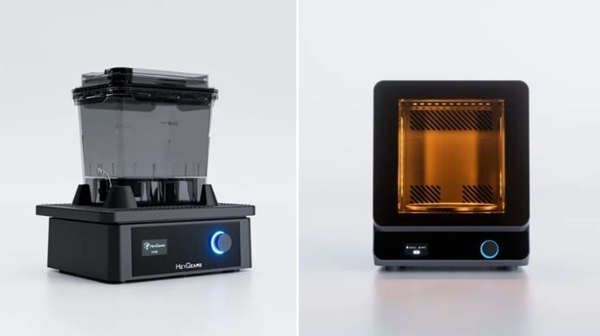

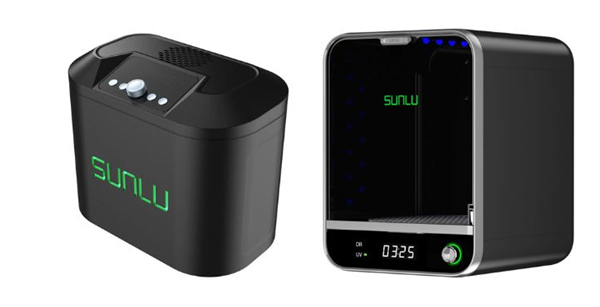

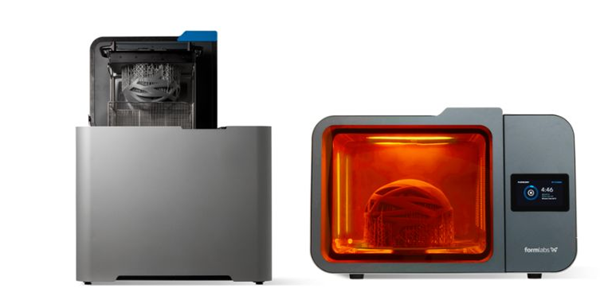

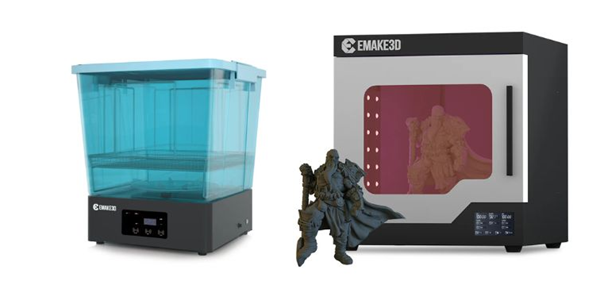

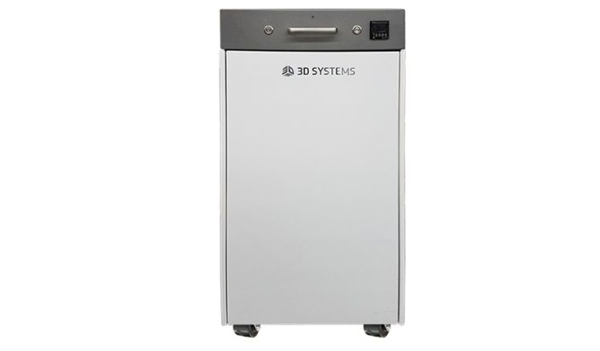

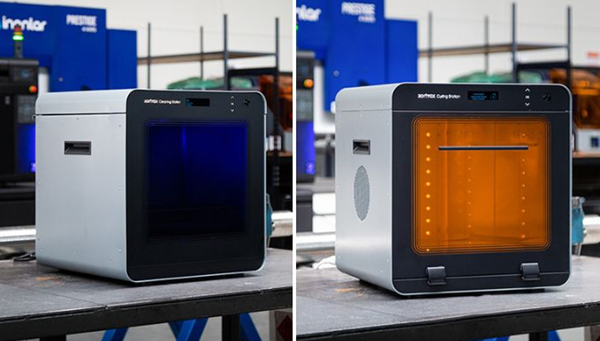

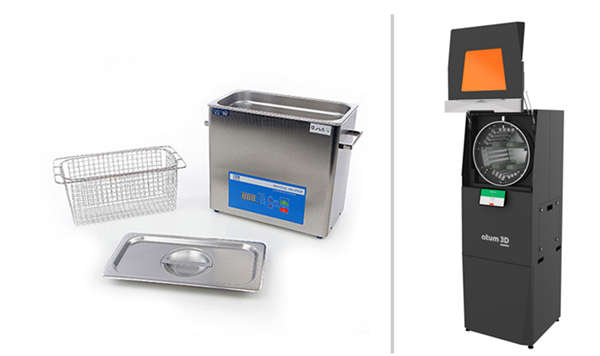

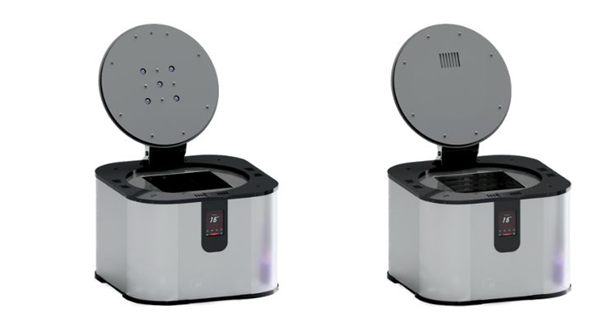

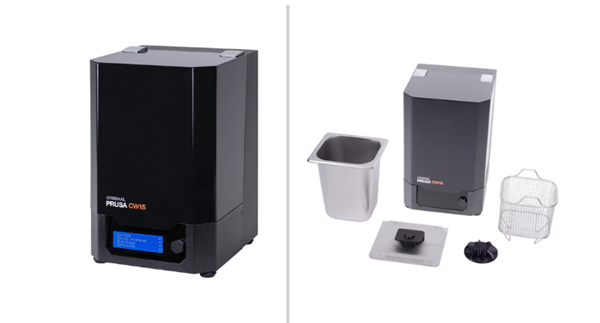

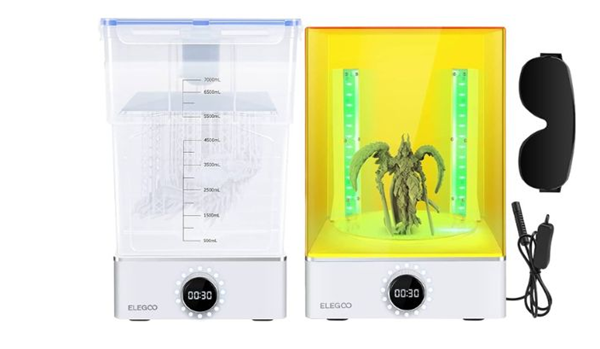

A manual jar of IPA works for one-off models. It does not work for a batch, because the solvent saturates and every part after the fifth sees dirty liquid. A two-tank ultrasonic or magnetic-stirrer station keeps the chemistry consistent and cuts operator variance. For shops running the same part repeatedly, this is the first upgrade worth paying for.

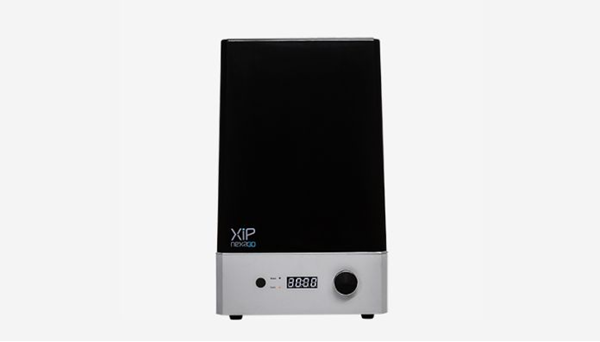

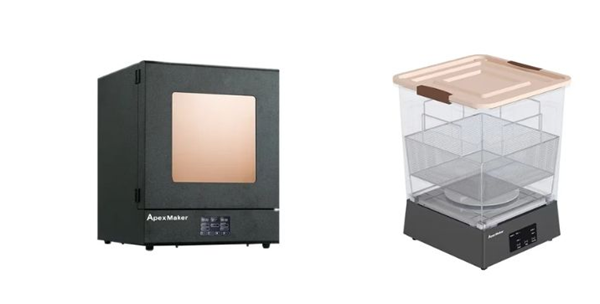

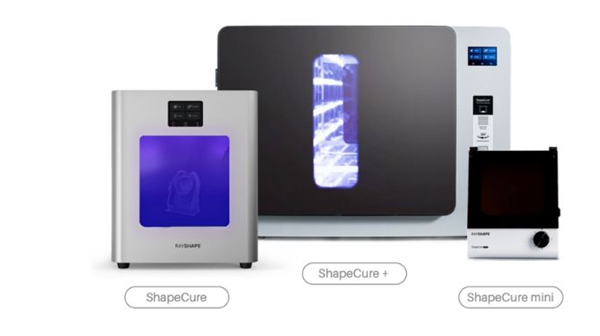

Curing chambers range from a foil-lined box with a nail lamp to a rotating turntable with mirrored walls. The turntable matters more than the lamp wattage. A part that sits still gets a hot face and a shadowed face, and the shadowed side stays under-cured. Mirrored walls and rotation even out the dose.

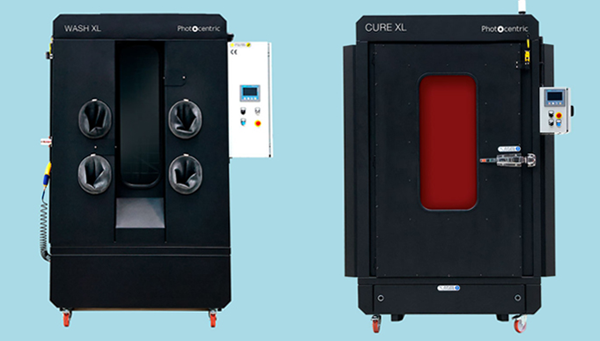

Inline UV tunnels suit production volumes where parts move on a conveyor under fixed lamps. Dose is set by belt speed and lamp height, so it is repeatable once dialed in. The catch is part geometry: a deep recess or a blind hole still shadows, and no tunnel fixes that without a secondary hand cure.

Whatever the setup, measure it. A radiometer costs less than a failed batch. Log irradiance at the part surface weekly, because lamps age and output drops long before they fail visibly.

• 1
  One part, one jarFine for models, not for repeatable batches.
• 2
  Rotate and reflectEven dose beats raw lamp power.
• 3
  Log the lampWeekly irradiance checks catch aging bulbs.

The first check is touch. A properly cured part is dry and does not feel slick or sticky. If a gloved finger drags, conversion is low. Wipe the surface with a white lint-free cloth and a drop of IPA: if color comes off, there is still unreacted resin or the surface is under-cured.

The second check is dimension. Measure the part before cure, after wash and after full cure. Most acrylate resins shrink somewhere in the range of 0.5 to 2 percent linearly, and most of that happens in the first minutes of UV exposure. If a critical dimension moved past your tolerance band, the fix is usually a slower cure or a longer pre-cure dry, not a different resin.

The third check is mechanical. A cured part should take a light bend without whitening. Stress whitening at a bend line means the surface is brittle from overdose or from solvent attack. Try a slower wash and a lower dose before blaming the material.

Finally, check the data sheet for the resin's specified post-cure window and stay inside it. Vendors publish dose and temperature ranges for a reason. Exceeding them does not make the part stronger; it makes it brittle, discolored and dimensionally wrong.

• 1
  Touch testDry and non-tacky is the baseline.
• 2
  Measure three timesGreen, washed, cured. Track the delta.
• 3
  Bend testWhitening means overdose or solvent damage.
