What Are the Advantages of Manufacturing Parts on CNC Turning?

• 1
  Why the Turning Geometry Creates Its Own Accuracy
• 2
  Accuracy and Surface Finish From a Single Pass
• 3
  Cycle Speed, Bar Feeders, and Setup Economics
• 4
  Material Range and Feature Complexity
• 5
  Cost Per Part and Material Utilization
• 6
  CNC Turning vs CNC Milling: Which Process Fits

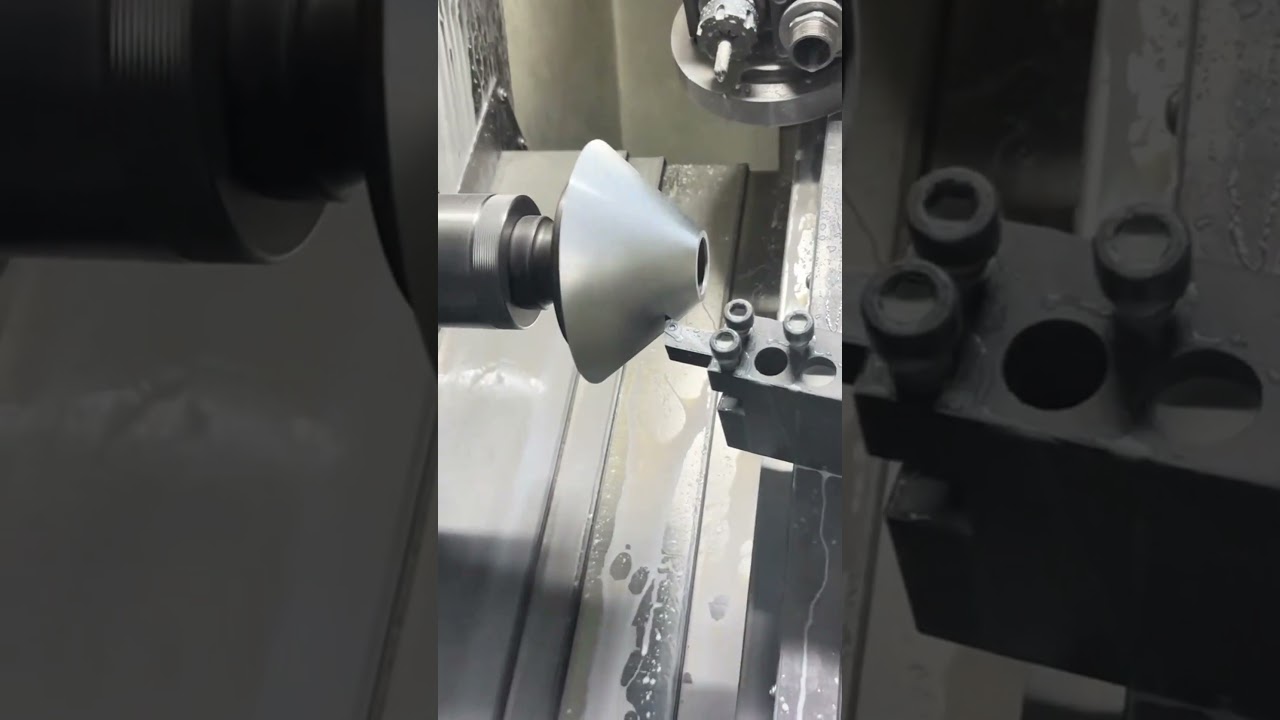

On a lathe, the part spins and the tool stays still. Every diameter is generated by one continuous tool path relative to a rotating centerline. That is the whole reason parts on CNC turning hold tight tolerances so easily: roundness comes from the spindle bearing and the servo feed, not from repositioning the workpiece. A mill has to interpolate a circle with a rotating cutter, and any backlash or tool deflection shows up as lobing. Turning avoids that class of error entirely.

The second effect is force direction. In turning, cutting force pushes mostly along the radial and tangential directions against a rigid, short tool overhang. Boring bars and end mills in a mill hang out much further, and that length turns into chatter. A 4,000 mm maximum processing size is available for long shafts, but a slender part still needs a steady rest or a tailstock. Rigidity is a function of the setup, not of the machine's footprint.

Temperature control matters as much as geometry. Chips carry away most of the heat, and coolant reaches the cutting zone directly because there is no enclosed pocket to flush. On 6061-T6 or 17-4PH, that keeps thermal growth predictable. The result is a tolerance band we hold at ±0.005 mm (±0.0002 in) on qualified features.

One consequence engineers often miss: turning is a diameter process. A turned surface is defined by its distance from the axis. If your drawing controls a wall thickness measured from a flat, or a slot width across a milled pad, that feature is not a turning feature and needs a second operation.

High precision is the first advantage people name, and it is the easiest to explain. Because the tool never leaves the cut during a finishing pass, there is no tool-entry mark, no lifting, and no re-registration error in the middle of a diameter. A turned journal on a Ø25 mm shaft can run concentric to a datum bore held in the same chuck, which is exactly what a bearing seat or a seal land needs.

Surface finish is a direct output of feed rate and nose radius. At 0.05–0.1 mm/rev with a 0.4 mm nose radius on aluminum, we reach Ra 0.8–1.6 μm as a normal production finish. Drop the feed and use a wiper insert, and Ra 0.2–0.8 μm is realistic on stainless and aluminum. A mill would need a separate finishing strategy to approach that.

Those two advantages compound. A tight tolerance is only useful if the surface under the mating part is smooth enough that the fit behaves as designed. On a hydraulic spool or a pneumatic fitting thread, a rough flank wears the seal and changes the leak rate over time. Turning gives you both numbers from one setup.

Where this stops: interrupted cuts. A shaft with a keyway, cross-drilled holes, or a milled flat will break the chip stream on every revolution. Expect impact loading on the insert and a rougher finish right at the interruption. That is normal, not a defect, and it should be called out on the drawing so inspection does not reject it.

Efficiency in turning comes from two things: short cycle times and unattended running. A bar feeder loads stock continuously, so a Ø20 mm aluminum spacer with a simple profile can run hundreds of parts per shift with no operator in the loop. The machine does not get tired and it does not re-chuck between parts, so part 400 matches part 1.

Setup time is where turning beats milling on cost. A two-axis turning setup needs a chuck, jaws, and a tool list. A three-axis mill setup may need soft jaws, a fixture plate, a probe cycle, and a first-article check on every feature. For small batches of 20 to 200 parts, that difference often dominates the quote. We quote from one prototype upward, and production can start within 24 hours once the drawing and material are confirmed.

Mill-turn centers change the calculus. With 16 mill-turn centers in our shop, a part can be turned, cross-drilled, and milled in one program without losing datum. If your part has a turned body plus a few radial holes, this is usually cheaper than running two machines.

Be careful with the volume assumption. Turning wins on round parts at almost any quantity, but if the part is a flat bracket with one bored hole, the lathe is the wrong machine no matter how good the finish requirement is. Match the process to the dominant feature geometry, not to the material.

Turning handles nearly every machinable material we stock. Aluminum 6061, 2024, 7075, and ADC12 cut fast and hold finish. Stainless 303 and 316L are common for fittings and food-contact parts; 17-4PH (SUS630) is used where you need strength plus corrosion resistance. Copper alloys C36000 and C110 turn cleanly and are typical for electrical contacts and bushings. Titanium TC4 and Inconel are also in scope, at much lower cutting speeds and with more insert wear.

Plastics behave differently. POM and PA turn well and hold tolerance if you control clamping pressure and chip evacuation, because they expand under heat. PEEK needs sharp tooling and light passes. ABS and PC are usually fine for prototypes and covers. The failure mode to watch is clamping distortion, not tool wear.

Complex geometry is where multi-axis turning earns its place. A Ø400 mm rotary table on a mill-turn platform lets us cut an eccentric cam profile, a helical oil groove, or a cross-axis port without a second fixture. Deep bores, internal grooves, and back-side chamfers can be reached with boring bars and back-working tools.

The boundary is thin walls and long overhangs. A tube with a 0.5 mm wall will deflect away from the tool and ring. A shaft with a 15:1 length-to-diameter ratio needs a steady rest, and even then the middle of the span is the hardest zone to hold. Send the drawing and we will tell you which features are safe before you commit to a design review.

Turning is a subtractive process, but it is a surprisingly efficient one. Bar stock is close to the finished diameter, so the chip volume is small compared to milling a part out of a plate. On a Ø30 mm part made from Ø32 mm bar, the material you pay for is mostly the material you ship. That directly lowers cost per part as volume rises.

Tool cost is predictable. Turning uses indexable inserts, and one corner can run dozens of parts on aluminum. On Inconel or hardened 4140, insert life drops and that cost appears in the quote. It is a real variable, not padding.

Labor cost drops because one operator can tend several lathes. Inspection stays at 100% before shipment, with raw material check, in-process monitoring, and final inspection, and reports on request. Inspection is not free, but it is far cheaper than a returned lot.

None of this makes turning universally cheap. A one-off prototype with ten milled pockets will not be economical on a lathe. It becomes economical when the part is round, the tolerance is tight, and the quantity is above a handful. That is the honest boundary.
