Versatile Solution for Effective Precision Sawing of the Gantry Band Saw Machine

• 1
  How a gantry band saw holds alignment under load
• 2
  Blade pitch, width and material for different stock
• 3
  Clamping profiles without crushing or shifting
• 4
  What accuracy versatile precision sawing can actually hold
• 5
  When sawing beats milling, and when it does not
• 6
  Sawing versus milling for heavy stock

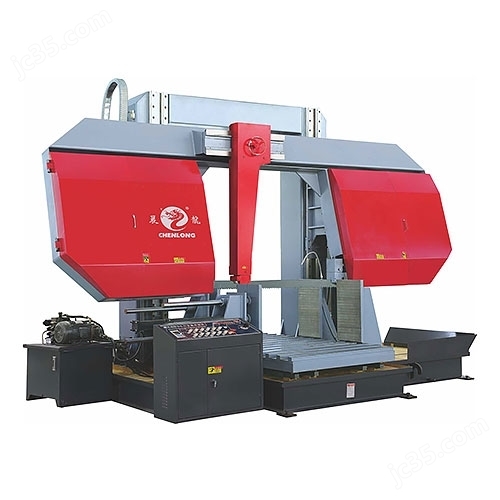

A gantry band saw carries the blade on a moving head that travels along rails above the work. The stock sits on a fixed bed below. That layout differs from a horizontal band saw, where the whole frame pivots or slides. Because the bed does not move, a heavy workpiece never has to be repositioned once it is clamped. The cutting force goes into the rails and the bed instead of into a swinging hinge.

The rails are the whole story. On carriage-type machines they are hardened steel and ground in pairs, so the head keeps its line even at the top of a tall section. When deflection appears, it usually shows up as a bowed cut rather than a tilted one: the blade pushes away from the work in the middle of the pass. Operators read that pattern and check rail preload before they touch blade speed.

Gantry geometry also sets the natural size window. These machines are built for billets, I-beams, hollow sections and forged blanks that are too heavy or too long for a pivoting saw. A 4,000 mm maximum processing size is normal for the class. Below roughly 200 mm cross-section, the same machine is often more capacity than the job needs.

One more consequence of the design: the blade enters the cut with a long unsupported span on wide stock. Guide arms must be set close to the work, and the coolant stream has to reach the whole kerf. Skip either and versatile precision sawing turns into a blade-consumption exercise.

Blade choice drives more of the result than any other single decision. Pitch is the number of teeth per inch, and it sets the chip load per tooth. Too few teeth on thin-wall tube and the teeth straddle the wall and snap. Too many teeth on a thick billet and the gullets pack, heat climbs, and the blade work-hardens the cut.

A working rule: keep three to six teeth in the cut at all times. For a 100 mm solid bar, that means a coarse pitch. For a 3 mm wall tube, it means a fine pitch and reduced feed. Width matters too. Wider blades track straighter and hold a square cut on long sections; narrower blades turn tighter radii and cut profiles more freely.

Material pushes the numbers again. On 45# steel at roughly HB200, a 100 mm M42 bimetal blade runs comfortably in the mid-range of its surface speed. Stainless 304 and 316 work-harden, so they want lower speed and steady feed with no dwelling. Inconel and titanium want slower still, with flood coolant and a fresh edge.

Carbide-tipped blades earn their price on hard alloys and on high-volume blanking, where blade changes cost more than the blade. For mixed-lot job work, bimetal usually wins on first cost and on tolerance to operator variation. We match the blade to the lot, not to the machine.

• 1
  Solid barCoarse pitch, wide blade, higher feed per tooth.
• 2
  Thin-wall tubeFine pitch, reduced feed, watch for tooth straddling.
• 3
  StainlessLower surface speed, constant feed, no dwell in the cut.
• 4
  Hard alloysCarbide tips or slow bimetal, flood coolant, fresh edge.

A saw cut is only as straight as the fixture that holds the part. On carriage-type gantry saws, V-shaped adjustable clamping rails grip round tube, bar and irregular profiles at multiple points. The V locates the part on its own centreline, so a round tube does not roll and a forged blank does not rock.

Clamping force is a trade-off. Enough pressure stops the part shifting mid-cut; too much crushes hollow sections and distorts thin-wall extrusion. For wall thickness under about 4 mm, we back the jaws with soft pads or shim the V so the load spreads over a longer arc. The part should be tight, not squeezed.

Support is the other half. Long sections sag under their own weight, and a sagging part closes the kerf behind the blade. That pinches the blade and is one of the fastest ways to break it. Roller supports at both ends of the bed keep the stock level and let the cut finish clean.

For stacked or nested cutting, every piece needs the same clamping pressure. One loose piece in the stack will shift, and the whole bundle comes out with mismatched lengths. We check stack alignment before the first pass, not after.

Sawing is a preparation process, not a finishing one. On a well-set gantry machine the cut is square to within a fraction of a degree and the length holds to a few tenths. That is enough to feed a mill or a turning centre with predictable stock allowance. It is not enough to be a finished face.

Two variables dominate the result. Blade tracking sets squareness along the cut, and blade tension sets how much the blade bows under load. Both drift with heat. On long cuts in hard stock, the first 100 mm and the last 100 mm can differ if tension was set cold and the blade grew as it warmed.

For critical blanks, we leave machining allowance rather than chase a saw tolerance. A 1 mm to 2 mm allowance on each face absorbs squareness error and any surface damage from the cut, and the mill removes it in one pass. Chasing tenths on the saw costs more than the material saved.

When a part genuinely needs a finished edge straight off the saw, that is a sign the process is being asked to do a milling job. It can sometimes be done, with carbide, low feed and a rigid fixture. It is rarely the cheap route.

Use the saw when the goal is to break down large stock into blanks that a CNC machine can hold. A 600 × 400 mm billet is awkward on a mill table and expensive to machine from solid. The saw reduces it to a size the machine can clamp, in one pass, without burning tool life on roughing.

Use the saw when the material is hard or abrasive. Tool steel, Inconel and 17-4PH all punish milling cutters in heavy roughing. A bimetal or carbide blade takes the same cut for a fraction of the tool cost, and the mill starts from a near-net blank.

Do not use the saw when the feature is the finished geometry. Slots, pockets, tapers and stepped profiles belong on a 3-axis, 4-axis or 5-axis mill. The saw makes parallel cuts. Anything that is not a straight through-cut leaves the saw's comfort zone.

Do not use the saw when the part is small and the batch is tight. Below roughly 200 mm cross-section, a mill with a good vise is faster and more accurate than loading a gantry. The saw's advantage is size and material, not small-part speed.
