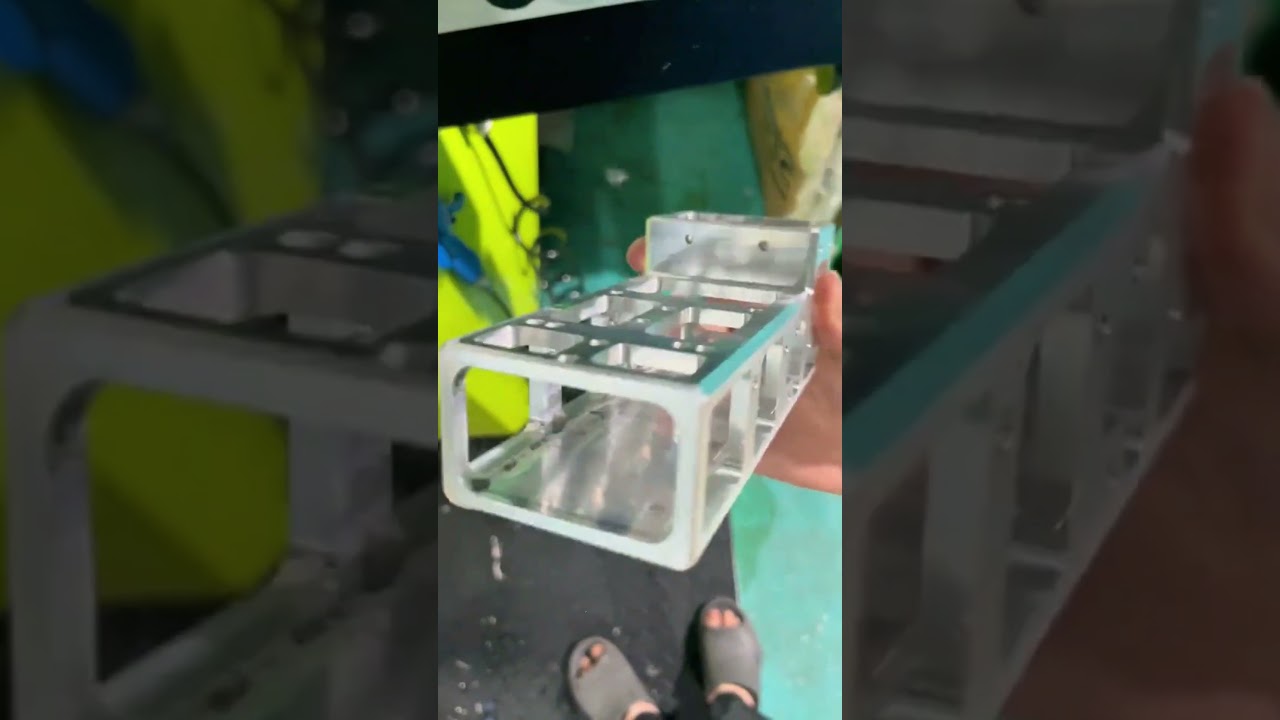

What the Essence of CNC Milling Really Is

The essence of CNC milling is controlled metal removal. A rotating multi-flute cutter moves along a programmed path while the workpiece stays clamped. Every pass removes a defined chip load. The machine repeats that path thousands of times without fatigue. Art appears when the path, the cutter, and the material agree.

Milling is subtractive. You start with a block, plate, or near-net forging and cut away what the drawing does not need. That makes stock size a cost driver: extra material becomes extra cutting time and extra tool wear. For a part that fits in a 500 × 500 × 450 mm envelope, a plate cut close to the final profile often beats a thick block.

Three motion types do most of the work. Face milling flattens a top surface. Peripheral milling cuts a side wall with the cutter flank. Plunging and ramping enter the material without a straight vertical dive, which protects the cutter tip. Slotting, pocketing, and contouring are combinations of these three.

The limit of the process is stiffness. The tool, the holder, the spindle, the fixture, and the part all deflect. Long tools in deep pockets deflect more. Thin floors vibrate. When deflection exceeds a fraction of the tolerance, the cut stops being predictable, and the essence of CNC milling becomes guesswork instead of engineering.

1
Chip loadFeed per tooth. Too low rubs and work-hardens; too high breaks tools.
2
Surface speedMeters per minute at the cutting edge. Sets heat and tool life.
3
Radial engagementHow much of the cutter diameter is in the cut. Drives deflection and chatter.
4
Axial depthHow deep each pass goes. Deeper passes need a stiffer setup.

Materials

Matching Material and Cutter to the Cut

Aluminium 6061 and 7075 cut fast. They tolerate high surface speeds, often 300-500 m/min with carbide, and clear chips easily. 7075 is stronger but gummier; keep the cutter sharp and use generous coolant or air blast. Thin aluminium walls move under cutting pressure, so finish passes should be light.

Stainless 304 and 316 work-harden. If the cutter rubs instead of cutting, the surface gets harder and the next pass wears the tool faster. Use a positive rake, climb milling, and never let the feed drop to zero in the cut. 17-4PH in the H900 condition is tougher still and rewards rigid setups.

Steel 1018 and 1045 are predictable. 4140 and 4340 at higher hardness need lower surface speeds and more attention to heat. Titanium Ti-6Al-4V conducts heat poorly, so the cutter edge takes the temperature. Reduce surface speed, increase coolant pressure, and keep the tool path continuous.

Plastics behave differently. POM and PEEK cut cleanly with sharp single-flute or two-flute cutters and strong chip evacuation. PMMA can craze from heat. ABS melts and smears if the cutter dwells. For these materials the essence of CNC milling is chip removal first, finish second.

1
Aluminium6061, 7075, 2024, 5052, 6082. High speed, watch thin walls.
2
Stainless303, 304, 316L, 17-4PH. Climb mill, avoid rubbing.
3
Steel1018, 1045, 4140, 4340. Lower speed as hardness rises.
4
TitaniumTA1, TA2, TC4. Heat stays in the tool; flood coolant.

Machine Choice

Choosing 3, 4, or 5 Axis for the Job

A 3-axis machine moves X, Y, and Z. It suits prismatic parts, plates, housings, and brackets where every feature is reachable from the top or from a small number of setups. It is the fastest and cheapest option when the geometry allows it. Many parts never need more.

A 4-axis machine adds rotation about one axis, usually A. That lets the cutter work around a cylinder, drill radial holes, or cut helical features without re-fixturing. Shafts, couplings, and round flanges are natural 4-axis work. The setup stays rigid because the part turns instead of being moved to a second fixture.

Simultaneous 5-axis moves two rotary axes with the linear axes at the same time. It reaches undercuts, angled faces, and deep pockets that a 3-axis cutter cannot touch without a long tool. It also shortens setups, which removes stacked tolerance error. The trade-off is programming time and a slower cycle on complex paths.

The choice is economic as much as technical. If a part needs four setups on a 3-axis machine and one on a 5-axis machine, the 5-axis route often wins on total cost even at a higher hourly rate. If the part is a simple plate, 5-axis is wasted money. Match the machine to the geometry, not to the brochure.

1
3-axisPrismatic parts, plates, top-accessible features.
2
4-axisCylindrical parts, radial holes, helical features.
3
5-axisUndercuts, compound angles, fewer setups.
4
Mill-turnParts that need both turning and milling in one setup.

Tolerances

Tolerance, Finish, and What Drives Cost

A general tolerance of ±0.1 mm is easy on most machines. Tightening to ±0.005 mm changes the process. You need temperature control, a rigid setup, sharp tooling, and in-process checks. Only the features that matter should carry the tight tolerance. Putting ±0.005 mm on every dimension multiplies inspection time without adding function.

Surface finish follows the same logic. As-machined surfaces land around Ra 1.6-3.2 μm. A high-quality finish reaches Ra 0.8-1.6 μm with a controlled finish pass. Fine finishes down to Ra 0.2-0.8 μm need light radial engagement, a sharp cutter, and often a separate finishing tool. Each step adds time.

Cost is driven by setup count, tool changes, and inspection, not by material removal alone. A part with ten tight features spread over five faces costs more than a part with one tight bore. Designers who group critical features on one or two faces get lower quotes and fewer rejects.

Inspection closes the loop. Raw material is checked on arrival, dimensions are monitored during the run, and the final part is measured before shipment. Reports are available on request. For regulated industries, the paper trail matters as much as the metal.

1
Loose±0.1 mm general. Fast, low cost, forgiving.
2
Standard±0.05 mm on functional features. Common for brackets.
3
Tight±0.005 mm on selected features. Needs control and checks.
4
FinishRa 1.6-3.2 μm as-machined; Ra 0.2-0.8 μm fine.

Workflow

Step by Step: From Model to Finished Part

1
1. Review the model and drawingCheck for thin walls under 0.8 mm, deep pockets deeper than 4× the cutter diameter, and sharp internal corners. A corner radius of at least 1/3 of the pocket depth lets a standard cutter reach the floor without a long, flexible tool.
2
2. Choose stock and datumPick the smallest stock that covers the finish dimensions plus 1-2 mm per face. Set a datum that can be touched off again after flipping the part. Three datums on one face are better than six scattered ones.
3
3. Build the CAM tool pathUse adaptive or trochoidal clearing for pockets. Keep radial engagement between 5% and 10% of the cutter diameter on hard materials and up to 40% on aluminium. Leave 0.2-0.5 mm on walls and floors for the finish pass.
4
4. Set speeds and feedsStart from the cutter maker's surface speed. For 6061 aluminium with carbide, 300-500 m/min is normal. For 304 stainless, 60-120 m/min. Set chip load per tooth and let the CAM software compute feed. Reduce feed by 20-30% on the finish pass.
5
5. Fixture the partSupport the part directly under the cutting zone. Use vises, soft jaws, or a vacuum plate for thin plates. Clamp near the cut, not at the far edge. Avoid clamping over a feature that will be machined later.
6
6. Cut and monitorListen for chatter and watch chip color. Blue or purple chips on steel mean too much heat. Increase coolant flow or reduce surface speed. Stop and check the first part before running the rest of the batch.
7
7. Inspect and adjustMeasure the critical features with calipers, micrometers, or a CMM. If a dimension drifts, adjust cutter compensation rather than re-cutting the whole part. Record the offset so the next run starts closer.

Selection

Process Selection by Part Type

Use this table to pick the machine, setup, and finish before you request a quote.

Part type	Best machine	Setup count	Typical finish
Flat plate with holes	3-axis	1-2	Ra 1.6-3.2 μm
Prismatic housing	3-axis or 4-axis	2-3	Ra 0.8-1.6 μm
Shaft with radial holes	4-axis	1	Ra 0.8-1.6 μm
Impeller or blade	5-axis simultaneous	1	Ra 0.8-1.6 μm
Deep pocket mold insert	5-axis or 3-axis with long tools	1-2	Ra 0.2-0.8 μm
Thin-wall enclosure	3-axis with vacuum fixture	2	Ra 1.6-3.2 μm
Turned and milled fitting	Mill-turn	1	Ra 0.8-1.6 μm
Prototype bracket	3-axis	1	Ra 1.6-3.2 μm

The Practical Rule

Match the machine to the geometry, keep tight tolerances on the few features that need them, and inspect before you ship. That is the whole trade. Send a drawing and we will tell you which axis count and setup will hold your part.
