Copper reflects most of the light a standard metal printer throws at it. At 1,070 nm, the near-infrared wavelength used by most fiber laser powder bed systems, pure copper absorbs only a small fraction of the beam at room temperature. The rest bounces back into the optics. That low absorption is why copper was long considered a difficult material for laser powder bed fusion, and why early attempts needed very high power, very slow scan speeds, or a thin absorbing coating on the powder.

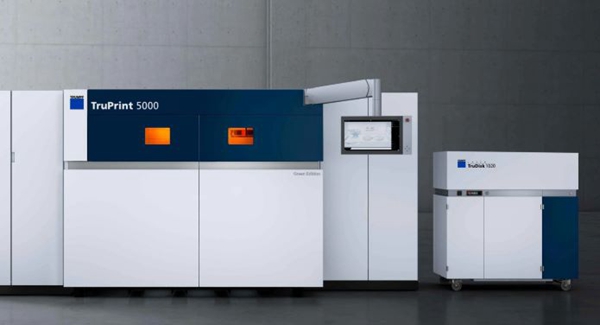

Drop the wavelength to 515 nm and the picture changes. Green light is absorbed by copper several times more efficiently than infrared, so the melt pool forms with less incident power. Lower power means less spatter, a more stable keyhole, and a denser part. The beam also couples more consistently as the surface changes from powder to liquid to solid, which matters when the laser has to weld layer after layer for hours.

The practical result is a stable single melt track. Once the track is stable, the machine can lay down dense copper over large areas without the balling and porosity that plague infrared processing of pure copper. That is the foundation for 3D printing large-scale copper components as one continuous block rather than several brazed or bolted pieces.

Green also opens the door to copper alloys that infrared struggled with. CuCrZr and similar precipitation-hardening grades absorb green light well and hold their strength after a build. Pure copper gives the highest conductivity. The alloy gives the mechanical properties. The laser wavelength is the same for both.

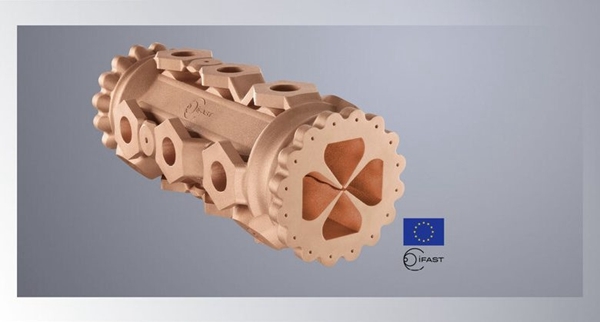

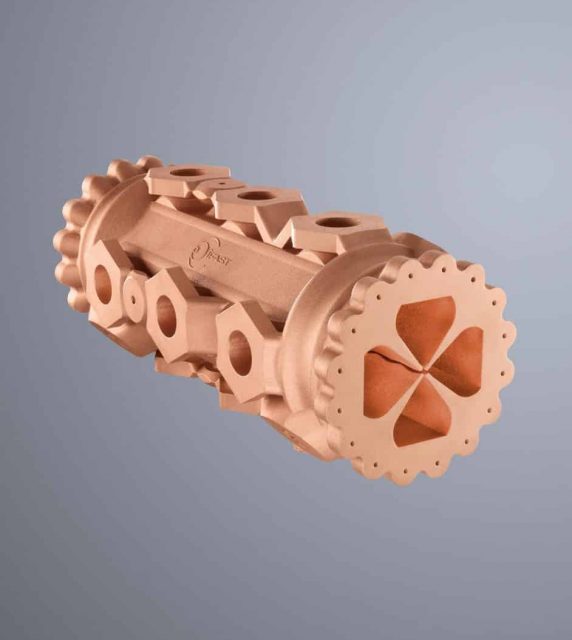

The reason to print a copper part in one block is usually thermal or electrical, not structural. A radio frequency quadrupole, a particle accelerator cavity, an induction coil, or a high-current busbar all want continuous copper with no joints. Every braze, weld, or bolted interface adds contact resistance and a place for coolant to leak. A single printed block removes those interfaces.

Conformal cooling is the second gain. Drilling straight channels into copper is easy. Drilling a channel that spirals around a curved hot face is not. Additive lets the channel follow the heat load, so the coolant goes where the heat is. For a mold insert or a heat sink, that can cut the thermal path length substantially compared with a drilled layout.

The third gain is part count. A cavity that would be machined as five segments, then aligned and joined, becomes one build. Alignment error disappears because there is nothing to align. This matters most when the internal geometry is what controls performance and cannot be inspected after assembly.

None of this is free. A printed copper surface is rough, the as-built tolerance is loose, and the internal channels cannot be reworked. If your part is a simple prismatic block, printing rarely beats cutting it from plate.

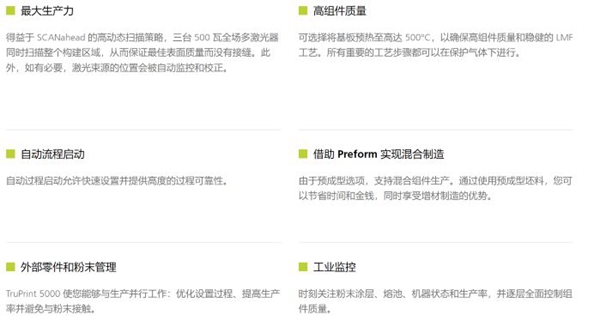

Green laser printing is not a universal copper answer. The build envelope is the first hard limit. Large single-block parts need a machine with a big enough platform and a laser that can keep the melt pool stable across the whole area. As the part grows, residual stress grows with it, and copper is a good thermal conductor, so heat leaves the melt pool quickly and the substrate stays cool. That steep gradient is what drives distortion.

Pure copper is also soft. A printed pure copper part has low yield strength, so it can be handled carefully but will not hold a press fit or a thin threaded feature well. CuCrZr is the usual compromise: it prints well, machines well, and can be aged to raise hardness. If the part is a structural bracket that also needs conductivity, the alloy is the safer choice.

Surface finish is the next limit. As-built laser powder bed surfaces on copper run rough, and internal channels keep that roughness. If the channel is a waveguide or a high-velocity coolant path, roughness costs you performance. Internal surface finishing of copper channels is limited, so design the channel generously and accept the as-built wall.

Finally, copper powder is expensive and reactive. It oxidizes, it is heavy, and it needs controlled handling. That cost only makes sense when the geometry justifies it.

A printed copper block is a near-net shape, not a finished part. Flange faces, o-ring grooves, threaded ports, and any surface that seals or locates must be machined. The printed stock allowance is typically a few millimeters on those faces so the cutter can clean up distortion and reach a flat, leak-tight surface.

Copper cuts easily but it grabs tooling. Use sharp, polished flutes with high rake, generous coolant, and speeds that keep the edge from rubbing. Pure copper tends to smear and build up on the edge; CuCrZr behaves more like a hard bronze and machines cleaner. Deep internal channels are usually left as-printed because a cutter cannot reach them.

This is where a shop that runs both additive and subtractive under one roof saves time. The printed block and the finishing operations stay in one setup chain, so the datum you machine is the datum the printer used. Moving a half-finished copper block between vendors adds handling, re-fixturing, and a second round of inspection.

At GreatLight we machine copper and copper alloys such as C101, C103, C110, beryllium copper, C27400, C28000, and C36000, and we run finishing passes to tolerances down to ±0.005 mm with finishes in the Ra 0.8–1.6 μm range when the drawing calls for it.

Two things dominate the cost: machine time and powder. A large copper build can run for many hours, and the laser time is billed by the hour. Powder is consumed and partially recycled, and virgin copper powder is not cheap. A part that fills the build platform in one axis but wastes the rest of the envelope still pays for the whole cycle unless it shares the build.

Post-processing is the second cost block. Machining allowance, heat treatment, and inspection all add steps. If the drawing calls for a fine finish on external faces, that is a separate operation after the build. Budget for it from the start rather than treating it as a surprise.

For a fair comparison, price the printed route and the machined route on the same drawing. The printed route usually wins above a certain internal complexity, and loses below it. There is no universal crossover point, because it depends on channel count, wall thickness, and how much of the surface needs finishing.
