How an Aluminum Cable Carrier Chain Works on Machine Tools

• 1
  What an aluminum cable carrier chain actually does
• 2
  Link geometry, pitch and the bend radius rule
• 3
  Load per link and what breaks first
• 4
  Steel or aluminum cable carrier chain for machine tools
• 5
  Mounting, separation and strain relief
• 6
  How to size a carrier chain in five steps
• 7
  Cable carrier chain sizing numbers
• 8
  When to pick aluminum, steel or plastic links

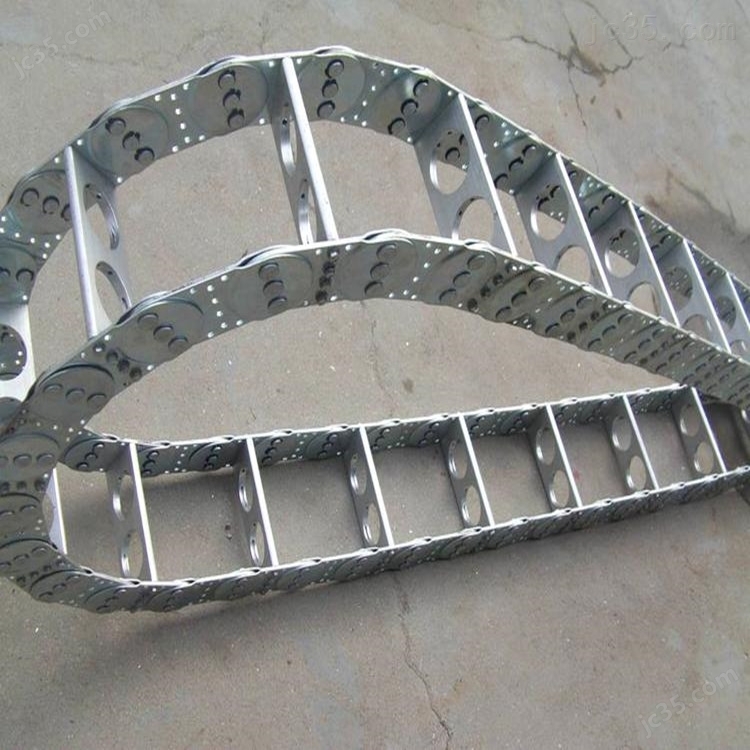

An aluminum cable carrier chain is a series of hinged links that form a moving raceway. One end bolts to the stationary machine frame, the other to the moving carriage. As the axis travels, the chain bends through a fixed radius and folds back on itself. Cables and hoses sit inside the link cavity and travel with it, so no cable ever gets pulled tight against a sharp edge.

The job sounds simple. The failure modes are not. A chain that is undersized for the cable load will sag in the unsupported span, and the sag adds a whipping motion at high traverse speed. A chain with too small a bend radius will fatigue the copper conductor inside the cable long before the cable jacket shows wear.

Aluminum links matter for two reasons on machine tools. First, mass. A chain running at 60 m/min or faster adds inertia to the axis, and an aluminum chain cuts that moving mass roughly to a third of a steel chain of the same section. Second, thermal behavior. Aluminum links pull heat out of the cable bundle faster than plastic links, which helps on machine tools where the enclosure runs warm.

The chain is a wear part. It is not a permanent fixture. Plan for link replacement on the same schedule you plan for way covers and bellows.

• 1
  GuidesKeeps cable in a controlled path along the full stroke.
• 2
  ProtectsSeparates cables from chips, coolant and sharp sheet metal.
• 3
  Carries loadTakes the tension that would otherwise pull on connectors.
• 4
  Sets radiusDefines the minimum bend the cable will ever see.

Every carrier chain has a pitch, the center-to-center distance between two hinge pins. Pitch and link height set the inner cavity. The cavity must be tall enough that the cable bundle does not touch the top of the link when the chain is straight, and wide enough that cables can move a little without binding.

The bend radius is the number that decides cable life. For a continuous-flex cable, the chain radius should be at least 7.5 times the cable outer diameter for power cable and 10 times for signal or encoder cable. If the cable datasheet states a minimum bend radius, use the larger of the two numbers. Never let the chain radius be the smaller one.

Chain length is not the same as travel. For a self-supporting chain that folds back on itself, the chain length is roughly travel divided by two, plus the bend arc length, plus a short dead length at each end. If you order chain equal to the stroke, you will have double the material you need and a chain that fouls the enclosure.

Speed changes the rules. Above roughly 1 m/s, the chain should run in a guide channel on both the fixed and moving side. Without a channel, the links lift off the support and the chain runs on its own hinge pins, which wears them oval.

The chain carries two loads. The first is the weight of the cable bundle, which is distributed along the links. The second is the pull force when the carriage accelerates, which concentrates at the moving end bracket. A 40 mm wide aluminum link in a typical machine tool chain handles a few kilograms of bundle weight per meter with margin, but the end bracket load is what engineers most often underestimate.

Calculate the pull force as bundle mass times acceleration, then add friction from cables sliding inside the cavity. If cables are clamped at both ends and cannot slide, that friction term goes away, but the cables then see the full elongation cycle. Loose cables last longer in the chain and shorter at the connector. Clamped cables are the reverse.

The first part to fail is usually the hinge pin, not the link body. Aluminum links with hardened steel pins wear at the pin bore. Once the bore opens past about 0.5 mm, the chain runs crooked and starts to rub the guide channel. That is the point to replace links, not the whole chain.

The second failure is cable jacket abrasion at the fixed end, where the cable enters the chain. A strain relief clamp and a 100-150 mm straight run before the first link removes most of this wear.

• 1
  Pin boreFirst wear point on aluminum links.
• 2
  Fixed-end entryCable jacket rubs here if unsupported.
• 3
  Moving bracketSees peak acceleration load.
• 4
  Cavity floorWears through if cables drag.

Steel links win on stiffness and heat resistance. A steel chain holds a long unsupported span with little sag, so it suits gantry machines and long-travel lathes where a guide channel is hard to fit. Steel also survives weld spatter and hot chip showers that would soften a polymer link.

Aluminum links win on moving mass and on corrosion resistance in wet cutting environments. On a high-speed axis, cutting the chain mass cuts the motor torque needed for the same acceleration. Where the machine runs flood coolant and the chain sits low in the enclosure, anodized aluminum resists the coolant better than painted steel.

Plastic links are not in this comparison because they solve a different problem. They are quieter and lighter than both metals, but they deflect more under load and they do not shed heat. Use plastic for light cable bundles on fast, short-stroke axes.

The practical rule: if the chain runs faster than 1 m/s and travel is under 3 m, aluminum is usually the better pick. If the span is long, the environment is hot, or chips are heavy, steel is the safer call.

Mount the fixed end at the midpoint of travel where possible. A center-mounted fixed point splits the chain into two shorter runs and halves the bend arc. On a machine with 2,000 mm of travel, center mounting can cut chain length by a third compared with an end-mounted layout.

Separate power and signal cables with a divider, or at minimum keep a gap equal to one cable diameter between them. Motor cable carrying switched current induces noise into encoder lines that run in contact with it. The divider is cheap; chasing an intermittent encoder fault on a running machine is not.

Clamp the cable bundle at both ends, but leave a straight, unclamped run of 100-150 mm before the first link. This lets the cable straighten as the chain opens and closes instead of bending right at the clamp. The clamp itself should grip the outer jacket, never the conductors.

Set the chain so that the moving end is level with the fixed end at mid-stroke. A chain installed with a preload in one direction will rub the guide rail on every cycle and wear the side plates.
