CNC Cylindrical Crusher: How Internal and External Grinding Works

• 1
  What a CNC cylindrical crusher actually does
• 2
  Why stability decides effective grinding, not wheel speed
• 3
  Internal and external grinding on the same part
• 4
  When a cylindrical crusher is the wrong choice
• 5
  How size is held across a production run
• 6
  Where ground parts go next
• 7
  Internal vs external grinding: what changes

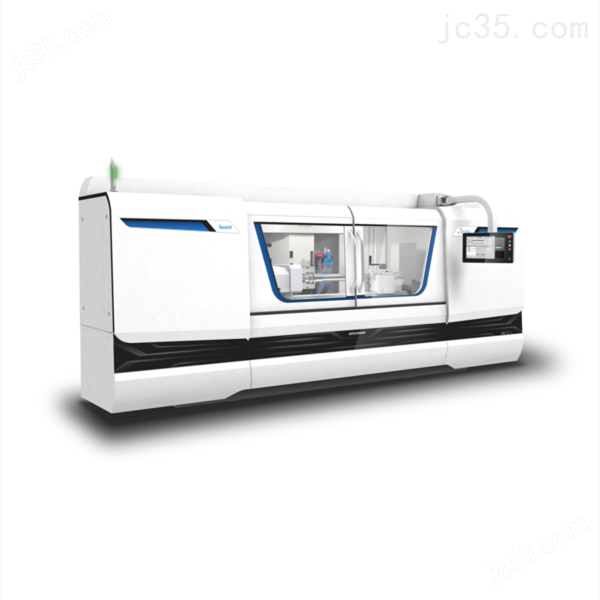

A CNC cylindrical crusher removes material from a rotating workpiece with an abrasive wheel. The wheel spins fast, the part spins slower, and the two meet at a controlled depth of cut. In the external mode the wheel works the outside diameter. In the internal mode a smaller wheel reaches into a bore and grinds from the inside. The machine is the same; the spindle head, wheel size, and fixture change.

The CNC layer sits on top of that geometry. Servo axes position the wheelhead on X and Z, the workhead indexes the part, and the control compensates for wheel wear as the cycle repeats. Without that compensation the first part and the four hundredth part would not measure the same.

What it is not: a crusher in this context is not a rock breaker or a shredder. The term comes from translated German and Chinese machine-tool literature, where the grinding machine is called a crusher. Engineers reading a spec sheet should treat it as a cylindrical grinding machine with internal and external capability.

The practical payoff is roundness. Turning leaves a spiral from a single-point tool. Grinding replaces that with a fine, overlapping scratch pattern, so the diameter holds size and the surface carries a controlled Ra.

• 1
  External modewheel outside the part; journals, pins, and shoulders
• 2
  Internal modewheel inside the bore; housings, sleeves, and bearing seats
• 3
  One platformsame workhead and control; setup changes, not the machine

Every grinding pass is a balance between cutting force and machine stiffness. Push too hard and the wheel deflects, the part lifts, and the resulting diameter drifts along the length. Back off and the wheel rubs instead of cutting, which burns the surface and loads the wheel with metal. The window between those two states is narrower than most people expect.

Vibration is the usual culprit. A part held too far from the chuck behaves like a spring, and at some spindle speed it starts to ring. The wheel then cuts a lobed profile instead of a circle. A common fix is a steady rest placed near the grinding zone, or a shorter overhang, or a slower workhead speed.

Thermal drift matters over a long run. The wheelhead grows as the machine warms, and a 2 μm shift is enough to move a bore out of tolerance. Modern controls pre-heat the machine and re-reference before the first part.

On our grinding and hard-milling platform we hold ±0.005 mm and reach Ra 0.2–0.8 μm on a ground finish. Those numbers depend on the setup, not on the machine alone.

• 1
  Short overhangkeeps the workpiece stiff; supports thin shafts
• 2
  Steady restsuppresses lobing on long, slender parts
• 3
  Warm-up cyclere-references the head before the first cut
• 4
  Balance the wheelunbalanced wheels write vibration into the surface

Parts that carry both a bore and an outer journal often arrive at a decision point: grind both on one machine, or split the operations. Grinding both in one clamping sequence protects concentricity. The bore and the outer diameter stay aligned to the same spindle, so runout comes out of the setup rather than out of a tolerance stack.

The trade-off is time. Internal grinding uses a small wheel, so the contact area is tiny and the material removal rate drops. A bore that takes 40 seconds externally can take several minutes internally. If the bore is the tight feature, it pays to grind it first and let the outer diameter follow.

Wheel selection follows the same logic. Aluminum loads a wheel quickly and needs a coarser, more open structure. Hardened steel and stainless take a finer abrasive. Titanium and Inconel are the difficult end: they smear, they heat, and they work-harden at the cut. Lower wheel speed, plenty of coolant, and a sharp wheel are the working answer.

For a part with a deep, small bore, internal grinding may not be economic at all. Honing or boring to size can be the better route, and we say so when the geometry points that way.

• 1
  One clampingbore and OD share a spindle; runout stays low
• 2
  Grind the bore firstthe tighter feature sets the sequence
• 3
  Coolant flowinternal grinding has poor chip clearance
• 4
  Dress oftenloaded wheels burn instead of cut

Grinding is a finishing operation, not a bulk removal process. If a part needs 5 mm taken off a 60 mm shaft, grinding that stock away is slow and expensive. Turn it close first, leave 0.2–0.4 mm for the wheel, and let grinding do what it is good at.

Flat and interrupted surfaces are another boundary. A keyway, a spline, or a cross-drilled hole interrupts the cut. The wheel gets an impact every revolution, which chips the edge and throws the size off. Parts with heavy interruption usually go to milling or to a different grinding method.

Very large or very long parts push against the work envelope. Our turning and grinding capacity reaches 4,000 mm on the large travel and uses a Ø400 mm rotary table, so long shafts are workable up to that length. Past it, the setup cost climbs fast.

Hardness also matters. Below roughly 45 HRC the part can often be finish-turned to the same tolerance and out the door sooner. Grinding earns its cost on hardened, heat-treated, or seal-critical surfaces.

• 1
  Stock to removeleave 0.2–0.4 mm for the wheel
• 2
  Interrupted cutkeyways and ports chip the wheel edge
• 3
  Hardnessunder 45 HRC, finish turning is often enough
• 4
  Work envelope4,000 mm maximum on the large travel

Grinding a single part to size is a setup task. Holding that size across 5,000 parts is a control task. Three things move during a run: the wheel wears, the machine grows, and the coolant temperature shifts. All three change the effective depth of cut.

In-process gauging is the direct answer. The control measures the part as it grinds and stops the cycle at the target diameter. For lower volumes, a post-process gauge feeds a wear offset back into the control every few parts.

We inspect 100% of parts before shipment, and inspection reports are available on request. That covers raw material check, in-process monitoring, and final inspection. For grinding work it usually means a bore gauge, a micrometer, and a roundness check on the features that matter.

Our qualification rate runs at 99.99%, and the historical late-delivery probability is below 2%. Those figures come from how the process is controlled, not from any single machine.

• 1
  In-process gaugestops the cycle at the target diameter
• 2
  Wear offsetpost-process gauge nudges the control
• 3
  Roundness checkcatches lobing that a micrometer misses
• 4
  Documentationreports on request with each shipment

A ground surface rarely ships as-is from the grinding cell. Most parts move into a finishing step that either protects the surface or adds function. Hard chrome, electroless nickel, and anodizing all change the diameter, so the grind size has to account for the coating thickness.

A ground and polished shaft for a hydraulic or automotive application usually ends at Ra 0.2–0.8 μm. If the part then gets hard chrome, we grind undersize by the plating thickness and let the coating bring it back. Skip that step and the part comes out oversize.

For sealing surfaces, the finish matters as much as the size. A bore that meets a lip seal needs a controlled scratch pattern, not a mirror. Too smooth and the seal cannot hold a film. Too rough and it wears the lip.

Grinding also feeds assembly directly. A ground journal that presses into a bearing housing has to hold its size across the interference fit, which is why the run control matters more than the first-article number.

• 1
  Plating thicknessgrind undersize, let the coating finish the size
• 2
  Seal surfacescontrolled Ra, not a mirror finish
• 3
  Press fitssize consistency across the whole run
