Hatsuki station sits on the Kishi Arita line in Wakayama prefecture. The existing building is a small wooden structure, roughly the size of a garden shed. JR West is replacing it with a printed reinforced concrete shell measuring 2.6 × 6.3 × 2.1 m. The printer is operated by Serendix, a company that builds small houses the same way.

The size tells you the intent. This is not a terminal rebuild. It is a pilot on a low-traffic rural halt, where the cost of conventional formwork and a full crew is hard to justify for a few dozen passengers a day.

A 3D printing station of this scale is best read as a test article. The railway operator gets real weathering data, real maintenance records, and a real bill. If the numbers hold, the same shell can be repeated at other rural stops without redrawing the building each time.

The framing matters for engineers. Nothing here is exotic concrete chemistry. It is a stiff, fine-aggregate mix pushed through a nozzle on a gantry, layered wet on wet, then finished by hand at the edges. The novelty is in the toolpath, not the cement.

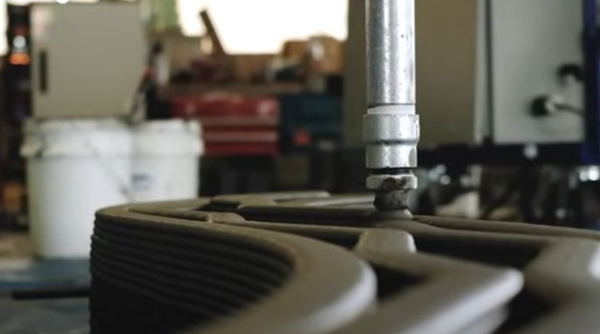

A gantry or robotic arm carries a nozzle along a programmed path. The mix is pumped at pressure, extruded as a bead typically 20–40 mm wide, and stacked in layers 10–20 mm tall. The mix has to be stiff enough to hold its own weight and wet enough to bond to the layer below. That window is narrow.

Print speed usually lands between 100 and 300 mm/s. Faster than that and the bead tears. Slower and the lower layers stiffen before the next pass, which weakens the cold joint between them. Operators tune speed, pump pressure, and accelerator dose together, not one at a time.

For a station of this size, the walls are printed flat in a factory, then lifted onto a prepared foundation by crane. Printing on site is possible, but a rail platform is a bad place for a gantry: tight access, live tracks, and no room to stage material.

Reinforcement is the part most people ask about. Printed concrete alone carries compression well and tension poorly. Vertical rebar, horizontal bars, or post-tensioning are placed in the cavity between printed layers, then the void is grouted. Without that, the shell would crack at the first seismic event.

Formwork is the hidden cost in small concrete buildings. A wooden halt replacement normally needs custom plywood forms, a crew to set and strip them, and a schedule that waits on cure. Printing removes most of the formwork and most of the manual labor hours. On a remote line, that is the whole argument.

Curved geometry costs almost nothing extra. If the design calls for a rounded canopy or a tapered wall, a printed path handles it without a mold. Conventional casting would need a bespoke form for every curve.

What printing does not fix is the foundation, the drainage, and the services. Those still get dug, poured, and trenched by ordinary crews. If the printed shell is only 30 percent of the project scope, the savings land on that 30 percent.

Cold joints between layers remain the weak plane. Water finds them, freeze-thaw works on them, and inspection is harder than on a monolithic pour. That is why the pilot matters more than the press release. Years of service data will decide whether the method spreads.

A printed shell is a rough body. Everything that moves, seals, or bolts gets made to a tighter number. Door frames, window mullions, hinge plates, and threshold strips are typical. If the printed opening lands at ±10 mm, the frame has to absorb that and still present a square edge to the door.

That is a machining problem, not a printing problem. We cut frames from 6061-T6 or 6082 aluminium when weight matters, and from 304 or 316L stainless when the platform is coastal. A door frame held to ±0.005 mm on the mating faces closes the same way on the thousandth cycle as on the first.

Platform edge nosing is the other wear part. Passengers step on it every day and grit grinds it down. It is usually a machined or extruded profile with a machined end detail, finished to Ra 0.8–1.6 μm so it does not chew shoes.

Brackets, anchor plates, and cable trays follow the same logic. Printed concrete gives you the volume. Machined metal gives you the interface. Neither replaces the other, and a station built well uses both.

Printed concrete is not a precision process. Layer height varies, the surface is ribbed, and the as-printed wall can wander several millimeters over a few meters. Design tolerances of ±10 mm on printed faces are realistic. Anything tighter gets machined after the fact or cast into an insert.

Durability depends on mix design, cover depth over reinforcement, and how the cold joints are sealed. A rural platform sees rain, salt spray off the coast, and freeze-thaw in winter. The station will be watched for cracking, spalling, and water tracking at the layer lines.

Cost per square meter is the number that decides whether this spreads. Printing saves labor and formwork but uses more cement per cubic meter than a conventional pour, and the mix needs admixtures that cost money. On one small building the savings may be thin.

None of this makes the pilot a gimmick. It gives a railway operator a real dataset: how fast the shell goes up, what it costs to maintain, and how it survives a decade. That is the useful output.
