Tool Shovel Flower Has No Souls: What the Pattern on a Sliding Way Really Does

• 1
  Why the Pattern Is Called Tool Shovel Flower
• 2
  How the Pattern Carries a Sliding Load
• 3
  When a Scraped Way Is the Wrong Answer
• 4
  How to Judge a Tool Shovel Flower Surface
• 5
  Scraped Way vs Ground Way vs Linear Guide

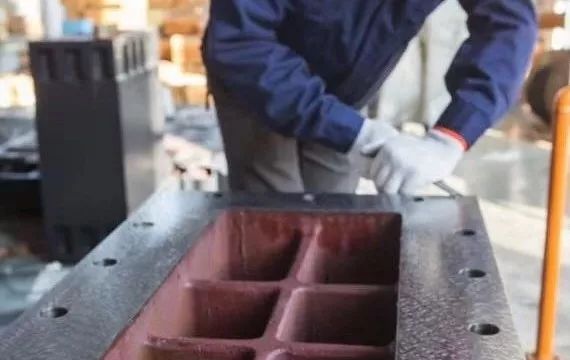

A scraping tool is a flat carbide blade with a slightly curved edge. The operator pushes it forward and lifts it in one short stroke. The blade shears off a shallow chip and leaves a curved recess behind. When several passes overlap, the recesses line up in rows of crescents. That is the pattern most people call tool shovel flower.

Each crescent is a bearing point. The metal between the crescents is cut away and never touches the mating way. So the real contact area is much smaller than the nominal face area. On a typical hand-scraped cast iron way, contact points cover about 20 to 30 percent of the surface.

The pattern is a record of a process, not a decoration. The depth of each crescent is usually 5 to 20 μm. A deeper cut holds more oil but reduces the number of load-bearing points. The scraper operator balances those two effects pass by pass, checking with a surface plate and Prussian blue.

This is why the pattern looks irregular. A machine cannot copy it exactly. The operator follows the blue marks, which show high spots on the way. Every part of the surface gets a slightly different treatment because every casting warps a little differently.

• 1
  Crescent depthUsually 5 to 20 μm; deeper cuts hold more oil.
• 2
  Contact ratioAbout 20 to 30 percent of the nominal face area.
• 3
  Reference checkSurface plate plus Prussian blue shows the high spots.

Two flat surfaces pressed together touch only at their highest points. On a ground way, those points are scattered and hard to control. On a scraped way, the operator cuts pockets around the high points, so the load sits on a known set of small pads. The contact becomes more even and more predictable.

The crescents also act as oil reservoirs. During a stroke, oil is dragged across the pads and refills the pockets behind them. A ground surface with the same flatness can squeeze the oil out at low speed. The scraped surface keeps a film because there is somewhere for the oil to sit.

That matters most at low sliding speed. When the table creeps at a few millimeters per second, the oil film is thin and the risk of stick-slip is high. The pockets break the continuous contact and reduce the chance of the table jumping forward in a lurch.

Damping is the third effect. The interrupted contact absorbs a small amount of vibration instead of passing it straight through. On a heavy planer or a large surface grinder, that shows up as a quieter cut and less chatter at the tool edge.

Scraping is slow and it depends on a skilled hand. A large machine bed may take days of fitting. If the machine will run in a climate-controlled cell at constant load, a precision-ground way can hold the same geometry for years without that labor.

High sliding speed works against the pattern. Above roughly 30 m/min, the oil film builds up on its own and the pockets add little. The rougher surface may even increase drag. Linear guides or hydrostatic ways are usually the better fit for fast axes.

Very small machines are another boundary case. On a compact stage with a short stroke, the crescent pattern is coarse relative to the bearing length. The load distribution becomes lumpy. Ground or lapped surfaces suit those sizes better.

Contamination is a real concern in some shops. The pockets trap chips and fine grit if the way covers are poor. Once grit sits in a pocket, it grinds the mating surface on every stroke. Good wipers and covers matter as much as the scraping itself.

• 1
  Low speedBest below about 30 m/min sliding speed.
• 2
  Heavy loadSuits large beds where damping and film matter.
• 3
  Dirty environmentPockets trap grit if wipers and covers fail.

Start with a surface plate and a thin film of marking compound. Rub the part against the plate, lift it, and count the blue spots inside a 25 × 25 mm square. A common target is 20 to 30 points for a general machine way and more for a precision slide. Fewer points mean the load is concentrated.

Look at the shape of the crescents, not just the count. Even rows with consistent depth suggest the operator kept a steady stroke. A mix of deep gouges and untouched flats suggests the fit was rushed or the blade was dull.

Check flatness on a granite plate or with a precision level. Scraping controls contact, not geometry by itself. A way can show a nice pattern and still be twisted. Measure straightness and parallelism across the full stroke before you accept the surface.

Finally, check the edges and oil grooves. A scraped way usually needs a small relief at the edges so the oil can escape. If the pattern runs right to a sharp corner, the way may scrape dry and score. A 0.5 to 1 mm relief is common.
