Subcon CNC Machining Services: 7 Checks Before You Award

• 1
  Key takeaways
• 2
  What to compare across subcon CNC machining services
• 3
  Machine mix decides what your drawing can ask for
• 4
  Tolerance, finish and the cost they carry
• 5
  Inspection, reports and the paperwork trail
• 6
  MOQ, lead time and how the quote is written
• 7
  Finishing and secondary operations in one route
• 8
  Communication, files and confidentiality
• 9
  When a subcon shop is the wrong answer
• 10
  Step by step: how to award the job

Subcon CNC machining services live or die on the machine list. A shop with 27 three-axis machines can produce a lot of flat plates and simple housings, but it re-fixtures parts to reach the fourth and fifth faces. Every re-fixture adds setup error. If your tolerance stack is tight on three faces, that is where the drift shows up.

A 5-axis center machines five faces in one setup. The part stays clamped, so features that must stay aligned to each other keep their relationship. For a manifold with ports on two sides, or a housing with a bore and a mounting face that must be square, one setup is the reason the tolerance holds. Mill-turn centers go further and turn and mill in the same cycle, which suits shafts with cross holes and flats.

Ask for the machine that will run your part, not the best machine in the brochure. A 4,000 mm gantry handles long beams and rails; a compact 500 × 500 × 450 mm machine is fine for small brackets and runs cheaper per hour. Matching the part to the right envelope keeps the quote realistic instead of padded.

One more point on setup count. If your design needs a tolerance of ±0.005 mm between two faces, the setup plan matters as much as the spindle. Fewer setups means fewer chances for the datum to move. We plan the setup before quoting, so the number you receive is the number the machine can repeat.

Tolerance is not a single number you put on every dimension. Put ±0.005 mm on the two or three features that affect function, and leave the rest at general tolerance. A drawing where every dimension is tight forces the shop to inspect everything at the same level, and you pay for that work whether or not the feature needs it.

Surface finish follows the same logic. As-machined surfaces sit around Ra 1.6–3.2 μm. A sealing face or a bearing seat may need Ra 0.8–1.6 μm, and optical or sliding surfaces can go to Ra 0.2–0.8 μm. Each step down usually adds a finishing pass or a secondary operation. Specify the finish on the faces that touch something, not on the whole part.

Material choice changes the cut as well. Aluminium 6061 and 7075 machine fast and hold thin walls reasonably well. Stainless 316L and 17-4PH work-harden, so a light pass with a dull tool glazes the surface and pushes the next cut harder. Titanium TC4 (Ti-6Al-4V) needs lower feed and more coolant, and Inconel is slower again. These are not reasons to avoid a material, but they are reasons a quote on Inconel should not match a quote on aluminium.

Where it goes wrong: a tight callout on a deep pocket with a small corner radius. The tool has to be small enough for the corner, then long enough to reach the floor, and long small tools deflect. Open the corner radius and the same feature becomes ordinary. Small drawing edits like that often remove an EDM or a second operation from the route.

Ask what happens between the first cut and the shipping box. Raw material check, in-process monitoring and final inspection before shipment should all be named. If the answer is only "final inspection," a dimension that drifts in the middle of a run may only be found after 200 parts are finished.

Reports matter more in some industries than others. Aerospace and medical buyers usually want dimensional reports tied to the drawing revision. Automotive work under IATF 16949 expects a documented process and traceability. General industrial parts often need nothing more than a certificate of conformity. Decide which one you need before the RFQ, because the shop prices inspection time into the quote.

Certification scope is worth a second look. ISO 9001:2015 covers quality management broadly. IATF 16949:2016 is the automotive route, ISO 13485:2016 is medical devices and ISO 27001:2022 covers information security. A supplier holding all four can take parts across those industries, but check that the certificate names the plant that will run your job.

A 99.99% qualification rate sounds like a marketing line until you ask how it is measured. In practice it means parts that pass the agreed inspection plan on the first submission. Ask what happens to the ones that do not: rework, scrap, or a deviation request sent to you. The answer tells you how the shop behaves when something goes wrong.

A minimum order quantity is mostly a setup cost in disguise. One prototype and a 10,000-part run use the same machine, but the setup is spread over very different volumes. A shop that quotes both without a MOQ is telling you it plans the process per job rather than forcing your pilot build into a production batch.

Read the lead time as three separate numbers. Quotation and DFM analysis within 12 hours is the front end. Production start within 24 hours is the ramp. Parts ship in 3–5 days is the back end for standard work. If a quote gives one blended figure, you cannot tell whether the delay sits in engineering review, material purchase or the machine queue.

Material availability is the quiet variable. Aluminium and standard stainless grades are usually on the floor or a short call away. Inconel, titanium and some tool steels may need ordering, and that can add days before the first chip. Tell the shop the material in the RFQ, not after the PO.

Late delivery risk is worth asking about directly. A shop tracking its own on-time record can tell you how often jobs slip and why. Historical late-delivery probability below 2% is a working number, not a promise. Treat any supplier who guarantees zero delay with suspicion. Schedules slip for real reasons, and what matters is how fast you hear about it.

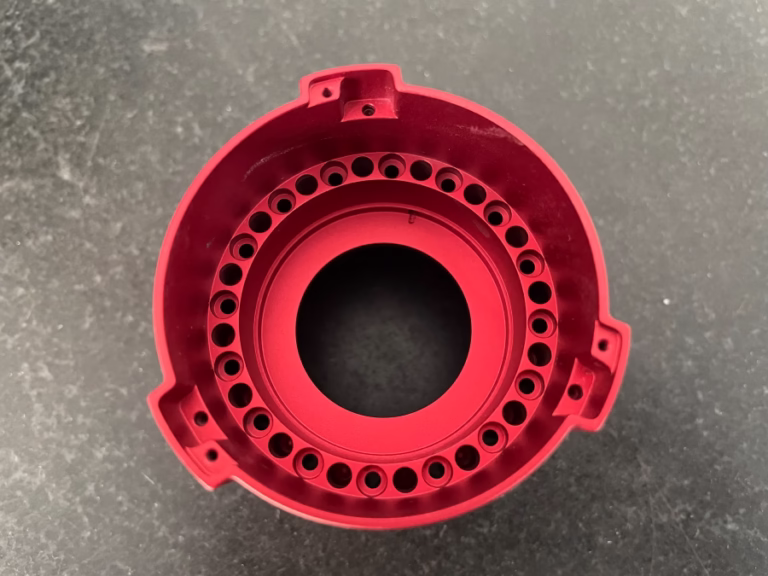

A machined part is rarely finished when it leaves the spindle. Anodizing, electroless nickel, zinc or gold plating, powder coating, black oxide, bead blasting, tumbling, brushing and polishing are all common next steps. Laser marking often follows, with a minimum character height around 1.5 mm to stay legible after coating.

If the shop manages these steps, you get one shipment and one inspection record. If it does not, you become the logistics coordinator between a machinist, an anodizer and a laser shop. Parts travel, get re-packed, and sometimes get mixed up. Every handoff is a chance for a scratch or a lost batch.

Colour anodizing and hardcoat change dimensions slightly, which matters on tight features. Hardcoat can add a few micrometres per surface and it builds unevenly on edges. If a bore must stay within ±0.005 mm after coating, say so before machining so the shop can leave stock and mask the right areas.

Masking is the other detail people forget. Threads, sealing faces and electrical contact points usually need to stay bare. Send a marked-up drawing or a photo with the masking zones highlighted. It costs you five minutes and saves a batch.

The first test of a supplier is how they respond to your file. A useful reply includes a DFM note: a thin wall, an unreachable corner, a tolerance that will need a second setup, a material that will move after machining. A price with no comment means nobody opened the model.

File format matters less than completeness. A STEP file plus a 2D drawing with datums, tolerances and finish callouts gives the shop what it needs. A 3D model alone leaves every tolerance open, and the shop will either guess or send questions back. Both cost time.

Confidentiality should be settled before you upload. Secure uploads and an NDA on request are standard for production work. If your part is a patent-pending mechanism or a customer-specific housing, get the agreement signed first, then send the model.

Time zone is a practical point for US and European buyers. An 8-hour offset means questions asked at the end of your day arrive at the start of the shop's day. Written DFM notes and marked-up images work better than a live call for most issues. Keep a single thread per project so the history stays readable.

One habit that saves rework: number your revisions and note what changed. Sending revision C without a change list invites the shop to machine revision B from memory.

Outsourcing is not always right. If your part needs a process the supplier does not run, such as a specific heat treat or a proprietary coating, you are adding a handoff rather than removing one. A shop that manages the subcontract well can still be the better choice, but confirm who owns the schedule.

Very high volumes with a stable design often belong on a die casting or stamping route, not on a machining center. Machining is flexible and tooling-free, which is exactly what a design that may still change needs. Once the geometry is frozen and the annual volume is large, a casting plus finish machining can cut cost per part.

If your tolerance is looser than ±0.1 mm across the board and the part is a simple plate, a local job shop may beat an overseas supplier once freight and duty are counted. Do the arithmetic on landed cost, not unit price.

The reverse also holds. A part with five faces, a bore that must stay square to a mounting face and a sealing surface at Ra 0.8 μm is a poor fit for a shop without 5-axis or mill-turn capacity. The setup count will eat the tolerance before the tool touches the part.

So the decision is not "outsource or not." It is which process, which machine and which supplier can hold the features that matter, at a volume you can actually sell.
