Small CNC Vertical Lathe: How to Set It Up and Run It

A small CNC vertical lathe holds the part on a rotating table and cuts from above, so heavy or awkward parts sit flat and stay put. This guide walks through chucking, tool setting, cutting parameters, and the errors that send parts to the scrap bin. It is written for engineers and shop leads who need to run short runs without babysitting the machine.

Ø400 mm rotary table±0.005 mm toleranceRa 0.8–1.6 μm3–5 day turnaround

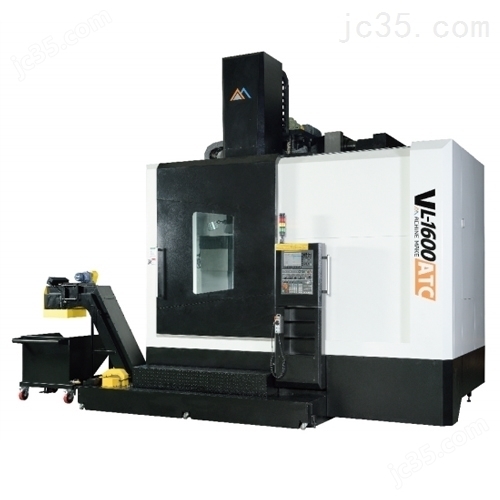

Small CNC vertical lathe setup for machining custom auto spare parts
Quick read

Key takeaways

Face-down work is the reason to pick this machineA vertical lathe clamps the part on a flat table, so gravity helps you instead of fighting you.
Set tool offsets on the part you are cuttingTouch off on the actual workpiece or a setting block, not on a random offcut.
Start conservative, then push feedRough at 0.15–0.25 mm depth of cut and raise feed until chips break cleanly.
Balance matters more than speedAn unbalanced fixture at 800 rpm will chatter no matter how sharp the insert is.
Measure before the finish passCatch size drift while there is still stock to remove.
Machine layout

What a small CNC vertical lathe actually does

A vertical lathe turns the part on a rotating table or chuck that faces up. The tool comes down from a ram or turret above the work. On a small machine the table is often Ø400 mm or less, and the whole unit fits on a shop floor next to a mill. The spindle is short and rigid because it does not have to carry the part sideways.

That layout changes what you can hold. A thin ring, a flange, a housing with a wide face, or an odd-shaped casting all sit flat on the table and get clamped with three or four jaws. On a horizontal lathe the same part would need a chuck that fights gravity and a tailstock that may not reach.

Vertical machines are common in automotive and industrial machinery work, where parts are short, wide, and produced in modest batches. If your part is long and slender, a horizontal lathe or a mill-turn center is usually the better call. If it is short and wide, or awkward to chuck, the vertical machine saves setup time.

The trade-off is chip evacuation. Chips fall onto the table and into the part, so you need air blast, coolant through the tool, or a pause in the cycle to clear them. A small vertical lathe rewards a clean program and a habit of checking the table between parts.

  • 1
    Good fitFlanges, rings, housings, brake discs, and castings with a flat clamping face.
  • 2
    Poor fitShafts longer than 3× diameter, thin-wall tubes, and parts needing tailstock support.
  • 3
    Clamping forceEnough to resist cutting load, not enough to distort a thin wall.
Chucking

Clamping and workholding choices

Most small vertical lathes use a three-jaw scroll chuck, a four-jaw independent chuck, or a custom fixture plate. For round parts in a short run, a three-jaw chuck is fast and repeatable. For square or cast parts, a four-jaw or a plate with dowel pins locates the part the same way every cycle.

Clamp on a surface that can take the load. A finished face should not be the primary clamping surface if you can avoid it. Use a rough face or a boss, and let the finished face be the one you cut. If the part has no rough surface, use soft jaws bored to the part diameter so the clamping pressure spreads.

Thin rings distort. A 2 mm wall on a Ø200 mm ring will move when the jaws close. Lighten the clamp, support the back with a plate, and take lighter cuts. Check roundness after unclamping, not while the part is still held.

For odd shapes, a dedicated fixture with a locating pin and two clamps beats a universal chuck. It costs an hour to make and saves ten minutes per part on a 50-piece run. Keep the fixture for the next order.

  • 1
    Locate first, clamp secondPins or a spigot set the position; clamps only hold it there.
  • 2
    Soft jaws for finished diametersBore them to the part size so pressure spreads over more area.
Offsets

Setting tool offsets without scrapping the first part

On a vertical lathe the Z axis is the vertical travel and X is the cross travel. Touch the tool to a known surface, record the machine position, and enter the offset. Do this on the actual workpiece or on a setting block clamped to the table, not on a loose offcut that can move.

For the first part, leave 0.3 mm of stock on every surface. Run the program, measure, and adjust offsets before the finish pass. This is faster than dialing in a perfect offset and hoping the first part is right. It also catches a wrong tool number before the tool crashes.

Check tool radius compensation. A boring bar with a 0.4 mm nose radius cuts a different size than a 0.8 mm one if the offset is wrong. Enter the radius in the offset table and let the control compensate, or program the path manually and keep the radius consistent.

Write down the offsets for the job. When the same part comes back next month, you can load the tools and start near the right numbers instead of touching off from scratch. A paper log next to the machine is still the fastest tool in the shop.

  • 1
    Leave stock on part one0.3 mm on faces and diameters until you have measured.
  • 2
    Match nose radius to the offsetA mismatch shows up as a taper or a wrong shoulder.
  • 3
    Log the numbersTool number, offset, and part revision.
Parameters

Speeds, feeds, and finish targets

For aluminum on a small vertical lathe, a starting point is 200–400 m/min surface speed, 0.15–0.25 mm depth of cut, and 0.1–0.2 mm/rev feed for roughing. Finish passes run faster and lighter: 0.05–0.1 mm depth and 0.05–0.12 mm/rev. These are starting numbers, not rules.

Stainless steel 304 and 17-4PH run slower. Drop surface speed to 120–180 m/min and keep the feed high enough to avoid rubbing. A rubbing tool work-hardens the surface and kills the next pass. If the chip turns blue and the insert wears fast, reduce speed or increase feed.

Titanium TC4 (Ti-6Al-4V) needs low speed and steady feed, with plenty of coolant. Do not let the tool dwell. A dwell rubs the surface and shortens tool life. Inconel is harder again; keep depth of cut above the work-hardened layer, usually 0.2 mm or more.

Finish targets depend on the callout. Ra 1.6–3.2 μm is normal as-machined. Ra 0.8–1.6 μm needs a sharp insert, a rigid setup, and a light finish pass. Ra 0.2–0.8 μm usually means a second operation or a polishing step. Do not chase a mirror finish on the lathe if the drawing does not ask for it.

  • 1
    Never rubIf the chip is powder, the tool is rubbing. Raise feed or lower speed.
  • 2
    One change at a timeAdjust speed or feed, run a part, then measure. Two changes hide the cause.
  • 3
    Coolant where it countsAim at the cutting edge, not the whole table.
Procedure

Step by step: running a small CNC vertical lathe

Follow the order. Skipping a check here costs more than the time it saves.

  • 1
    Clean the table and chuckWipe the mounting face and blow out the jaw slots. A chip under a jaw moves the part 0.05 mm or more.
  • 2
    Mount and indicate the fixtureClamp the fixture or chuck, then sweep the locating diameter with a dial indicator. Aim for under 0.02 mm runout.
  • 3
    Load and clamp the partSeat the part on the locating face, clamp evenly, and check that it cannot rock by hand. Mark the clamp position if the run repeats.
  • 4
    Touch off every toolSet Z on a known face and X on a known diameter. Enter offsets, then verify with a 0.1 mm air cut before cutting metal.
  • 5
    Rough with conservative cutsUse 0.15–0.25 mm depth of cut and 0.1–0.2 mm/rev feed in aluminum. Listen for chatter and watch the chip color.
  • 6
    Check size before the finish passMeasure one diameter and one face. Adjust offsets if needed, leaving 0.1–0.2 mm for the finish cut.
  • 7
    Finish and control chipsRun finish at 0.05–0.1 mm depth and 0.05–0.12 mm/rev. Use air blast or coolant to keep chips off the table.
  • 8
    Inspect, unclamp, and logMeasure after the part cools and is free of the chuck. Record offsets and any change for the next run.
Selection guide

When to use a small CNC vertical lathe

Match the part shape and batch size to the machine before you write the program.

Part or jobVertical latheHorizontal latheWhy
Ø150 mm flange, 20 mm thickGood fitWorkableFlat clamping face, short part
Ø300 mm ring, 2 mm wallCarefulCarefulDistortion risk on both; light clamp
Shaft 400 mm long, Ø30 mmPoor fitGood fitNeeds tailstock support
Casting with uneven bossesGood fitFixture neededPlate and pins locate it fast
5 parts, prototypeGood fitGood fitShort setup on either machine
5,000 parts, tight cycleGood fitGood fitCycle time and tool life decide

The short version

A small CNC vertical lathe pays off on short, wide parts that clamp flat. It is the wrong machine for long shafts and thin walls that move under jaw pressure. Match the workholding to the part before you match the speeds and feeds.

FAQs

Questions engineers ask before the first cut

How tight a tolerance can a small CNC vertical lathe hold?

On a rigid setup with good tooling, ±0.005 mm is achievable on diameters and faces. That number depends on the material, the wall thickness, and how the part is clamped.

Thin rings and long overhangs will move more than that. Measure after the part is free of the chuck, because clamping pressure changes the reading.

Do I need a four-jaw chuck or will a three-jaw do?

A three-jaw scroll chuck is fine for round parts in short runs. It is fast and repeats well if the jaws are in good shape.

Use a four-jaw or a fixture plate when the part is square, cast, or has an irregular shape. You get independent adjustment and a more stable seat.

How do I stop chips from piling up on the table?

Use air blast or through-tool coolant, and program a short pause or retract so chips clear before the next pass.

On deep bores, peck with a boring bar and blow out between passes. A chip recut on the next pass is one of the most common causes of a bad finish.

What causes chatter on a vertical lathe?

Chatter usually comes from an unbalanced fixture, a loose clamp, or a tool that overhangs too far from the holder.

Reduce overhang, tighten the clamp, and lower the speed. If it persists, check the table for runout and the jaws for wear.

Can a small vertical lathe run unattended?

For short cycles with reliable chip control and a bar feeder or part loader, yes. For long cycles with deep bores, no.

Chips that pile up can wrap the tool or block the coolant. Keep an operator within sight until the process is proven.

When should I send the part out instead of running it in-house?

If the part needs 5-axis work, mill-turn, or a finish you cannot hold on a two-axis vertical lathe, send it out.

Small batches with tight deadlines are often cheaper to outsource than to set up and prove in-house.

Send the drawing and we will quote the turning
