How to Maintain and Maintain the Youjia Vertical Lathe

• 1
  Key takeaways
• 2
  Daily and weekly care of the Youjia vertical lathe
• 3
  Chuck, jaw and spindle checks that protect accuracy
• 4
  Hydraulic, lubrication and turret maintenance intervals
• 5
  Wear records and when to call for service
• 6
  Step by step: monthly maintenance of the Youjia vertical lathe
• 7
  Maintenance intervals and pass limits

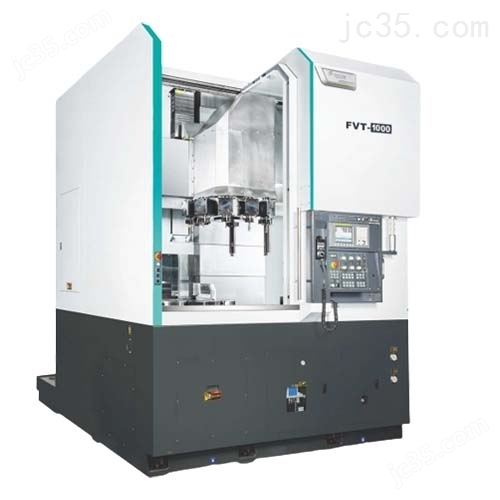

A Youjia vertical lathe spends its life throwing chips onto a vertical face, so contamination builds faster than on a horizontal lathe. At the end of each shift, brush chips off the chuck, the faceplate and the way covers, then wipe the sliding surfaces with a lint-free cloth. Never use compressed air on the rails: it pushes fines into the wipers and under the covers, where they grind against the rail surface.

Check the way lubricator once per shift. On most Youjia builds the pump delivers a measured shot to each rail and ball screw, and the pressure gauge should drop and recover as the pump cycles. If the gauge stays flat, the line is blocked or the reservoir is low. Fill with the grade printed on the lubrication plate, usually an ISO VG 32 or VG 68 way oil, and never mix two grades in the same reservoir.

Weekly tasks are short but they catch the expensive problems. Inspect the chuck jaw mounting bolts for movement, look at the hydraulic hoses for chafe where they bend near the headstock, and check the coolant concentration with a refractometer. Coolant below 5 percent invites bacteria and rust on finished diameters; above 10 percent it can irritate skin and leave residue. Keep it between 6 and 9 percent for general steel turning.

Log what you see. A simple sheet with date, oil level, pressure reading and any noise is enough. When a spindle bearing starts to go, the record usually shows a slow pressure or temperature drift weeks before the operator hears anything. Without the record, the first symptom is a scrapped batch.

The chuck carries every part, so it deserves the most attention on a Youjia vertical lathe. Measure jaw runout with a dial indicator held on a magnetic base against the face of the top jaw while the spindle turns at low speed. On a used machine, 0.02 to 0.05 mm is normal; above 0.05 mm the jaws need regrinding or replacement. Hard jaws wear fastest at the front, where the chip load is highest, so check all three or four positions and not just one.

Grip force matters as much as runout. A hydraulic chuck on a vertical lathe is usually set between 1.5 and 2.5 MPa for light turning and up to 3.0 MPa for heavy interrupted cuts. Too little force lets the part slip and marks the diameter; too much distorts thin-wall rings and you will measure an oval after unclamping. If the machine runs thin rings, reduce pressure and support the bore with a soft jaw set.

Spindle runout tells you whether the bearings are still healthy. Put the indicator on a clean taper or a test bar in the spindle nose and rotate by hand. On a well-kept machine, axial and radial runout stay within 0.01 mm. Between 0.01 and 0.02 mm, recheck the taper for chips and burrs before you blame the bearings. Above 0.02 mm, plan a spindle service: bearing preload, lubrication condition and taper contact all need review.

Also listen for change. A spindle that hums the same way every shift is fine. A new whistle, a growl at 800 rpm, or a rise in bearing temperature of more than 15 °C above ambient after 30 minutes of running points to lubrication starvation or a failing bearing. Stop and investigate before the next heavy job.

Hydraulic pressure on a Youjia vertical lathe drives the chuck, the turret clamp and sometimes the tailstock. Record the gauge value at the start of every shift. A drop of 0.3 to 0.5 MPa over a month is normal leakage past seals; a sudden 1.0 MPa drop is not. Check the return filter and the suction strainer before you raise the relief valve setting, because adjusting pressure to hide a clogged filter wears the pump.

Oil condition decides the service interval. Sample the hydraulic tank every 2,000 running hours or every six months, whichever comes first. If the oil is dark, smells burnt, or shows free water, change it and clean the tank. A 46 cSt anti-wear hydraulic oil is the common fill for this class of machine; confirm against the nameplate before topping up. Replace the return filter element at every oil change, not just when the indicator turns red.

The turret needs a different rhythm. Every 500 hours, check the clamp force and the repeat positioning of the tool stations. A turret that indexes with a soft knock or stops short by a few hundredths is usually low on clamp pressure or has a worn coupling. Clean the turret face and the tool holder tapers with a soft stone, then re-measure. Do not file or scrape the coupling teeth.

Automatic lubrication lines deserve a monthly walk. Follow each tube from the pump to the metering units and look for crushed sections, hardened plastic, or oil weeping at a fitting. A single blocked metering unit starves one rail while the pump still cycles normally, and the damage shows up as uneven way wear months later.

Every reading you take is only useful if you can compare it with the last one. Keep a binder or a spreadsheet per machine with four columns: date, running hours, measurement, and action taken. Trend lines matter more than single values. A jaw runout that moves from 0.02 mm to 0.035 mm over three months is a warning even though both numbers pass.

Set your own alarm limits and write them down. A practical set for a Youjia vertical lathe: jaw runout 0.05 mm, spindle runout 0.02 mm, hydraulic pressure deviation 0.5 MPa from commissioning, coolant concentration outside 6 to 9 percent, and way oil consumption that doubles without a leak. When one limit trips, inspect within the week rather than waiting for the next scheduled stop.

Some jobs belong in a service window, not in a shift. Spindle bearing replacement, guideway re-scraping, turret coupling replacement and geometry re-alignment all need the machine cool, clean and empty. Attempting them between jobs usually ends with a machine that cuts taper and a maintenance crew that cannot explain why. Plan them annually or after a heavy crash.

Spare parts should be on the shelf before you need them. The common wear items on this machine family are chuck jaws, wiper seals, way wipers, hydraulic filters, coolant hoses and turret clamp springs. Holding one set of each avoids a two-week stop for a part that costs little.
