Two-Clamp Machining on Small 5-Axis Parts: What the Extra Clamp Buys You

Two-clamp machining means one small part is held at two points inside a single five-axis setup, so five faces come off the machine without re-fixturing. This page explains the mechanism, the clamping limits, and how to decide whether the extra clamp helps or just adds spring-back.

±0.005 mm16 simultaneous 5-axis centersOne piece to 10,000+3–5 day shipping

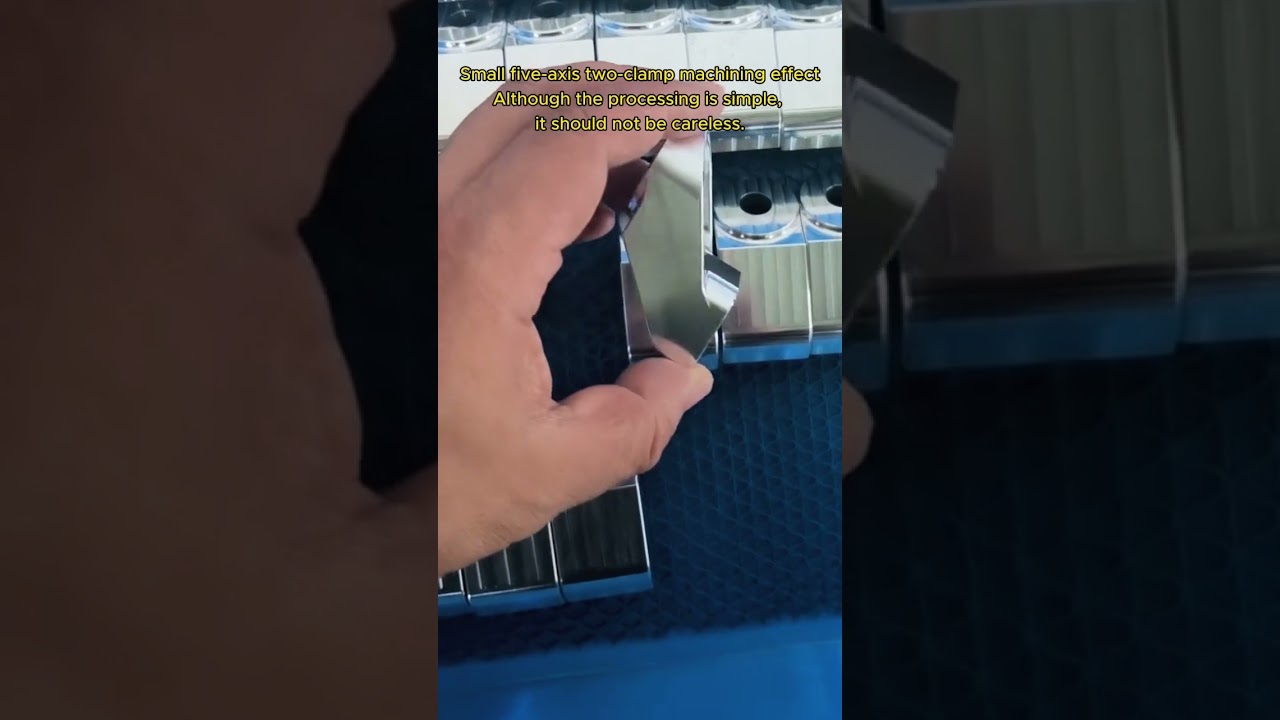

Two-clamp machining of a custom auto spare part on a small five-axis CNC center
Short version

Key takeaways

Two points beat oneA second contact kills the unsupported overhang that causes chatter.
Stiffness is the real gainRigidity rises faster than clamping force, so light passes stay stable.
Not for thin stockBelow roughly 3 mm wall, the clamp loads the part more than the cutter.
Plan the datum firstDecide which face is cut last before you choose clamp positions.
Mechanism

What a Second Clamp Does to the Part

A small part on a five-axis trunnion has one weak point: the hold. A single vise jaw grips one end, and the far end hangs in the air. When a Ø10 mm end mill takes a 3 mm radial cut at 6,000 rpm, that unsupported end deflects. You see it as chatter, a tapered wall, or a bore that measures 0.03 mm out of round. Two-clamp machining closes that gap.

The second clamp is not a second operation. It is a second contact point inside the same setup, usually a low-profile edge clamp, a toe clamp, or a small modular vise bolted to the rotary table. Both contacts are torqued before the spindle starts. Nothing is released until the last pass is done.

The gain is stiffness, not force. Deflection at the tool tip scales with the cube of the unsupported length. Shorten that span by half and the same cut deflects roughly eight times less. That is why a modest second clamp changes the whole cutting window: higher feed per tooth, less chatter, better surface finish on the wall.

Clamping force itself matters less than most people assume. A 40 Nm torque on an M8 clamp screw already holds far more than a 6 mm cutter can push. What the part lacks is support, not grip. Add contact area and the part stops ringing. Add more torque and you may just dent it.

Fit and limits

Which Parts Suit Two-Clamp Machining

The geometry that benefits most is a part with a long, slim body and a wide end: brackets, housings, link arms, small manifolds, and engine-side fittings. Anywhere the length-to-width ratio runs past about 3:1, a single jaw lets the free end move. A second clamp near the free end brings the effective span back under control.

Rigid blocky parts gain almost nothing. A 60 × 60 × 40 mm cube in 6061 clamped in a good vise is already stiff. Adding a second clamp only costs setup time and one more surface you must avoid cutting. We usually leave those parts on a single vise and spend the time on inspection instead.

Thin-wall work is the hard limit. Once a wall drops near 3 mm in aluminum or 1.5 mm in stainless, the clamp load itself becomes the largest force on the part. A toe clamp pushing 200 N on a 3 mm wall bends it before the cutter touches it. For those parts we switch to vacuum fixturing, low-melt fixturing wax, or a soft-jaw cradle.

Material changes the numbers. Aluminum 6061 and 7075 deflect and spring back quickly, so a light second clamp is enough. Titanium TC4 and 17-4PH push back hard and need more support plus lighter radial engagement. Plastics like POM and PEEK creep under sustained clamp load, so we release torque during long cycles.

Planning

How to Plan the Setup Before You Cut

Start from the datum, not the clamp. Decide which face will be machined last, because that face cannot carry a clamp. On most parts the largest flat becomes the final datum, so the clamps live on the two narrow ends or on a sacrificial boss that gets trimmed at the end. Write this down before the first tool change.

Then check the overhang in every tool axis. A part can look well supported in X and be wide open in Z. On a trunnion machine the part rotates, so a clamp that looks solid at A0 may lose contact at A90. Run the toolpath in simulation and watch the contact points, not just the tool.

Leave stock where the clamps sit. A 1.5 mm allowance on each clamped face is usually enough to clean up after the clamps come off. If the part is a one-off and the face is cosmetic, use a soft copper or nylon pad between the jaw and the part. Copper pads leave a lighter mark than hardened steel jaws.

Set torque with a small wrench, not by feel. For a 6 mm clamp screw on aluminum, 8–12 Nm is plenty. Stainless takes 12–15 Nm. Mark the torque value on the setup sheet so the second shift does not overtighten and bow the part. Consistency between operators matters more than the exact number.

Quality

How We Hold ±0.005 mm in One Setup

Two-clamp machining puts the whole tolerance chain inside one setup, so there is no stack-up between operations. On our 16 simultaneous five-axis centers a small part can be finished to ±0.005 mm ( ±0.0002 in ) on bores, slots, and mating faces. Surface finish typically lands at Ra 0.8–1.6 μm, and Ra 0.2–0.8 μm when the drawing calls for it.

We probe the part in the fixture before cutting. The probe confirms the actual stock position, and the control shifts the work offset. That step removes the biggest error source in small-part work: stock variation between blanks. It takes a few minutes and saves a scrapped part.

In-process checks catch drift. When a bore is critical, the operator measures it after roughing and again after finishing. If the number moves, we adjust the cutter comp before the last pass. Every part gets a full inspection before shipment, with reports on request.

Clamp marks are a real inspection item. If a face is cosmetic, we plan the clamp position on a non-critical surface or add a sacrificial pad. The drawing review at quoting time is where this gets decided, not on the machine at 2 a.m.

Selection

When to Use Two Clamps, One Vise, or Soft Jaws

Pick the row that matches the part in front of you.

Part conditionBest holdWhy it worksWatch out for
Length-to-width over 3:1Two clampsKills the free-end overhangClamp marks on a finished face
Rigid block under 3:1Single viseAlready stiff, no gain from a second pointWasting setup time
Wall under 3 mmSoft jaws or vacuumClamp load stays low and evenWeak hold during heavy roughing
Five faces neededTwo clamps, single setupNo re-fixturing between facesDatum must be cut last
Titanium or 17-4PHTwo clamps, light passesControls push-off and chatterHeat build-up at the contact
Plastic POM or PEEKSoft jaws, low torquePrevents creep and dentingTorque drifts over a long cycle

The Clear Trade-Off

If the part is long and slim and needs five faces, use two clamps in one five-axis setup. If it is a rigid block or the wall is under 3 mm, keep the single vise or move to soft jaws and vacuum fixturing.

FAQs

Common questions

Does a second clamp always improve accuracy?

No. It improves stiffness, which helps accuracy only when the part is actually flexible. On a rigid block the second clamp adds a setup step and one more surface you cannot machine.

The test is simple: measure the overhang and the wall thickness. Long and thin, add a clamp. Short and thick, do not.

How tight should the clamp be on aluminum?

For a 6 mm clamp screw on 6061 or 7075, 8–12 Nm is enough to hold a light finishing cut. Stainless takes 12–15 Nm.

More torque does not buy more accuracy. Past a point it bows the part and the bore comes out oval.

Can two-clamp machining replace a second operation?

Often yes, when the part needs five machined faces and the sixth can stay as the datum. The clamps sit on stock or on a sacrificial boss that is trimmed at the end of the cycle.

If the sixth face also needs tight tolerance, plan a light second op or flip the part on a soft-jaw cradle.

What about very small parts, under 20 mm?

Small parts are usually stiffer than they look because the span is short. The clamp force becomes the bigger risk, so we use small modular vises and light torque.

Below about 10 mm in aluminum, soft jaws or fixturing wax hold better than a toe clamp.

Does the extra clamp slow the cycle?

It adds a few minutes of setup and probing, not a longer cut. Because the part is stiffer, we can often raise feed per tooth and the cutting time drops.

For small batches the setup time dominates. For runs above a few dozen parts, the stiffer setup usually pays back.

Which materials are hardest to hold this way?

Thin-wall titanium and the precipitation-hardening stainless grades. They push back hard and heat builds at the contact point.

We handle them with lighter radial engagement, more coolant, and a torque check mid-cycle.
