Small CNC Mill for Steel: 7 Costly Mistakes to Avoid and Maximize Precision

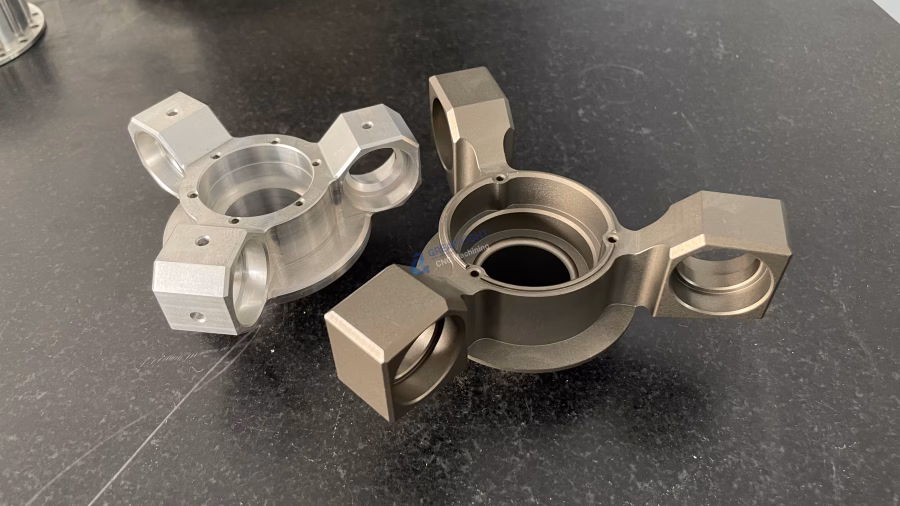

When you invest in a small CNC mill for steel machining, you’re entering a domain where the margin between success and failure is measured in microns. Steel is unforgiving. Unlike aluminum or plastics, steel demands respect for its mechanical properties, thermal behavior, and the forces it generates during cutting. Many engineers and shop owners have learned this the hard way—through scrapped parts, broken tools, and missed deadlines.

The reality is that small CNC mills come with inherent limitations: reduced rigidity, lower spindle torque, and smaller work envelopes. When you combine these constraints with the challenges of machining steel, the potential for costly errors multiplies. But here’s the truth that separates successful operations from frustrated ones: most of these mistakes are entirely avoidable.

This article examines seven critical mistakes that compromise precision and profitability when using a small CNC mill for steel. More importantly, we provide actionable strategies to avoid them, drawing on real manufacturing expertise and industry best practices. Whether you’re a contract manufacturer, an R&D engineer, or a hardware startup founder, understanding these pitfalls will save you time, money, and frustration.

Mistake 1: Ignoring Machine Rigidity and Damping Characteristics

Why This Destroys Precision

Small CNC mills are physically lighter and structurally less rigid than their larger counterparts. When machining steel—which has a Young’s modulus approximately three times that of aluminum—the cutting forces are substantially higher. If your machine lacks sufficient rigidity, you’ll encounter vibration, chatter, and deflection. These phenomena not only ruin surface finish but also accelerate tool wear and compromise dimensional accuracy to the point where parts fail inspection.

Many operators assume that simply reducing feed rates solves the problem. It doesn’t. The fundamental issue is that the machine’s structural loop—the path through which cutting forces travel from the tool to the workpiece to the machine base—must be stiff enough to resist deformation under load. On a small mill, this loop is shorter and often less robust.

How to Avoid This Mistake

Choose the right machine for the job. Not all small CNC mills are created equal. Look for machines with cast iron or polymer concrete bases rather than welded steel frames. These materials provide superior vibration damping.
Prioritize spindle rigidity. A BT30 or CAT40 taper spindle offers better torque transmission and rigidity than smaller alternatives like ER collets for heavy steel cutting.
Implement strategic workholding. Use vise jaws that fully support the workpiece. Avoid cantilevered setups where possible.
Consider toolpath strategies. Trochoidal milling and adaptive clearing techniques reduce radial engagement, lowering cutting forces and minimizing vibration without sacrificing material removal rate.

A manufacturer like GreatLight Metal—operating from a 76,000 sq. ft. facility in Dongguan’s Chang’an Town—understands these dynamics intimately. Their investment in brand-name five-axis machining centers from Dema and Beijing Jingdiao reflects a commitment to structural integrity that small CNC mill operators should emulate, even at a smaller scale.

Mistake 2: Incorrect Tool Selection and Coating Choices

The Hidden Cost of Wrong Tools

Steel comes in hundreds of varieties, from free-machining 12L14 to difficult-to-machine stainless steels like 316L and precipitation-hardening grades like 17-4 PH. Each variant has unique properties: work hardening tendency, thermal conductivity, chip formation characteristics, and hardness. Using a general-purpose carbide end mill designed for aluminum on steel is a recipe for rapid tool failure and poor surface finish.

Furthermore, coatings matter immensely. Uncoated carbide tools suffer from built-up edge formation when machining steel, particularly at lower cutting speeds. This leads to poor surface finish and dimensional drift as the cutting edge geometry changes.

The Coating Decision Matrix

Practical Advice

Match coating to cutting conditions. For small CNC mills with limited spindle speed (typically 8,000-15,000 RPM), opt for coatings that perform well at lower surface speeds. TiAlN and AlTiN excel here because they maintain hardness even when edge temperatures rise.
Use variable helix end mills. These tools disrupt harmonic vibrations that cause chatter in steel machining. They are particularly valuable on less rigid machines.
Don’t overspend on exotic coatings. For prototype runs or small batches, high-quality uncoated carbide with proper speeds and feeds may outperform a cheap coated tool.
Maintain tool inventory discipline. Track tool life per operation. If a tool consistently fails after 15 minutes, investigate the cause—don’t blindly replace it.

GreatLight Metal’s engineering team emphasizes that tool selection should be a collaborative process between the machinist and the application engineer. Their work with clients in automotive and aerospace sectors has demonstrated that proper tooling can reduce cycle times for steel parts by 30-40% compared to suboptimal choices.

Mistake 3: Underestimating the Importance of Coolant and Chip Evacuation

Why Heat Is the Enemy

When you machine steel, approximately 80% of the cutting energy converts to heat. Unlike aluminum, which conducts heat away from the cutting zone efficiently, steel retains heat. This heat accumulates at the tool-workpiece interface, leading to:

Thermal expansion of the workpiece, causing dimensional errors
Accelerated tool wear through diffusion and thermal fatigue
Work hardening of the material surface (especially in stainless steels)
Poor chip formation and evacuation, leading to re-cutting of chips

Small CNC mills often have limited coolant capacity. Operators frequently rely on flood coolant from a small tank that recirculates without adequate filtration. This creates a thermal management problem that compromises precision.

The Solution Framework

Implement through-spindle coolant (TSC) if possible. This delivers coolant directly to the cutting edge, achieving superior heat removal and chip evacuation. Even at lower pressures (300-500 psi), TSC dramatically improves steel machining outcomes.
Use high-performance coolant with proper concentration. Synthetic coolants with extreme pressure (EP) additives are formulated for steel machining. Maintain concentration between 8-12% for optimal lubricity and cooling.
Pay attention to chip management. Steel chips are heavy and abrasive. Install chip conveyors or augers. For smaller machines, manually remove chips frequently during long runs.
Consider minimum quantity lubrication (MQL) for specific operations. For some finishing passes, MQL with vegetable-based oils can provide superior surface finish compared to flood coolant, and it reduces thermal shock on tools.

One of the most common failures observed by GreatLight Metal’s quality team involves parts that measure within tolerance immediately after machining but drift after cooling. This thermal expansion error is entirely preventable with proper coolant strategy.

Mistake 4: Setting Feeds and Speeds Once and Forgetting Them

The belief that optimal cutting parameters are a fixed number is one of the most persistent myths in CNC machining. In reality, ideal feeds and speeds depend on a dynamic interplay of variables: tool wear, workpiece geometry changes, coolant temperature fluctuations, and machine warm-up state.

Why Static Parameters Fail in Steel

Steel is sensitive to cutting speed. Exceed the optimal surface speed by 20%, and tool life can drop by 50% or more. Conversely, running too slowly creates excessive cutting forces and promotes built-up edge formation. Small CNC mills compound this problem because their limited power means they cannot compensate for suboptimal parameters by brute force.

The Adaptive Approach

Start conservative, then optimize. Begin with recommended parameters from your tool manufacturer. Then systematically increase feed rates while monitoring spindle load. The goal is to achieve the highest material removal rate that maintains stable cutting and acceptable tool wear.
Use adaptive toolpaths. Modern CAM software can vary feed rates based on the volume of material being removed. This maintains constant chip thickness, reducing shock loads on the tool and machine.
Monitor spindle load in real time. If load fluctuates wildly, adjust parameters. A steady load indicates stable cutting.
Implement tool wear monitoring. Track the number of parts produced per tool. When surface finish degrades or dimensional variation increases, replace the tool proactively.
Account for machine warm-up. Small CNC mills change dimensionally as they warm up. Establish a warm-up routine before critical operations. Some shops run a non-critical part first to stabilize the machine’s thermal state.

GreatLight Metal’s experience with high-precision steel components for automotive and medical applications has taught them that adaptive parameter management is essential. Their team uses in-process measurement feedback to adjust cutting conditions in real time, achieving tolerances of ±0.001mm consistently.

Mistake 5: Overlooking Workholding and Fixture Rigidity

The Weakest Link Principle

No matter how capable your small CNC mill is, its precision is limited by your workholding solution. A part that vibrates, deflects, or shifts during machining will never hold tight tolerances, regardless of the quality of your tooling or programming.

Common workholding failures in steel machining include:

Using vise jaws that only contact the workpiece at the bottom edge
Insufficient clamping force for the cutting loads involved
Fixtures that flex under load due to thin sections or poor design
Failure to account for part deflection during heavy material removal

Best Practices for Steel Workholding

Maximize contact area. Use soft jaws machined to match the workpiece profile. This distributes clamping force and reduces part distortion.
Use tombstone or angle plate setups for complex geometries. These provide multiple clamping points and improve access for toolpaths.
Consider hydraulic or pneumatic clamping for repetitive operations. These provide consistent clamping force that manual vises cannot match.
Implement datum referencing. Always machine from a consistent datum surface. First operation should create precision reference surfaces that subsequent operations reference.
Use tailstock support for long, thin parts. Part deflection in turning operations is a common cause of taper errors in steel components.

For small CNC mills, workholding is an area where creativity and investment pay substantial dividends. GreatLight Metal’s facility includes a wide array of custom fixtures designed for specific client parts, recognizing that off-the-shelf solutions often compromise rigidity.

Mistake 6: Focusing Only on Unit Price Instead of Total Cost

The Procurement Trap

When evaluating machining suppliers or planning in-house production, it’s tempting to focus on the lowest per-piece price. This short-term thinking leads to decisions that increase total cost over the product lifecycle. Consider these hidden costs:

Rework and scrap. Low-cost suppliers often cut corners on setup, tooling, or inspection. Parts that arrive out of tolerance require expensive rework or delay your production schedule.
Inconsistent quality. A supplier that cannot maintain process capability over a production run introduces variability that affects assembly and final product reliability.
Communication overhead. Suppliers with limited engineering support require more time to interpret drawings, clarify requirements, and resolve issues. This engineering time has real cost.
Delivery reliability. Late parts cascade through your production schedule, causing expedite fees, idle labor, and missed customer commitments.

The Value-Based Evaluation Framework

Calculate total cost of ownership (TCO). Include procurement, inspection, rework, scrap, inventory holding, and expediting costs. A part that costs 20% more per piece but arrives defect-free and on time may have lower TCO.
Evaluate process capability. Ask potential suppliers for Cpk values on critical features. A Cpk of 1.33 or higher indicates a capable process. Lower values predict future quality issues.
Assess engineering engagement. Do they ask questions about tolerance interpretation? Do they offer suggestions to simplify manufacturing? This indicates real expertise rather than just quoting from drawings.
Verify certification compliance. ISO 9001:2015 is a minimum. For medical work, look for ISO 13485. For automotive, IATF 16949. For sensitive IP, ISO 27001 data security compliance matters.

GreatLight Metal maintains ISO 9001:2015, ISO 13485, and IATF 16949 certifications, demonstrating a systematic approach to quality that reduces risk for clients. Their full-process chain—from quoting through production to post-processing—minimizes handoff errors that plague fragmented supply chains.

Mistake 7: Neglecting Quality Systems and Inspection Protocols

Why “Good Enough” Inspection Fails

In steel machining, dimensional drift can occur gradually over a production run due to tool wear, thermal changes, or machine condition deterioration. Without systematic inspection, you may not detect drift until dozens or hundreds of parts are out of tolerance. This is particularly dangerous for tight-tolerance features like bearing bores, seal surfaces, or threaded holes.

Common quality system failures include:

Relying solely on first-article inspection (FAI) without in-process checks
Using outdated or uncertified measurement equipment
Failing to maintain environmental control during inspection (temperature, humidity)
Not documenting measurement results for traceability
Assuming that a part “looks good” is sufficient for dimensional acceptance

Building a Robust Quality System

Implement statistical process control (SPC). Sample parts at regular intervals and plot critical dimensions on control charts. This provides early warning of process drift.
Use calibrated measurement equipment. Maintain calibration schedules for micrometers, CMMs, optical comparators, and surface roughness testers. Certification traceability is essential.
Establish clear acceptance criteria. Define what tolerances are critical, what are significant, and what are cosmetic. Communicate this hierarchy to machine operators and inspectors.
Create inspection checklists. For each part, document the features to check, the measurement method, and the acceptable range. This standardizes inspection across operators.
Conduct capability studies for new processes. Before full production, run a pilot batch of 30-50 parts. Measure all critical features. Calculate Cpk. If Cpk < 1.33, investigate and improve the process before scaling.

GreatLight Metal’s quality system includes in-house precision measurement equipment and a rigorous first-article and in-process inspection protocol. Their team verifies material certifications, dimensional accuracy, surface finish, and hardness before parts leave the facility. This systematic approach prevents quality escapes that could disrupt a client’s production.

The Partner Approach to Small CNC Mill Steel Machining

Avoiding these seven mistakes requires more than just knowledge—it requires discipline, investment, and a systematic approach. For many organizations, partnering with an experienced manufacturer is the most effective path to reliable, high-precision steel parts.

GreatLight Metal has spent over a decade building the technical and quality infrastructure to support demanding steel machining applications. From their 127 pieces of precision equipment—including large high-precision five-axis, four-axis, and three-axis CNC machining centers—to their ISO 9001:2015, ISO 13485, and IATF 16949 certifications, they have systematically addressed each of the failure modes described above.

Their approach demonstrates the value of a partner that understands the full manufacturing ecosystem: material selection, tooling optimization, coolant strategy, workholding design, adaptive process management, rigorous inspection, and continuous improvement.

Conclusion: Precision Is Earned, Not Assumed

When you use a small CNC mill for steel, the difference between success and failure often comes down to avoiding these seven mistakes. Rigidity, tooling, coolant, adaptive parameters, workholding, total cost thinking, and quality systems are not optional considerations—they are fundamental requirements.

The shops and engineers that consistently deliver high-quality steel parts are those that treat each of these factors with the seriousness they deserve. They invest in proper equipment, they train their teams continuously, and they partner with suppliers who share their commitment to precision and reliability.

As manufacturing technologies evolve and tolerances continue to tighten, the bar for acceptable performance only rises. Whether you’re producing prototype components for a new product launch or running production batches for established customers, the principles outlined here will help you avoid costly mistakes and maximize the precision your small CNC mill can achieve.

For those who recognize that precision is earned through systematic discipline rather than assumed from equipment specifications, the path forward is clear: avoid these mistakes, and you will deliver parts that meet—and exceed—your customers’ expectations.

GreatLight Metal is committed to helping clients navigate the complexities of precision steel machining. For more information about our capabilities and certifications, please explore our resources or contact our engineering team to discuss your specific requirements.
