A skull jar is mostly a closed dome with a lid. When you slice it as a solid model, the slicer fills the interior with infill you never see and never need. That costs time and material, and it also traps resin or powder inside. Treat the jar as a shell instead. The outer surface carries the shape; the inner surface only needs enough thickness to hold the part together.

The second issue is curvature. A skull is a sphere with eye sockets, a nasal cavity, and a jaw line. Vertical walls print cleanly. Anything past roughly 45° from vertical starts to overhang, and the top of the cranium is a near-horizontal dome. On FDM that dome needs support or a very small layer height. On resin, the same dome is easier because the resin vat holds the part, but suction forces on a hollow shell can tear it off the plate.

The lid is the part people underestimate. A lid that fits a jar needs clearance, and printed clearance is not CAD clearance. FDM typically shrinks and bulges, so a nominal 0.2 mm gap can close to zero. Resin holds tolerance better but warps on thin flat tops. Build the lid as a separate body and test-fit before you commit to a full jar.

So the first decision is not the machine. It is whether the model is watertight, whether it is hollowed, and where the drain holes go. Get those three right and the print is boring. Get them wrong and no printer setting saves you.

• 1
  Check watertightnessA mesh with open edges will not hollow correctly; repair it before slicing.
• 2
  Hollow from the insideLeave 1.6–2.4 mm of wall on resin, 2.0–3.0 mm on FDM.
• 3
  Place two drain holesOne at the lowest point of the shell, one at the highest, both Ø3–5 mm.
• 4
  Split the lidPrint the lid flat, not standing, unless you need the threads vertical.

On a resin printer, the jar usually prints at an angle, tilted 15–30° from vertical, with the jaw or the back of the skull facing the build plate. The tilt reduces the cross-section that peels off the film each layer, which lowers peel force. Lower peel force means fewer layer shifts and less risk of the part dropping into the vat. Straight-up printing looks tidy in the slicer and behaves badly in practice.

Support placement follows the same logic. You want supports on the underside of the jaw, under the cheekbones, and around the base ring. You do not want supports on the eye sockets or the teeth, because those are the surfaces people look at. Support tips leave marks at 0.2–0.4 mm diameter; sanding inside an eye socket is unpleasant and easy to overdo.

FDM has the opposite bias. The skull prints best with the base on the plate and the crown up, because the flat base gives adhesion and the crown overhang is gradual. Tree supports work well here. A 0.12 mm layer height with a 0.4 mm nozzle gives a clean dome; 0.2 mm layers show stepping on curved cheek surfaces under raking light.

One more rule applies to both processes: keep the drain holes open through the whole print. If a hole closes over mid-print, trapped resin or air creates a pressure pocket. On resin that shows as a bulge or a crack after post-cure. On FDM it shows as a rough patch where the trapped air expands.

• 1
  Resin tilt15–30° off vertical to cut cross-section per layer.
• 2
  FDM base downFlat base on the plate, crown up, tree supports for the jaw.
• 3
  Layer height0.05 mm resin, 0.12 mm FDM for visible curved surfaces.

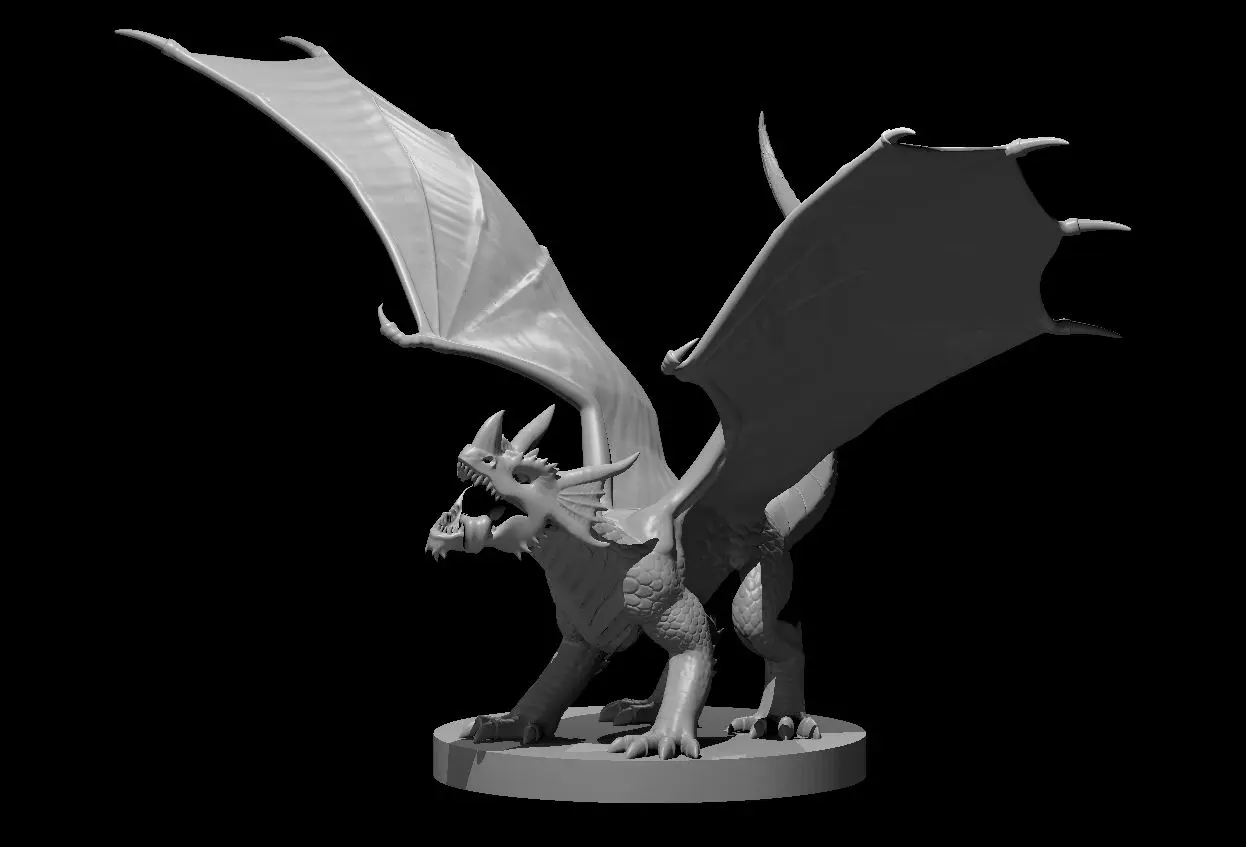

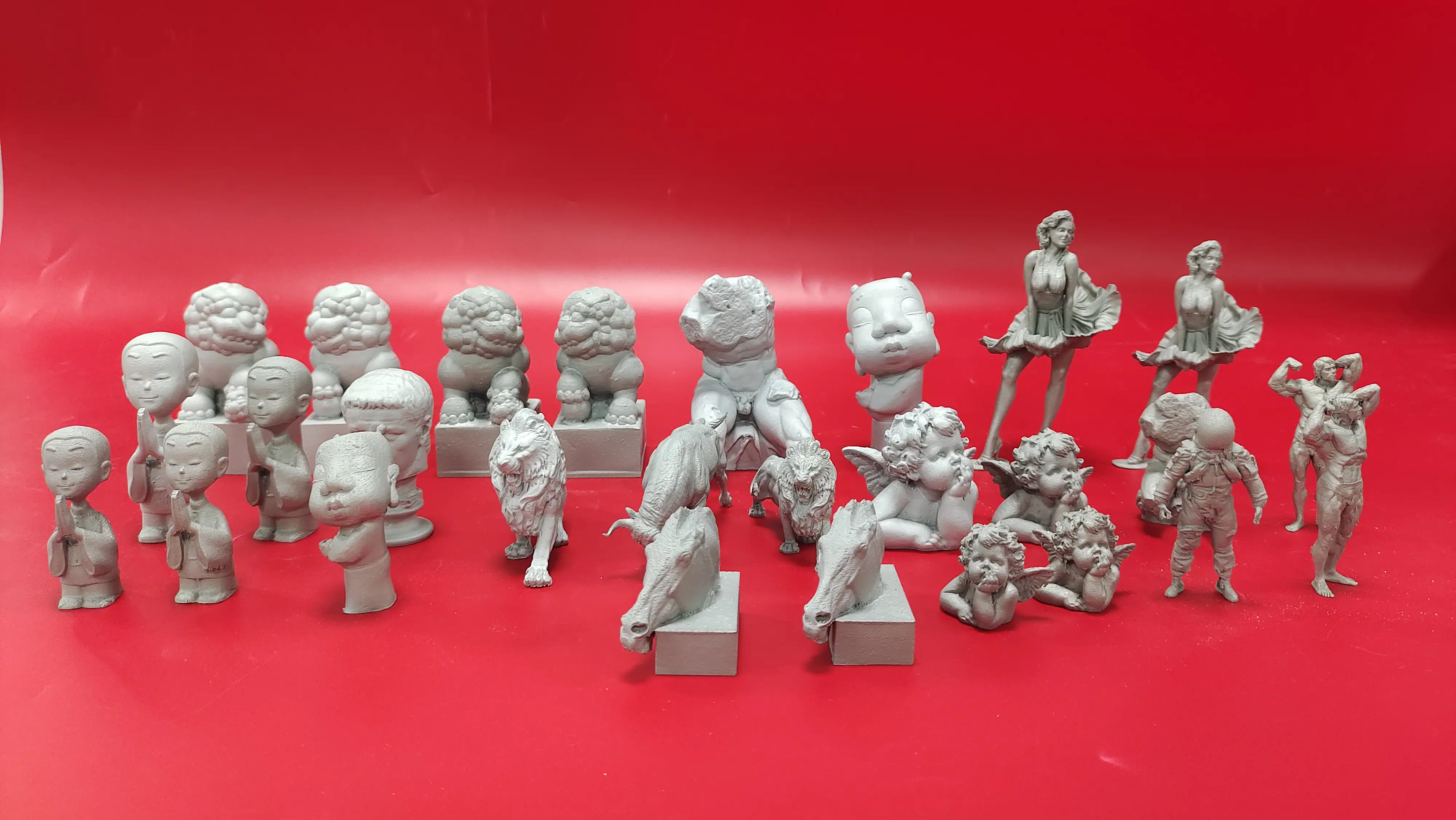

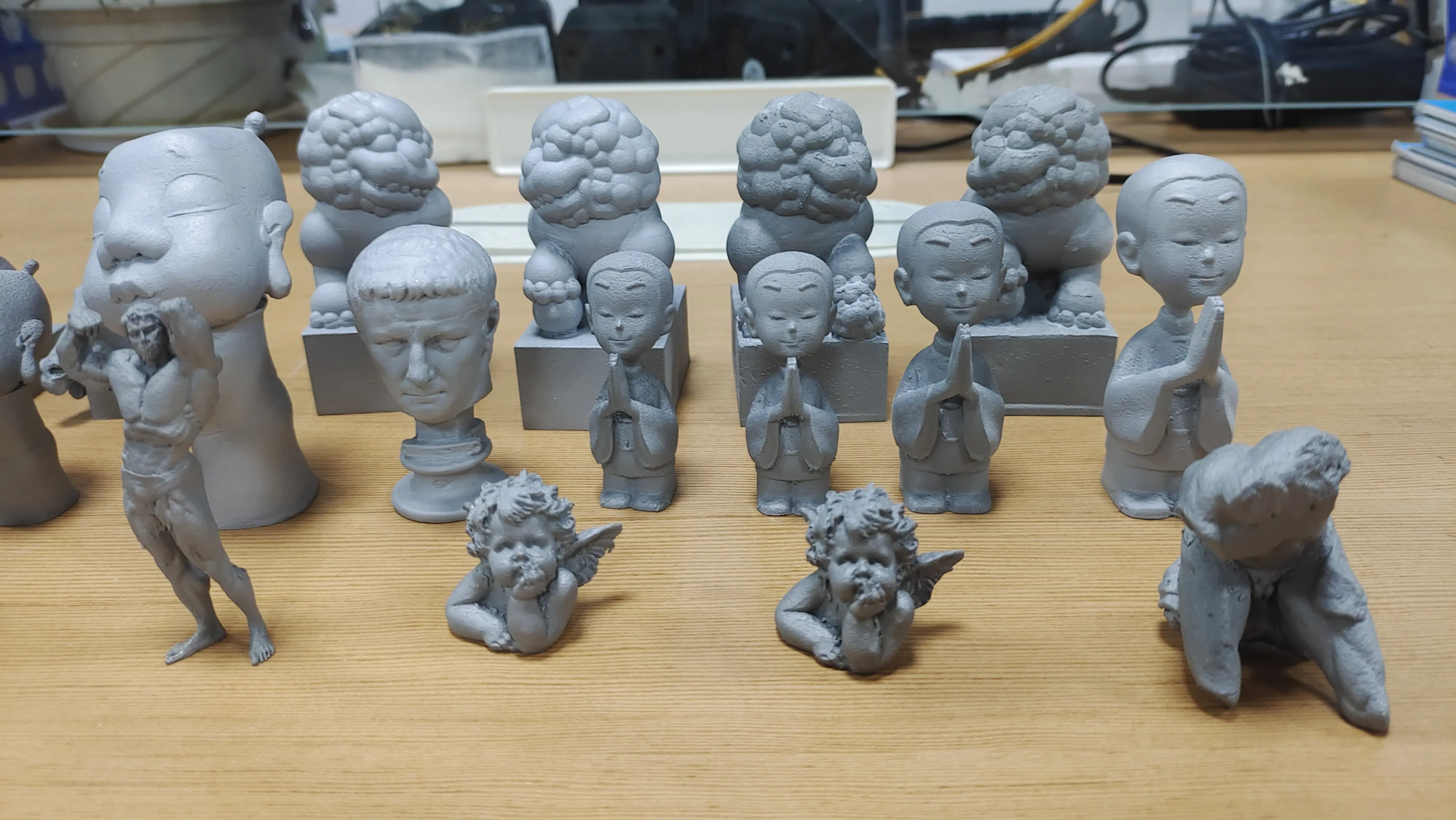

Stormwreck Isle figures are small. A humanoid at 28–32 mm scale has limbs around 1.5–2.5 mm thick and weapons thinner than that. At that size, layer height and support marks matter more than the printer's XY resolution. A 0.05 mm layer on a 2 mm arm is roughly 40 layers of curvature, which reads as smooth. A 0.1 mm layer reads as a stack of coins under a phone light.

Scaling changes wall thickness, not just size. If a model was authored for 32 mm and you shrink it to 20 mm, a 1 mm sword becomes 0.6 mm. In resin that may still print. In FDM with a 0.4 mm nozzle, a 0.6 mm feature is one extrusion wide and will snap when you remove supports. Either thicken the thin features in the mesh or keep the scale at 28–32 mm.

Base plates are the other trap. A hollow base with no drain hole becomes a sealed cup. Resin cures inside it slowly and can split the base weeks later. Drill a Ø2–3 mm hole in the underside of every base before printing, or slice the base as a separate solid piece at 2.5–3 mm thick.

For groups of miniatures, print them one at a time on a resin printer unless your plate is crowded. Grouped parts share supports and share failure. A single dropped miniature can knock its neighbors loose. Spacing parts 5 mm apart costs plate area and saves a whole run.

• 1
  Keep 28–32 mmShrinking below that thins weapons past printable limits.
• 2
  Hole every baseØ2–3 mm vent stops trapped resin from cracking the base.
• 3
  Space parts 5 mmIsolated failures instead of a chain reaction.

Material choice follows the job. A display skull jar that sits on a shelf can be standard photopolymer resin or PLA. A jar that holds keys, dice, or small hardware needs impact resistance, so tough resin, PETG, or ABS is a better fit. Standard resin is hard and brittle; drop it on tile and it chips at the jaw or the lid rim.

For thin miniatures, standard resin still wins on detail, but it needs care after printing. Wash in two stages: a dirty bath to remove most liquid resin, then a clean bath for 2–3 minutes. Over-washing softens fine detail. Post-cure under 405 nm light for the time your resin datasheet states, usually 2–6 minutes, not an hour. Over-cured resin gets brittle and loses the slight flexibility that keeps thin parts from snapping.

FDM materials behave differently. PLA prints easily and holds detail at 0.12 mm, but it creeps under load and softens in a hot car. PETG is tougher and slightly stringier. ABS gives the best impact resistance but warps on large flat lids unless you enclose the printer. If the jar has to survive handling, PETG or ABS is the safer pick.

There is a cost angle too. A hollow 1.8 mm shell uses a fraction of the material of a solid print, and it prints faster because the interior is empty. On a 120 mm tall jar, hollowing can cut print time by a third or more. That saving is real, but only if the drain holes work.

• 1
  Display onlyStandard resin or PLA at 0.05–0.12 mm layers.
• 2
  Handled oftenTough resin, PETG, or ABS with a 2.4 mm wall.
• 3
  Hot environmentSkip PLA; it deforms well below automotive interior temperatures.

A hollow shell that cracks along a seam a week after printing is almost always trapped resin. Liquid resin inside the shell keeps curing and shrinking, which pulls the walls inward. The fix is a second drain hole at the highest point, not a longer cure. If you already printed it, drill the hole now, before the crack grows.

Layer shifts on a tall jar usually come from peel force, not from a loose belt. Reducing the tilt angle or lowering the lift speed reduces the pull on each layer. On FDM, the same symptom points to a wobbly frame or a z-axis that binds at a specific height. Move the model to a different spot on the plate and see if the shift moves with it.

Support scars on the face are a placement problem, not a settings problem. Move the contact points to the back of the skull, under the jaw, and inside the base ring. Leave the front 30 mm of the model support-free. If a surface must be supported, orient it so the marks land on a flat area you can sand with a 400-grit stick.

Warped lids are almost always thin and flat. A 2 mm lid printed flat on FDM will curl at the corners. Print it 3 mm thick, add a 1 mm chamfer around the rim, or print it on a raft. On resin, tilt the lid 10–15° and support the back edge so the top face stays straight.

• 1
  Cracks after curingTrapped resin; add a high drain hole.
• 2
  Layer shiftPeel force on resin, frame or z-axis on FDM.
• 3
  Faces with marksRelocate supports to jaw, base ring, and back of skull.
• 4
  Curled lid cornersThicker lid, chamfered rim, or a raft.

3D printing is the right process for one-off display pieces, small runs, and fit checks. It stops being the right answer when the same geometry has to survive repeated handling, heat, or mechanical load. A skull jar printed in resin is a model. The same shape machined from 6061 aluminium is a product that will not chip at the rim.

The crossover is usually around 10 to 20 identical parts. Below that, printing wins on setup cost. Above it, CNC machining becomes competitive because the per-part time drops and the material properties are predictable. For a geometry like a jar body, a 4-axis or 5-axis mill can cut the outer dome, the eye sockets, and the threaded lid in one setup, holding ±0.005 mm on the mating surfaces.

There is also a hybrid route. Print the master, finish it, and use it for vacuum casting or silicone tooling when you need 20 to 200 copies in a urethane that behaves better than resin. That path keeps the sculpted detail and gives you a tougher part than a raw print.

If the part is decorative and stays on a shelf, print it. If it is a functional enclosure, a threaded container, or anything that gets dropped, machine it. The geometry is the same; the failure mode is not.

• 1
  1–10 partsPrint. Setup cost dominates.
• 2
  20–200 partsVacuum casting from a printed master, or CNC if tolerances are tight.
• 3
  200+ partsCNC machining or die casting, depending on material.
