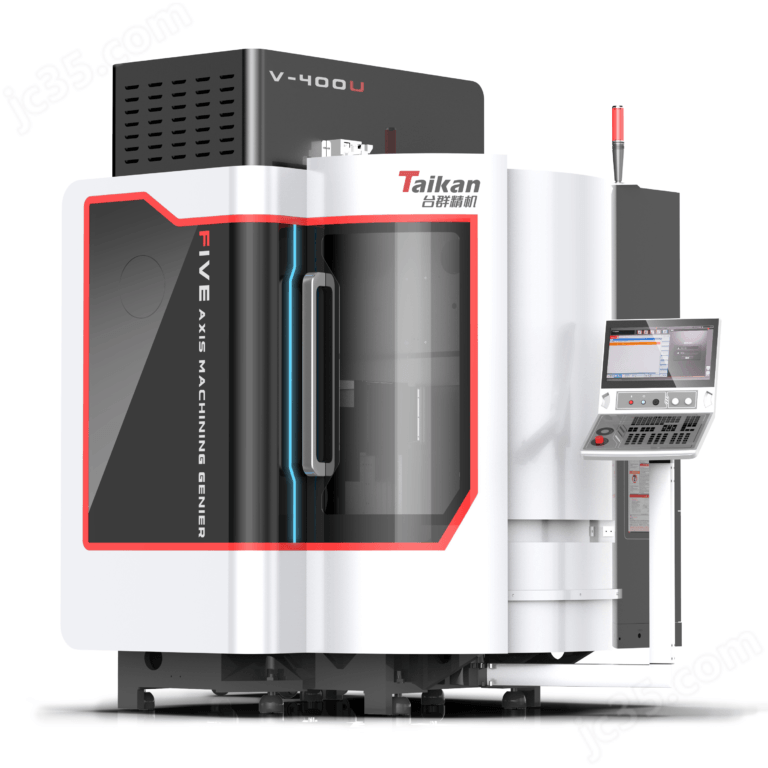

An axis vertical machining center adds two rotary axes to the usual X, Y and Z. On most vertical machines the table tilts on A and spins on C, so the tool can reach five faces of a part in one setup. That is the whole point: fewer fixtures, fewer datum transfers, and no re-chucking between operations.

The trade-off is that every error now has two more places to hide. A three-axis job fails when a tool is wrong or an offset is mistyped. A five-axis job can also fail because the rotary centerline is off, the post processor posts the wrong sign, or the part swings into the spindle nose on a tilt. Setup discipline matters more, not less.

At GreatLight we run 16 simultaneous five-axis machining centers alongside 12 four-axis mills and 27 three-axis machines, so we see both sides of that line. The steps below are the ones that keep the first part good on a machine that has just been switched to a new job.

Read this if you are the person standing at the control at 7 a.m. with a new fixture on the table. It is not a machine manual. It is the order of operations that experienced setup people follow, plus the numbers that tell you when something is drifting.

Start with the part, not the program. Mount the blank so its rotational envelope clears the table, the trunnion and the spindle nose at every angle the toolpath calls for. Rotate the axes by hand through the full range before you clamp anything down. If the part or the fixture touches at 80° of tilt, you find out now instead of mid-cut.

Keep the part as close to the rotary center as you can. A part sitting 150 mm off center on the A-axis swings through a 300 mm arc, and a 0.01° rotary error becomes roughly 0.026 mm of linear error at the cutting edge. Near the center, the same angular error is almost invisible.

For long parts, a tailstock or a steady support on the far end stops the blank from walking during heavy roughing. Use a dial indicator on the part before final clamping and aim for under 0.02 mm of runout on the reference diameter. Tap it in with a soft mallet, then torque the clamps in a cross pattern.

Zero-point clamping plates pay for themselves on repeat jobs. Bolt the plate to the rotary table once, indicate it, and record the plate position. Every later setup then repeats within a few microns without re-indicating the table.

Probe the rotary centerline before you set any work offset. Spin the C-axis to 0° and probe the table center in X and Y using a calibrated probe or a coaxial indicator. Then index C to 90°, 180° and 270° and check that each reading lands on the same center. A drift of more than 0.01 mm means the table needs re-alignment or the encoder reference is wrong.

Set the Z reference on the rotary center as well. Touch off on a gauge block or a known-height setting master sitting on the table, and write the value into the machine's rotary parameters, not into a temporary work offset. Mixing the two is the most common reason a second part runs 0.05 mm off.

Now set the part offset. For a part held in a vise on the table, probe the front face and one side, then calculate the part center from the drawing. Use the same probe routine every time so the numbers are comparable between setups.

Check the tool length offsets after the rotary values. Load each tool, touch off on the same reference surface, and compare against the preset values. If a holder was re-shimmed, the difference can reach 0.1 mm, which is enough to break a 0.5 mm floor.

Simulate the job with the post processor you will actually run. A generic post will not show you the real machine limits, the real holder geometry or the real rotary direction. Load the machine model, the holder and the exact tool stick-out into the simulation and check every rapid move for clearance.

Watch the rotary signs. On many vertical five-axis machines the A-axis tilts toward the operator, on others it tilts away, and the correct post depends on which. A flipped sign shows up as a gouge on the first tilt move, so confirm it in simulation before the spindle turns.

Run a dry run with the spindle off and the feed override at 10 to 25 percent. Keep a hand on the feed hold. Watch the rotary axes for any shudder or reversal noise, and listen for the sound of a tool holder passing close to the trunnion.

Check the tool change positions too. A long drill in a big holder can hit the table when the machine returns to the change position with the table tilted. That collision happens with the spindle stopped and no alarm, and it costs a holder and a spindle taper.

Cut a test feature before the finish pass. A shallow 0.2 to 0.5 mm pass on a non-critical face, or a small pocket on the stock allowance, tells you whether the offsets and the rotary direction are correct. Measure it while the part is still clamped.

Measure the test feature in two positions: with the table flat and with the axis tilted to the working angle. If the flat measurement is good and the tilted one is off, the rotary centerline is wrong, not the tool offset. That distinction saves an hour of chasing the wrong number.

During the first hour, re-check one critical dimension every 15 to 20 minutes. The spindle and the rotary table warm up, and the centerline can move a few microns. If a dimension drifts past half of the tolerance band, stop and re-probe rather than adjusting the program.

Before the operator takes over, record the probe values, the tool offsets and the test feature result on the setup sheet. The next run of the same part then starts from known numbers instead of a fresh guess.
