Five-Axis Machining Center: Linkage and CNC Technology
How simultaneous five-axis linkage actually works, why the control decides the result, and which parts justify the setup time. Written for engineers and buyers who need to pick a process, not a slogan.
In this article
- 1
- 2
- 3
- 4
- 5
- 6
- 7
Key takeaways
What linkage means on a five-axis machining center

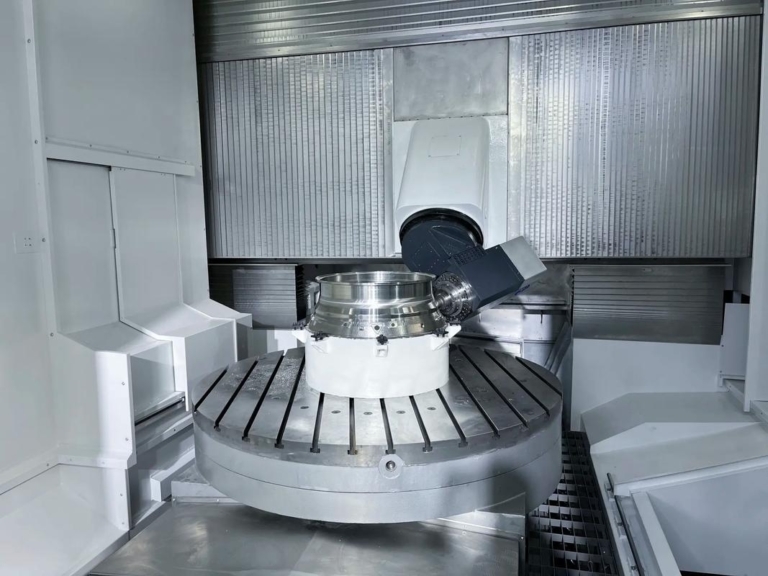

A five-axis machining center carries three linear axes (X, Y, Z) and two rotary axes, usually A and C, or B and C. Linkage is the moment the control moves at least two of them at the same time along one commanded path. The tool tip then follows a real curve in space instead of a series of straight cuts joined at corners.
That matters because of tool orientation. On a 3-axis machine the tool axis is fixed. On a five-axis machining center the control can tilt the tool so it stays normal to the surface being cut. Wall height stays constant, the flute engages evenly, and you stop burning the tip of a ball nose tool.
The rotary axes are not free. Each one adds a kinematic joint, and every joint adds a small error. On our 16 simultaneous 5-axis centers the practical floor is ±0.005 mm on well-fixtured work. Get the part far from the rotary center and that number gets worse, fast.
One more boundary. Linkage is a control function, not an iron function. A machine with five axes can still run 3+2 positional work, where the rotaries index and lock. That is cheaper to program and stiffer in cut. Many shops sell five axes and deliver 3+2.
Why the CNC control decides the result
The control has to solve two problems at once: keep the tool tip on the commanded path, and keep the tool axis pointing where the CAM file says. Feedrate is commanded at the tip, but the motors see joint speeds. Near a rotary center the C axis can need hundreds of rpm to hold a modest tip feed.
Look-ahead is what makes this workable. The control reads blocks ahead, fits them into a smooth curve, and limits jerk on each joint. Short look-ahead and you get faceting on a curved surface even though the CAM tolerance looked fine. Long look-ahead and the control may round off a sharp internal corner.
Rotary compensation is the other half. Backlash, squareness and pivot distance between the two rotary axes are measured at build and stored in the kinematic model. If that model is off by 0.02 mm, the error appears as a step where the surface crosses the rotary centerline.
Thermal drift shows up here too. Spindle and rotary axes warm up over the first hours of a run. On long cycles we warm up the machine, then probe a datum and shift the work offset. Without that step, the first parts and the last parts of a batch do not match.
Which parts justify five-axis linkage
The clearest case is a part that cannot be reached from one side. A turbine blade, an impeller, a mold cavity with a deep rib. On a 3-axis machine you would need three or four setups, and each setup adds a datum error. Five-axis linkage removes the setups, and setup count is usually the largest single error source.
The second case is surface quality on a curved face. When the tool stays normal to the surface, the step-over marks are consistent and you can often skip hand polishing. On a mold insert that can save a full finishing operation. We see Ra 0.8–1.6 μm straight off the machine on aluminum and mild steel with a good finishing pass.
There is also a practical case: short runs of complex geometry. With no minimum order quantity we run one prototype up to 10,000+ part runs, and a five-axis center lets a single program cover several faces. That removes fixture design from the critical path of a first article.
Some parts are the wrong fit. A simple prismatic block with through holes does not need five axes. Neither does a part where the tolerance is loose but the volume is high. In both cases a 3-axis machine with a good fixture will be cheaper per part and just as accurate.
Where five-axis linkage loses accuracy
Tool tip speed is not constant. When the cutting point sits far from the rotary center, a small rotary move becomes a large linear move at the tip. The control has to slow the feed to keep the joint within its limits, so cycle time goes up and the surface can show feed marks.
Rigidity drops with tool tilt. A long tool held at 45° puts a bending moment on the holder that a vertical tool never sees. Deep bores and heavy roughing are the wrong jobs for that setup. Rough with the tool vertical, then tilt for the finishing pass.
Fixture stiffness still dominates. A five-axis center can reach five sides, but the part has to be held while it gets there. Thin-walled parts deflect under the same cutting force no matter how many axes are moving. Sometimes a soft jaw or a support is worth more than another axis.
Post-processor errors are common and easy to miss. If the rotary pivot distance in the CAM model does not match the machine, every tilted cut is off by a fixed amount. Test with a simple ball-nose cut on a known block before you trust a long finishing pass.
How to verify linkage accuracy before a production run
Ask for a test cut, not a spec sheet. A machined hemisphere or a tapered wall on a known block shows what the machine and control actually do together. Measure the wall for straightness and check the surface for faceting. That tells you more than a repeatability figure.
Then check the calibration route. Every five-axis machine needs its rotary axes calibrated and its kinematic model verified after a crash or a spindle change. Ask how often that happens and whether the records exist. A machine that has never been recalibrated will drift out of the model.
Finally, look at inspection. We run raw material check, in-process monitoring and final inspection, with 100% inspection before shipment and reports on request. For a five-axis part the first article report should include the rotated features, not just the flat ones.
If those three steps hold up, linkage is doing what it should. If the shop cannot show a test cut or a calibration record, the axis count on the brochure will not help your tolerance.
Five-axis linkage vs 3+2 vs 3-axis
Use this to pick the cheapest process that still holds the print.
| Process | Best for | Watch out for | Typical use |
|---|---|---|---|
| 3-axis | Flat plates, pockets, 2.5D profiles | Multiple setups, datum stack-up | Brackets, covers, plates |
| 3+2 positional | Angled faces, holes on several sides | Rotary lock repeatability | Housings, manifolds |
| Simultaneous 5-axis | Sculpted surfaces, undercuts, impellers | Programming time, tip speed | Impellers, blades, molds |
| 5-axis mill-turn | Round parts with off-axis features | Fixture and bar stock limits | Shafts, valve bodies |
| 4-axis | Cylindrical parts with flats and slots | No tool tilt, limited reach | Camshafts, couplings |
Pick the process, not the axis count
If the part has sculpted surfaces, undercuts or needs four or more faces in one setup, use simultaneous five-axis linkage. If it is prismatic and reachable in one or two setups, stay on 3-axis or 3+2 and spend the money on a better fixture.
Questions engineers ask next
What is the difference between five-axis linkage and 3+2?
In 3+2 the two rotary axes index to a position and then lock. Cutting happens with only the three linear axes moving, so the setup is stiff and the program is simple.
In five-axis linkage the rotaries move during the cut. That lets the tool follow a curved surface at a constant angle, which 3+2 cannot do because the tool axis is fixed once the rotaries lock.
How tight a tolerance can a five-axis machining center hold?
On well-fixtured work close to the rotary center we hold ±0.005 mm (±0.0002 in). That is a shop floor number, not a laboratory number, and it assumes a warmed-up machine and a verified kinematic model.
Move the cutting point toward the edge of the rotary table and the achievable tolerance loosens. The rotary joint and the longer lever arm both add error.
What surface finish comes off a five-axis machine?
As-machined surfaces usually land at Ra 1.6–3.2 μm. With a finishing pass and a sharp tool, Ra 0.8–1.6 μm is normal on aluminum and mild steel.
Fine finishing can reach Ra 0.2–0.8 μm when the geometry allows a small step-over. Curved walls are where linkage helps most, because the step-over stays even.
Does five-axis linkage replace EDM or hand polishing?
Sometimes. A mold cavity with deep ribs that used to need EDM electrodes can be cut directly when the tool can tilt into the corner. That removes an operation and the electrode cost.
It does not remove every corner. Sharp internal corners at the bottom of a deep pocket still need EDM or a small tool, because the cutter has a radius.
How long does it take to get parts on a five-axis machine?
Quotation and free DFM analysis come back within 12 hours. Production can start within 24 hours after that, and parts ship in 3–5 days.
Programming time is the variable. A first-off sculpted part needs a proven post-processor and a test cut, so allow room for that on a new geometry.
Can you hold an NDA on five-axis work?
Yes. Uploads are secure and confidential, and an NDA is available on request. We machine under ISO 27001:2022 information security controls.
If your drawing cannot leave your systems, we can quote from a simplified model and confirm the process before you release the full file.
