Emergency Power-Off Design for CNC Electrical Cabinets
A cabinet is a thermal and electrical system before it is a box. This page explains how protective devices, contactor drop-out timing, and stop categories interact inside a CNC machine tool cabinet. Written for engineers and buyers who need to judge a cabinet design, not just approve a drawing.
What the cabinet actually has to do

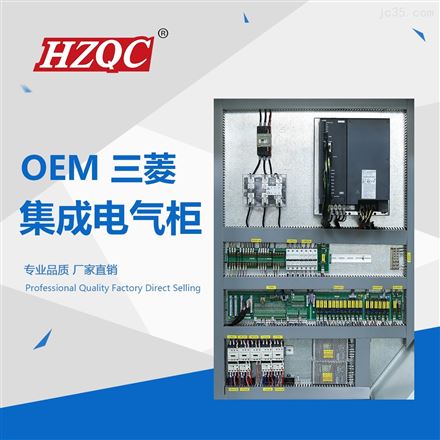

A CNC electrical cabinet feeds spindle drives, servo amplifiers, coolant pumps, and the control. It also has to survive a fault without letting that fault reach an operator. The cabinet is the last barrier between 400 V three-phase power and the person standing at the door.
Three jobs run at the same time. Conduct normal current without nuisance trips. Detect a fault and isolate it fast. Stay cool enough that insulation does not age faster than the machine. Skip any one of these and the cabinet becomes a service problem within two years.
Most field failures we see are thermal, not electrical. A contactor rated 40 A at 40 °C ambient is not a 40 A contactor at 60 °C ambient. Derating curves matter more than the nameplate number.
- 1Continuous currentSize devices for the real ambient, not the datasheet reference.
- 2Fault currentBreak it before the cable insulation is damaged.
- 3Thermal agingEvery 10 °C above rating roughly halves insulation life.
Insulation, overload, and residual current
Insulation is a spacing problem before it is a material problem. Clearance handles short transients. Creepage handles long-term surface contamination. In a machine shop, oil mist and fine chips settle on surfaces, so creepage distances need a margin above the bare minimum.
Overload protection is a curve, not a number. A thermal-magnetic breaker has to pass the spindle inrush without tripping and still catch a locked rotor. That window is narrow on high-inertia spindles. Check the trip curve against the actual acceleration time.
Residual current protection gets complicated on drives. Variable frequency drives leak capacitance current to ground through the motor cable. A 30 mA device will nuisance trip on a long cable run. Use a type B device sized for the drive leakage, or separate the drive circuit from the socket circuit.
- 1ClearanceShort-duration transient withstand across air.
- 2CreepageSurface tracking under oil and dust over years.
- 3Type B RCDNeeded where drives produce DC residual current.
Heat is the real limit on cabinet loading
Cabinet internal temperature is the sum of drive losses, transformer losses, and solar or radiant gain. A sealed cabinet with no fan relies on the enclosure surface to shed heat. Add a filter fan and you add a maintenance item that clogs with chips.
We size cooling for worst-case summer ambient plus 10 °C margin. That extra margin covers a clogged filter and a door opened during troubleshooting. Without it, the drive derates itself and the machine loses acceleration on hot afternoons.
Temperature monitoring belongs on the drive heatsink, not just the cabinet air. The heatsink tells you the semiconductor junction is getting close to its limit before the air temperature moves.
- 1Size for peak ambientUse the hottest month, not the annual average.
- 2Heatsink sensingEarlier warning than cabinet air temperature.
- 3Filter maintenanceA clogged fan turns a cool cabinet into a sealed one.
How emergency power-off design for CNC decides the stop
Emergency power-off design for CNC is not one action. It is a choice between three stop categories, and the right one depends on what the axis is doing when the button is pressed.
Category 0 removes power immediately. The motor coasts. On a heavy vertical axis that means a falling load unless a mechanical brake engages. On a spindle running at 20,000 rpm it means a long coast-down and possible tool damage.
Category 1 keeps power long enough for a controlled stop, then removes it. This is the usual answer for spindle and axis drives. The delay is a few hundred milliseconds and it is set in the drive, not the button.
Category 2 keeps power on for a controlled stop but does not remove it. That is a production stop, not an emergency stop. Using Category 2 on a real emergency defeats the purpose of the circuit.
- 1Category 0Immediate power removal. Coast to rest.
- 2Category 1Controlled stop, then power removal.
- 3Category 2Controlled stop, power stays on.
Contactor drop-out, holding circuits, and reset
The emergency stop circuit should be a held-in circuit. Power flows through the button contacts to the contactor coil. Press the button, the coil loses current, the contactor opens. A wiring break does the same thing, which is why this arrangement fails safe.
Drop-out time is not instant. A large contactor takes 20 to 50 ms to open its main contacts after the coil is de-energized. On a servo axis that is still moving, that window matters. Size the contactor for the current and check the mechanical life against the number of stops per shift.
Reset must be manual and separate from the stop. If the machine restarts when the button is released, the circuit is wrong. A reset pushbutton that re-energizes the holding circuit is the standard arrangement.
- 1Held-in circuitA broken wire stops the machine, same as a button.
- 2Drop-out time20–50 ms on large contactors. Plan for it.
- 3Manual resetNever auto-restart after an emergency stop.
Stop category selection by machine behavior
Match the stop to the load, not to the button label.
| Machine condition | Recommended stop | Power removal | Watch out for |
|---|---|---|---|
| Spindle at speed | Category 1 | After controlled stop | Braking resistor heat |
| Vertical axis under load | Category 1 + brake | After brake engages | Load drop on power loss |
| Coolant and hydraulic pumps | Category 0 | Immediate | Pressure trapped in lines |
| Conveyor or chip auger | Category 1 | After ramp-down | Material jam on restart |
| Teaching or setup mode | Category 2 | Not removed | Not a true emergency stop |
| Robot cell with interlock | Category 1 | After stop + guard lock | Guard release timing |
The design choice that matters most
If the axis can fall or the spindle needs controlled braking, use Category 1 and pay for the drive ramp-down. If the load is a pump or a fan with no stored mechanical hazard, Category 0 is simpler and cheaper. Do not use Category 2 where an operator can reach a moving part.
Common questions on cabinet protection
Can one emergency stop button cover the whole machine?
Yes, if the button opens a circuit that drops every hazardous drive. That usually means a contactor or safety relay with enough contacts, or a drive-based safe torque off input.
One button is normal. Multiple buttons in series are also common on larger machines where the operator may be at either end.
Why does the cabinet breaker trip when the spindle starts?
Most often the magnetic trip threshold is below the spindle inrush. A high-inertia spindle can draw 6 to 10 times rated current for a few hundred milliseconds.
Check the trip curve against the acceleration time. A motor-rated breaker with a higher magnetic threshold usually fixes it without changing the cable.
Is a residual current device required on a CNC cabinet?
It depends on the supply arrangement and local code. Where it is required, the drive leakage current has to be considered, or the device will trip on normal operation.
A type B device rated above the total drive leakage is the usual solution. Do not simply raise the rating until it stops tripping without checking the protection still works.
How hot is too hot inside a cabinet?
Most drives are rated for 40 °C ambient and derate above that. We size cooling to hold internal air below 40 °C at peak summer ambient plus 10 °C margin.
If the drive heatsink exceeds its limit, the drive folds back current and the machine loses acceleration. That shows up as a slow cycle, not an alarm.
What is the difference between an emergency stop and a safety door interlock?
An emergency stop removes power from hazardous drives. A door interlock prevents the machine from starting while the guard is open.
They use different circuits and different reset behavior. A door interlock should not be wired in series with the emergency stop if the code requires independent protection.
Can we add emergency power-off after the machine is built?
Sometimes. If the drives have a safe stop input, the change is mostly wiring and a safety relay. If not, it may need a contactor in the drive supply and a rework of the holding circuit.
We check the drive manual for the stop category limits before quoting that kind of retrofit.
