RTCP Function Five Axis Machining Center: How Tool Tip Control Works
This page explains the RTCP function five axis machining center controls use, who it matters to, and where it stops helping. It is written for engineers and buyers who program, quote, or inspect simultaneous 5-axis work. After reading, you should be able to judge whether a job needs RTCP or can run on a 3+2 setup.
In this article
- 1
- 2
- 3
- 4
- 5

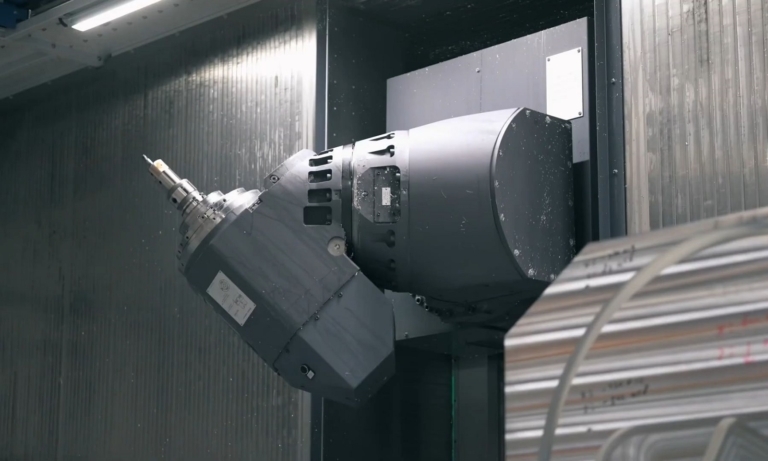

What the RTCP function five axis machining center control actually holds
RTCP stands for rotational tool center point. On a five axis machining center the control holds the programmed tool tip in space while the rotary axes move. You program the point where the tool touches the part. The control solves the X, Y and Z offsets that the A, B or C rotation would otherwise push the tip away from.
Without RTCP the offset is baked into the CAM output. The post processor must know the exact pivot distance, the tool length and the fixture height before it writes a single block. Change the tool stick-out by 2 mm and every path drifts. With RTCP the offset is solved at the machine, so tool length lives in the offset table, not in the program.
The practical result is simple. You can swap a tool, re-touch it, and rerun the same file. The tip still lands where the drawing says. That is why shops that cut complex contoured pockets, ports and blade surfaces treat RTCP as a baseline requirement rather than a feature.
One boundary matters from the start. RTCP is not a tolerance. It removes a kinematic error source. Thermal drift, spindle growth, rotary backlash and fixture deflection still sit on top of it. A machine with RTCP can still cut a bad part.
How the control solves the pivot offset in real time
Picture a trunnion table. The C axis rotates the part, the A axis tilts it, and the spindle stays vertical. When the A axis tilts 45°, a point on the part moves along an arc, not in a straight line. The tool tip must follow that arc to stay on the surface.
The control reads the rotary position from the encoders at the interpolation cycle, typically every 1 to 4 ms. It then applies the kinematic chain: rotary axis position, pivot distance from the rotary center to the spindle gauge line, and the active tool length offset. The output is a corrected linear command for X, Y and Z.
This is why the setup data has to be right. Pivot distance is a machine constant set at build time. Tool length is measured on the machine or on a presetter. If the tool length is wrong by 0.05 mm, the tip error is roughly 0.05 mm along the tool axis, and it grows as the rotary angle grows.
Most controls also offer a choice between two modes. In tip-follow mode the tool tip stays fixed and the table moves. In part-follow mode the part stays fixed in a plane and the tool follows the surface normal. Which one you use changes how the post processor writes the code.
The parameters that decide whether RTCP helps or hurts
Three numbers carry most of the risk: pivot distance, tool length and rotary zero. Pivot distance is normally a machine parameter set by the builder and checked with a ball bar or a test sphere. Tool length is measured per tool. Rotary zero is the reference that ties the part coordinate system to the table.
A test sphere is the standard check. Clamp a known sphere on the table, probe it at several rotary angles, and compare the measured center with the commanded center. A machine that is properly aligned holds the sphere center within a few microns across the full tilt range. If it drifts, the fault is usually in the pivot distance or in rotary backlash.
Tool length matters more than most people expect. On a 400 mm pivot distance, a 10 mm tool length error at a 60° tilt produces roughly 8.7 mm of tip error if RTCP is off. With RTCP on, the error stays at 10 mm along the tool axis, not 8.7 mm plus the swing. The geometry still punishes a wrong number.
Watch the post processor. RTCP output is only as good as the code that feeds it. A post that writes rotary moves and linear moves in the wrong order, or that does not declare the correct tool length, will produce scrap even on a well-aligned machine.
Where RTCP stops helping and where it is the wrong tool
RTCP cannot fix a weak setup. If the fixture moves under load, the tip follows the program and the part still comes out wrong. Rigidity, workholding and tool runout are separate problems with separate fixes.
It cannot fix a machine with worn rotary gears. Backlash in the A or C axis shows up as a surface step that no amount of kinematic compensation removes. On older machines, a backlash check before you accept a 5-axis job is worth the hour it costs.
It is also the wrong choice for simple work. A bracket with flat faces and straight holes runs faster on a 3-axis machine and even faster on a 3+2 setup, because two axes moving beat four or five axes interpolating. Cycle time on hard alloys such as Inconel or Ti-6Al-4V climbs quickly when all five axes are active.
The last boundary is cost. Five-axis time on a simultaneous machine costs more per hour than 3-axis time. If the geometry does not need continuous tool-axis control, indexing the table and cutting in fixed planes is the cheaper route. RTCP earns its place on contoured surfaces, undercuts and parts that would otherwise need three or four setups.
RTCP versus indexed 3+2 on the same part
Use this to pick a setup strategy before you quote the job.
| Job condition | RTCP / simultaneous | Indexed 3+2 |
|---|---|---|
| Ball-end finishing of a contoured blade | Required, surface normal must stay constant | Only with many extra setups |
| Deep pocket with undercut walls | Required, shank must clear the wall | Not possible in one setup |
| Flat face with 6 drilled holes | No advantage | Faster and simpler |
| Tool stick-out changes mid-run | Safe, offset table handles it | Program must be reposted |
| Thin-wall part, low cutting force | Good, fewer rechucks | Good, but more handling |
| Tight cycle time, hard material | Slower, 4 axes interpolating | Faster, 2 axes moving |
| Tolerance tighter than ±0.01 mm | Needs RTCP plus thermal control | Achievable on stable faces |
The call we would make
If the surface is contoured, undercut, or needs the tool axis to follow a normal, run it on a simultaneous five axis machining center with RTCP and a verified pivot distance. If the part is flat, drilled and easily reached, index the table and cut it in 3+2. Paying for four interpolating axes on a part that needs two is the most common waste we see in quoting.
RTCP questions engineers ask
Does RTCP change the part tolerance?
No. RTCP removes a kinematic error source, so it stops the tip from drifting away from the programmed path as the table tilts.
The tolerance you can hold still depends on machine geometry, thermal stability, tool runout and the fixture. We work to ±0.005 mm on suitable features, but that number comes from the whole process, not from RTCP alone.
Can I run RTCP on a machine that is not a true simultaneous five axis?
RTCP is a control function, so the control has to support it and the machine has to have the rotary axes wired and calibrated. A 3+2 machine with a tilting head can carry the function, but it only earns its keep when the rotary axes move during the cut.
If the table locks before every cut, RTCP adds setup work with no accuracy gain.
How often should the pivot distance be re-checked?
Treat it like any other geometric check. Verify after a crash, after a rotary axis service, and on a regular schedule tied to your quality system.
A ball bar or test sphere check across the full tilt range takes minutes on a healthy machine and catches drift before it reaches a customer part.
What happens if the tool length in the offset table is wrong?
The tip error scales with the tool length error along the tool axis, and the swing error grows with the tilt angle. A small mistake on a long tool at a steep angle can be several times larger than the offset error itself.
This is why we measure tool length on the machine or on a presetter and confirm the first article before a run continues.
Does RTCP slow the cycle down?
It adds computation, not motion. The control solves the kinematic chain each interpolation cycle, but the axes still move at the feed rate you programmed.
The real cycle-time cost comes from using five axes when two would do. On contoured surfaces RTCP usually saves time overall because it removes extra setups and rechucking.
Which materials make RTCP most useful?
It pays off on hard or gummy alloys where a single extra setup is expensive: Ti-6Al-4V, Inconel, 17-4PH stainless and 7075 aluminium.
On soft plastics or simple aluminium brackets, the geometry rarely justifies simultaneous motion.
