Spring Housings CNC Lathe Service: A Buyer's Guide

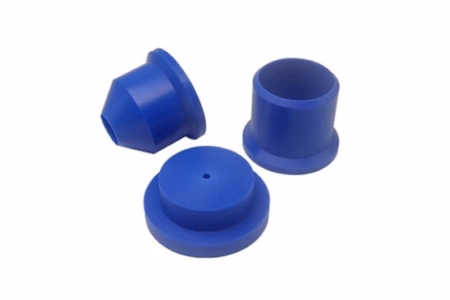

A spring housing looks like a simple turned tube until you check the cross-hole, the wall thickness and the bore-to-thread runout. This guide is written for robot and automation engineers who have to pick a lathe supplier. Read it and you will know which questions to ask, which numbers to demand, and where cheap quotes usually hide their cost.
In this article
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
Key takeaways
Three supplier types, three risk profiles
Match the archetype to your program stage before you compare price.
| Criterion | General machine shop | Lathe-only shop | Full-process turn-mill shop |
|---|---|---|---|
| Best fit | Open-tolerance brackets | Simple turned sleeves | Housings with cross-holes and flats |
| Live tooling | Rarely | Sometimes | Standard on mill-turn centers |
| Angular hole-to-flat control | Two setups, drift risk | Single setup if driven tools | Single setup, held in one chucking |
| Surface finish ceiling | Ra 1.6–3.2 μm typical | Ra 0.8–1.6 μm | Ra 0.2–0.8 μm when needed |
| Inspection depth | Caliper and plug gauge | Micrometer and bore gauge | CMM plus first-article report |
| Prototype to volume | Re-quote each step | Manual transfer to bar feed | Same program, bar feed to 10,000+ |
| Typical failure mode | Runout after second op | Burr in cross-hole | Higher unit price |
What a complete spring housing quote should state
If a quote is missing more than two of these lines, ask before you compare price.
| Item | What to look for | Why it matters |
|---|---|---|
| Tolerance statement | ±0.005 mm achievable, stated per feature | Blanket claims hide the hard features |
| Setup plan | Number of setups and the fixture type | Extra setups add runout and cost |
| Inspection method | CMM for position, gauge for bore | Angular holes need CMM, not a caliper |
| Material condition | Temper, heat lot, mill cert on request | 17-4PH and 7075 behave by condition |
| Finishing sequence | Coating before or after the finish bore | Coating growth changes the bore size |
| Lead time basis | Quote in 12 hours, ship in 3–5 days | Vague dates become late parts |
| Documentation | First-article report, material certs | Needed for IATF and medical programs |
The verdict on spring housings CNC lathe service
Pick the supplier by setup count and inspection depth, not by unit price. One chucking, live tooling and a CMM first article cost more per part and save far more in field returns.
What a robot spring housing actually demands from a lathe
A spring housing guides, protects and preloads a spring that manages cable tension or a return stroke. It sits inside an actuator or wrist joint, so its bore roundness sets how the spring seats, and its outer geometry sets how the housing locates in the casting. When the bore drifts out of round, the spring cocks slightly and the return force changes across the stroke.
Drawings for these parts are rarely pure turning. Typical callouts include a ground or bored bore, a shoulder face that must sit square, an external thread or a retaining groove, one or two cross-drilled holes, and a wrench flat for assembly. That mix is why spring housings CNC lathe work is usually quoted on a mill-turn platform rather than a plain two-axis lathe.
The tolerance that decides the supplier is not the tightest one on the print. It is the relationship between features. A cross-hole at 90° to a face keyway, held without re-chucking, is straightforward on a mill-turn center and painful on a lathe with a second operation. Ask how the angular position will be measured, not just how it will be cut.
- 1Bore roundness and sizeOften ±0.02 mm, but roundness matters more than the nominal diameter.
- 2Shoulder squarenessA tilted shoulder preloads the spring off axis.
- 3Cross-hole positionAngular tolerance is what forces live tooling.
- 4Deburring at hole exitsA raised burr inside a bore will score the spring.
Spring housings CNC lathe capability: the five numbers to ask for
Every supplier will say they hold tight tolerances. Very few will hand you the numbers behind that claim. Start with the achievable roundness on a thin-wall bore in the alloy you actually specified, not the alloy they like to run. A 7075 aluminum housing and a 17-4PH housing behave differently at the same wall thickness, and the quote should reflect that.
Second, ask about the smallest wall they can turn without chatter. A chucking lathe with soft jaws can usually hold a 2 mm wall on a Ø40 mm housing. Push toward a Ø20 mm housing with a 0.5 mm wall and the part deflects under clamping force, so a Swiss-type sliding headstock with a guide bushing becomes the sensible route. This is a process question, not a marketing question.
Third, confirm driven-tool capability and the number of live stations. Fourth, ask for the surface finish they can hold as-machined, and whether they can reach Ra 0.2–0.8 μm by turning alone or need a secondary polish. Fifth, ask how the angular position of a cross-hole is verified. If the answer is a protractor, keep looking.
- 1Roundness on your alloyRequest a measured value, not a catalog figure.
- 2Minimum stable wallTied to clamping method and part length.
- 3Live stations and axesDetermines whether a second op is needed.
- 4Finish as-machinedRa 0.8–1.6 μm is a normal turning target; finer needs a plan.
Material choice for spring housings and what it does to the cut
Most robot spring housings in our shop are cut from 6061-T6, 7075, 304 or 316L stainless, 17-4PH, or occasionally a titanium grade when weight and corrosion resistance both matter. The material changes the whole plan: 6061-T6 turns clean and holds a good finish, 304 work-hardens at the cut and needs a heavier feed to stay ahead of the hardening zone, and 17-4PH in the H900 condition is tough on insert edges.
If the housing sees wash-down or a food-handling cell, 316L is the usual pick and it should be passivated after machining. If the priority is stiffness per gram in a wrist joint, 7075-T6 is the common answer, though it is more notch-sensitive than 6061 and should not be anodized with a brittle hardcoat in a flexing section.
Heat treatment and finish need to be sequenced with the machining, not bolted on afterward. A housing that is stress-relieved before the finish bore will move less. A hardcoat anodized housing will grow on the order of the coating thickness, so a bore that must stay at size should be masked or finished after coating. Those decisions belong in the quote discussion.
- 16061-T6Good all-round turning, easy to hold a fine finish.
- 2316LCorrosion resistance, passivate after machining.
- 317-4PHStrength in a small section, plan insert life.
- 47075-T6Stiff and light, watch notch sensitivity.
Process route: bar feed, chucking, or Swiss-type
The route follows the part geometry. Housings above roughly Ø25 mm with a wall over 2 mm go on a chucking lathe or a mill-turn center, held in soft jaws turned to the actual diameter. Housings below Ø25 mm with a thin wall favor a Swiss-type sliding headstock, where the guide bushing supports the work right at the cut and deflection stays low.
For a housing with both a bored bore and a cross-hole, a mill-turn center with a sub-spindle removes the part in one cycle. The main spindle turns and bores while the turret's driven tools mill the flat and drill the cross-hole. Keeping the part in one chucking preserves the angle between the hole and the flat without depending on a fixture pin.
Long parts need support, not optimism. A housing with a length-to-diameter ratio above about 6:1 will deflect during boring unless a tailstock or a steady rest is used. If a supplier quotes that part without mentioning support, the first article will show taper. Ask about the support method before you release the order.
- 1Chucking latheLarger housings, thicker walls, soft jaws.
- 2Swiss-typeMicro housings, thin walls, guide bushing support.
- 3Mill-turn centerCross-holes and flats in one setup.
- 4Tailstock or steady restRequired above roughly 6:1 L/D.
Step by step: how to qualify a spring housing supplier
Run these in order. Skipping step 3 is the most common mistake.
- 1Send the 3D model and the 2D print togetherThe model settles geometry, the print settles tolerance. Mark the cross-hole angle and the bore roundness callout, and note the material temper. Ask for a DFM note back, not just a price.
- 2Ask for the setup plan before the priceA one-setup plan on a mill-turn center and a three-setup plan on a manual lathe produce different runout. Ask how many chuckings the part sees and what fixture holds it.
- 3Demand a first-article inspection planList which features get CMM time and which get gauges. For a housing with a 90° cross-hole, ask for the angular deviation value, not a pass or fail stamp.
- 4Confirm the thin-wall routeIf the wall is under 1 mm and the diameter under Ø25 mm, ask whether a Swiss-type machine will run it. If not, expect chatter marks and a loose roundness tolerance.
- 5Check the finishing sequenceIf the housing is anodized or plated, ask which dimensions are cut after coating. A bore that must stay at size should be masked or bored after the coating step.
- 6Run a small lot before a large oneWith no minimum order quantity, start with a handful of parts. Measure the first article against the print, then release the volume run once the process is proven.
- 7Agree on documentation up frontState which certificates and reports you need with the shipment. If your program is medical or automotive, say so before the quote so the inspection level matches.
Questions buyers ask before releasing the order
Can a spring housing be turned on a plain two-axis lathe?
Yes, if the print is a pure turned form: a bore, a shoulder, a groove and a thread on one axis. The moment a cross-hole or a wrench flat appears at a defined angle to a turned feature, a two-axis lathe needs a second operation.
That second operation is where angular error enters. A mill-turn center with driven tools holds the relationship in one chucking and removes the risk.
How thin a wall can be turned without chatter?
On a chucking lathe with soft jaws, a wall around 2 mm on a Ø40 mm housing is usually stable. Below roughly 1 mm on a Ø25 mm housing, clamping force starts to distort the part.
A Swiss-type sliding headstock supports the work with a guide bushing right at the cut, so it holds roundness on walls that a chucking lathe cannot. Send the wall thickness with the RFQ so the route can be chosen correctly.
What surface finish is realistic straight off the lathe?
Ra 1.6–3.2 μm is a normal as-machined result. With a light finishing pass and a sharp insert, Ra 0.8–1.6 μm is routine on aluminum and most stainless.
Ra 0.2–0.8 μm is achievable but should be specified only where a seal, a bearing or a sliding fit needs it. Finer than that usually means a secondary operation, which adds cost and lead time.
Does anodizing change the bore size?
Yes. Anodizing grows the surface by roughly the coating thickness, and hardcoat is thicker than a decorative clear coat. A bore held to a tight size before coating will be undersize after it.
Mask the bore, or bore it after coating, or shift the pre-coat dimension to compensate. Decide this before the first chip is cut, not after the parts come back from the finisher.
What documentation should come with the parts?
At minimum, a first-article inspection report and a material certificate traceable to the heat lot. If your program is automotive, add the process control records that IATF 16949 requires.
Ask for the inspection report on request rather than assuming it ships automatically, and state the requirement in the purchase order so it is not a surprise later.
Can a prototype and a volume run use the same process?
They should, wherever possible. If the prototype is cut on a mill-turn center, the volume run should use the same platform with bar feed or a repeatable fixture so the first article still represents the production part.
If the supplier plans to switch machines between prototype and volume, ask for a fresh first article at the switch. Process changes are where tolerances drift.
