Sheet steel protective cover: a solid guardian of industrial safety on machining centers

• 1
  How a sheet steel protective cover works on a machining center
• 2
  Why sheet steel, and which grade to pick
• 3
  Slope, overlap, and clearance rules that prevent jams
• 4
  Fabrication choices: welded, bolted, or folded
• 5
  Where a sheet steel cover is the wrong choice
• 6
  Cover type selection by machine condition

A machining center throws material in every direction at once. Face milling sends chips sideways at 20-30 m/s. Coolant mist drifts into slideways and ballscrews. Hot chips at 400-600 °C land on way covers and cable tracks. A sheet steel protective cover sits between that stream and the machine's motion components. It is not a cosmetic panel. It is the first barrier that keeps precision surfaces alive.

The cover works on three principles. First, it intercepts chips by presenting a continuous surface with no gaps wider than the smallest chip. Second, it sheds coolant by slope and drainage, so liquid runs off rather than pooling on the cover. Third, it absorbs impact energy through sheet thickness and rib geometry, so a chip or a dropped tool does not dent the surface into the slideway path.

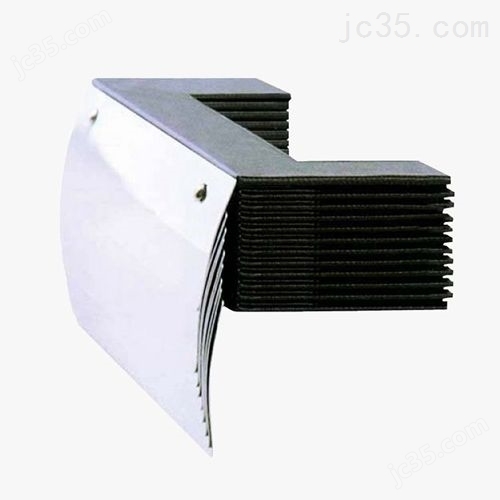

Most covers on a vertical machining center are fixed panels around the work envelope, plus telescopic or bellows sections over the linear guides. The fixed panels are simple. The moving sections are where design effort pays off, because they must extend, retract, and still keep a seal across thousands of cycles.

A cover is not a safety guard in the regulatory sense. It does not replace an interlocked door. It protects the machine, and by keeping chips off the floor and out of the operator's path, it protects people too.

• 1
  InterceptContinuous surface, no gap wider than the smallest chip.
• 2
  ShedSlope and drain paths carry coolant away.
• 3
  AbsorbThickness and ribs take impact without denting the guide path.

Steel is the default for covers because it takes impact, holds a bend, and costs less than stainless. Cold-rolled 1018 or 1045 at 3-6 mm handles most chips and dropped tools on a vertical mill. It welds easily and paints well. The trade-off is corrosion. Untreated steel rusts fast in a coolant-rich environment.

Stainless 304 or 316L is the better answer when the machine runs water-based coolant daily, when the cover sees washdown, or when the shop is humid. Stainless costs more and is harder to bend, but it removes the repainting cycle. For a cover that must last 10 years without maintenance, stainless is usually cheaper over the life of the machine.

Aluminum 5052 or 6061 is light and corrosion-resistant, but it dents under impact and has a lower fatigue limit at the bend lines. Use it for low-chip-load machines, for covers that are handled often, or where weight matters on a moving axis.

Thickness matters more than grade for impact. A 3 mm steel cover deflects under a 2 kg tool drop. A 5 mm cover with a formed rib does not. If the cover sits above a slideway, add a rib rather than a thicker sheet. The rib adds stiffness without adding mass.

• 1
  1018 / 10453-6 mm for dry or light-coolant machines. Paint or powder coat.
• 2
  304 / 316L1.5-3 mm for wet, humid, or washdown conditions.
• 3
  5052 / 6061Light covers, low impact, moving axes where mass matters.

A flat cover collects chips. A sloped cover sheds them. Aim for 15-30° from horizontal on any surface that sees chip fall. On a telescopic section, each stage should overlap the next by at least 20 mm, and the overlap should face away from the chip source. If the overlap faces the cutter, chips wedge into the joint and the section stops sliding.

Clearance to moving parts is the other failure point. A cover that touches the slideway under thermal growth will rub. Leave 2-3 mm minimum gap to any moving surface at the hottest expected condition. For a machine that runs 8 hours at 30 °C ambient, thermal growth on a 1,000 mm steel cover is about 0.4 mm. That is small, but a cover with zero clearance will still rub.

Drain paths need a low point. If the cover is level, coolant pools in the middle and eventually overflows into the guide. Form a 2-3° fall to a drain hole of at least 10 mm diameter. A drain that clogs is worse than no drain, so keep the hole large and add a screen if fines are heavy.

Sharp corners concentrate stress and cut gloves. Radius every exposed corner to R3 minimum. It costs nothing at the brake and prevents a maintenance tech from slicing a hand on a panel edge.

• 1
  Slope15-30° from horizontal wherever chips fall.
• 2
  Overlap20 mm minimum, facing away from the cutter.
• 3
  Clearance2-3 mm to any moving surface at hot condition.

A welded cover is stiff and sealed. It works for fixed panels and for shapes that would need too many fasteners. The risk is distortion. Welding a 1,000 mm panel pulls the edges and can warp the face by 1-2 mm. If the cover must sit flat against a seal, weld it in a fixture or stress-relieve it after welding.

A bolted cover is easier to repair and to ship. Panels come apart, so a damaged section can be replaced without pulling the whole assembly. The trade-off is joints. Every bolt hole is a leak path for coolant mist. Use a gasket or sealant at each joint if the cover sits over a slideway.

A folded cover made on a press brake is the cheapest option at volume. Bends add stiffness without welding, and the part comes off the brake ready to fit. Folded covers are limited to simple shapes. If the cover needs a compound curve or a closed box, welding or a separate casting is the better route.

For prototypes and low-volume runs, laser cutting plus bending gives a cover in days, not weeks. For 500+ units, a progressive die or a dedicated fixture brings the cost per part down. The choice depends on volume, not on the process being better in the abstract.

• 1
  WeldedStiff and sealed. Watch distortion on long panels.
• 2
  BoltedServiceable. Seal every joint over a slideway.
• 3
  FoldedCheapest at volume. Simple shapes only.

A sheet steel cover cannot follow a compound axis motion by itself. If the machine has a rotary table and a tilting head, a rigid cover will collide. That application needs bellows, a rolling blind, or a segmented cover with a linkage. Steel is the wrong material for a path that changes direction in two planes.

High-pressure through-spindle coolant changes the load. At 70 bar, the jet can lift a light cover and drive chips under it. If your machine runs high-pressure coolant, the cover needs a heavier gauge and a positive latch, or a different sealing strategy.

A cover with no maintenance access is a future problem. If the cover blocks the way lube points or the ballscrew, the tech will cut it off. Design an access panel or a removable section from the start. A cover that has to be destroyed to service the machine is not a good cover.

Finally, steel is conductive. If the cover sits near a servo cable or a sensor, add a grounding strap. A floating steel panel near high-frequency drives can pick up noise and cause faults.

• 1
  Compound motionUse bellows or a rolling blind instead.
• 2
  High-pressure coolantHeavier gauge, positive latch, or different seal.
• 3
  No service accessAdd a removable panel before the tech cuts it off.
