CNC Cross Slide Maintenance: 5 Proven Checks for Long-Term Stable Operation

• 1
  What CNC cross slide maintenance actually protects
• 2
  Way wear and gib adjustment: the core of CNC cross slide maintenance
• 3
  Lubrication intervals and the oil that fits the way material
• 4
  Backlash and screw wear: when CNC cross slide maintenance hits its limit
• 5
  When adjustment stops working and a rebuild is the only option
• 6
  Symptom, likely cause, and the CNC cross slide maintenance action

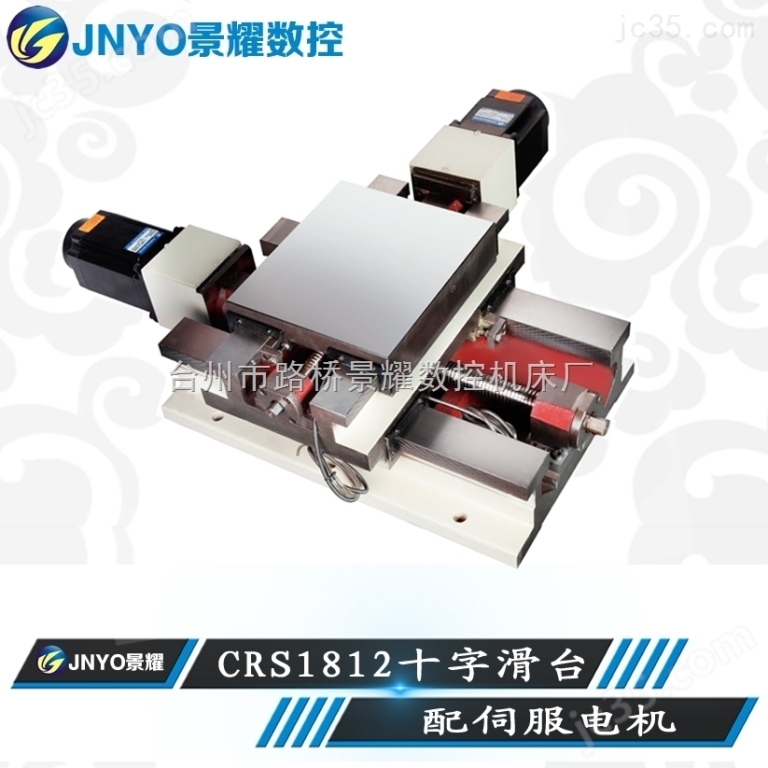

On a lathe, the cross slide moves the tool perpendicular to the spindle axis. It handles facing, grooving, chamfering, and the plunge moves in a turn cycle. The slide sits on a dovetail or box way, driven by a ballscrew or leadscrew, and its position sets the diameter of the part. A 0.01 mm error in slide position becomes 0.02 mm on the diameter. So wear here shows up directly in the tolerance you can hold.

Three wear surfaces matter. The way surfaces slide against each other under load. The gib strip controls clearance and preload. The screw and nut convert rotation into linear motion. Each fails in a different way, and each needs a different check. Treating them as one maintenance item is why many slides stay loose or get over-tightened.

The most common failure is not a sudden breakdown. It is gradual loss of repeatability. The operator compensates with a tool offset, then another, and the machine keeps running until taper or chatter becomes impossible to hide. CNC cross slide maintenance is the practice of catching that drift before it reaches the part.

Way wear on a cross slide is rarely even. The slide spends most of its life in a narrow band near the center of travel, so that zone wears into a shallow hollow. When you move the tool out to face a large flange, the slide rides up on the unworn ends and the tool height changes. The result is a faced surface that is not flat.

The gib strip takes up clearance between the sliding surfaces. Too loose, and the slide lifts under cutting force. Too tight, and the feed motor works harder, the way oil film breaks down, and stick-slip appears at low feed rates. Stick-slip leaves marks on the part that look like chatter but are actually a lubrication and preload problem.

A practical check: mount a dial indicator on the turret, touch the indicator against the cross slide top surface, and push the slide by hand along its travel direction. Movement above 0.02 mm suggests the gib needs adjustment. Do this at both ends of travel and at the center. If the reading changes a lot, the way is worn unevenly and adjustment alone will not fix it.

Check the way oil film too. Dry ways wear fast. Look for a continuous oil film on the sliding surface after a few cycles. If the surface looks polished and dry, the lube system is not delivering, and no amount of gib adjustment will stop the wear.

• 1
  Gib clearance checkPush test with a dial indicator; 0.02 mm movement is the practical upper limit.
• 2
  Wear pattern checkCompare movement at center and at both ends of travel.
• 3
  Oil film checkDry, polished ways mean the lube system needs attention first.

Lube frequency depends on cycle time, not on the calendar. A machine running three shifts needs more frequent checks than one running one shift. As a working range, check the way lube reservoir daily and top up weekly. Verify that the pump delivers oil to the cross slide metering unit at the start of each shift. A blocked metering unit starves the ways without any alarm.

Oil type matters. Cast iron on cast iron ways want a way oil with tackifiers, typically ISO VG 68. Linear guide rails want the grease or oil specified by the rail maker. Mixing a general-purpose hydraulic oil into a way lube system reduces film strength and increases wear. Keep the correct grade at the machine.

Contamination is the quiet killer. Chips and coolant get under the wipers and grind into the way surface. Check the wiper lips every month. Replace them when they harden or curl. A wiper that no longer contacts the way lets fine chips through, and those chips act like lapping compound on the sliding surfaces.

• 1
  DailyCheck reservoir level and confirm the pump strokes at cycle start.
• 2
  WeeklyTop up with the specified way oil; inspect metering units for blockage.
• 3
  MonthlyInspect wiper lips and replace if hardened or curled.

Backlash is lost motion when the slide reverses direction. On a ballscrew cross slide, backlash comes from screw and nut wear, bearing end play, or a loose coupling. Measure it by approaching a stop from one direction, zeroing the indicator, then approaching from the other direction. The difference is backlash.

For a lathe cross slide, 0.01–0.02 mm backlash is often acceptable for roughing but not for finishing to tight tolerance. Many controls compensate for backlash in the parameters, but compensation only hides the problem. It cannot fix the variation that comes from a worn screw with an inconsistent lead.

Once backlash exceeds about 0.05 mm, or when it changes along the travel, the screw and nut are usually past adjustment. Replacing the nut and re-balling the screw restores accuracy. Before that, check the thrust bearings and the coupling. A loose coupling can mimic screw wear and is far cheaper to fix.

• 1
  Measure directionallyApproach the same stop from both directions and compare readings.
• 2
  Check the cheap parts firstThrust bearings and couplings before screw replacement.
• 3
  Watch for variationBacklash that changes along travel points to screw wear, not adjustment.

There is a clear line between maintenance and rebuild. If gib adjustment brings the push test back under 0.02 mm and the slide still cuts taper, the way geometry itself is worn. Re-scraping or replacing the way inserts is the next step. No gib setting can compensate for a hollow in the way surface.

The same applies to the screw. If a new nut does not restore repeatability, the screw has uneven wear along its length. Grinding or replacing the screw is the fix. This is a job for a machine rebuilder with a way grinder, not a field adjustment.

Environment plays a role in how fast you reach that point. A shop with wide temperature swings expands and contracts the slide and bed differently, which changes clearance through the day. Coolant mist and fine dust accelerate wiper and way wear. Controlling the environment extends the interval between rebuilds more than any single adjustment.

• 1
  Adjustment worksPush test returns under 0.02 mm and taper disappears.
• 2
  Rebuild neededAdjustment holds but the cut still shows taper or step.
• 3
  EnvironmentTemperature swings and airborne contamination shorten way life.
