A brief analysis of the working principle of the CNC cross slide

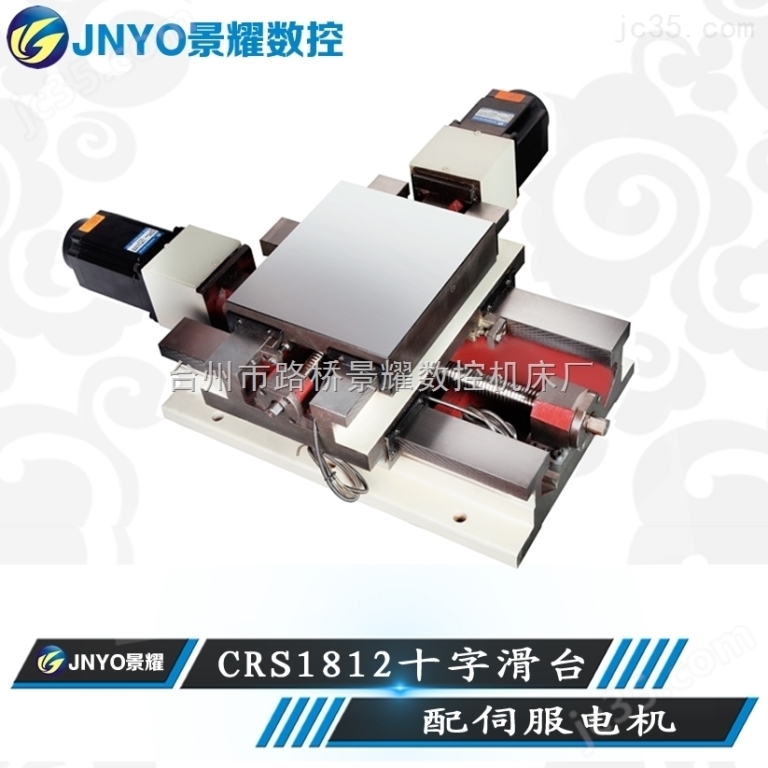

The unit is a single-axis feed assembly. Its bed is the base casting that carries every other component and ties the axis to the machine frame. On top sits the sliding plate, the moving member that holds the tool or workpiece. Guideways constrain that plate to one straight path. A ballscrew converts motor rotation into linear travel, and a servo motor supplies the torque and the position command. A feedback device closes the loop.

The load path matters more than the parts list. Cutting force enters at the tool, passes through the slide plate into the guideway blocks, then down into the bed. Any flex or clearance in that chain shows up as error at the cutting edge. A stiff bed does nothing if the guideway preload is loose.

Motion is simple to describe. The servo rotates, the screw turns, the nut travels, and the plate follows. Accuracy comes from how tightly each link in that chain is controlled. Backlash, thermal growth and guideway straightness set the practical limit, not the nominal resolution of the encoder.

• 1
  BedBase casting; supports all components and damps vibration.
• 2
  Slide plateMoving member carrying the tool or workpiece.
• 3
  GuidewaysConstrain travel to one straight line; preload removes play.
• 4
  Ballscrew and servoConvert rotation to feed and hold commanded position.

A ballscrew has a known lead, the axial distance the nut moves per full turn. Command 10 mm of travel and the control calculates the turns needed, then drives the servo to that count. The encoder reports actual position back to the drive thousands of times per second. If the two disagree, the drive corrects.

Rack and pinion works differently. It suits long travel where a screw would sag or whip, but it gives coarser resolution and needs a reduction stage. Belt drives are cheaper and quieter, yet they stretch under load and lose position over time. For a cross slide that holds ±0.005 mm on a 4,000 mm machine, a preloaded ballscrew is usually the only practical choice.

Thermal behavior is easy to underestimate. A screw warms as it turns and grows in length. On a long axis that growth can reach tens of microns over a shift. Scales mounted on the slide rather than the screw remove most of that error, which is why high-accuracy machines read position at the workpiece, not at the motor.

Use a sliding axis when the cut needs controlled feed along one line and the part can be presented to the tool on that line. Facing, grooving, step turning and slot milling all fit. The axis gives you repeatable depth of cut and a surface finish tied to feed rate, not operator feel.

Skip it when the feature needs simultaneous motion on several axes, or when the part is small and flat enough for a single setup on a 3-axis mill. Adding a sliding axis adds mass, alignment work and a maintenance point. On a short-run prototype, that cost rarely pays back.

Part size drives the choice too. Our largest travel is 4,000 × 400 × 150 mm, and the compact platforms run 500 × 500 × 450 mm or 500 × 310 × 200 mm. A rotary table of Ø400 mm lets a sliding axis index around a part instead of repositioning it. Match the axis to the feature, not to the machine brochure.

Guideway preload is the first thing to check. Too little and the plate lifts under an offset cut. Too much and friction rises, the servo fights the load, and the axis runs hot. Roller linear guides carry more load than ball types and resist tilt better, which helps on a cantilevered slide.

Backlash comes next. A preloaded nut and a double-nut arrangement remove most of it, but wear returns it over time. Regular backlash measurement and compensation keep the axis honest between rebuilds.

Then there is the structure. Cast iron damps vibration well and holds its shape; welded steel is stiffer per kilogram but rings unless it is stress-relieved. On parts with thin walls or interrupted cuts, damping decides whether you get Ra 0.8–1.6 μm or chatter marks. We inspect 100% of parts before shipment and can supply reports on request.
