Detailed analysis of the work principle of the cnc screw mill
This page explains how a cnc screw mill removes material along a helical path, why the wheel form and the C axis matter more than spindle speed, and where the process stops being economical. It is written for engineers and buyers who need to judge whether a thread should be ground or turned.
What a cnc screw mill actually does

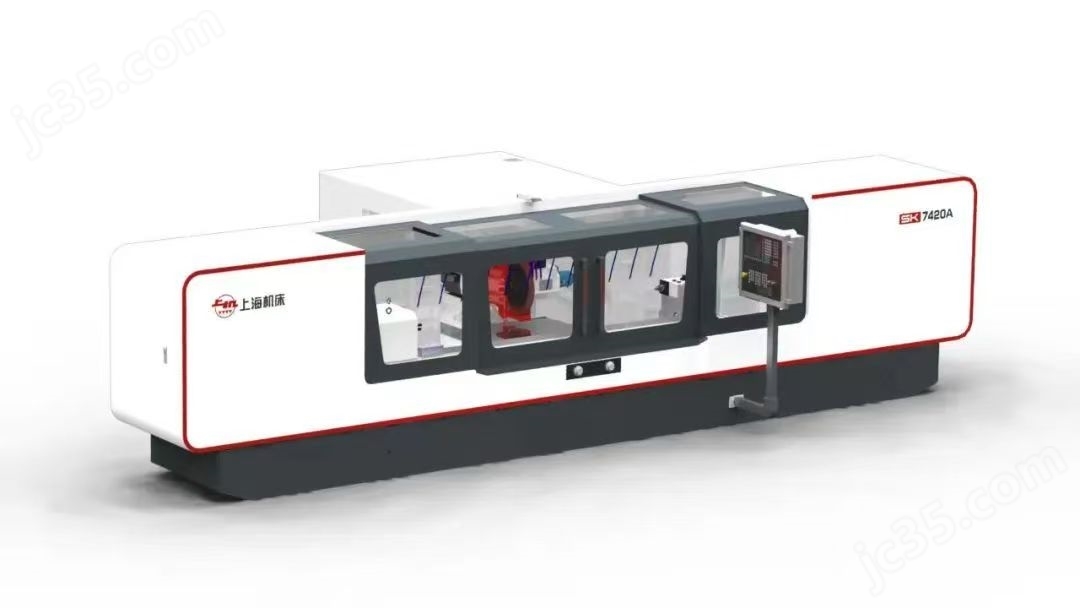

A cnc screw mill is a grinding machine built around a rotating work axis. The part turns at a controlled angle while the wheel advances along the length of the blank. The removed material follows a helix, not a straight line. That single change drives every other design decision on the machine.
The wheel does not cut a thread the way a lathe tool does. It grinds a profile that already exists in the wheel form. As the blank rotates, the wheel edge traces the flank of the thread. Depth is set once per pass, then the Z axis moves to carry that depth down the screw.
This is why the process is called form grinding rather than single-point cutting. The wheel contact is a line, not a point. A line contact spreads the cut over many grains at once, so the machine can remove hardened material without the tool digging in and chattering.
Depth of cut per pass on a hardened steel screw usually sits between 0.005 mm and 0.02 mm. More than that and the wheel loads, the surface tears, and the pitch starts to drift. Fewer passes are not faster. They are just scrap with a nicer finish on the first 20 mm.
- 1Work axisHolds and rotates the blank at a controlled angle
- 2Wheel headCarries the profiled form wheel and sets infeed depth
- 3Z axisTravels the helix along the screw length
- 4In-process gaugingMeasures pitch and diameter during the cycle, not after
Why the wheel form defines the thread
The thread profile lives in the wheel. A diamond or CBN wheel is dressed to the exact flank angle, root radius and crest flat the drawing calls for. Once dressed, that shape is copied into the screw on every pass, along the entire length.
Flank angle tolerance on a ground lead screw is often ±10 arcminutes or tighter. If the dressed wheel drifts by half a degree, every screw off that wheel drifts with it. That is why wheel dressing is a controlled step with a recorded program, not a touch-up the operator does by eye.
CBN suits hardened steel above 45 HRC. Diamond suits carbide and ceramic, and it holds form longer on small root radii. Aluminum oxide still works for soft steels and low volume, but it wears faster and needs redressing more often.
Wheel diameter shrinks with every dress. The control compensates by shifting the wheel center, so the effective profile stays correct. Skip that compensation and the first part of the batch is good while the last part carries a thinner crest.
- 1CBNHardened steel, long runs, stable form
- 2DiamondCarbide, ceramic, tight root radii
- 3Aluminum oxideSoft steel, low volume, frequent redressing
How the axes stay synchronized
A screw mill synchronizes at least three motions: the work spindle (C), the wheel infeed (X), and the carriage travel (Z). The C axis and Z axis must stay locked to each other. If they drift apart by even a fraction of a degree, the lead changes and the nut will not run smoothly.
The coupling between C and Z is electronic, not mechanical. A lead screw on a lathe uses a physical master screw to set the lead. A CNC screw mill uses a software-defined lead, so the same machine can cut 1 mm, 5 mm, or 20 mm leads without changing any hardware.
Electronic coupling also allows lead compensation. The control stores a correction table and applies it as the wheel travels. A screw that measures 4 µm long over the first 100 mm can be brought back by adjusting the table, not by re-cutting the screw.
Backlash in the C axis is the most common source of lead error on older machines. Direct-drive torque motors remove that source. A belt-driven C axis with 2 arcminutes of backlash puts that error straight into the lead, no matter how good the encoder is.
- 1C and Z coupledSets the lead over the full screw length
- 2X infeedSets depth of cut per pass
- 3Lead compensationCorrects accumulated pitch error in software
Pitch error, thermal drift and the real limits
Pitch error is the difference between where the thread should be and where it actually sits. On a precision lead screw it is usually specified as a cumulative value over a defined length, for example 5 µm over 300 mm. That number is the acceptance criterion, not surface finish.
Thermal drift is the biggest enemy of that number. A 1 m steel screw grows about 11 µm for every 1 °C rise. Grinding heat and spindle heat both feed into that. Machines use temperature-controlled coolant, cooled spindle housings, and in some cases a climate-controlled enclosure to hold the screw near 20 °C.
In-process measurement closes the loop. A laser interferometer or a high-resolution linear encoder tracks the carriage position and reports pitch error live. If the error climbs past a threshold, the control adds a corrective pass before the wheel leaves the part.
Surface finish follows the same logic. A ground lead screw typically lands between Ra 0.1 and Ra 0.4 µm. That finish matters because it sets friction and wear. A rough flank wears faster and demands more torque from the motor that drives the screw.
- 1Pitch errorCumulative deviation over a stated length, e.g. 5 µm / 300 mm
- 2Thermal growthAbout 11 µm per meter per °C on steel
- 3FinishRa 0.1–0.4 µm on a ground flank
Workholding and why long screws bend
A lead screw is long and slender. A 20 mm diameter screw that is 1,000 mm long has a length-to-diameter ratio of 50. Support it badly and the grinding force pushes it away from the wheel. The middle of the screw ends up undersized and the ends stay on size.
Options include a steady rest that follows the wheel, a tailstock that holds axial tension, and hydrostatic or vacuum chucks that grip without distorting the blank. The choice depends on the ratio. Below 20:1 a tailstock is usually enough. Above 40:1 a follower rest becomes necessary.
Pre-mapping the blank before grinding is a practical trick. A probe measures runout and any prior turning error, and the control offsets the first passes to match. It does not remove the error. It spreads it so the finished screw stays inside tolerance.
Centers matter more than most people expect. A screw held between two centers with 2 µm of center runout will show that runout as a diameter variation. Grind the centers first on the same setup, then grind the thread.
Vibration is the last constraint. Machine bases in granite or polymer concrete push the natural frequency up so that wheel contact does not excite a resonance. Grinding above 500 Hz of structural vibration rarely produces a consistent Ra value.
- 1Ratio under 20:1Tailstock support is usually enough
- 2Ratio above 40:1Follower rest or axial tension needed
- 3Pre-mappingProbe the blank and offset the first passes
Grinding a thread versus turning or rolling it
Same part, three routes. Pick by tolerance, hardness and volume.
| Criterion | Thread grinding | Thread turning | Thread rolling |
|---|---|---|---|
| Typical pitch error | 5 µm / 300 mm | 30–50 µm / 300 mm | Lead set by die, less predictable |
| Material hardness | Up to 65 HRC | Under 45 HRC | Under 35 HRC |
| Surface finish | Ra 0.1–0.4 µm | Ra 0.8–1.6 µm | Ra 0.4–0.8 µm |
| Lead change cost | Software only | Software or tool change | New die set |
| Cycle time | Long | Short | Very short |
| Best for | Hardened, tight-pitch screws | Soft prototypes | High volume soft screws |
| Weak point | Cost per part | Pitch drift on long parts | Cannot harden after rolling |
When the cnc screw mill is the right call
If the screw is hardened above 45 HRC, or if pitch error must stay inside 5 µm over 300 mm, grind it. If the screw is soft, short, and needed in three days, turn it and skip the grinding step. Rolling wins when volume is high and the material stays under 35 HRC.
Questions engineers ask next
Can a cnc screw mill cut any lead length?
Yes, within the machine travel. The lead is set in software, so the same machine handles a 1 mm lead and a 20 mm lead without a hardware change. The limit is the Z travel, not the lead value.
Very long leads change the wheel contact geometry. At steep helix angles the wheel edge contacts the flank over a longer line, which raises grinding force. Those jobs often need a smaller wheel or an extra roughing pass.
Does grinding remove the need for heat treatment?
No. Grinding is almost always the step after heat treatment. The screw is turned soft, hardened, then ground to final size. This sequence matters because hardening moves the part by tens of microns.
Grinding before hardening wastes the accuracy. The quench will distort the thread and there is no material left to correct it.
How do you hold pitch error on a 1,000 mm screw?
Three things do most of the work: thermal control, C-axis stiffness, and lead compensation. Coolant and spindle housings hold the machine near 20 °C. A direct-drive C axis removes backlash. A correction table absorbs the residual error.
In-process measurement is the fourth piece. Without live pitch data, the operator only finds out at final inspection, and by then the screw is finished.
What surface finish should I specify?
For a precision lead screw, Ra 0.2–0.4 µm is a reasonable target. Tighter than Ra 0.1 µm rarely pays back unless the application is optical or vacuum.
Looser than Ra 0.8 µm raises friction and wear. If the screw runs dry or in a dirty environment, stay at the finer end even if the drawing does not demand it.
Is a cnc screw mill the same as a thread grinder?
They overlap heavily. A thread grinder is built for short, high-volume threads such as taps and gauge threads. A cnc screw mill is built for long lead screws and ball screw shafts where pitch accuracy over the full length is the acceptance criterion.
The difference shows up in travel, thermal design, and in-process metrology, not in the grinding principle itself.
