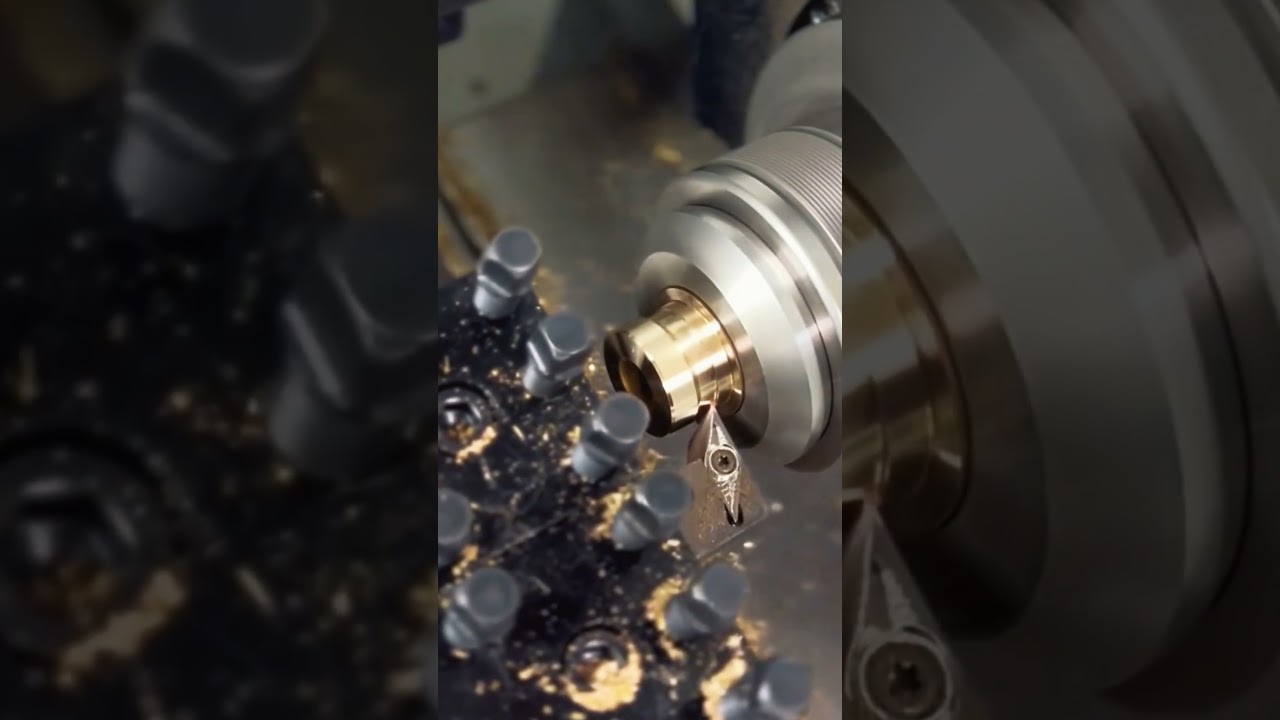

Produce 60 High-Quality Brass CNC Lathe Parts in Just One Day

• 1
  Why brass turns fast and where it stops being easy
• 2
  Turning parameters that keep 60 parts inside tolerance
• 3
  Tool wear, setup time, and the real clock on a one-day run
• 4
  What 100% inspection means on a 60-piece batch
• 5
  Which brass job fits a one-day run

Free-cutting brass is the reason a one-day run is even arguable. C36000 carries 2.5 to 3.7 percent lead, which acts as an internal chip breaker. The tool does not have to shear a continuous ribbon; the material fractures ahead of the edge. That is why a 12 mm diameter C36000 part can run at 200 to 300 m/min surface speed on a Swiss-type or a mill-turn center without chatter.

The same geometry in 316 stainless would need roughly a quarter of that speed. Thermal conductivity explains the rest. Brass pulls heat out of the cutting zone quickly, so the insert runs cooler and edge wear stays predictable across a 60-piece batch.

The limits appear when you leave the free-cutting family. C27400 and C28000 are stronger and cheaper, but they produce stringy chips that wrap the tool and stall a bar feeder. Beryllium copper turns cleanly but the dust is a health hazard and needs coolant control. C110 is nearly pure copper: gummy, prone to built-up edge, hard to hold below ±0.02 mm.

So the first question on any one-day brass job is not machine availability. It is which alloy the drawing actually calls for, and whether the drawing allows a free-cutting substitute.

• 1
  C36000Best chip control, 200–300 m/min, holds ±0.005 mm
• 2
  C27400 / C28000Stronger, stringy chips, needs peck cycles or high-pressure coolant
• 3
  C110Gummy, built-up edge risk, avoid tight tolerances
• 4
  Beryllium copperClean cut but requires dust and coolant controls

For C36000 with a coated carbide insert, a workable window is 200 to 300 m/min surface speed, 0.05 to 0.15 mm/rev feed, and 0.5 to 2.0 mm depth of cut for roughing. Finishing typically drops to 0.05 to 0.08 mm/rev and 0.2 to 0.5 mm depth to reach Ra 0.8–1.6 μm. Those numbers are starting points, not recipes.

Feed decides chip form more than speed does. Below roughly 0.05 mm/rev on brass, the chip gets thin and stringy and starts wrapping. Above 0.2 mm/rev, surface finish on a small-diameter part degrades fast and the part can deflect.

Depth of cut matters on slender parts. A 6 mm diameter brass shaft turned at 2 mm depth will deflect and taper. Two or three lighter passes with a support or a tailstock cost cycle time but keep the diameter uniform.

Coolant choice is often overstated on brass. Many shops run it dry or with a light mist because the material self-lubricates and chips clear well. The exception is deep drilling, where chip evacuation, not cooling, drives the decision.

• 1
  Roughing200–300 m/min, 0.05–0.15 mm/rev, 0.5–2.0 mm DOC
• 2
  Finishing0.05–0.08 mm/rev, 0.2–0.5 mm DOC for Ra 0.8–1.6 μm
• 3
  Slender partsReduce DOC to 0.5 mm or less, add support
• 4
  Deep drillingUse through-coolant or peck cycles for chip evacuation

Cycle time on a 60-piece brass run is rarely the bottleneck. Setup is. A typical lathe job needs the program proven, jaws bored, tools touched off, and the first article inspected. On a simple turned part with one or two features, that is 45 to 90 minutes. On a part with cross-drilling, a slot, or a thread, expect two to three hours before the first good piece.

Tool wear on brass is slow but not zero. Uncoated carbide on C36000 can hold an edge for several hundred parts. Diamond-coated or PCD inserts extend that further on high-volume runs. For 60 pieces, one insert per tool station is usually enough, but the operator still needs a wear check at part 30.

Thermal drift is the quiet failure mode. A machine that has been sitting cold will grow a few microns over the first thirty minutes of cutting. If the first article is inspected at minute five and production starts immediately, parts near the end of the batch can drift out of a ±0.005 mm band.

The fix is boring. Run a warm-up cycle, or hold the first ten parts and inspect them after the spindle has been running for half an hour.

• 1
  Setup45–90 min simple part, 2–3 h with cross-features
• 2
  Insert lifeHundreds of parts on C36000, check at part 30
• 3
  Warm-upRun 20–30 min before first-article inspection
• 4
  DriftInspect parts 1–10 after thermal stabilization

On a small brass batch, 100% inspection is practical. Every part can go across a bench micrometer for critical diameters, a pin gauge for bore sizes, and a thread gauge where threads exist. That takes minutes per part, not hours, because the features are few and the material is easy to measure.

The parts that need more attention are the ones with position tolerances. A cross-hole located to ±0.05 mm from a turned face needs a CMM or an optical comparator, not calipers. Those checks are usually sampled rather than run on all 60.

Surface finish is the check most often skipped and most often argued about. Ra 0.8–1.6 μm is a standard turned finish on brass, but it depends on feed, tool radius, and whether the part was run dry. If the drawing calls out a roughness value, it needs a profilometer reading on a sample, not a visual judgment.

Material traceability matters more than most engineers expect. Brass alloys are not interchangeable for every application, and a mill certificate ties the batch to a heat number. If the drawing names C36000, the certificate should say C36000.

• 1
  Critical diametersBench micrometer, all 60 parts
• 2
  Bores and threadsPin and thread gauges, all parts
• 3
  Position tolerancesCMM or optical comparator, sampled
• 4
  TraceabilityMill certificate matched to the drawing alloy
