What cnc rounds tool alignment actually sets

A lathe does not know where the tool tip is. It only moves a turret to coordinates the control was told about. Alignment is the act of telling the control how far each tip sits from the machine zero point, so the programmed diameter and the cut diameter match. Get that wrong and every dimension shifts by the same error, part after part.

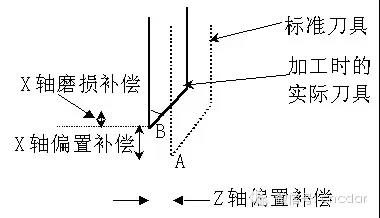

There are two numbers per tool on a two-axis lathe. The X offset fixes the diameter. The Z offset fixes the face position and shoulder length. On a mill-turn center or a lathe with a Y axis and a driven tool, you also carry Y and sometimes a second X for the sub-spindle, so a single tool can hold four numbers. Mixing them up is the most common cause of a scrapped first article.

Alignment is not the same as geometry. Geometry offset covers insert corner radius and tip orientation. Wear offset covers the small drift that builds up as the edge dulls. Keep them in separate registers. If you push every correction into the geometry page, you lose the record of how much the tool has already worn and you cannot predict when to index it.

1
X offsetDiameter direction. A 0.01 mm error here shows up as 0.02 mm on the part.
2
Z offsetLength direction. Controls faces, shoulders, and total part length.
3
Geometry vs wearKeep them in separate registers so tool life stays traceable.
4
Reference toolOne tool carries the program zero. All others are measured against it.

When to use it

Which alignment route fits your batch

For one-off parts and prototypes, touch-off with a feeler or a paper shim is fast enough. You jog the tool until it just contacts the stock, read the machine position, and subtract the shim thickness. Expect ±0.05 mm on a good day. That is fine for a bracket. It is not fine for a bearing seat.

For anything where the diameter tolerance is tighter than ±0.02 mm, use the test cut route. Take a 0.3 to 0.5 mm depth pass on a short journal, stop the spindle, measure with a micrometer at the same temperature as the machine, and enter the difference. This is the standard cnc rounds tool alignment route for production work and it is the one described in the steps below.

For high-volume runs on tough material, add a probe or an in-machine tool setter. A contact setter removes the operator from the loop and repeats to about ±0.002 mm. That matters when you run 4140 or 17-4PH and the insert wears quickly. The trade-off is cost and the fact that the setter itself needs periodic calibration against a known master.

1
Touch-off onlyPrototypes, loose tolerances, soft material, no probe available.
2
Test cutProduction turning where diameter tolerance is ±0.02 mm or tighter.
3
Tool setter or probeHigh volume, hard material, or lights-out running.

Errors

Common mistakes that break alignment

The first mistake is measuring a hot part. A 50 mm steel journal at 60 °C reads about 0.035 mm larger than it will at 20 °C. If you measure hot and set the offset from that number, the part shrinks out of tolerance once it cools. Let the part sit, or measure with coolant off and the spindle stopped for at least a minute.

The second is forgetting the radius convention. Many controls store X as a diameter, others as a radius. Enter a 0.02 mm correction in the wrong convention and you just doubled your error. Check the machine manual once, write the convention on a card, and tape it to the control.

The third is a worn insert. An edge that has cut 200 parts will push the diameter 0.02 to 0.05 mm depending on material. If your offset keeps growing in one direction, stop adjusting and index the insert. Chasing a worn edge with offsets burns the tool life record and hides the real problem.

1
Hot measurementThermal growth of 0.03 mm or more on a 50 mm steel part.
2
Radius vs diameterA factor-of-two error that looks like machine backlash.
3
Dull insertOffset creep in one direction. Index instead of compensating.
4
Dirty seatChips under the holder shift the tip by 0.01 mm or more.

Procedure

Step-by-step cnc rounds tool alignment

Follow the order. Skipping the warm-up or the confirmation cut is where most first articles die.

1
1. Warm the spindle and the turretRun the spindle at the cutting speed you will use for 10 to 15 minutes with no cut. Bring the coolant on. A lathe grows 5 to 15 μm in Z over the first hour of running, so align after warm-up, not before.
2
2. Load and seat every toolClean the taper and the seat. Clamp each holder and check the pull stud torque. A holder that is 0.01 mm off in the seat will not repeat, no matter how carefully you measure.
3
3. Pick the reference toolUse the tool that cuts the most critical diameter, usually the finish OD insert. Touch it to the stock in X and Z, set the program zero from it, and lock that offset. Every other tool now gets measured relative to this one.
4
4. Touch off the remaining toolsJog each tool to the stock with a 0.05 mm shim or a paper feeler. Enter the rough X and Z values. This gets you within a few hundredths, which is close enough to cut safely.
5

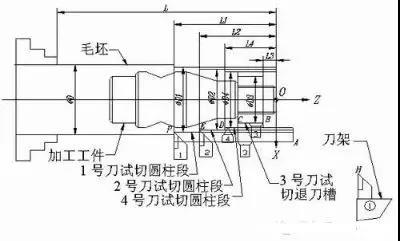

5. Cut a test journalFace the bar, then take a 0.3 to 0.5 mm depth pass 15 to 20 mm long at the real cutting speed and feed. Keep the coolant on. Retract in Z first, then X, so the insert does not drag.
6

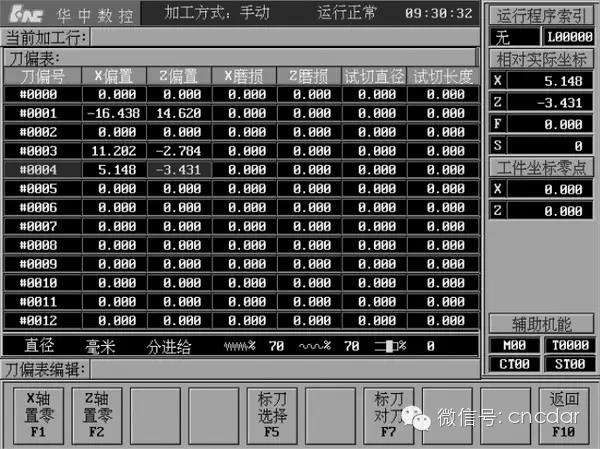

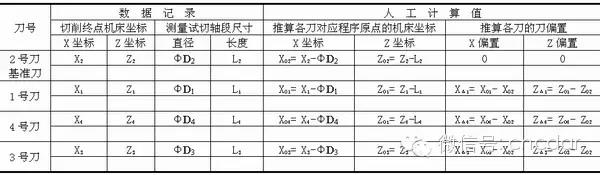

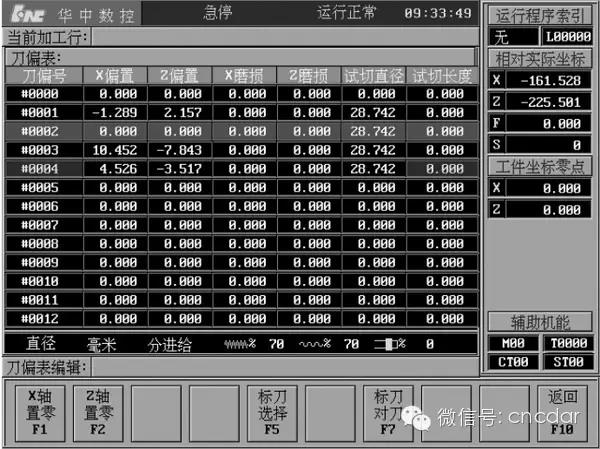

6. Measure and enter the offsetStop the spindle. Measure the journal with a micrometer at three points, 120° apart. Subtract the measured value from the target and enter the difference in the X wear register. Divide the error by two if your control defines X as a radius.
7
7. Repeat for Z on a faceFace to a known shoulder or face the bar end, then measure the length. Enter the Z difference the same way. Do not touch X to fix a Z problem.
8
8. Confirm with a second cutRun the same pass again and re-measure. If the diameter moves less than 0.005 mm, the alignment holds. If it moves more, the holder is not seating or the insert is chipped.

Choose your route

Alignment route comparison

Pick the route by tolerance and volume, not by habit.

Route	Repeatability	Best for	Main risk
Touch-off with shim	±0.05 mm	One-off parts, soft material	Shim compression gives a false zero
Test cut and offset	±0.005 mm	Production turning, tight diameters	Measuring a hot part
In-machine tool setter	±0.002 mm	High volume, hard material	Setter drift, no calibration
Preset offline in a tool presetter	±0.010 mm	Many tools, quick changeover	Holder seat error at the machine

The short version

Warm the machine, pick one reference tool, cut a test journal, and put the measured error into the wear offset. Test cut beats touch-off whenever the diameter matters.
