Precautions for Safe Operation of CNC Lathe Feeder

• 1
  How a feeder moves material into the lathe
• 2
  Guide channel and bar diameter limits
• 3
  Interlock logic and guarding that must not be bypassed
• 4
  What changes when the cell runs unattended
• 5
  Daily checks that keep a feeder safe
• 6
  Feeder type versus job requirements

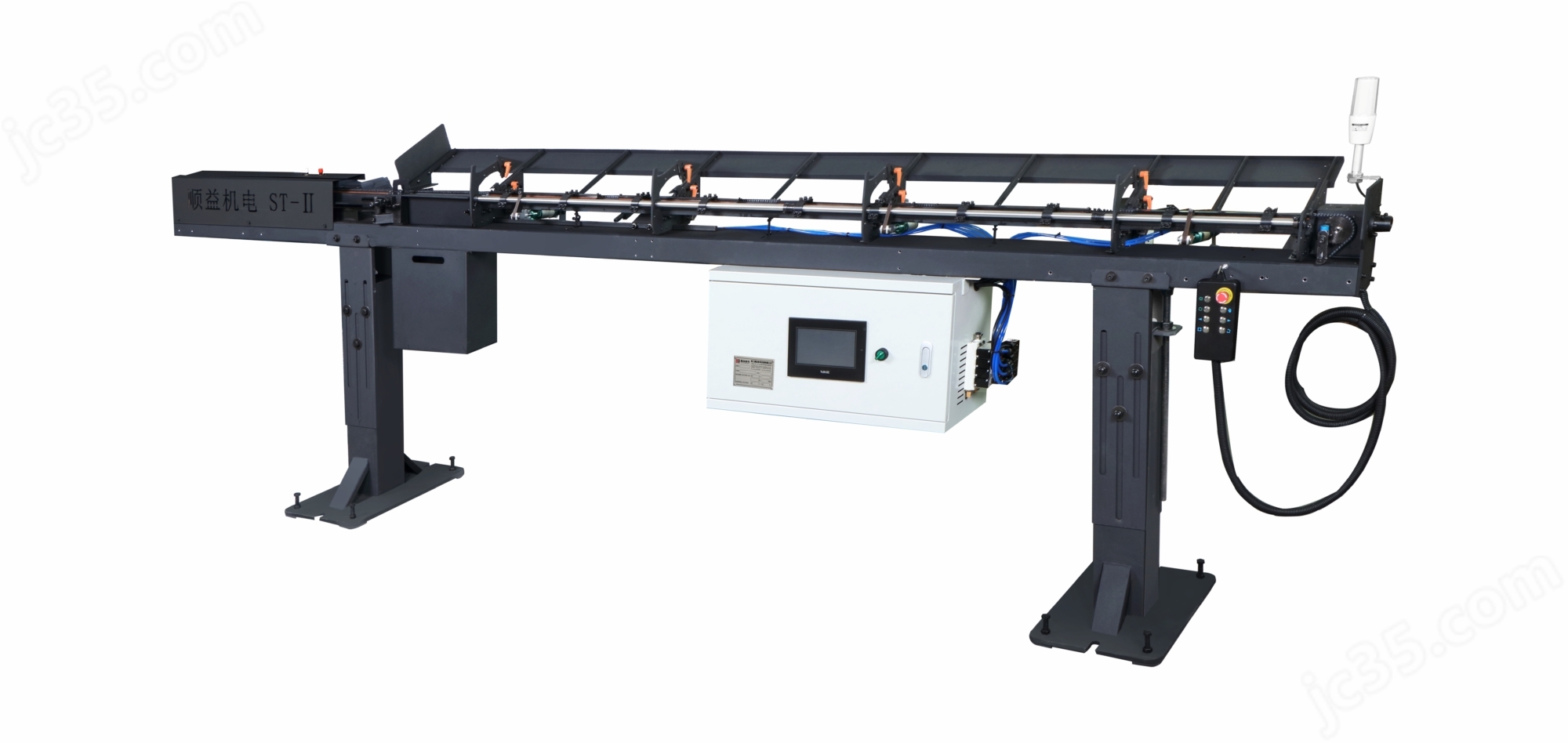

A bar feeder sits behind the headstock of a turning center and pushes bar stock through the spindle bore into the chuck. The magazine holds several bars in V-shaped pockets. A chain or belt indexes one pocket to the load line, a lifting arm raises the bar to spindle center height, and a pusher advances it until the remnant is all the lathe can hold. Everything after that is a repeat cycle.

The load line is the reference for the whole system. On a hydrodynamic feeder the bar floats inside an oil-filled guide channel, and the oil film does three jobs: it centers the bar, it damps vibration that would otherwise show up as chatter on the part, and it carries heat away from the contact zone. On a mechanical feeder the same job is done by hardened guide bushings and a rotating liner.

Pusher force matters more than most operators expect. A 40 mm 1045 bar needs enough thrust to overcome friction in the channel and the collet, but too much force bows the bar and drives runout at the chuck. Most builders set feed force between 0.5 and 3 kN depending on diameter.

The feeder and the lathe talk through a handshake signal: chuck closed, spindle at zero speed, bar present, remnant clear. If any condition is missing, the pusher will not advance. That handshake is the core of safe operation of CNC lathe feeder, and it is the first thing to verify after any maintenance.

Guide channel bore should sit 0.5–2 mm above the bar diameter for hydrodynamic feeders, and 2–5 mm for mechanical types that use replaceable liners. Too tight and the bar seizes when it heats up. Too loose and the bar whips inside the channel, which lifts the pusher and produces a taper on the first 30–50 mm of the part.

Bar straightness is the second limit. Most feeder makers specify 0.5 mm per meter of total indicated runout, and 1 mm per meter is the practical ceiling before the pusher starts to bind. Cold-drawn or ground bar runs cleanly. Hot-rolled or welded tube usually does not, unless it is straightened first.

Bar length has a floor as well as a ceiling. A feeder needs at least one full chuck grip plus 100–200 mm of remnant to push safely. Bars shorter than the magazine pocket spacing will index badly and can jam the lifting arm.

Surface condition counts. Scale, rust and heavy drawing compound raise friction in the channel, and the pusher has to work harder to hold position. For stainless 304 or 316L, a light oil film is usually enough. For titanium or Inconel, check with the feeder builder before running without oil.

The safety chain on a bar-fed lathe has four gates: the feeder access door, the lathe chuck guard, the spindle-safe signal and the remnant door. Each one carries a switch. Breaking any of them should stop the pusher within one cycle and hold the spindle at zero.

Muting a switch to keep production running is the single most common cause of feeder injuries. A jumper on the remnant door, for example, lets the pusher drive a bar into an empty channel with the door open. The bar exits at speed and there is nothing between it and the operator.

Pusher retract speed should be limited to about 0.3 m/s inside the guard zone. Faster retract looks harmless because the pusher is moving away, but a bent bar can catch the channel lip and flick sideways.

Oil mist and chips are the slow hazards. Hydrodynamic feeders generate mist that carries into the shop air, so extraction at the channel end is worth the ducting. Chip carry-over from the lathe into the guide channel scores the liner and raises friction over time, so a wiper at the spindle bore pays for itself.

Unattended running removes the person who would normally hear a change in sound. That means the feeder needs to detect the conditions a person would have noticed: bar end reached early, pusher stalled, spindle load spike, channel temperature rise.

Set the pusher stall torque alarm at roughly 120 percent of the normal feed force for the bar in use. A 20 percent margin absorbs normal friction variation and still trips before the pusher bends the bar or the collet slips.

Spindle load monitoring is the second layer. A dull insert or a chip jam shows up as a load rise of 10–15 percent on most turning centers, and the control can stop the cycle before the part is scrapped or the bar pulls out of the collet.

Remnant handling is the third. The remnant must be ejected completely before the next bar indexes. A partial remnant left in the channel will be hit by the next bar and can jam the lifting arm. Most controls count remnant eject cycles and alarm if the count does not increment.

Start of shift: verify the four interlock switches with the machine in setup mode, check channel oil level and color, and confirm the remnant bin is empty. A full remnant bin is a jam waiting to happen.

Weekly: clean the guide channel liner, check pusher alignment to spindle center within 0.1 mm, and inspect the lifting arm pads for wear. Worn pads let the bar sit low and the pusher pushes it off center.

Monthly: measure liner wear. Most liners have a wear limit around 0.3 mm on the bore. Beyond that, the bar sits loose and vibration rises. Replace, do not shim.

After any crash or bar jam: re-check pusher parallelism to the spindle axis, not just the alignment to the channel. A bent pusher rod can look straight in the channel and still push the bar at an angle into the collet.
