Machining Automobile Engine Parts: A 5-Step Shop Guide

• 1
  Key takeaways
• 2
  Read the print before machining automobile engine parts
• 3
  Set the datum and rough the part
• 4
  Choose the right machine for the feature
• 5
  Control heat and tool wear during the cut
• 6
  Inspect and document the finished parts
• 7
  Step by step: from raw stock to inspected part
• 8
  Which machine and process for which engine feature

Engine hardware is not like a bracket. A main bore, a cam tunnel, or a deck face usually carries a flatness, a diameter, and a position callout that all tie back to one datum. Before you quote or program, mark the primary, secondary, and tertiary datums on the drawing and decide which face on the raw casting will serve each one. If the print shows a GD&T frame without a clear datum scheme, ask the customer. Guessing here costs more than a phone call.

Check the material next. Aluminum 6061-T6 and 7075 behave very differently from 4140 steel or ductile iron when you cut them. Aluminum cuts fast but moves with heat. Cast iron is stable but dusty and abrasive. Steel needs lower surface speed and more attention to tool wear. The material list on the print drives your speeds, your coolant, and your inspection plan.

Finally, list the features that actually matter. On a cylinder head, that is usually the valve seat pockets, the guide bores, and the deck flatness. On a timing cover, it is the seal bore and the bolt pattern. Write these down. Everything else is secondary, and spending cycle time on a cosmetic boss is wasted money.

First op is about creating a reference, not making a finished surface. Face the stock and cut the primary datum pad in the same setup. This gives you a flat, known surface for every operation that follows. On a casting, machine a small pad rather than trusting the as-cast surface. As-cast skin can vary by 0.5 mm or more, and that variation will show up later as a shifted bore.

Rough with 1.5 to 3 mm of radial stock and 0.3 to 0.5 mm left for finishing. These numbers are typical for aluminum and mild steel. Hardened or high-nickel parts need lighter cuts. Keep the roughing pass aggressive enough to break the skin but not so deep that the part deflects in the vise. Thin walls and unsupported bosses will spring back.

After roughing, relieve stress. For aluminum, a 2 to 4 hour soak at 150 to 180 °C is common. For steel, a stress-relief cycle before finishing keeps the part from warping when you take the last 0.4 mm. This is the step most shops skip, and it is the reason a part measures good on the machine and bad on the CMM the next morning.

• 1
  One datum, one setupCut the primary datum pad in the first operation and never re-chuck off a raw surface.
• 2
  Leave uniform stock0.3 to 0.5 mm for finishing across the whole part keeps cutter load even.
• 3
  Relieve before finishingStress relief after roughing controls movement during the final cut.

A 3-axis mill handles flat decks, simple covers, and bolt patterns that all face one direction. If the part needs bores on two or more faces, a 4-axis or 5-axis setup saves a second fixture and a second datum transfer. Every re-fixturing adds error, so fewer setups usually means tighter position.

Five-axis work pays off on cylinder heads, intake manifolds, and turbo housings where angled ports and compound features sit off the main axes. A simultaneous 5-axis center can reach a port floor in one pass and keep the tool normal to the surface. That gives you a better finish and a more predictable bore position than a series of 3-axis cuts.

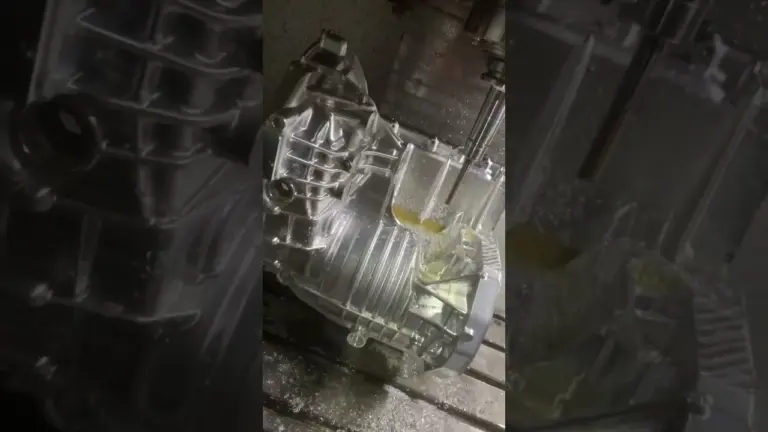

Size the machine to the part. A block that is 600 mm long needs a travel of at least 750 mm to leave room for the tool and the fixture. GreatLight runs 5-axis centers with travels up to 4,000 × 400 × 150 mm and a Ø400 mm rotary table, which covers most automotive engine and transmission housings. Match the work envelope before you match the spindle speed.

Heat is the quiet killer on engine parts. Aluminum expands about 23 μm per meter per °C, and steel about 11 μm. A 300 mm aluminum block that warms 10 °C during a long cycle grows roughly 0.07 mm. If you measure it hot, you will chase a number that keeps changing. Cut with coolant where the material allows and keep the chip load steady.

Tool wear shows up as a drift in diameter, not as a sudden crash. Log the bore size every 20 to 30 parts and watch the trend. A carbide reamer in aluminum might hold ±0.005 mm for 500 holes, then start to taper. Change the tool on the trend, not on the alarm. Spindle runout should stay under 5 μm for finishing work.

Climb milling on the finish pass gives a cleaner wall and less burr on the exit edge. Use a sharp, coated carbide end mill and keep the radial engagement low, around 5 to 10 percent of the cutter diameter, for the final pass. This reduces cutting force and helps hold a thin wall without chatter.

Let the part cool to room temperature before final inspection. Thirty to sixty minutes on the granite is a practical rule for most engine components. Measure the primary datum first, then the critical bores, then the bolt pattern. If the datum is off, the rest of the numbers mean nothing.

Use the right tool for the tolerance. A caliper is fine for a bolt hole at ±0.2 mm. A bore at ±0.005 mm needs a bore gauge or a CMM. For position callouts, a CMM with a rotary table reads true position faster than a manual setup. Record the actual values, not just pass or fail, so you can see a trend before it becomes a reject.

Ship with the paperwork. A first article report, material certs, and a dimensional report on the critical features give the customer a record and give you a defense if a question comes up later. GreatLight inspects 100 percent of parts before shipment and provides reports on request. That habit is why the qualification rate holds at 99.99 percent.

• 1
  Cool before you measureRoom-temperature parts read true; hot parts read small.
• 2
  Match tool to toleranceCalipers for ±0.2 mm, bore gauges or CMM for ±0.005 mm.
• 3
  Keep the dataActual values turn inspection into process control.
